- Page 2 WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 www.WesAudio.com SUPERCARRIER II User Manual Copyright 2024 by WesAudio...
- Page 3 WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 Supercarrier II Thank You for the purchase of Ng500 compatible frame With kind regards Radoslaw Wesolowski and Michal Weglicki...

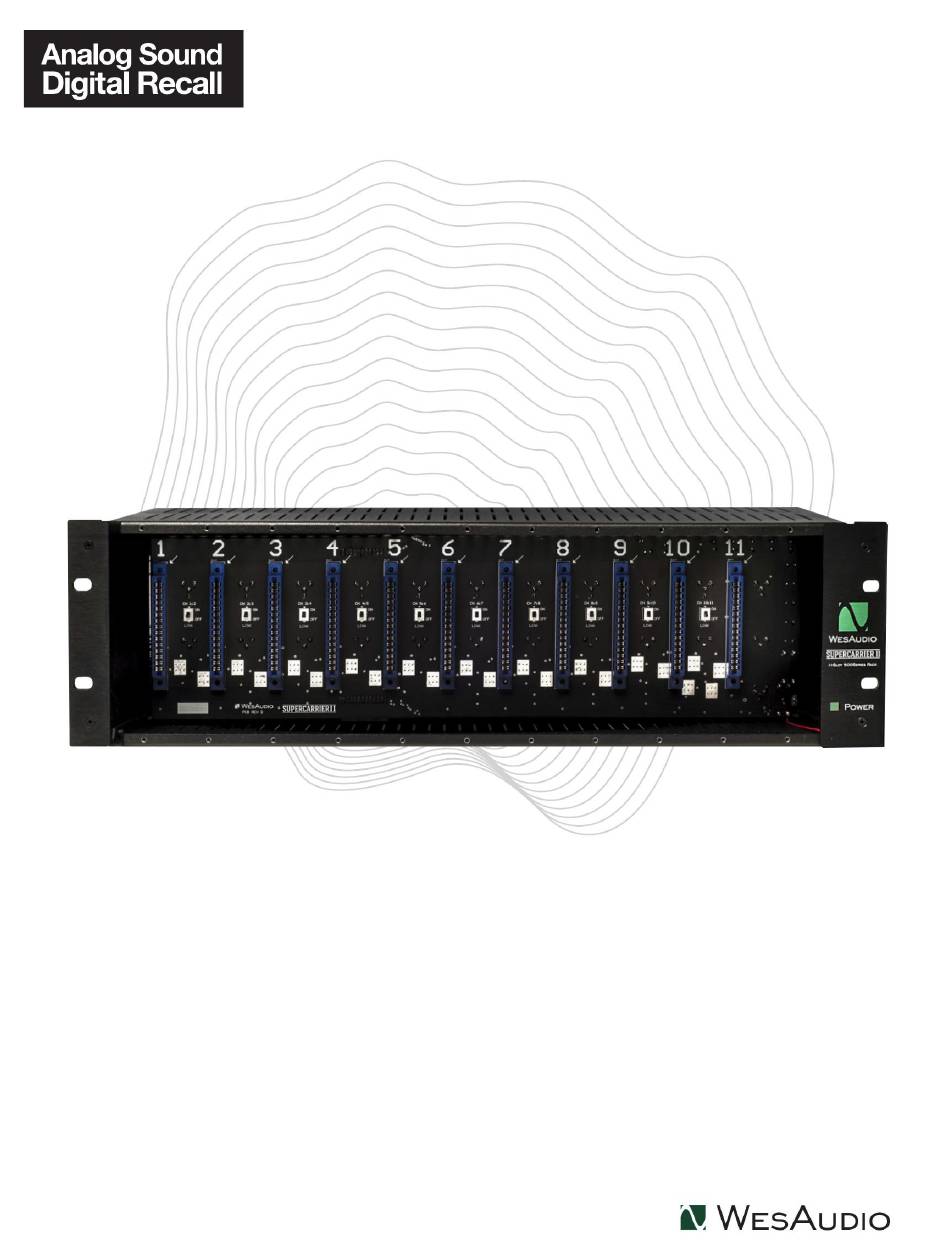

- Page 4 SUPERCARRIER USER MANUAL V1 500 SERIES CHASSIS The WesAudio Supercarrier II is a versatile 500 Series chassis designed to house up to 11 modules, offering flexibility for audio processing in studios. Its robust construction ensures durability and easy access to modules, making it suitable for both fixed and mobile setups.
-
Page 5: Table Of Contents
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 TABLE OF CONTENTS Overview ..............................6 Main Features .............................. 6 Understanding the 500 Series ........................7 Hardware ..............................8 4.1 Specification ............................... 8 4.2 Installation and Compatibility ........................9 4.3 Front Panel ..............................10 4.4 Rear Panel .............................. -
Page 6: Overview
SUPERCARRIER USER MANUAL V1 1 Overview Supercarrier II is a 500 Series chassis designed to hold up to 11 modules, offering extensive flexibility for studio configurations. Built with a durable frame and equipped with a reliable power supply, it ensures high-quality audio performance and smooth integration into any professional setup. -
Page 7: Understanding The 500 Series
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 3 Understanding the 500 Series The 500 Series protocol is a modular audio processing standard widely used in the professional audio industry. Developed for flexibility and space efficiency, it allows audio engineers to build customized signal processing chains using individual modules like preamps, compressors, and equalizers. -
Page 8: Hardware
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 4 Hardware This chapter will go through all analog features and explain all hardware aspects of Supercarrier II. 4.1 Specification Power consumption (empty frame) Unit dimensions 135x483x182 mm Box dimensions 274x550x382 mm Unit weight... -
Page 9: Installation And Compatibility
SUPERCARRIER USER MANUAL V1 4.2 Installation and Compatibility After unpacking your Supercarrier II frame, please check for any visible damage that may have occurred during transit. If there is any problem, please contact your dealer immediately for advice on what to do. -
Page 10: Front Panel
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 4.3 Front Panel... - Page 11 WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 1. Power LED: Indicates whether the rack is powered on or off. 2. Slots: 11 individual 500 Series modules, each powered independently through innovative ISP (Independent Slot Power) technology for optimal performance and isolation.
-
Page 12: Rear Panel
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 4.4 Rear Panel... -
Page 13: And Xlr Connections
2. DB25 Connectors: Provide balanced multi-channel inputs and outputs through a single connection, simplifying cabling and integration with other audio equipment. 3. Power Input: Supplies power to the Supercarrier II, ensuring stable and reliable operation for all modules. 4. Serial number. -
Page 14: External Power Supply
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 4.5 External Power Supply This power solution is a highly advanced, high-end linear system built around a toroidal transformer. As a linear power supply, it delivers exceptionally stable and clean voltage, crucial for minimizing noise and interference. The toroidal transformer further enhances its performance, making it an ideal choice for achieving the highest audio quality in professional setups. -
Page 15: Voltage Selector And Fuses
Voltage Selector The Supercarrier II can be configured to operate at either 230V or 115V. Please note that your unit is pre- configured for the specific sales region, including the appropriate fuse setup for either 230V or 115V. If you need to change the voltage configuration using the power selector, make sure to also use the correct fuse for the new voltage setting. -
Page 16: Spare Fuses
WESAUDIO 8/30/24 SUPERCARRIER USER MANUAL V1 4.6.2 Spare Fuses A spare fuse is included in the power supply, allowing you to quickly swap it with the primary fuse when needed. -
Page 17: Troubleshooting
No Sound Output or Signal Loss • • No power to the modules. • Blown fuse after switching voltage settings. • Intermittent power to certain slots. • External power supply overheating. Please visit the WesAudio FAQ site https://wesaudio.com/faq/ for detailed troubleshooting steps and solutions. -
Page 18: Warranty
SUPERCARRIER USER MANUAL V1 6 Warranty WesAudio is committed to delivering products of the highest quality, designed for durable and reliable performance over many years, assuming proper care, usage, transport, and storage. Our products come with a two-year warranty covering defects in parts and workmanship from the original date of purchase.
