WinSystems PPM-LX800-G-ST

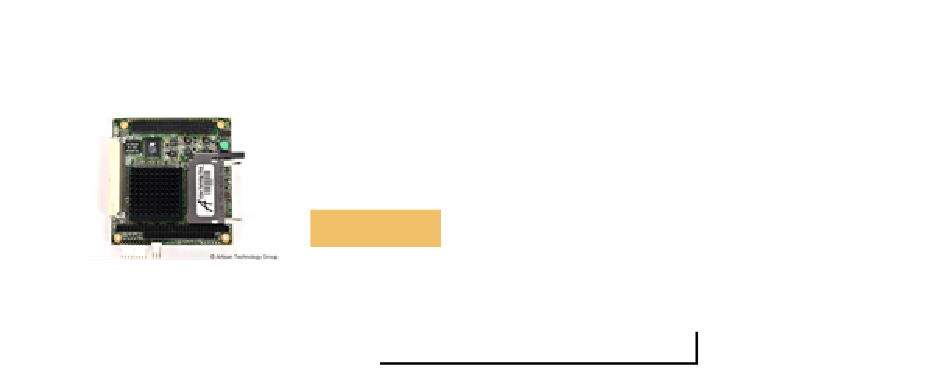

PC/104-Plus Single Board Computer
A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
• C r i t i c a l a n d e x p e d i t e d s e r v i c e s
• I n s t o c k / R e a d y - t o - s h i p
Artisan Scientific Corporation dba Artisan Technology Group is not an affiliate, representative, or authorized distributor for any manufacturer listed herein.
Limited Availability
Used and in Excellent Condition
Open Web Page
https://www.artisantg.com/68178-1
• We b u y y o u r e x c e s s , u n d e r u t i l i z e d , a n d i d l e e q u i p me n t
• F u l l - s e r v i c e , i n d e p e n d e n t r e p a i r c e n t e r

Advertisement

loading
Need help?

Need help?

Do you have a question about the PPM-LX800-G-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for WinSystems PPM-LX800-G-ST

  • Page 1 WinSystems PPM-LX800-G-ST PC/104-Plus Single Board Computer Limited Availability Used and in Excellent Condition Open Web Page https://www.artisantg.com/68178-1 A l l t r a d e m a r k s , b r a n d n a m e s , a n d b r a n d s a p p e a r i n g h e r e i n a r e t h e p r o p e r t y o f t h e i r r e s p e c t i v e o w n e r s .
  • Page 2 OPERATIONS MANUAL PPM-LX800-G This manual has been designed and created for use as part of WinSystems website. Web NOTE: access is required. WinSystems reserves the right to make changes in the circuitry and specifications in the documentation at any time without notice.
  • Page 3 REVISION HISTORY P/N 400-0359-000 Date Code Rev Level ECO Number 101019 10-64 090609...
  • Page 4 Table of Contents Visual Index – Quick Reference Top View Bottom View Top View - LEDs Introduction Features Functional Capability System Processor Memory Interrupt Routing Interrupt Status Register Power and Reset Interface Power Fail Reset Real-Time Clock/Calendar Battery Backup Rotational Disk Support CompactFlash Serial Interface Serial Connector Summary...
  • Page 5 BIOS Supplemental BIOS Settings Storage Options Serial Console Reference I/O Port Map Interrupt Map Cables Software Drivers & Examples Mechanical Drawing Jumper Reference Specifications Warranty Information...
  • Page 6 Visual Index – Quick Reference Top View PC/104-Plus CompactFlash Master/Slave; EEPROM Access; Battery Enable; DIO Power Multi-I/O Connector Speaker PC/104 Connector PC/104 Connector CompactFlash Socket Power External Battery NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable.
  • Page 7 Visual Index – Quick Reference Bottom View J105 Flat Panel Options J104 J107 CRT Connector SODIMM Socket J103 Connector J102 Audio J108 IDE; Connector Digital I/O Connector J101 Flat Panel Connector J106 Backlight Power NOTE: The reference line to each component part has been drawn to Pin 1, and is also highlighted with a square, where applicable.
  • Page 8 Visual Index – Quick Reference Top View - LEDs Ethernet Speed Ethernet Link Integrity Ethernet Activity IDE Activity Status LED 101019 OPERATIONS MANUAL PPM-LX800-G...
  • Page 9 Introduction This manual is intended to provide the necessary information regarding configuration and usage of the PPM-LX800-G board. WinSystems maintains a Technical Support Group to help answer questions not adequately addressed in this manual. Contact Technical Support at (817) 274-7553, Monday through Friday, between 8 AM and 5 PM Central Standard Time (CST).
  • Page 10 Power • +5V required, 1.2A typical Industrial Operating Temperature Range • -40°C to 85°C Form Factor • PC/104-Plus-compliant • 3.60” x 3.80” (90 mm x 96 mm) Additional Features • RoHS compliant • PC/104 and PC/104-Plus expansion connectors • Insyde BIOS •...
  • Page 11 The RAM can be user supplied, but must meet the following criteria: 200-Pin SODIMM PC2700 DDR SDRAM with gold fingers (up to 1 GB) WinSystems cannot guarantee the operation of systems using nonqualified SODIMM modules. Installation is accomplished by inserting the module into the connector at approximately a 30 degree angle.
  • Page 12 Power and Reset Interface Visual Power is supplied to the PPM-LX800-G through the 8-pin Molex connector at J10. The Index definitions for J10 are: 8 7 6 5 4 3 2 1 o o o o o o o o An optional reset button can be connected between pin 8 and ground.
  • Page 13 An optional external battery, connected at J8, supplies the PPM-LX800-G board with Index standby power for the real-time clock and CMOS setup RAM. An extended temperature lithium battery capable of backing up the PPM-LX800-G is available from WinSystems, part number BAT-LTC-E-36-27-1 BAT-LTC-E-36-16-1 if applicable).
  • Page 14 Serial Interface Visual Four independent, asynchronous serial channels are on-board. Interface is provided Index at connector J11, which is an 80-pin high-density connector. WinSystems offers the cable CBL-251-G-1-1.5 to simplify the connection. Configuration options for RS-232, RS-422 and RS-485 are listed on the following page.
  • Page 15 If termination is required, then terminating resistors will need to be external to the board. Delta termination is required if using auto terminating modes (described above). Optional on-board terminating resistors are available in OEM quantities. Contact your WinSystems Applications Engineer for more assistance. COM3 and COM4 Configuration Options...
  • Page 16 Contact your WinSystems’ Applications Engineer for information about available cable kits and supported panels. This manual does not attempt to provide any information about how to connect to specific LCDs.
  • Page 17 (RED) SPEED LED3 (GREEN) STATUS NOTE: WinSystems cannot provide technical support for direct programming of the 82551ER controller. We suggest utilizing a TCP/IP stack or Network OS that allows the use of preexisting 82551ER drivers. Status LED Visual A red status LED is populated on the board at D15 which can be used for any Index application specific purpose.
  • Page 18 Digital I/O Visual The PPM-LX800-G has 16 open collector digital I/O bits with 10K pullup with a default Index base address of 120H. These 16 lines are capable of fully latched event sensing with sense polarity being software programmable. A 50-pin connector allows for easy mating with industry standard I/O racks.
  • Page 19 WS16C48 Compatible Digital I/O This device provides 16 lines of digital I/O. The following table summarized the registers and the text that follows provides details on each of the internal registers. I/O Address Page 0 Page 1 Page 2 Page 3 Offset Port 0 I/O Port 0 I/O...
  • Page 20 POL0 - POL2 – These registers are accessible when Page 1 is selected. They allow interrupt polarity selection on a port–by–port and bit-by-bit basis. Writing a 1 to a bit position selects the rising edge detection interrupts while writing a 0 to a bit position selects falling edge detection interrupts.
  • Page 21 The PPM-LX800-G provides a 2-channel line level input, 2-channel line level output and microphone input. J102 (on the bottom side of the board) provides connection to the audio interface. WinSystems offers cable CBL-270-G-1-1.5 to simplify this connection.
  • Page 22 The PPM-LX800-G provides two channels of USB 2.0 compatible support. These Visual are terminated to an 8-pin, 2 mm connector at J103. An adapter cable Index CBL-275-G-1-1.0 is available from WinSystems for connection. The pinout for the connector is: J103 USBVCC 1 o o 2...
  • Page 23 J11. A cable, part number CBL-251-G-1-1.5, is available from WinSystems to adapt to the conventional I/O connectors. The interface to digital I/O and IDE hard disk drives are terminated at J108. A cable part number CBL-352-G-1-1.5...
  • Page 24 Three interfaces are provided to the watchdog timer. The Index Advanced interface is the most flexible and recommended for new designs. The other two interface options are provided for software compatibility with older WinSystems single board computers. Advanced The watchdog timer can be enabled in the BIOS Settings by entering a value for Watch- Dog Timeout on the Peripherals screen.
  • Page 25 NOTES: 1. Rows C and D are not required on 8-bit modules. 2. B10 and C19 are key locations. WinSystems uses key pins as connections to GND. 3. Signal timing and function are as specified in ISA specification. 4. Signal source/sink current differ from ISA values.
  • Page 26 PC/104-Plus Bus Interface Visual The PPM-LX800-G supports peripheral expansion using the PC/104-Plus connector at J6. Index Up to three PC/104-Plus modules can be stacked onto the PPM-LX800-G. PC/104-Plus modules should be attached and configured beginning at slot 1. The PC/104-Plus bus pin definitions are shown here for reference purposes only.
  • Page 27 This page has been left intentionally blank. 101019 OPERATIONS MANUAL PPM-LX800-G...
  • Page 28 BIOS Supplemental General Information Visual The PPM-LX800-G includes BIOS from Insyde Software, Inc. to assure full compatibility Index with PC operating systems and software. The basic system configuration is stored in battery backed CMOS RAM within the clock/calendar. As an alternative, the CMOS configuration may be stored in EEPROM for operation without a battery.
  • Page 29 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. Main Menu A. Time 22:40:32 B. Date 06/09/2009 C. Peripheral Device, PCI, USB, and PC-104 Buses D. Memory and Cache E.
  • Page 30 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. C. Peripheral Device, PCI, USB, and PC-104 Buses > A. Storage IDE Configuration Primary ATA Controller: Enabled BIOS Support: Enabled Cable Sense: Auto DMA/UDMA Support: Enabled Drive 1 Mode: Auto...
  • Page 31 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. C. Peripheral Device, PCI, USB, and PC-104 Buses > B. Peripherals Serial Ports Port A: Enabled BRG: LO Addr: 0x03F8 IRQ: 4 I/F: RS232 Port B: Enabled...
  • Page 32 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. C. Peripheral Device, PCI, USB, and PC-104 Buses > C. Graphics Internal Controller Mode: Secondary Controller Options: Secondary Controller Disabled Primary Controller Graphics Memory: 24 Driver Controls Init: Disabled...
  • Page 33 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. C. Peripheral Device, PCI, USB, and PC-104 Buses > D. PCI and USB Buses PCI Interrupt Steering PCI INTA#: IRQ 11 PCI INTB#: IRQ 10 PCI INTC#: IRQ 10 PCI INTD#: IRQ 11...
  • Page 34 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. C. Peripheral Device, PCI, USB, and PC-104 Buses > E. PC-104 Bus PC-104 Bus Interrupt Steering IRQ3: Disabled IRQ4: Disabled IRQ5: Disabled IRQ6:...
  • Page 35 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. D. Memory and Cache Cache Enable: Enabled Cache Mode: Write-Back Options: Options: Enabled Write-Back Disabled Write-Through L2 Cache Enable: Enabled Cache Allocate: Disabled Options: Options:...
  • Page 36 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. E. Environmental Thermal SetPoints Ambient High Temperature: 45 Options: {Enter temperature value in Celsius.} CPU High Temperature: 80 Options: {Enter temperature value in Celsius.} Read Current Temperatures and Voltages...
  • Page 37 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. F. Power Management BIOS PM at Boot: Disabled Options: Enabled Disabled APM Available: Yes Options: ACPI Available: Yes Options: S1 Clocks: On (Most Power) Options: On (Most Power) Off (Least Power)
  • Page 38 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. G. Miscellaneous Configuration Display F1 Messages: Enabled Options: Enabled Disabled Splash Screen Configuration Splash Screen: Enabled Options: Enabled Disabled Splash Screen Timeout: 0 Options: {Enter milliseconds to wait (0, 1-65535 - 0=default:3000).} Clear Splash Screen: Enabled...
  • Page 39 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. H. Serial Console Console Type: Normal Video/Keyboard Baud rate defaults to 38400 Options: Normal Video/Keyboard Serial Console Only Keyboard/Video and Serial Port: COM1 (3F8 IRQ 4) Options: COM1 (3F8 IRQ 4)
  • Page 40 Note: Defaults are indicated in bold for BIOS properties. Default options that cannot be user-modified are indicated with grey text. O. Boot Order Boot Order 1. Hard Drive 2. USB Floppy Disk 3. USB Hard Disk/Flash Drive 4. USB CD-ROM Drive 5.
  • Page 41 BIOS Settings Storage Options CMOS Storage Location The PPM-LX800-G’s BIOS configuration is stored in three (3) locations: (1) CMOS RAM (nonvolatile if battery backed) (2) EEPROM (nonvolatile storage for user defaults) (3) FLASH PROM (nonvolatile storage for factory defaults) Saving the CMOS Configuration The Real-Time Clock and the CMOS RAM settings can be maintained by an optional battery when the board is powered off.
  • Page 42 (options S and T, respectively). Updating the BIOS FLASH PROM The most recent PPM-LX800-G BIOS is available on the WinSystems website. However, it is highly recommended that an Applications Engineer be consulted prior to any BIOS FLASH PROM update. If the BIOS PROM is updated, the steps described above must be followed to reset the CMOS and EEPROM to the newly loaded factory defaults and to clear the data from the previous BIOS version.
  • Page 43 Serial Console Reference Introduction This section documents the usage of the WinSystems Serial Console feature present on the PPM-LX800-G board. The serial console consists of special BIOS code and a special terminal program used to communicate with the board. The serial console WINCOM.EXE provides access to the Insyde CMOS setup options via...
  • Page 44 Getting Started with the Serial Console The PPM-LX800-G defaults to a standard video/keyboard configuration. In order to gain access to the system via the serial console for the first time, the following steps must be followed. Copy WINCOM.EXE onto a DOS boot disk for the client (terminal) machine. Attach a Null-Modem cable between COM1 of the PPM-LX800-G and a free COM port on the client machine.
  • Page 45 Copy File using the Serial Console Besides being useful for accessing the CMOS setup menu, the serial console can be used effectively with non-graphical DOS applications or for command prompt access. The serial console can also be used in conjunction with the SCOPY.EXE utility to provide the ability to serially upload or download files from the PPM-LX800-G to the client PC and vice versa.
  • Page 46 File Download Assuming the same connection settings as those referenced above, to send a file called APP.EXE from the PPM-LX800-G to a WINCOM client PC, use the following command: scopy com2 -sq app.exe -b115200 If no file path is provided, the file must exist in the current directory on the PPM-LX800-G.
  • Page 47 I/O Port Map Following is a list of PC I/O ports. I/O addresses marked with ‘**’ are generally unused and should be the basis for the first choices in I/O address selection for external I/O boards. NOTE: The PPM-LX800-G uses a PnP BIOS resource allocation. Care must be taken to avoid contention with resources allocated by the BIOS.
  • Page 48 Interrupt Map Hardware Interrupts (IRQs) are supported for both PC/104 (ISA) and PC/104-Plus (PCI) devices. The user must reserve IRQs in the BIOS CMOS configuration for use by legacy devices. The PCI/PnP BIOS will use unreserved IRQs when allocating resources during the boot process.
  • Page 49 Cables Part Number Description CBL-SET-359-G-1 Various cables for the PPM-LX800-G includes: CBL-234-G-1-1.375 14-pin ribbon to 15-pin D-Sub CRT Adapter CBL-251-G-1-1.5 1-ft., Multi-I/O Cable CBL-174-G-1-1.5 18-in., 8-wire Power Cable CBL-270-G-1-1.5 Stereo Audio Access Cable CBL-275-G-1-0.5 2-mm., 8-pin, Dual USB CBL-352-G-1-1.5 IDE and Digital I/O Breakout BAT-LTC-36-16-1 External 3.6V, 1600 mAH battery with plug-in connector 101019...
  • Page 50 Software Drivers & Examples BIOS PPM-LX800-G BIOS See WinSystems website. Ethernet Driver (Drivers for 82551ER/82559ER 10/100 Ethernet Controller) NDIS 4 (Windows 98) 82559ERWIN98.zip NDIS 4 (Windows NT4/2000) e100ndis4.zip Windows NT Embedded 4.0 e100ent.zip Windows XP/2000 e100exp.zip e100bdos.zip Linux 2.4, 2.6 10/100 Adapter Base Driver e100-3.5.14.tar.gz...
  • Page 51 Mechanical Drawing 101019 OPERATIONS MANUAL PPM-LX800-G...
  • Page 52 Jumper Reference Drawings ONLY - for more detailed information on these parts, refer to the descriptions shown previously in this manual. CompactFlash Master/Slave; EEPROM Access; Battery Enable; DIO Power 7 5 3 1 o o o o o o o o 8 6 4 2 Master CompactFlash...
  • Page 53 J105 Flat Panel Options 2 4 6 8 Avoid Simultaneous Jumpering of pins 1-2 and 3-4. o o o o Misjumpering panel power could cause damage to the J105 o o o o board and/or the Flat Panel. 1 3 5 7 1-2, 3 4 Panel Power 3.3V (default)
  • Page 54 Specifications Electrical PPM-LX800-G CPU :AMD Geode™ LX800 Clock :533 MHz PC/104 Interface :16-bit, stackthrough optional PC/104-Plus Interface :32-bit PCI, stackthrough optional Ethernet data rate :10/100 Mbps USB Interface :Two (2) USB 2.0 ports Serial Interface :Four (4) Serial channels with RS-232 levels plus RS-422/485 on COM1 and COM2 :Up to 1920x1440 resolution Flat Panel...
  • Page 55 Notwithstanding anything herein to the contrary, this warranty granted by WinSystems to the Customer shall be for the sole benefit of the Customer, and may not be assigned, transferred or conveyed to any third party. The sole obligation of WinSystems for...
