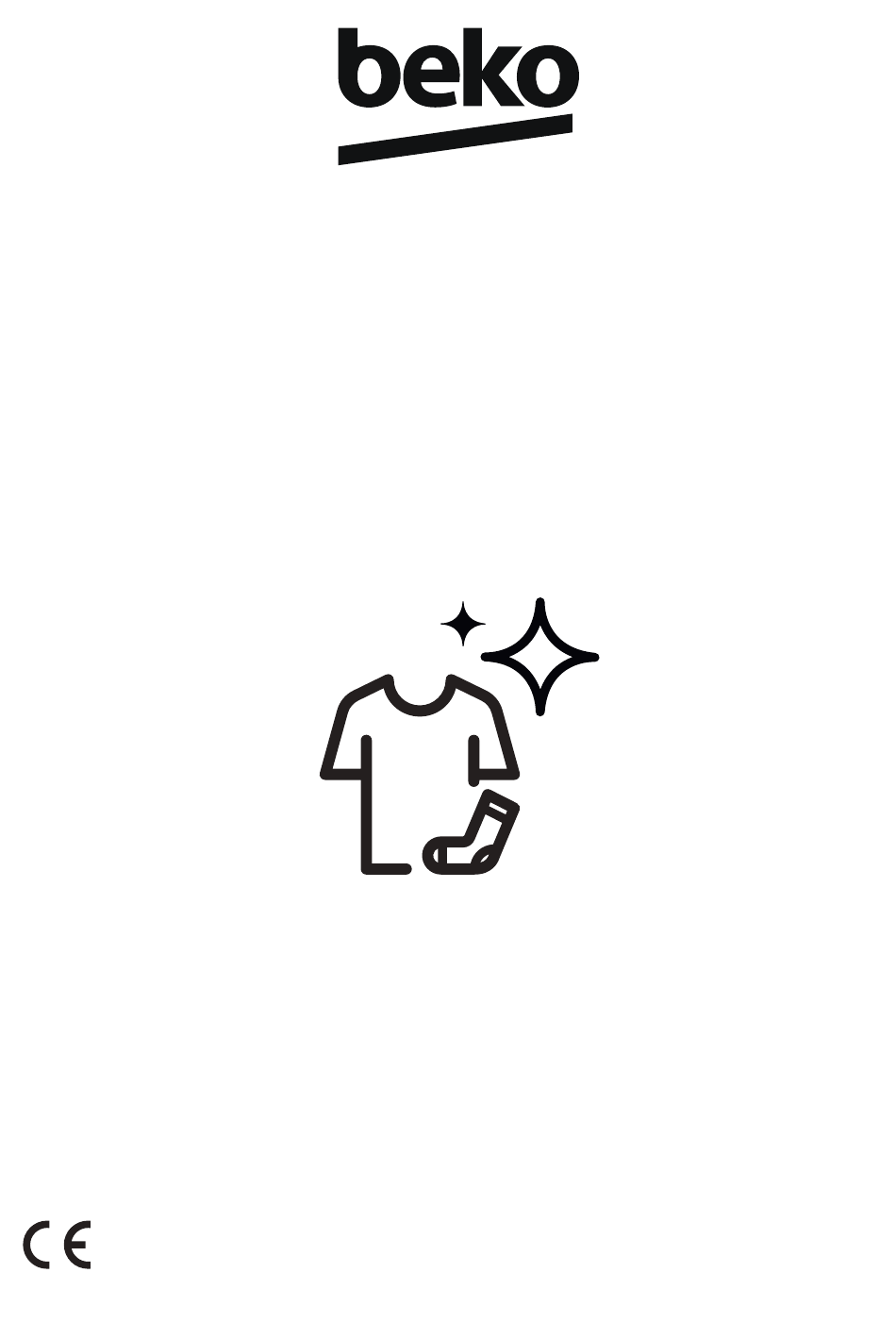

- Page 1 Washing Machine User’s Manual Masinã de spãlat automatã Manual de utilizare Mosógép Használati útmutató WUE 6512 XWST EN/RO/HU Document Number:1911861430_EN/ 31-08-20.(14:22)
- Page 2 This product was manufactured using the latest technology in environmentally friendly conditions.
- Page 3 General safety instructions This section includes security instructions which may help prevent the injuries and material damage risks. All kinds of warranties shall be invalid if these instructions are not observed. 1.1 Life and property safety Never place the product on a carpet-covered floor. Electrical parts will get overheated since air cannot circulate from under the device.
- Page 4 Use child lock to prevent children from intervening with the product. Do not forget to close the loading door when leaving the room where the product is located. store all detergents and additives in a safe place away from the reach of the children by closing the cover of the detergent container or sealing the detergent package.
- Page 5 Important instructions for environment 2.1 Compliance with the WEEE Directive and Disposing of the Waste Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE). This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life.
- Page 6 Technical specifications Complying Commission Delegated Regulation (EU) No 1061/2010 Supplier name or trademark Beko WUE 6512 XWST Model name 7000040047 Height (cm) Width (cm) Depth (cm) Net weight (±4 kg.) Single Water inlet / Double Water inlet • / - •...
- Page 7 4.1 Installation • Preparation of the location and electrical, tap water and waste water installations at the place of installation is under customer's responsibility. • Make sure that the water inlet and discharge hoses as well as the power cable are not folded, pinched or crushed while pushing the product into its place after installation or cleaning procedures.
- Page 8 4.1.4 Connecting water supply The water supply pressure required to run the product is between 1 to 10 bars (0.1 – 1 MPa). It is necessary to have 10 – 80 liters of water flowing from the fully open tap in one minute to have your machine run smoothly. Attach a pressure reducing valve if water pressure is higher.
- Page 9 Loosen the lock nuts on the feet by hand. Adjust the feet until the product stands in a stable and balanced way. Tighten all lock nuts by hand again. 4.1.7 Electrical connection Connect the product to a grounded outlet protected by a 16 A fuse. The Manufacturer shall not be liable for any damages that will arise when the product is used without grounding in accordance with the local regulations.
- Page 10 4.2 Preparation 4.2.1 Sorting the laundry * Sort laundry according to type of fabric, color, and degree of soiling and allowable water temperature. * Always obey the instructions given on the garment tags. 4.2.2 Preparing laundry for washing • Laundry items with metal attachments such as, underwired bras, belt buckles or metal buttons will damage the machine.
- Page 11 4.2.6 Using detergent and softener When using detergent, softener, starch, fabric dye, bleacher and decolorant, descaling agents; read the manufacturer's instructions written on the package and follow the dosages specified. Use measuring cup if available. The detergent drawer is composed of three compartments: –...
- Page 12 Using liquid detergents If the product contains a liquid detergent cup: • Put the liquid detergent container into the compartment no “2”. • If the liquid detergent lost its fluidity, dilute it with water before putting it into the detergent container.
- Page 13 4.2.7 Tips for efficient washing Clothes Light Colours and Black/Dark Delicates/ Colours Whites Colours Woolens/Silks (Recommended (Recommended (Recommended temperature (Recommended temperature temperature range temperature range range based on soiling level: range based on soiling level: based on soiling based on soiling 40-90 cold -40 level: cold -40 o C)
- Page 14 4.3 Operating the product 4.3.1 Control panel 1 - Programme Selection Knob (Uppermost position On 6 - Auxiliary Function Button 3 / Off) 7 - Auxiliary Function Button 2 2 - Display 8 - Auxiliary Function Button 1 3 - End Time Adjustment Button 9 - Spin Speed Adjustment Button 4 - Programme Follow-up Indicator 10 - Temperature Adjustment Button...
- Page 15 4.3.4 Programme and consumption table Auxiliary functions Selectable Programme temperature range °C 1,950 1000 • • • • Cold-90 Cottons 1,800 1000 • • • • Cold-90 0,950 1000 • • • Cold-90 • 40 *** 45,0 1,020 1000 40-60 40 **,*** 31,0 0,560 1000...
- Page 16 INFORMATION • Water and power consumption may vary subject to the changes in water pressure, water hardness and water temperature, ambient temperature, type and amount of laundry, selection of auxiliary functions and spin speed, and changes in the mains voltage. •...
- Page 17 4.3.5 Main programmes Depending on the type of fabric, use the following main programmes. • Cottons You can wash your durable cotton laundry (sheets, bedlinen, towels, bathrobes, underwear etc.) in this programme. When you press the quick wash function key, programme duration becomes notably shorter but effective washing is ensured thanks to intense washing movements.
- Page 18 Xpress / Super Short • Use this programme to wash your lightly soiled cotton clothes in a short time. The programme duration can be reduced down to 14 minutes when the quick wash function is selected. When the quick wash function is selected, maximum 2 (two) kg of laundry must be washed.
- Page 19 INFORMATION • Use a lower spin speed for delicate laundries. 4.3.8 Temperature selection Whenever a new programme is selected, the recommended temperature for the selected programme appears on the temperature indicator. To decrease the temperature, press the Temperature Adjustment button. Temperature will decrease gradually. When the cold level is selected, temperature level lights will not be on.
- Page 20 INFORMATION • Prewash without detergent is recommended for tulle and curtains. • Fast+ When this function is selected, durations of relevant programmes get shorter by 50%. Thanks to the optimised washing steps, high mechanic activity and optimum water consumption, high washing performance is achieved in spite of the reduced duration.
- Page 21 INFORMATION • In addition to the method above, to deactivate the Child Lock, switch the Programme Selection knob to On/Off position when no programme is running, and select another programme. • Child Lock will not be disabled after a power failure or unplugging. •...
- Page 22 INFORMATION • If no programme is started or no key is pressed within 10 minutes during the programme selection process, the display lights will go off. Once the Programme Selection knob is turned or any button is pressed, display lights will turn on again. 4.3.13 Progress of programme Progress of a running programme can be followed from the Programme Follow-up indicator.
- Page 23 Changing the auxiliary function, speed and temperature Depending on the step the programme has reached, you can cancel or select auxiliary functions. See “Auxiliary function selection”. You can also change the speed and temperature settings. See "Spin speed selection" and "Temperature selection".
- Page 24 4.4 Maintenance and cleaning Service life of product extends and frequently experienced problems will be reduced if it is cleaned at regular intervals. 4.4.1 Cleaning the detergent drawer Clean the detergent drawer at regular intervals (every 4-5 washing cycles) as shown below in order to prevent accumulation of powder detergent in time.
- Page 25 4.4.5 Draining remaining water and cleaning the pump filter The filter system in your machine prevents solid items such as buttons, coins and fabric fibers clogging the pump impeller during discharge of washing water. Thus, the water will be discharged without any problem and the service life of the pump will extend.
- Page 26 Troubleshooting Problem Reason Solution Program does not start after Start / Pause / Cancel button was not pressed. • *Press the Start / Pause / Cancel button. closing the door. It may be difficult to close the loading door in case of •...
- Page 27 Problem Reason Solution Programme time does not Timer may stop during water intake. • Timer indicator will not countdown until the countdown. (On models with machine takes in adequate amount of water. The display) (*) machine will wait until there is sufficient amount of water to avoid poor washing results due to lack of water.
- Page 28 Problem Reason Solution It does not rinse well. The amount, brand and storage conditions of the • Use a detergent appropriate for the washing machine and detergent used are inappropriate. your laundry. Keep detergents closed in an environment free of humidity and do not expose them to excessive temperatures.
- Page 29 Problem Reason Solution (*) Machine does not switch to spinning step when the laundry is not evenly distributed in the drum to prevent any damage to the machine and to its surrounding environment. Laundry should be rearranged and re-spun. (**) Regular drum cleaning is not applied. Clean the drum regularly. See 4.4.2 CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorised Service Agent.
