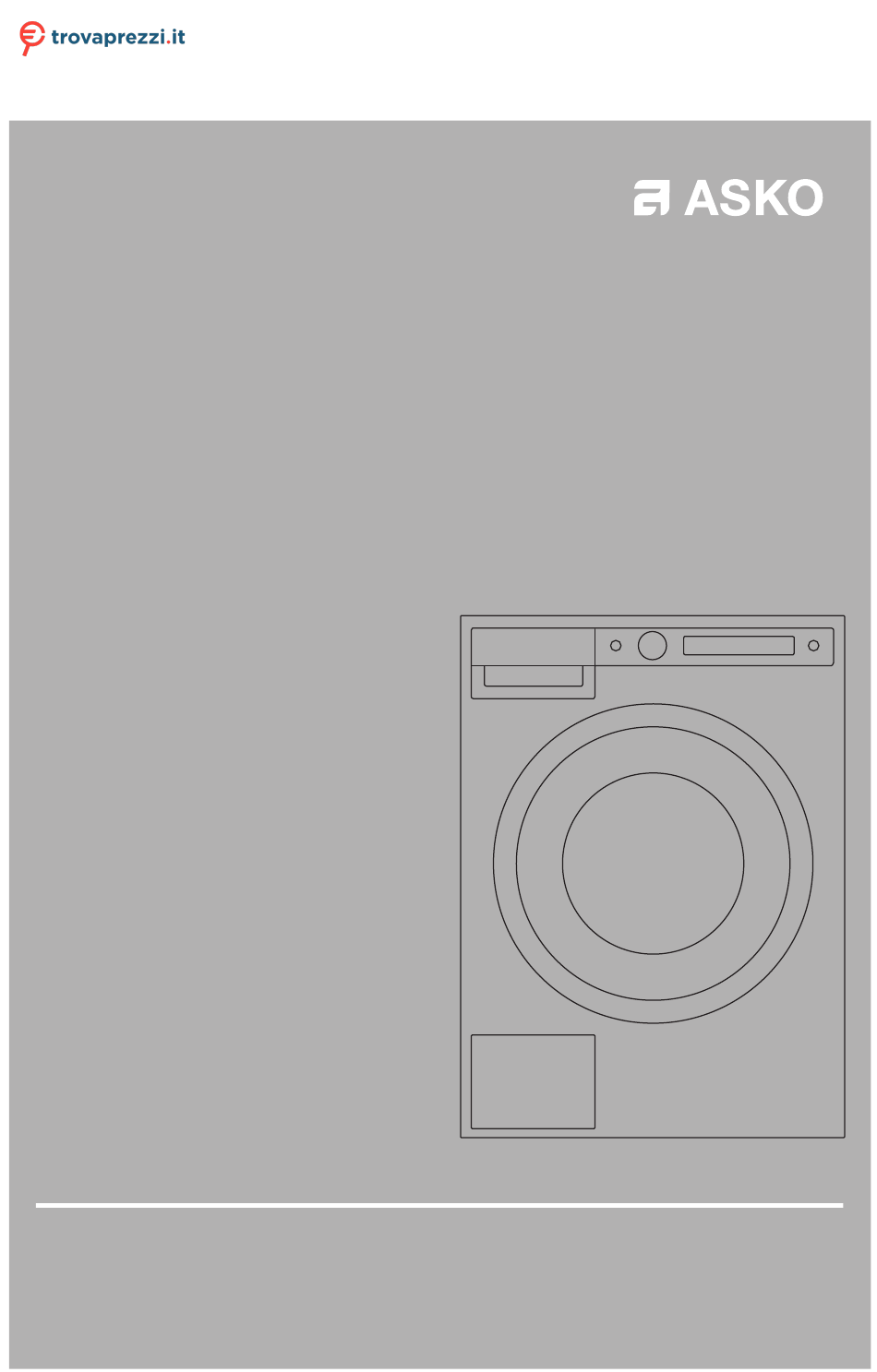

INSTRUCTIONS FOR USE

WM75.2

Carefully read the instructions for use before using the washing machine.

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per

cerca il tuo prodotto tra le

migliori offerte di Lavatrici e Asciugatrici

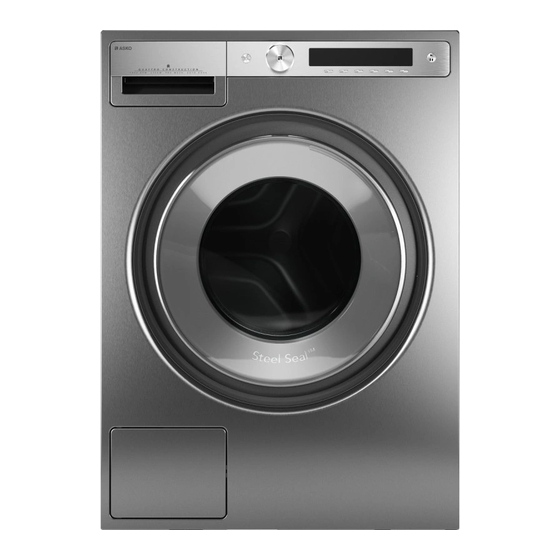

Asko W6098X.S

Washing machine

W6098X/1/2

Need help?

Do you have a question about the W6098X.S and is the answer not in the manual?

Questions and answers

Summary of Contents for Asko W6098X.S

Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asko W6098X.S cerca il tuo prodotto tra le migliori offerte di Lavatrici e Asciugatrici INSTRUCTIONS FOR USE Washing machine W6098X/1/2 WM75.2 Carefully read the instructions for use before using the washing machine.
Page 2 Dear Customer, We thank you for purchasing this quality ASKO product. We hope it meets all your expectations. Scandinavian design combines pure lines, everyday functionality, and high quality. These are the key characteristics of all our products, and the reason why they are highly appreciated across the globe.
Page 3 Keep the instruction manual handy, near the washing machine. • Instructions for use are available on our website at www.asko.com. • Your washing machine is intended solely for household use.
Page 4 • Bleaches that contain chlorine can be replaced with oxygen-based bleaches. Otherwise, a neutralization cycle should be performed by running the Cotton program at the highest temperature. For best results, use hydrogen peroxide or oxygen-based detergents. • Do not use colourants (dyes) or bleaching substances (substances for discolouration or removal of colourants) as they contain sulphuric compounds that could cause corrosion.
Page 5 appliance. Make sure the children do not clean the washing machine or perform any maintenance tasks without supervision. DANGER OF HOT SURFACE • At higher washing temperatures, the door glass will heat up. Be careful to avoid burns. Make sure children do not play near the door glass. WATER OVERFLOW PROTECTION •...
Page 6 WASHING MACHINE DESCRIPTION Main switch (ON/OFF) Program selector knob Display unit Program settings buttons Button (start/pause) Detergent compartment QR and AUID code (on the inside of the washing machine door) Rating plate with information about the washing machine (on the inside of the washing machine door) Washing machine door 10.
Page 7 BEFORE USING THE APPLIANCE FOR THE FIRST TIME PACKAGING Remove all packaging. Please sort the materials in compliance with local recommendations (see chapter ”DISPOSAL”). TRANSPORT PROTECTION Before using the appliance, remove the three transport bolts and plastic plugs which protect the appliance during transport.
Page 8 CLEANING Disconnect the washing machine from the power mains and open the door. Clean the washing machine drum with a damp cloth and a mild detergent. Connect the washing machine to the power mains and run the dedicated drum cleaning program. See chapter "WASHING PROCESS;...
Page 9 The amount of detergent also depends on the hardness of water. For details, see the detergent packaging. Please contact your local water supply company to check the water hardness in your area. In models with ADS the amount of detergent dispensed also depends on the water hardness setting. Before using the AD system for the ﬁ...
Page 10 To stack an ASKO dryer on top of a washing to stack it on top of the washing machine, or place it machine, use the extra vacuum feet and the tipping next to it.
Page 11 ADJUSTING THE FEET concept or closet installation Place the washing machine so that it is stable. ASKO's front panel controls make it possible to 1. Level the washing machine in longitudinal and install the washers and dryers in a cabinet or closet.
Page 12 MOVING THE WASHING MACHINE AND CONNECTING TO WATER SUPPLY TRANSPORT AFTER INSTALLATION If you are moving the washing machine without The machine has to be connected to water packaging, open the washing machine door and pull supply by an adequately trained person. the appliance by holding the washing assembly, as indicated in the ﬁ...
Page 13 CONNECTING TO HOT/COLD WATER INSTALLING THE DRAIN HOSE SUPPLY (Only available in some models) If your appliance has connections for both hot and cold water, then connect one hose to the cold water connection and the other hose to the hot water connection, as indicated on the back of the appliance: COLD = cold and HOT = hot.
Page 14 CONNECTING TO THE POWER MAINS After installation, the washing machine should stand still for two hours before it is connected to the power mains. Connect the appliance to an earthed power outlet. After installation, the wall outlet should be freely accessible.
Page 15 ASKO LAUNDRY CARE - HIDDEN HELPERS* Laundry care ironing board The ironing board is a clever solution. It is always handy when you need to iron your clothes, and it can be easily, safely and invisibly stored away when not in use.
Page 16 Laundry care plinth Thanks to the stainless steel plinth, your appliance will be raised by 30 cm, which makes loading and unloading of laundry easier. *AVAILABILITY DEPENDING ON MARKET DENOMINATION ART. No. IRONING BOARD HI1153 White 576552 IRONING BOARD HI1153 Stainless steel 732756 IRONING BOARD HI1153 Titanium 576553...
Page 17 TIPS BEFORE WASHING LAUNDRY SYMBOLS This chapter includes several tips on how to prepare the laundry for washing. Observe the laundry symbols. Textile maintenance symbols: LAUNDRY SORTING Washing Sort the laundry according to: • how soiled it is, Normal Delicate •...
Page 18 DYED COTTON ECONOMY AND EFFICIENCY Laundry made of dyed cotton which is to be washed You can save a lot of energy by not using the at 60 °C should be ﬁ rst washed at a temperature of programs operating at higher temperatures. 60 °C to remove the excess dye.
Page 19 WASHING PROCESS, STEP BY STEP (1 – 8) STEP 1: SORT THE LAUNDRY See chapter "TIPS BEFORE WASHING" Use a washing net for underwire bras. Empty the pockets. Coins, nails etc. could damage the machine and the fabric. STEP 2: TURN ON THE MAIN SWITCH.
Page 20 STEP 4: ADD THE DETERGENT AND THE CONDITIONER. Recommended amount of detergent is usually speciﬁ ed on the detergent packaging. When washing a smaller amount of laundry, the amount of detergent used can be decreased. Observe manufacturers' recommendations regarding the type of detergent suitable for certain temperatures, load size, and water hardness.
Page 21 STEP 5: CHOOSE THE PROGRAM. Choose the program by rotating Program selector knob in either direction. Conﬁ rm the program selection by pressing the button under the program. Choose the program depending on the type of laundry and how heavily soiled it is (see chapter "TIPS BEFORE WASHING").
Page 22 Program Description (depending of model) DARK WASH This program is used for washing dark laundry using special-purpose detergents for black laundry. We recommend turning dark garments inside out. The program washes at low temperatures, with gentle tumbling and 1200 rpm. TIME PROGRAM Use this program when you wish to wash the laundry for a specific amount of time.
Page 23 Program Description (depending of model) CONDITIONING This is short program suitable for washing waterproof clothes and clothing made of microfibres. This is short program suitable for washing waterproof clothes , if agent is used, and clothing made of microfibres. The program makes sure the clothes are waterproof and reduces adherence of dirt on the outer surface of the garments.
Page 24 Program Description (depending of model) SETTINGS Use the program selector knob to choose Settings and confirm with button "6". Use the Program selector knob to scroll through the settings. The following options are available: – Child Lock, – Language (language selection), –...
Page 25 STEP 6: CHOOSING THE PROGRAM SETTINGS Using the program settings, the washing programs can be further adjusted to your wishes. Some program settings may not be available for your selected program. Selected program settings will remain stored after the end of the washing cycle and may be changed subsequently (except for Start delay and Anti-crease, which are not stored after the wash is complete).
Page 26 3. Temperature The following temperatures are available for the selected program: Cold wash and 20/30/40/50/60/70/80/90 °C. The actual available temperature options will depend on the selected program. 4. Spin speed The following spinning rates are available for the selected program: max. (rpm) /... / No drain (max rpm = depends on the model).
Page 27 Selecting extra functions (Options/more options) Press the button to conﬁ rm the extra settings. Then, use the Program selector knob to scroll the list of functions or options. Conﬁ rm your selection by pressing the button under the selected function or option. The following extra functions are available: Favourite programs/Add to fav? To store the selected program as a favourite, press the...
Page 28 STEP 7: START THE WASH Close the washing machine door and press the Start /Pause button. Start (short press of the button – start/resume) Pause (short press of the button – pause) Stop (press and hold for 3 seconds – stop or cancel) Washing process (circle) is coloured: °C blue: beginning of the washing cycle...
Page 29 The door may be opened when the water is pumped from the machine (but not completely pumped out). Then, add or remove the laundry. Close the door and continue the program. Press the Start /Pause button. The program will resume from the point at which it was interrupted. If the door cannot be opened, it is °C possible that the temperature in the...
Page 30 STEP 8: END OF PROGRAM After the end of the washing program, °C the display will indicate that the program 00:00 Wash ﬁnished has been successfully completed ("Wash ﬁ nished"). °C 00:00 Wash finished Auto °C If you have selected the Anti-Crease Wash finished extra function, gentle tumbling will continue after the end of the washing...
Page 31 SETTINGS In the Main menu, use the Program °C selector knob to select Settings. Conﬁ rm the selection by pressing the Settings Quick Pro Rinse Spin Drain Drum cleaning button under the desired setting. Then, use the Program selector knob to scroll the list of the following settings that you can adjust: Child lock °C/°F •...
Page 32 LANGUAGE You can choose between 24 languages. Set language to: GB English Press the button. Use the Program selector knob to scroll the list of languages. Conﬁ rm selection with button under chosen language. Use the button to return to Settings. °C / F TEMPERATURE (TEMPERATURE UNIT) Choose either °C or °F.
Page 33 WATER (WATER HARDNESS) Choose water hardness between the Set water hardness following settings: soft / normal / hard. Conﬁ rm your selection with the button Soft Normal Hard under the selected water hardness. Use the button to return to Settings. Water hardness can be measured with a water hardness indicator (available in a pharmacy).
Page 34 OFF = drum illumination does not light when the door is open Use the button to return to Settings. DISPLAY UNIT Set the brightness and logo display. Display settings ASKO Brightness Logo Brightness Use the program selector knob or buttons to choose the brightness. Logo Conﬁ...
Page 35 SPECIAL FEATURES DOSE MODES (depending on model) 1. Display in the Main menu (see chapter "SETTINGS") 2. Choosing the DOSE MODES in the Main menu. °C °C °C °C °C Press the button under icon Choose between: • Dosing detergent from detergent compartment A/B, if you have previous selected ADS (On) (see »SETTINGS«).
Page 36 AUTO DOSE SYSTEM (ADS) (depending on model) 1. ADS display in the Main menu (see chapter "SETTINGS") 2. Choosing the ADS settings in the Main menu 3. Filling the ADS tank 4. Choosing the ADS settings by opening the detergent compartment 5.
Page 37 D. Press the Options button to set the following: Auto dose options Volume for Volume for Rinse tank A Rinse tank B Content tank Back Auto a, b. Amount of liquid detergent (ml/cycle from the compartment, A or B. Choose the amount of detergent according to liquid detergent manufacturer's recommendations speciﬁ...
Page 38 The compartment may be additionally rinsed with an extra amount of water via detergent compartment inlet. (500 ml of water). Open the detergent compartment to the ﬁ nal position and add water to the compartment to be cleaned. Then, close the detergent compartment and press the Start button (maximum amount of detergent that can be added to selected detergent tank is 1.5 l) Rinse tank B...
Page 39 3. Filling the compartment with liquid detergent Before adding the liquid detergent into the tank, pull out the detergent compartment as far as it will go. (If the detergent compartment is not fully opened, the liquid detergent will not ﬂ ow into the tank.) The washing machine has to be switched on.
Page 40 laundry), the tanks have to be cleaned. See sections c, d. Cleaning the tanks. 5. Switching oﬀ the automatic dosing function in the ADS menu Press the button under the ADS in the °C °C °C °C °C Main Menu. Auto dose Cotton Mix/Synthetic...
Page 41 CLEANING AND MAINTENANCE CLEANING THE FILTER The washing machine has a ﬁ lter that will retain smaller objects such as coins, buttons, hair etc. Before cleaning, drain the water from the washing machine using the Drain program, and disconnect the washing machine from the power mains. Open the pump ﬁ...
Page 42 CLEANING THE DETERGENT COMPARTMENT AND DOOR RUBBER GASKET Press the tab to completely remove the detergent compartment from its housing. Rinse and thoroughly clean the tray. You may also remove the cap from the plug in the conditioner compartment (A). Clean any residue from the cap and tube.
Page 43 CLEANING THE AUTO DOSE SYSTEM (ADS) Cleaning the detergent compartment: Remove the detergent compartment from the dispenser housing by pulling it out and pressing the release tab (1). Open the cover for detergent compartment A and B (2). Rinse the detergent compartment by directing a stream of running water through it.
Page 44 CLEANING THE APPLIANCE EXTERIOR Clean the appliance exterior and the display unit using a soft damp cotton cloth and water. Do not use solvents or abrasive cleaners that could damage the appliance (please observe the recommendations and warnings provided by the manufacturers of the cleaning agents). Do not clean the washing machine with a jet of water! Always disconnect the washing machine from the power mains before cleaning.
Page 45 CLEANING THE RINSING HOLES (UNDER THE AGITATOR IN THE DRUM) If you believe that objects like nails or paper clips fell into the washing machine drum, check the area underneath the agitator. Such objects may rust (corrode) and cause stains on your clothes. Nails and other sharp objects can also cause holes in the fabric.
Page 46 ERRORS – WHAT TO DO? Disturbances from the environment (e.g. the power grid) may result in various error reports (see Troubleshooting table). In such case: • Switch oﬀ the appliance, wait for 1 minute, switch the appliance back on, and repeat the washing program. •...
Page 47 Problem/error Cause What to do? There are traces • The laundry was very greasy. • Wash the laundry again. When your laundry is of grease (or this heavily soiled, add more washing powder or grease rolls) on the use a liquid detergent in combination with a more clothes.
Page 48 Manual opening of washing machine door Washing machine door may be opened manually if the appliance is not connected to the power mains and if the water has been pumped out of the machine. A Choose the Spinning or Drain program to pump the water from the machine. If this does not work, water has to be drained from the washing machine drum manually.
Page 49 FAILURE DISPLAY In case of a failure while a program is in progress, the relevant Error XX is indicated on the display unit. Press the INFO button to display the Error error description. Error XX Info Exit Switch oﬀ the appliance and turn it back Errors indicated on the display unit may include the following: Error Error indication on the display unit What to do? Restart the programme.
Page 50 Error Error indication on the display unit What to do? E13.1 UNBALANCE EMPTY DRUM Call a service technician. E13.2 INERTIA ERROR Call a service technician. DOOR UNLOCK ERROR Door is closed, but it cannot be unlocked. Turn off the washing Error while unlocking the door.
Page 51 SERVICE BEFORE CALLING A SERVICE TECHNICIAN 1, 2, 3 When you contact a service centre, please state the model (1), type (2), and serial number (3) of your washing machine. Model, type, and serial number are indicated on the rating (type) plate located on the washing machine door casing.
Page 52 TECHNICAL INFORMATION INFORMATION ON ENERGY LABELLING Information sheet pursuant to the Commission Regulations (EU) No. 1061/2010 and 1015/2010 Model WM75.2 Maximum washing load 9 kg Energy efficiency class A+++ Annual energy consumption (AE 185 kWh na year Power consumption Standard cotton + ECO 60 °C with a full load (E 0,93 kWh t,60 Standard cotton + ECO 60 °C with half load (E...
Page 53 PRODUCT INFORMATION SHEET ACCORDING TO EU-REGULATION NO. 2019/2014 (depending of model) Supplier’s name or trade mark: Supplier’s adress ( Model identifier: General product parameters: Parameter Value Parameter Value Height 85,0 Rated capacity ( ) (kg) Dimensions in cm Width 59,5 Depth 58,5 57,9...
Page 54 PERFORMANCE DATA Program Maximum load Temp. °C (depending on model) Standard cotton + ECO 9 / 4,5* kg 60 °C 40 °C Eco 40-60 9 / 4,5* / 2,5** kg (depending on model) Everyday wash / Universal wash 9 / 4,5* kg Mix/Synthetics 3,5 kg Test program for connection to cold water supply, pursuant to EN 60456.
Page 55 PROGRAM TABLE Program (depending on model) Everyday wash / Universal 1800 2,10 2:26 wash Standard cotton / Cotton X 40/20 X 1800 1,80 2:59 Standard cotton 1800 9/4,5* 0,93/0,88* 3:03/2:55* 60 °C 40 °C ⌑ +ECO 1800 9/4,5* 0,67/0,60* 2:45/2:35* Eco 40-60 1800 1,00...
Page 56 Adjustment of the displayed washing time Advanced technology allows the appliance to sense the amount of laundry and add the required amount of water during the washing process. Depending on the washing load, washing time can be longer or shorter and the time displayed will be adjusted accordingly.
Page 57 TABLE: WASHING MODE/TEMPERATURE Washing mode Program (depending on model) Everyday wash / Universal wash 20°C - 90°C 30°C - 90°C 40°C-90°C - 90°C - 90°C - 90°C Standard cotton / Cotton 20°C - 90°C 40°C-90°C - 90°C - 90°C - 90°C Eco 40-60 Mix/Synthetics 20°C - 60°C...
Page 58 TABLE OPTIONS Options Program (depending on model) Everyday wash / Universal wash 1800 Standard cotton / Cotton 1800 Eco 40-60 1800 Mix/Synthetics 1200 Wool/Hand wash Dark wash 1200 Time program 1000/1800 Auto program 1800 Quick program 1200/1800 Heavy 1800 Easy care 1200 Jeans 1200...
Page 59 DISPOSAL Disposal / recycling of packaging Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately. The symbol on the product or its packaging indicates that the product should not be treated as normal household waste.
Page 60 NOTES...
Page 61 NOTES...
Page 62 NOTES...
Page 63 QUICK GUIDE SORT THE LAUNDRY. Close the zippers. Empty the pockets and turn them inside out. Check the laundry care symbols. Sort the laundry based on how heavily soiled it is, by colour, and by material. SWITCH ON THE MAIN ON/OFF SWITCH (ON/OFF) OPEN THE WASHING MACHINE DOOR AND INSERT THE LAUNDRY.
Page 64 Gorenje, Partizanska 12, 3320 Velenje, Slovenija www.asko.com WM75.2 en (12-20)
