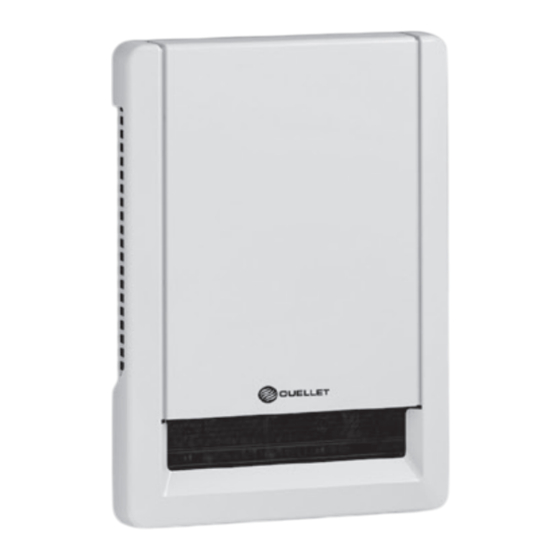

- Page 1 OWNER'S MANUAL OVOS...BL WALL FAN HEATER OVOS OVOS...TH THANK YOU FOR YOUR PURCHASE! QUESTION? PROBLEM? CONTACT OUELLET CUSTOMER SERVICE. OUELLET.COM USAINFO@OUELLET.COM 1-800-525-3622 THIS UNIT COMPLIES WITH CSA STANDARDS...
- Page 2 “Calculation Tools/Heating Calculator” section of the Extreme caution is necessary when any heater is used by Ouellet website. or near children or invalids and whenever the heater If the unit capacity is insufficient for the size of the room, it will be is left operating and unattended.
- Page 3 INSTALLING THE FAN HEATER TO ENSURE A SAFE AND EASY INSTALLATION, TAKE A FEW MINUTES TO READ THIS INSTALLATION GUIDE. WHAT IS IN THE BOX TOOLS REQUIRED Level Flat screwdriver Phillips screwdriver OVOS Wall fan heater Tape measure Wire stripper Stud finder Wire clamp Self-adhering spacer...
- Page 4 WARNING: This product must be installed by a certified electrician according to the electrical and building codes effective in your region. WHERE TO INSTALL YOUR FAN HEATER Install your fan heater in an unobstructed location at least 6 in. off the heat it gives off. the ground.
- Page 5 CUTTING THE POWER SUPPLY To protect yourself from the risk of electric shock, turn off the power to the lead wires from the electrical panel. PREPARING THE SURFACE FOR INSTALLATION IMPORTANT: Models provided without back-box shall be only installed with back-box KIT-OVO-BB6 available at your heater supplier. Do not use 7 5/8"...
- Page 6 4. Perforate one of the seven pre-cut holes. Choose the hole according to the ATTENTION : Be sure to push in the right hole by power cable’s position in placing the back box in the correct direction. The the wall and the available notches must be positioned at the bottom [C].
- Page 7 ATTACHING THE BACK BOX TO THE WALL 1. Insert the fan heater’s back box in the opening 2. According to your you’ve made in the wall, making sure it is level. installation, screw* the box to the wall stud using two mounting holes [A].
- Page 8 ATTACHING THE MECHANICAL HOUSING TO THE BACK BOX 1. Put the mechanical housing 2. . Pivot the mechanical housing 3. Secure with the screws set [A] in the back box by inserting toward the wall. Be careful not aside in step 4.2. it into the bottom hooks [B] to trap the wires or caps.
- Page 9 2. Press the top of the front panel against the wall, keeping it slightly tilted [C] and centered with respect to the mechanical housing. 3. Carefully slide the front panel down until the hooks behind the front panel [D] are engaged and then pivot it toward the wall.
- Page 10 USING THE FAN HEATER WARNING: Before using your fan heater, make sure that it has been installed by a certified electrician in accordance with the electrical and building codes in your area. Do not operate without front panel. The following sections outline how to control the fan heater with its built-in electronic thermostat (OVOS..BL-TH models). BUILT-IN THERMOSTAT INTERFACE Unit overheating icon.
- Page 11 Temperature display unit settings (°C or °F ) Locking/Unlocking keypad Menu 2 Nightlight mode (backlight settings) Menu 3 Menu 4 OUELLET information 4.1: Fan heater version 4.2: Date manufactured 4.3: Month manufactured 4.4: Year manufactured 4.5: Reset the thermostat to its default settings SELECTING THE TEMPERATURE DISPLAY UNIT (°C OR °F)
- Page 12 • The room temperature exceeds 122 °F. Heating will remain inactive. The HI message will disappear when the temperature reaches 122 °F. • The thermostat cannot measure the temperature (temperature sensor is defective). Heating will remain inactive. Contact OUELLET Customer Service.
- Page 13 • If a wall thermostat controls the fan heater, make sure it isn’t defective. • If none of the solutions above work, one or more of the heating elements may be defective. Contact OUELLET Customer Service. • Make sure the unit is powerful enough for the size of the room.
- Page 14 • 240Vac / 1000W • 240Vac / 1500W Frequency 60Hz Control intended to be delivered exclusively to the equipment manufacturer (OUELLET). It will Intended Delivery Location never be sold seperatly as a replacement kit. Overcurrent protective device Current circuit breaker external to the control (refer to local electrical code) Operating Temperature -20°C to 50°C...
- Page 15 This warranty will be considered null and contact 1) your installer or distributor, 2) your service center or 3) void and OUELLET will have the right to refuse any claims if products OUELLET’s customer service department. In all cases, you must have...
