Summary of Contents for Ouellet OVO

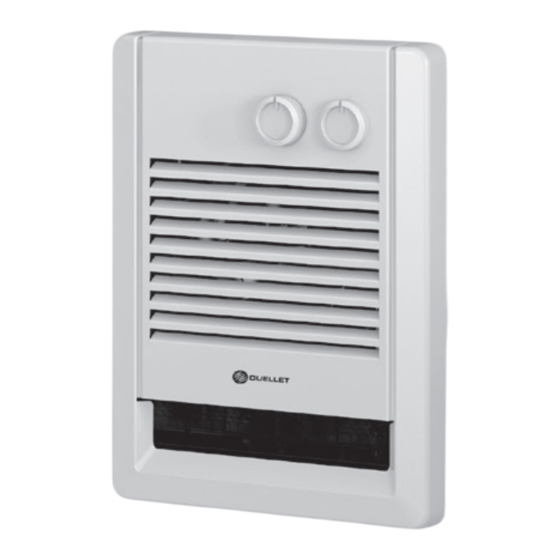

- Page 1 OWNER'S MANUAL WALL FAN HEATER OVOH OVOH THANK YOU FOR YOUR PURCHASE! QUESTION? PROBLEM? CONTACT OUELLET CUSTOMER SERVICE. OUELLET.COM USAINFO@OUELLET.COM 1-800-525-3622 THIS UNIT COMPLIES WITH CSA STANDARDS...
-
Page 2: Important Instructions
“Calculation Tools/ Extreme caution is necessary when any heater is used by Heating Calculator” section of the OUELLET website. or near children or invalids and whenever the heater is left If the unit capacity is insufficient for the size of the room, it will be operating and unattended. -
Page 3: What Is In The Box
V: VOLTAGE (2 = 120V, 0 = 240V/208V, 8 = 208V) T2: MODEL WITH MECHANICAL DOUBLE POLE THERMOSTAT T2M: MODEL WITH MECHANICAL DOUBLE POLE THERMOSTAT AND TIMER SBE: MODEL WITHOUT BACK-BOX (AVAILABLE FOR U.S. MARKET ONLY AND MUST BE INSTALLED WITH BACK-BOX KIT-OVO-BB6) BL: COLOR (WHITE) - Page 4 WARNING: This product must be installed by a certified electrician according to the electrical and building codes effective in your region. WHERE TO INSTALL YOUR FAN HEATER Install your fan heater in an unobstructed location at least 6 in. off Make sure that objects or furniture near the heater can withstand the ground (or ceiling for OVOH models).
- Page 5 IMPORTANT: Models provided OVO ONLY OVOH ONLY without back-box shall be only installed with back-box KIT-OVO-BB6 available at your heater supplier. Do not use any 7 1/2" MIN. other back-box or retrofit. 1. Locate the studs and any other structures that might be inside the wall.
- Page 6 PREPARING THE FAN HEATER 1. Pivot the fan heater’s front panel toward the top of the 2. Remove the two screws. Keep the screws with the front unit [1] and slide it up. Remove the front panel com- panel. pletely [2] and place it on a clean surface where it won’t 3.
- Page 7 ATTACHING THE BACK BOX TO THE WALL 1. Insert the fan heater’s back box in the 2. According to your installation, screw* opening you’ve made in the wall, making the box to the wall sure it is level. stud using two mounting holes [A].
-
Page 8: Connecting The Wiring
PROTECTION PROTECTION JUMPER JUMPER ELEMENT ELEMENT *OVO(H)..T2 ATTACHING THE MECHANICAL HOUSING TO THE BACK BOX 1. Put the mechanical housing 2. Pivot the mechanical housing 3. Secure with the screws set [A] in the back box by inserting toward the wall. Be careful not aside in step 4.2. -
Page 9: Attaching The Front Panel
ATTACHING THE FRONT PANEL 1. Press the top of the front panel against the wall, keeping it slightly tilted [A] and centered with re- spect to the mechanical housing. 2. Carefully slide the front panel down until the hooks behind the front panel [B] are engaged and then pivot it toward the wall. - Page 10 Do not operate without front panel. CONTROLING THE FAN HEATER According to your model, see the table below for how to control your fan heater. OVO ... BL With a compatible wall thermostat to adjust the room’s temperature setpoint With its integrated mechanical thermostat OVO ...
- Page 11 • Make sure the unit is powerful enough for the size of the room. is operating continuously. • If the fan heater never stops, the thermostat or timer may be defective. Contact OUELLET Customer Service. • Make sure the temperature setpoint is adequate.
-
Page 12: Claim Procedure
(other than that prescribed CLAIM PROCEDURE by OUELLET) or a use other than that for which the unit was designed; 3) a natural disaster or an event out of OUELLET’s control, including, but If at any time during the warranty period the unit becomes defective,...
