HMD Pulse Pro Replacement
Back cover replacement
Hide thumbs
Also See for Pulse Pro:
- User manual ,
- Replacement (12 pages) ,
- Battery replacement (7 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HMD Pulse Pro
Summary of Contents for HMD Pulse Pro

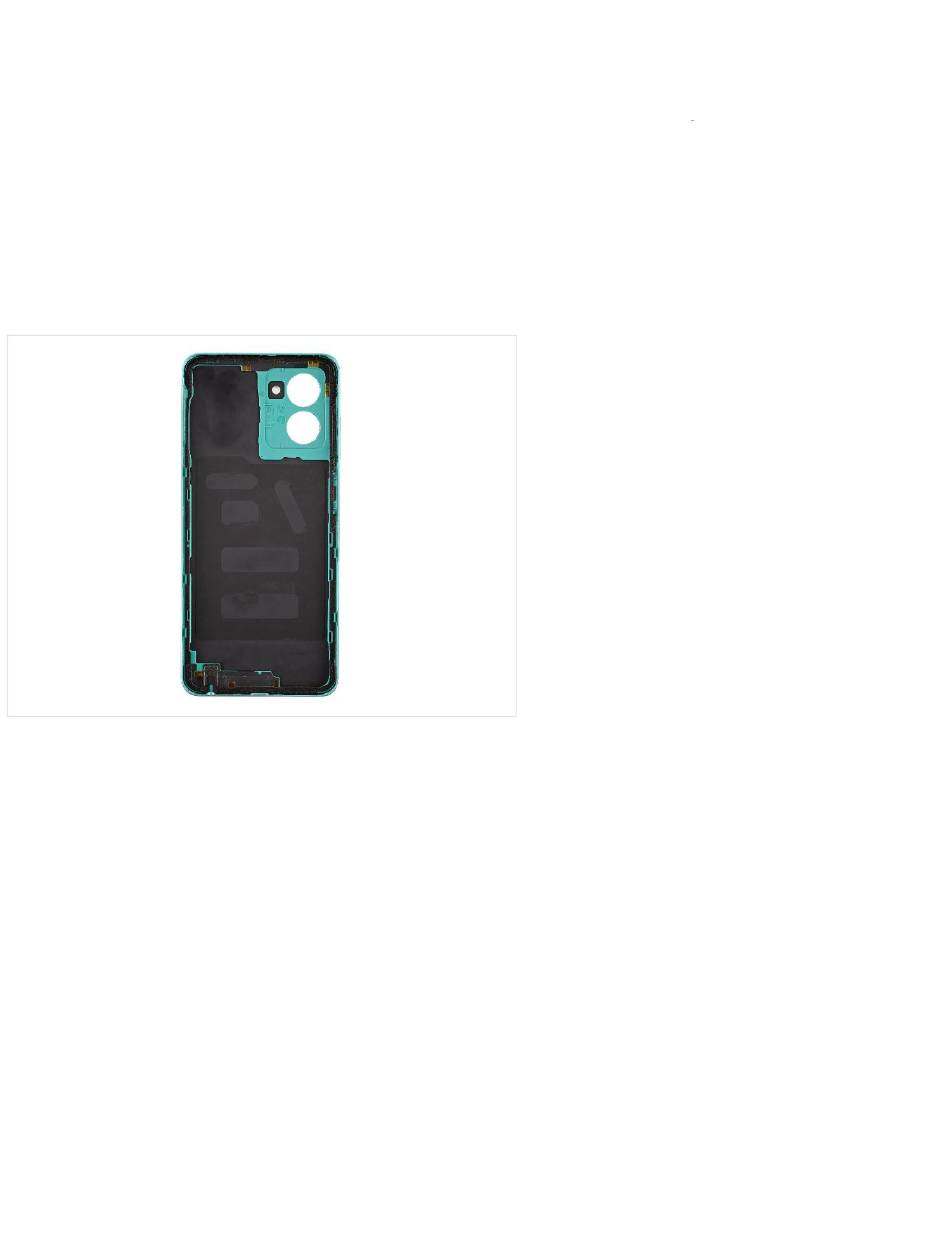

- Page 1 HMD Pulse Pro Back Cover Replacement...
- Page 2 INTRODUCTION Follow this guide to replace a cracked or damaged back cover on your HMD Pulse Pro smartphone. tools needed 1 × SIM Card Eject Tool 1 × Opening Pick 1 × Cross-head crewdriver 1 × Spudger 1 × Tweezers Step 1 —...
- Page 3 Step 2 — Remove the SIM card tray Firmly press a SIM eject tool, bit, or straightened paper clip into the SIM card tray hole on the left edge of your phone until the tray ejects. Remove the SIM card tray. During reassembly, use the tray's markings to orient and reinsert it properly.
- Page 4 Step 4 Position the opening pick straight down and slide it along the left edge to begin unclipping the back cover. Step 5 Continue sliding the pick around the perimeter of your phone until the back cover is fully unclipped. The corners can be tricky to unclip and may take some force.
- Page 5 Step 6 Carefully flip your phone over so the back cover is facing up. Lift the back cover off the frame and flip it over the left edge of your phone, laying the cover flat on your work surface. Be very careful not to strain the back cover's delicate cable. During reassembly, place the back cover onto the frame and firmly squeeze around the perimeter to reengage all the clips.
- Page 6 Step 7 — Remove the motherboard cover Be very careful not to puncture the battery with your Cross-head screwdriver. Use a Cross-head screwdriver to remove the nine 3.6 mm‑long screws securing the motherboard cover. The screw near the center of the top edge is covered by a sticker. Pierce through it with your Cross-head screwdriver, or use tweezers to remove it.
- Page 7 Step 9 Remove the motherboard shield and its connected graphite sheet. During reassembly, set the motherboard shield into place and press down firmly around the perimeter to reengage the clips. Internal...
- Page 8 Step 10 — Disconnect the battery Use the flat end of a spudger to pry up and disconnect the battery press connector from the bottom edge of the motherboard. To reconnect these type of connectors, align the connector over its socket and press down with your fingertip—first at one side, then the other—until it clicks into place.
- Page 9 Step 12 Remove the back cover. Step 13 — Remove the power button If your replacement back cover doesn't come with a power button pre-installed, follow the next two steps to remove and transfer it. gently Use a pair of tweezers to grip the power button's top rubber arm and lift it out of its slot.
- Page 10 Step 14 Use tweezers to lift and remove the power button. Installing the power button can be very tricky and may take a few tries. First, insert the bottom rubber arm and cable together into their slot and push the button into its cutout.
- Page 11 To reassemble your device, follow these instructions in reverse order.
