- Page 1 HMD Pulse Pro Battery Replacement...
- Page 2 INTRODUCTION Follow this guide to replace a dead or worn-out battery in your HMD Pulse Pro smartphone. Your phone's lithium-ion battery has a limited lifespan. If your phone dies quickly and doesn't hold a charge, it may be time to replace the battery.
- Page 3 Step 2 — Remove the SIM card tray Firmly press a SIM eject tool, bit, or straightened paper clip into the SIM card tray hole on the left edge of your phone until the tray ejects. Remove the SIM card tray. During reassembly, use the tray's markings to orient and reinsert it properly.
- Page 4 Step 4 Use tweezers to lift and remove the power button. Installing the power button can be very tricky and may take a few tries. First, insert the bottom rubber arm and cable together into their slot and push the button into its cutout.
- Page 5 Step 6 — Remove the battery Be very careful not to bend, crease, or puncture the battery during the next few steps. A damaged battery can leak dangerous chemicals and catch fire. Use your fingers to carefully peel the three plastic tabs from the left side of the battery.
- Page 6 Step 8 Use your fingers to peel the battery's plastic film from the frame. Internal...

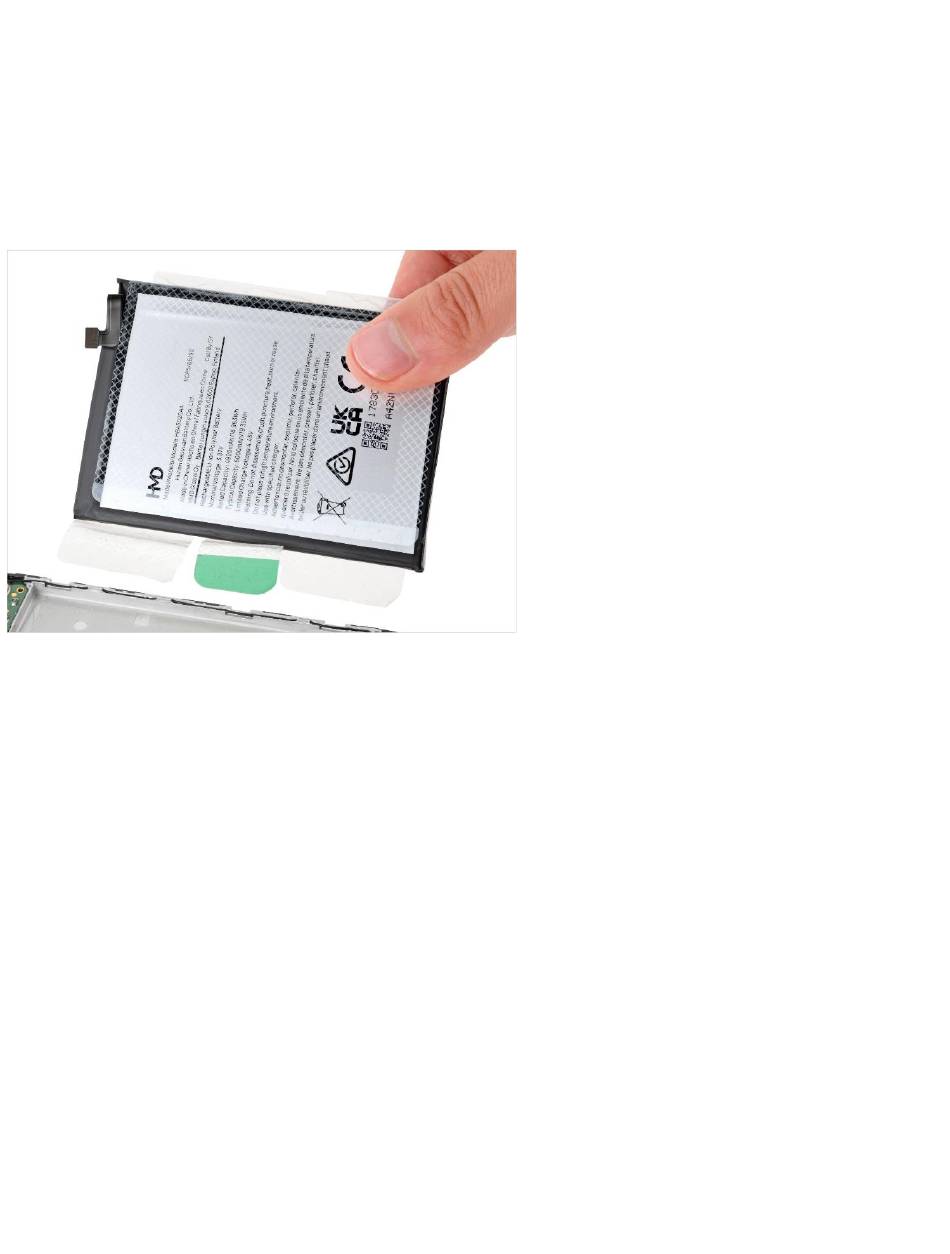

- Page 7 Step 9 Remove the battery and its film. During reassembly: Never reuse a deformed or damaged battery, as it's a potential safety hazard. Replace it with a new battery. If the adhesive in the battery recess is still sticky, you don't need to replace it. If the adhesive isn't sticky, use a spudger and tweezers to peel up and remove the two pieces of battery adhesive.
