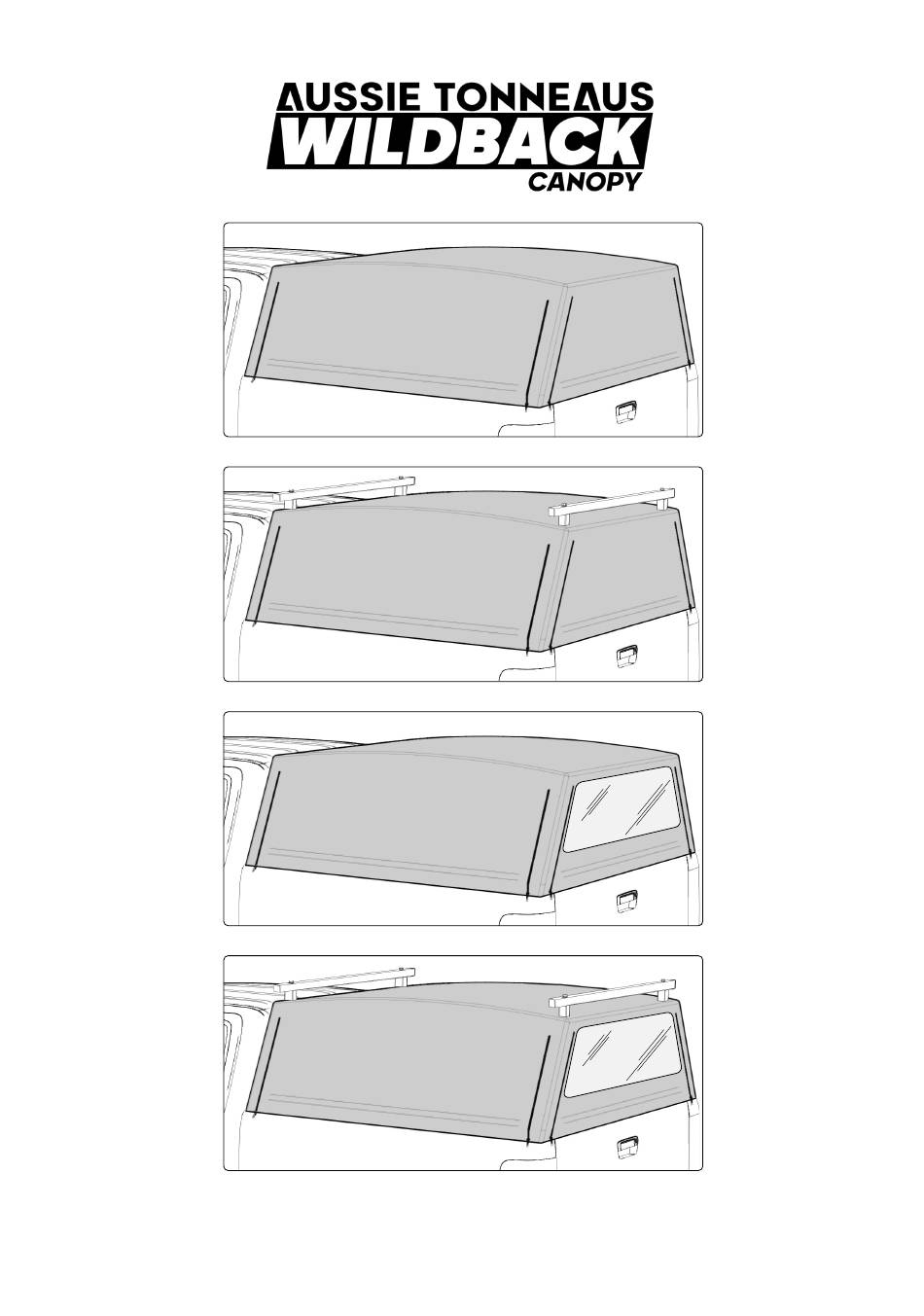

- Page 1 INSTALLATION GUIDE 1 of 10...
- Page 2 Part Number: Description: Part No: ATW01759 & ATW01759C Ford Ranger PX Super Cab, 2011 to 2022, No LR Wildback Canopy Part No: ATW01760 & ATW01760C Ford Ranger PX Super Cab, 2011 to 2022, LR Wildback Canopy In the Box LADDER RACK OPTION + L x12 Drilling...
- Page 3 Check the orientation of these corner VERY IMPORTANT! connectors. 17mm *A x8 B x8 C x8 *For ‘ladder rack version’, use longer bolts ‘M x4’ instead of ‘A x4’ bolts in this step and *M x4 17mm A x8 B x8 C x8 leave ‘C x4’...
- Page 4 Tape Drill P.H. G x4 Drill Measure Drill 3mm P.H. G x4 4 of 10...
- Page 5 Drill Template Front Drill Template Rear 90° Drill Drill 5 of 10...
- Page 6 13mm 13mm D x2 E x2 F x2 B x2 13mm 13mm D x2 E x2 F x2 B x2 13mm 13mm D x2 E x2 F x2 B x2 13mm 13mm D x2 E x2 F x2 B x2 6 of 10...
- Page 7 Refer to page 7 on how to install ladder rack option. Refer to page 8 on how to attach the front of canopy cover to front edge of tub. For non ladder rack version skip page 7. Ensure the covers roof seam lines match the frame's top edges. Avoid overhang.
- Page 8 HOW TO ATTACH LADDER RACKS FOR LADDER RACK OPTION - If installing the ladder rack version, the bolts and nuts shown will need to be removed before placing the canopy cover on its frame. Follow steps as shown below - Then place the canopy cover on the frame and locate the holes in tube to be poked in through the cover.
- Page 9 HOW TO ATTACH THE FRONT OF CANOPY TO TUB - Clean any dust or dirt from top front edge of UTE tub with clean cloth and then wipe down with surface cleaning wipe. Let the surface dry. Then apply Velcro strip with even firm pressure.
- Page 10 Send Us A Photo of your Wildback! Happy with how your canopy turned out? Please send us a photo to: sales@aussietonneaus.com.au IMPORTANT INFORMATION Safety - • Ensure the Canopy tethering system is installed correctly before driving. • Regularly check the tightness of the fasteners. •...
