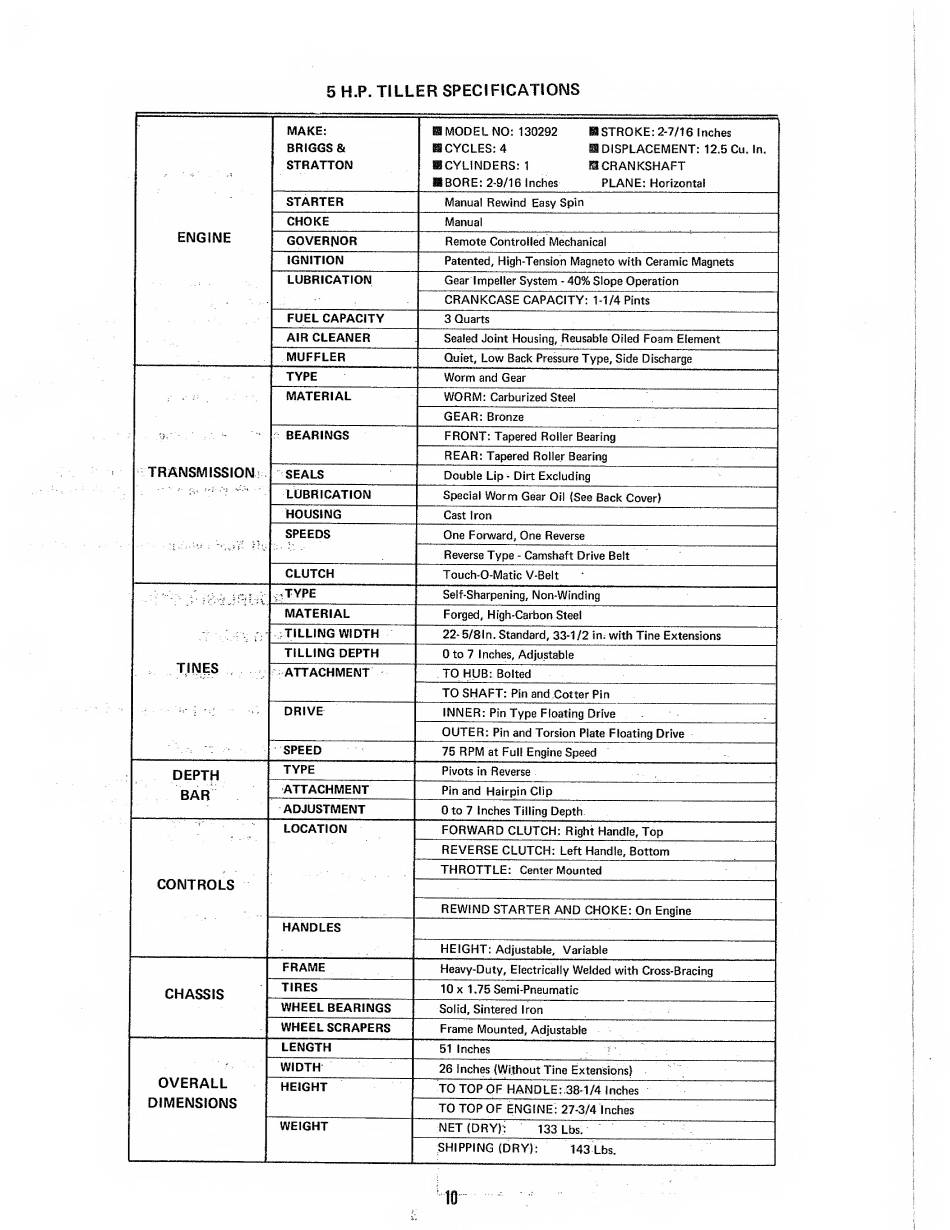

5 H.P. TILLER SPECIFICATIONS
DEPTH
BAR
CHASSIS
OVERALL
DiMENSIONS
MAKE:
BRIGGS &
STRATTON
STARTER
CHOKE
GOVERNOR
IGNITION ~
LUBRICATION
FUEL CAPACITY
AIR CLEANER
MUFFLER
TYPE
MATERIAL
BEARINGS
SEALS
LUBRICATION
HOUSING
SPEEDS
CLUTCH
TYPE
MATERIAL
TILLING WIDTH
TILLING DEPTH
ATTACHMENT
SPEED
TYPE
attachmeI^
ADJUSTMENT
LOCATION
® MOD EL NO: 130292
S CYCLES: 4
SCYLINDERS: 1
a BORE: 2-9/16 Inches
a STROKE: 2-7/16 Inches
m
DISPLACEMENT: 12,5 Cu. In.
^CRANKSHAFT
PLANE: Horizontal
Manual Rewind Easy Spin
Manual
Remote Controlled Mechanical
Patented, High-Tension Magneto with Ceramic Magnets
Gear impeller System - 40% Slope Operation
CRANKCASE CAPACITY: 1-1/4 Pints
3 Quarts
Sealed Joint Housing, Reusable Oiled Foam Element
Quiet, Low Back Pressure Type, Side Discharge
Worm and Gear
WORM: Carburized Steel
GEAR: Bronze
FRONT: Tapered Roller Bearing
REAR: Tapered Roller Bearing
Double Lip - Dirt Excluding
Special Worm Gear Oil (See Back Cover)
Cast Iron
One Forward, One Reverse
Reverse Type - Camshaft Drive Belt
Touch-O-Matic V-Belt
Self-Sharpening, Non-Winding
Forged, High-Carbon Steel
22-5/81 n. Standard, 33-1/2 in; with Tine Extensions
0 to 7 Inches, Adjustable
TO HUB: Bolted
TO SHAFT: Pin and Cotter Pin
INNER: Pin Type Floating Drive - _
OUTER: Pin and Torsion Plate Floating Drive
75 RPM at Full Engine Speed
Pivots in Reverse
Pin and Hairpin Clip _
0 to 7 Inches Tilling Depth
FORWARD CLUTCH: Right Handle, Top
REVERSE CLUTCH: Left Handle, Bottom __
THROTTLE: Center Mounted
REWIND STARTER AND CHOKE: On Engine
HANDLES
HEIGHT: Adjustable, Variable
FRAME
Heavy-Duty, Electrically Welded with Cross-Bracing
TIRES
10 X 1.75 Semi-Pneumatic
WHEEL BEARINGS
Solid, Sintered Iron
WHEEL SCRAPERS
Frame Mounted, Adjustable
LENGTH
51 Inches
WIDTH
26 Inches {Without Tine ExtensiDns)
HEIGHT
TO TOP OF HANDLE: 38-1/4 Inches
TO TOP OF ENGINE: 27-3/4 Inches
WEIGHT
NET (DRY): 133 Lbs.
SHIPPING (DRY): 143 Lbs.
