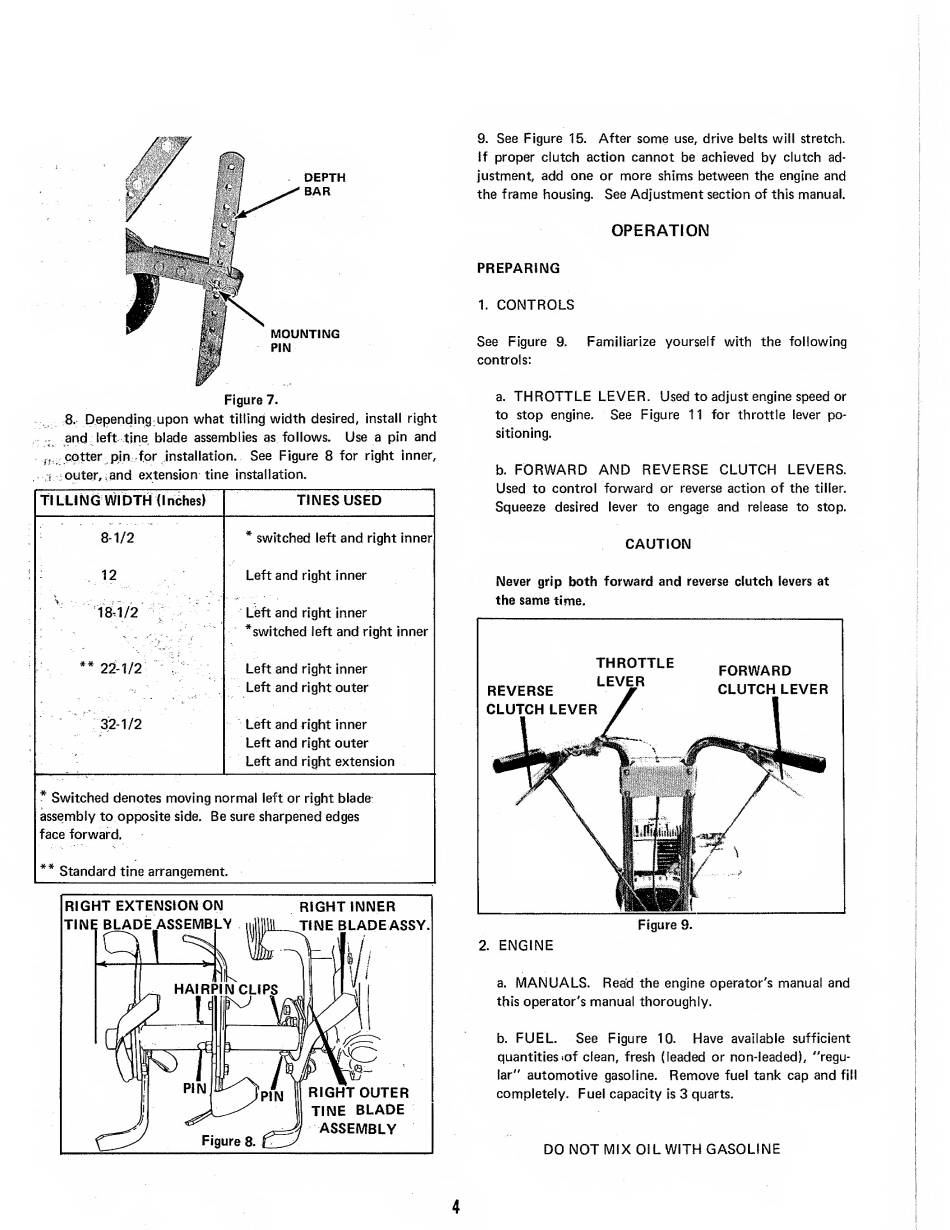

Simplicity 1005 Operator's Manual page 6

Figure 7.
8. Depending upon what titling width desired, install right
and left tine blade assemblies as follows. Use a pin and
.. cotter pin for insta See Figure 8 for right inner,
i outer, and extension tine installation.
tlLLINd WIDTH (Inches) TINES USED
8-1/2 * switched left and right inner
12 Left and right inner
' 18.1/2 ' Left and right inner
^switched left and right inner
** 22-1/2
Left and right inner
Left and right outer
32-1/2 Left and right inner
Left and right outer
Left and right extension
* Switched denotes moving normal left or right blade
assembly to opposite side. Be sure sharpened edges
face forward.
** Standard tine arrangement.
9. See Figure 15. After some use, drive belts will stretch.
If proper clutch action cannot be achieved by clutch ad¬
justment, add one or more shims between the engine and
the frame housing. See Adjustment section of this manual.
OPERATION
PREPARING
1. CONTROLS
See Figure 9. Familiarize yourself with the following
controls:
a. THROTTLE LEVER. Used to adjust engine speed or
to stop engine. See Figure 11 for throttle lever po¬
sitioning.
b. FORWARD AND REVERSE CLUTCH LEVERS.
Used to control forward or reverse action of the tiller.
Squeeze desired lever to engage and release to stop.
CAUTION
Never grip both forward and reverse clutch levers at
the same time.
a. MANUALS. Read the engine operator's manual and
this operator's manual thoroughly.
b. FUEL. See Figure 10. Have available sufficient
quantities >of clean, fresh (leaded or non-leaded), "regu¬
lar" automotive gasoline- Remove fuel tank cap and fill
completely. Fuel capacity is 3 quarts.
DO NOT MIX OIL WITH GASOLINE
4
