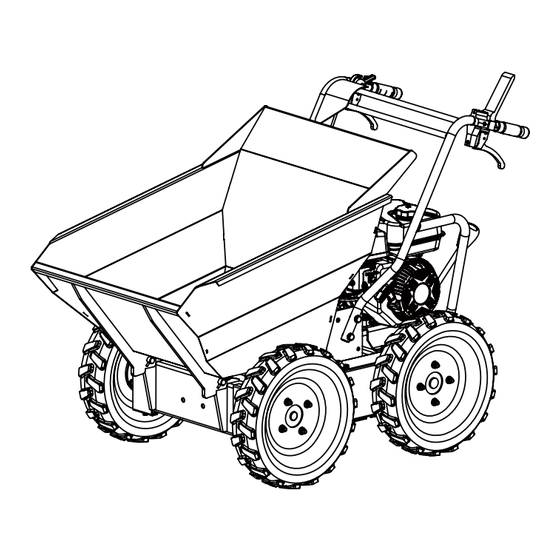

MechMaxx T30 Operator's Manual

Mini dumper
Hide thumbs Also See for T30:

Advertisement

Quick Links

Download this manual
Save This Manual for Future Reference
Mini dumper
Operator's Manual
MODEL NUMBER
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label. You should record
both of them in a safe place for
future use.
FOR YOUR SAFETY
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
