Summary of Contents for MechMaxx T30

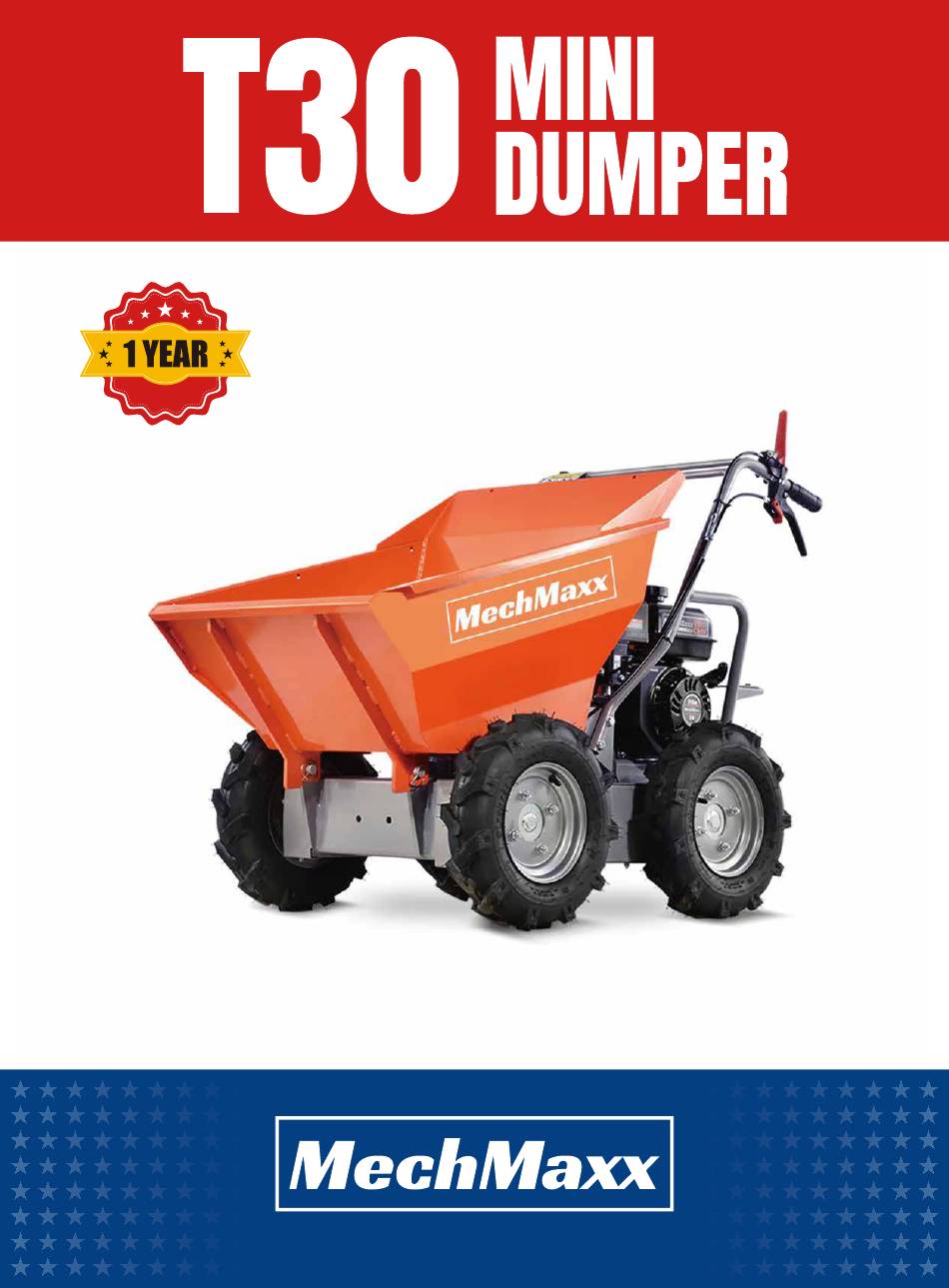

- Page 1 WARRANTY Operator’s Manual www. mechmaxx.com...
-
Page 3: Table Of Contents
FUEL SAFETY ADJUSTING STEERING MACHINE USE AND CARE LUBRICATION SERVICE TIRE PRESSURE SPECIFIC SAFETY RULES UNPACHING THE CONTAINER ENGINE MAINTENANCE STORAGE CONTENTS SUPPLIED TO-SCALE HARDWARE TROUBLESHOOTING ASSEMBLY WHEELS LIGHTING LAMP DUMP BOX KNOW YOUR MACHINE www. mechmaxx.com TABLE OF CONTENTS... -
Page 4: Specifications
Manual Speed 0-5.0 km/h Front wheel 4.00-8 tubeless tyre Rear wheel 4.00-8 tubeless tyre Bucket type Frame Weight (N.W/G.W.) 316/349 lbs Package Method Plywood case Packing Size 44*31*35 in OVERALL DIMENSIONS 42.2” 1073mm 53.5” 29.3” 745mm 1360mm www. mechmaxx.com SPECIFICATIONS... -
Page 5: Safety Signs
Gear oil GL-5 or GL-6, SAE80W-90 is recommended. Do not use synthetic oil. STOP WARNING:OPERATE THE STEERING LEVERS ONLY AT A REDUCED SPEED OPERATE THE STEERING LEVERS ONLY AT A LOW SPEED. www. mechmaxx.com SAFETY SIGNS... -
Page 6: Safety
These events could ignite fumes or vapors. Check your machine before starting it.Keep guards in place and in working order.Make sure all nuts bolts,etc. are securely tightened. www. mechmaxx.com SAFETY... -
Page 7: Machine Use And Care
Never park the machine in a place with unstable ground short time after you turn off the unit, Allow the engine to which could give way. particularly when it is full. cool before doing maintenance or making adjustments. Disengage clutch lever before starting the engine. www. mechmaxx.com SAFETY... - Page 8 .There are special hazards for dumpers working on soft ground and when the load is sticking to body e.g. wet clay. www. mechmaxx.com SAFETY...
-
Page 9: Unpaching The Container
UNPACHING THE CONTAINER Use the screwdriver and hammer to open all the side locks. www. mechmaxx.com UNPACHING THE CONTAINER... -
Page 10: Contents Supplied
The Electrical wheelbarrow comes partially assembled and is shipped in carefully packed package. After all the parts have been removed from the package, you should have: Dump Box Main Frame Handle Bar Wheels Verify all component and hardware quantities are correct prior to assembling the Wood chipper. www. mechmaxx.com CONTENTS SUPPLIED... -
Page 11: To-Scale Hardware
Hardware graphics are printed at 1:1 scale for ease of identification. Simply place the hardware over the image in the tables to verify it is the correct size. Hex lock Flat washer nut M10 Hex bolt M10 X 50mm www. mechmaxx.com TO-SCALE HARDWARE... -
Page 12: Assembly
Mount the handle frame assembly to the chassis and secure it with M10X50bolts, washers and nuts at the front and M10X50 bolts, washers and nuts at the rear.(- See Figure 2) Figure 2 Hex lock nut M10 Hex bolt M10 X 50mm Flat washer 10 www. mechmaxx.com ASSEMBLY... -
Page 13: Know Your Machine
Operate the lever to turn left. CLUTCH CONTROL LEVER RIGHT STEERING LEVER Squeeze the control lever, clutch engine.Release the Operate the lever to turn right. lever, clutch disengaged. GEAR SELECTION LEVER It controls forward or reverse movements of the machine. www. mechmaxx.com KNOW YOUR MACHINE... - Page 14 B out of hook C. The dump box will be released. After tipping the load, swing handle A back to reset limiter B into hook C, which will lock the dump box. www. mechmaxx.com KNOW YOUR MACHINE...
-
Page 15: Wheelbarrow Operation
If the gear does not engage straight away, 4. Turn the fuel valve lever to the OFF position. slowly release the clutch lever and try again. In this way the powered wheelbarrow will start moving. www. mechmaxx.com ELECTRICAL WHEELBARROW OPERATION... -
Page 16: Maintenance
Be very careful not to unscrew the adjusters too much because this can create another problem the loss of traction Remember to tighten the lock nut when you have finished. www. mechmaxx.com MAINTENANCE... -
Page 17: Storage
6.Store your unit on flat ground in a clean, dry building that has good ventilation. Do not store the machine with fuel in a non-ventilated area where fuel fumes may reach flame, sparks, pilot lights or any ignition sources. www. mechmaxx.com STORAGE... -
Page 18: Troubleshooting
4. Refer to Engine Manual. 1. Gear is not properly selected. 1. Ensure gear lever is not in between two Machine does not move 2. Drive belt not tight enough. different gears. while engine is running 2. Tighten drive belt. www. mechmaxx.com TROUBLESHOOTING... - Page 20 info@mechmaxx.com...
