Summary of Contents for PAG Mini PAGlink MPL50

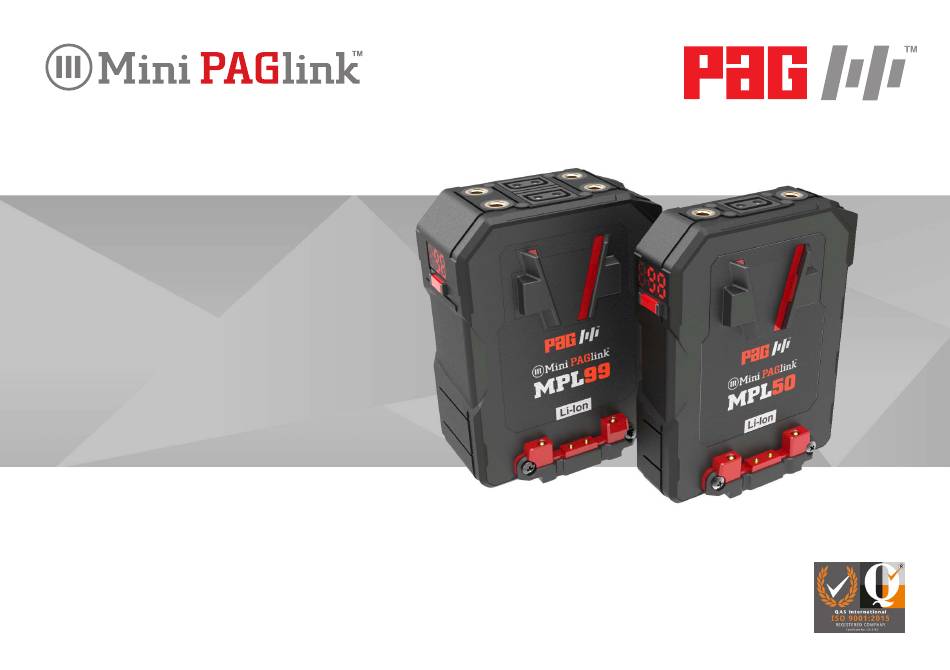

- Page 1 V-MOUNT INTELLIGENT LINKING BATTERIES USER GUIDE S10053...
- Page 2 PAG updates documents on a regular basis. Trademarks All PAG registered trademarks are the property of PAG Ltd. All third party trademarks are acknowledged as such. Patents Apply: paguk.com/patents ©...
- Page 3 Contents CLICK ON A SECTION PAGE Introduction Specification Charging Discharging Storage Battery Linking Features A User Guide for Mini PAGlink V-Mount Intelligent Linking Batteries. Run-Time, Charge Status & Data Display Battery Outputs Please read the important safety information and instructions before using your battery. Battery Protection Features Safety Information Servicing...
- Page 4 1. Introduction Models covered by these instructions: 1/4” Bush D-Tap Output 1/4” Bush Model No. Name Capacity Mount 8141 MPL50 50Wh V-Mount USB (2A) Output 8241 MPL99 99Wh V-Mount Display Unit Mini PAGlink V-Mount batteries are designed to be compatible Display with the Sony V-Mount battery plate.
- Page 5 1. Introduction Output Unit The batteries feature built-in D-Tap outputs (12V) and a replaceable Release Slider USB output unit (5V 2A) that can be swapped for USB-C PD 36W, Lemo, Hirose, D-Tap or 2.1-2.5mm output units. These smaller, lighter batteries allow you to control the capacity and weight of your power source to suit the application: 1 battery is ideal for handheld applications, 2 or more linked batteries provide USB (2A)
- Page 6 1.14 The batteries feature an ergonomic design and a ‘soft-touch’ 1.21 PAG Li-Ion batteries are tested by Intertek Group PLC to UN 38.3 coated, protective band for safer handling and increased durability.
- Page 7 Each battery incorporates 1 removable USB output unit, 5V regulated, 2A continuous, 3A peak. The unit can be removed and replaced with a USB-C PD 36W, Hirose (4-pin), Lemo (2-pin), D-Tap or a 2.1-2.5mm DC output unit. These are available individually from PAG or its resellers.
- Page 8 9713V PAGlink Micro Charger 1-position, 10 batteries in total The batteries incorporate a temperature sensor which will inhibit Sony and older PAG V-Mount chargers will charge linked batteries to charging if their temperature is below 0°C. See Specification for 100% if the difference in SoC between them is less than 40% at the the charging temperature range.
- Page 9 4. Discharging Mini PAGlink batteries can be discharged individually or linked. The batteries may be discharged within the temperature range The batteries can be in any state of charge for linked discharging. -20°C to +50°C, but for optimum performance, +10°C to +40°C is The maximum number of PAGlink batteries that may be linked recommended.
- Page 10 5. Storage It is important to note that frequent use is the best practice for Li-Ion batteries, in preference to storing them for long periods. In the short term, batteries can be left safely stacked on a charger until they are required. The charger will only top-up the battery when it sees that it can accept more charge.
- Page 11 6. Battery Linking Features Linking Batteries: RED BUTTON OUT INDICATES BATTERIES ARE LOCKED TO UNLINK, ... & PULL HOLD-IN THE FRONT THE RED BATTERY UP RELEASE BUTTON... To link batteries, align the V-shaped connector on the rear of a To unlink batteries, grip the rear battery firmly, hold-in the front battery with the V-shaped slot on the front of another.
- Page 12 6. Battery Linking Features PAGlink enables you to link batteries and discharge them simultaneously as well as individually. Instead of leaving your DIGITAL BATTERY COMMUNICATION spare battery in the camera bag you can start your day’s shooting with 2 linked batteries on your camera and experience a number COMMUNICATION INDICATION of benefits.
- Page 13 6. Battery Linking Features state of charge (within 20%). Individually, the MPL50 battery will 100% provide up to 8A, and the MPL99 will provide up to 10A. The maximum number of PAGlink batteries that may be linked has been limited to 10. If more than 10 batteries are linked, the management system will shut-down the supply, and no current will flow.
- Page 14 7. Run-Time, Charge Status & Data Display The Battery Display: Display Data Output: The battery is able to display a numeric run-time prediction Data stored in the battery’s microprocessor can be revealed using against load, and charge status as a percentage. the battery display: When connected to a camera that is turned- on, two presses of the battery’s display...
- Page 15 7. Run-Time, Charge Status & Data Display In-Viewfinder Battery Status Battery state-of-charge can be shown as a percentage of available capacity in the viewfinder/LCD of cameras designed to accept this data. Different data standards are used by camera and battery manufacturers.
- Page 16 8. Battery Outputs Mini PAGlink batteries feature built-in D-Tap outputs (unregulated) Output Units for Mini PAGlink batteries: designed for powering 12V camera accessories. They also incorporate a USB output unit, regulated at 5V (2A), which is interchangeable with other output unit types (see 8.2). Lemo (2-pin) D-Tap Hirose (4-pin)
- Page 17 Charging will be inhibited if the battery voltage exceeds a pre-set a ‘backstop’ protection device, and this cannot be reset. In the level. unlikely event of this fuse operating, please contact a PAG service centre. Over-Discharge Protection The batteries incorporate a precision, fixed, end-of-discharge Construction cutoff, set to 12.5V, as measured by the battery.
- Page 18 10. Safety Information 10.1 PLEASE READ THESE IMPORTANT SAFETY INSTRUCTIONS Do not attempt to disassemble the battery. Refer faults to BEFORE USING THE BATTERY AND RETAIN THEM FOR authorised service personnel. FUTURE REFERENCE. Do not continue to use the battery if there is any change in the When used correctly, Lithium-Ion batteries are a safe and reliable appearance of the casing.
- Page 19 11. Servicing 11.1 Assemblies that are external to the cell-pack enclosure can be It is PAG's policy to repair its batteries, in keeping with ‘the right to replaced by customers in the event of damage. Parts and repair’, unless it is uneconomic for the customer to do so.
- Page 20 Epsom Downs Metro Centre, Units 9 & 10, Waterfield, Tadworth, Surrey KT20 5LR, UK Tel: +44 (0)20 8543 3131 Email: support@paguk.com The Americas: PAG America (a division of the Carr Distribution Group) 18 Center Street, Ramsey, NJ 07446, USA Tel: +1 631 300 8215 Email: sales@pagamerica.com...
- Page 21 12. Recycling 12.1 Mini PAGlink Batteries are the first to feature PAG’s new modular design concept. This has a dual benefit of making the batteries easier to service locally, and allowing authorised replacement of modules, including the cell-pack, whilst maintaining compliance with UN standards and IATA regulations for flight safety.
- Page 22 MPL99V Model 8241 13.2 PAG does not limit its warranty to an arbitrary number of cycles that may or may not be achievable within the time frame of the warranty. Li-Ion cell-technology deteriorates with age and a time limited warranty is essential.
- Page 23 Since the interpretation and application of regulations may vary All PAG Li-Ion batteries comply with the International Air Trans- with each state and each operator, PAG advises that you contact port Association (IATA) Dangerous Goods Regulations, Section both prior to travelling.
