Summary of Contents for PAG Mini PAGlink MPL50

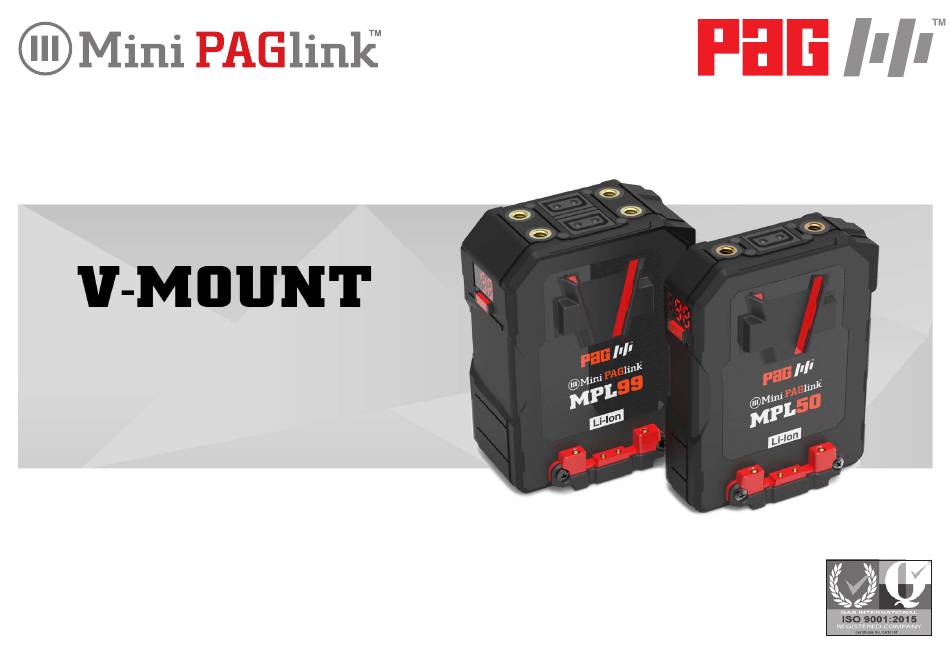

- Page 1 Intelligent Linking Batteries User Guide S10053...
- Page 2 PAG updates documents on a regular basis. Trademarks All PAG registered trademarks are the property of PAG Ltd. All third party trademarks are acknowledged as such. Patents Apply: paguk.com/patents...
-
Page 3: Table Of Contents
Contents Section Page Introduction Specification Charging Discharging Storage Battery Linking Features A User Guide for Mini PAGlink V-Mount Run-Time, Capacity & Data Display Intelligent Linking Batteries. Battery Outputs Please read the important safety information and Battery Protection Features instructions before using your battery. 10 Safety Information 11 Servicing 12 Recycling... -
Page 4: Introduction
1. Introduction Models covered by these instructions: D-Tap Output 1/4” Bush 1/4” Bush Model No. Name Capacity Mount 8141 MPL50 50Wh V-Mount USB (2A) Output 8241 MPL99 99Wh V-Mount Display Unit Mini PAGlink V-Mount batteries are designed to be compatible Display with the Sony V-Mount battery plate. - Page 5 USB output unit (5V 2A) that can be swapped for Lemo, Hirose or Output Unit Release Slider D-Tap output units, already available for the PAG PowerHub (Gold Mount version, Model 9712). These smaller, lighter batteries allow you to control the capacity and...
- Page 6 1.15 1/4” bush inserts have been incorporated to enable the mounting 1.22 PAG Li-Ion batteries are tested by Intertek Group plc to UN 38.3 of accessories to individual or linked batteries.
-
Page 7: Specification
2A continuous, 3A peak. The unit can be removed and replaced with a Hirose (4-pin), Lemo (2-pin), D-Tap or a 2.1mm DC output unit. These Model 8241 MPL99V: 590g (21oz) approx. are available individually from PAG or its resellers. They are the same... -
Page 8: Charging
3. Charging IMPORTANT: READ THE CHARGER HANDBOOK BEFORE ATTEMPTING TO Charge Times: From fully-discharged to fully-charged: CHARGE THE BATTERY. Capacity PL16 Micro Charger NOTE: The battery is put into ‘ship mode’ prior to transit. 50Wh 01:15 02:00 It can be activated by connecting it to a charger that is powered- up, or by linking it to a battery that is already active. -
Page 9: Discharging
4. Discharging Mini PAGlink batteries can be discharged individually or linked. prevents a transfer of charge between batteries. As discharge The batteries can be in any state of charge. The maximum number of progresses, batteries are electronically added to or subtracted from the bus bar to deliver the current required. - Page 10 4. Discharging When the battery has been discharged at a high rate it will become warm, and it is advisable to let it cool before charging it. When not in use, batteries should be kept in an unlinked state to ensure a lower self-discharge rate.
-
Page 11: Storage
5. Storage For the short term, batteries can be left stacked on a charger until required; the charger will keep them topped-up ready for use. For long-term storage, batteries should be in a half-charged state (between 20% and 80%), and not linked. After a long period of inactivity, a Mini PAGlink battery will auto- matically enter Ship Mode, which greatly reduces its rate of self- discharge. -
Page 12: Battery Linking Features
6. Battery Linking Features Linking Batteries: RED BUTTON OUT INDICATES BATTERIES ARE LOCKED TO UNLINK, ... & PULL HOLD-IN THE FRONT THE RED BATTERY UP RELEASE BUTTON... To link batteries, align the V-shaped connector on the rear of a To unlink batteries, grip the rear battery firmly, hold-in the front battery with the V slot on the front of another. - Page 13 6. Battery Linking Features Mini PAGlink batteries can be discharged and charged individually or linked, combining their capacities. Two 50Wh batteries will provide DIGITAL BATTERY 100Wh when linked; a 50Wh and a 99Wh battery will provide 149Wh. COMMUNICATION COMMUNICATION Linking batteries increases the maximum continuous current draw INDICATION capability to 12A, provided the batteries linked are in a similar state of charge.
-
Page 14: Run-Time, Capacity & Data Display
7. Run-Time, Capacity & Data Display The Battery Display: Display Data Output: The battery is able to display a numeric run-time prediction against Data stored in the battery’s microprocessor can be revealed using the load, and charge status as a percentage. battery display: When connected to a camera that is turned-on, two presses of the battery’s display button will... - Page 15 7. Run-Time, Capacity & Data Display Press x3 without Press & hold for ...which appears in holding for software version number... 2 parts indicating version version 2.0 After selecting to view the software version number, the battery will enter Ship Mode automatically. Ship Mode reduces battery self- discharge and can be used when you are going to store or ship your batteries.
-
Page 16: Battery Outputs
8. Battery Outputs Mini PAGlink batteries feature built-in D-Tap outputs (unregulated) Output Units for Mini PAGlink batteries: designed for powering 12V camera accessories. They also incorporate a USB output unit, regulated at 5V (2A), which is interchangeable with other output unit types: Hirose (4-pin), Lemo (2-pin) & D-Tap. OUTPUT UNIT Lemo (2-pin) -
Page 17: Battery Protection Features
A thermal fuse is incorporated within the battery construction as a ‘backstop’ protection device, and this cannot be reset. In the unlikely event of this fuse operating, please contact PAG or your PAG reseller. -
Page 18: Safety Information
10. Safety Information 10.1 PLEASE READ THESE IMPORTANT SAFETY INSTRUCTIONS BEFORE Do not attempt to disassemble the battery. Refer faults to authorised USING THE BATTERY AND RETAIN THEM FOR FUTURE REFERENCE. service personnel. When used correctly, Lithium-Ion batteries are a rugged and safe Do not continue to use the battery if there is any change in the method of storing power. -
Page 19: Servicing
Europe & Middle East: Aspectra B.V. It is PAG's policy to repair its batteries, in keeping with ‘the right to Spoorhaven 78, 2651 AV, Berkel en Rodenrijs, Netherlands repair’, unless it is uneconomic for the customer to do so. Circum-... - Page 20 565 Kingston Road, Raynes Park, London SW20 8SA, UK Tel: +44 (0)20 8543 3131 Email: support@paguk.com The Americas: PAG America (a division of the Carr Distribution Group) 18 Center Street, Ramsey, NJ 07446, USA Tel: +1 631 300 8215 Email: sales@pagamerica.com...
-
Page 21: Recycling
Expired batteries should be disposed of in accordance with the appropriate regulations or legislation. PAG offers a recycling service for its expired batteries in the UK. They can be returned to PAG Ltd. only by prior arrangement. They must be in a discharged state for shipping. -
Page 22: Guarantee
In the event of failure of a product covered by this guarantee, PAG Limited will repair and calibrate equipment returned to an authorised Service Facility within the period of the guarantee, provided the guarantor’s examination discloses to its satisfaction the product was... -
Page 23: Air Transport
Since the interpretation and application of regulations may vary with All PAG Li-Ion batteries comply with the International Air Transport each state and each operator, PAG advises that you contact both Association (IATA) Dangerous Goods Regulations, Section 2.3.5.9, prior to travelling.
