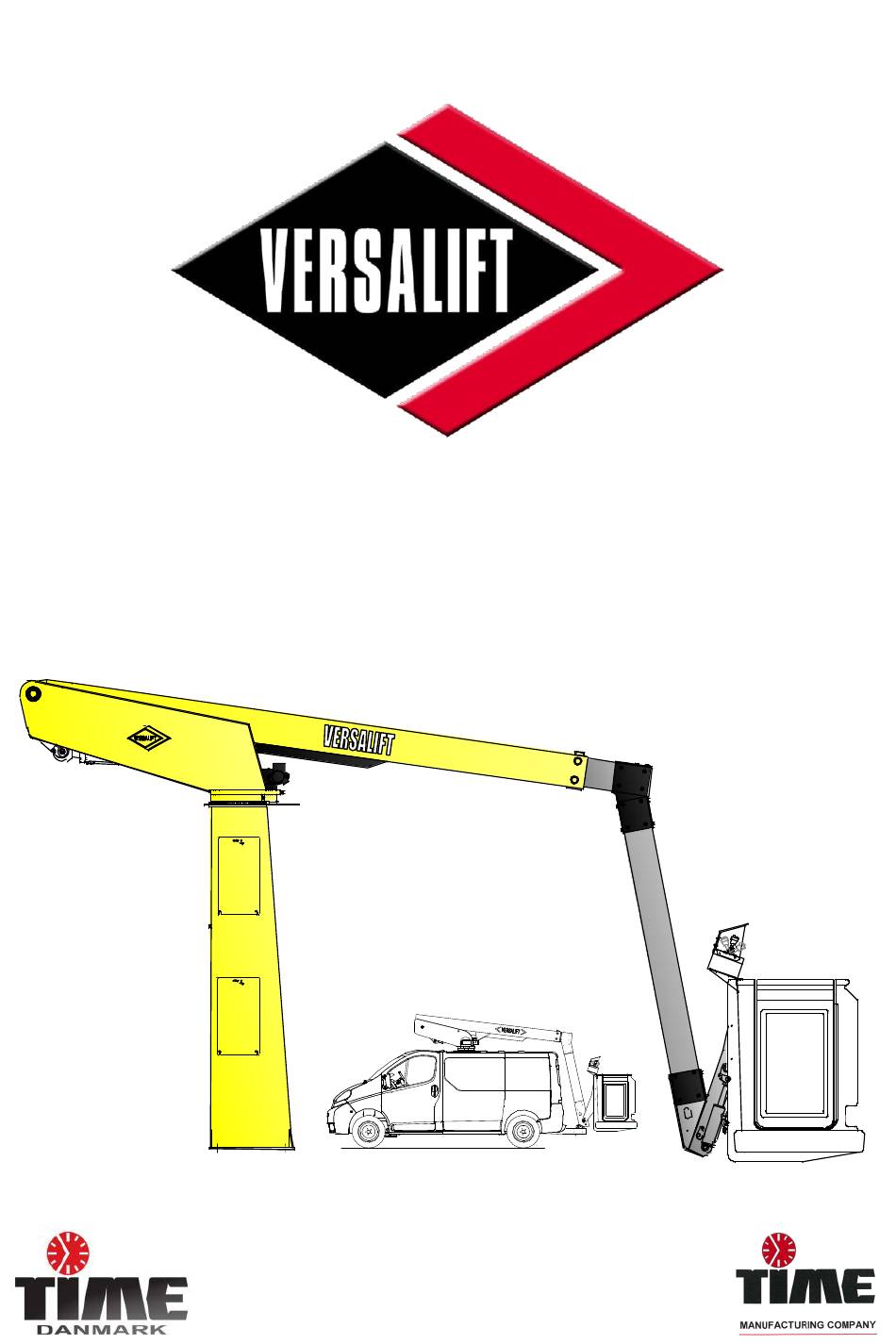

- Page 1 Operators Manual NEXS Models ET26NEXS and ET30NEXS For NE models from 2009 Last revised 1 December 2009...
- Page 2 Contents Operators Manual CONTENTS Daily Check List Page 2 EMERGENCY OPERATION Page 3 Introduction Page 4 Safety Page 5 Operational Safety Page 6 Operating Instructions Page 9 Emergency Operation Page 18 Safety Inspection Page 24 General Specifications Page 29 Decals Page 32 Warranty Page 39...
- Page 3 Check all lamps / warning beacons for correct operation Check the vehicle handbrake for correct operation Ensure all emergency controls operate correctly Ensure that the Versalift is correctly stowed for travelling Check that all warning lights are operational Know vehicle travel height...
- Page 4 Operators Manual EMERGENCY OPERATION In the event that the operator in the bucket has become unable to operate the Versalift, ground personnel will need to take control of the machine, by selecting the lower controls function, using the Control Selector Switch (as illustrated), located on the pedestal.
- Page 5 Full controls at the platform and the complete freedom of boom movements make the Versalift a truly flexible and functional work platform. This manual is furnished to provide practical and essential information for efficient operation of the equipment and must at all times remain with the equipment.
- Page 6 Decals are installed at numerous locations on the Versalift in an effort to warn all personnel of the potential hazards during the use and operation of the Versalift. It is important that the operator, as well as any ground personnel read and understand the information on the decals.
- Page 7 Avoid parking on soft or unstable surfaces. DO NOT operate in windy conditions greater than 12.5 m/s DO NOT use the Versalift as a crane DO NOT take equipment into the bucket (work platform) that could increase wind resistance, such as a notice board.
- Page 8 Operators Manual Operating in Windy Conditions The Versalift equipment should not be used in high wind conditions, such as when large tree branches are in motion, whistling can be heard in telephone wires and umbrellas hard to use. Max Operational Wind Speed 12.5 m/s Should wind speeds be less than this but still noticeable, then extra care should be taken in these conditions, to avoid potential incidents.
- Page 9 Operational Safety Operators Manual Working under Overhead Structures Always take great care when operating this machine beneath overhead structures, as serious injuries can result from inappropriate use. It is recommended that the control selector switch on the upper controls is returned to „O‟ when not in use. To prevent the risk of inadvertently becoming trapped always keep clear of the sides of the personal bucket and operate the booms slowly and carefully.
- Page 10 „Powered Access Licence‟ (PAL) to cover „Static Boom 1b‟ type equipment, (this category used to be known as VMP 26). Details of the Powered Access Licence can be obtained through the International Powered Access Federation‟ (IPAF), or contact Versalift for further details and training options.
- Page 11 Operating Instructions Operators Manual Positioning of Vehicle Park the vehicle on firm, level ground whenever possible and apply handbrake fully. Do not operate the equipment on a slope greater than 5 (approximately 1m rise in 12m) as a slope reduces the vehicles stability and places additional stresses on the equipment. An inclinometer is provided in the cab and the flyboom to show when the vehicle is within the 5 slope requirement.
- Page 12 Operators Manual After Leaving Cab Check the Versalift equipment for damage which may have occurred during transit, this should include the personnel bucket (work platform) for cracks. Also verify that the weather conditions are compatible with safe working, see „Operating in Windy Conditions‟ on page 7.
- Page 13 Operators Manual PAR T N O. VDL 10 88 -4 2 If the Versalift has not been used for an extended period of time, then the lift must be operated from the lower controls through its full range of motion several times before an operator enters the platform and uses the machine.
- Page 14 Operators Manual Cab Controls From the Cab Control Panel the Versalift can be powered up and beacons activated. The facia should look similar to the illustration below and is usually located to the dashboard in clear line of sight (the example given can be found on the Vauxhall Vivaro).
- Page 15 Operating Instructions Operators Manual Lower Controls From the lower hand held controls, full manipulation of the Boom and personnel bucket is possible, either on normal or emergency power, as long as the Control Selector is set to lower controls (B), as described on page 12. Greyed out icons are not applicable to the NEXS machines.
- Page 16 Return Boom Selector Switch to the „O‟ position when Booms are not in use, to reduce the likelihood of human error. EMER 12 0 > <2 0 0 kg <12 0 kg EMER VERSALIFT PART NO. VDL 1088-42 WARNING:- Return selector switch to 0 when not in use. Outer Boom Inner Boom...
- Page 17 The vehicle transmission MUST be in neutral /park before using engine start/stop, otherwise can cause movement which can destabilise the Versalift and risk serious injury. Emergency Stop Button The Emergency stop button (4) is controlled by a red mushroom control button with yellow background.
- Page 18 When stowing the Versalift ready for road travel, retract the inner boom completely and rotate the outer boom assembly until it is centred over the boom hitch socket, or use the guide arrows located to the turret and top of the pedestal. Finally carefully lower the Versalift assembly into the boom hitch socket.
- Page 19 MANUAL emergency operation. Equipment Failure The Versalift can be safely returned to the stowed position, by the use of the Emergency Motor switch function and upper controls by the operator at any time.
- Page 20 Operators Manual Incapacitated Operator In the event that the operator in the bucket has become unable to operate the Versalift, ground personnel will need to take control of the machine, by selecting the lower controls function, using the Control Selector Switch (as illustrated), located on the pedestal.
- Page 21 Emergency - Manual Operators Manual EMERGENCY OPERATION – Manual Control Hydraulic System Operational Should the function control switches fail to respond at the lower and upper controls, the lift may still be operated manually by the use of push buttons on the control valve block that are located on the turret, with each valve having a pictogram denoting its function.
- Page 22 Emergency - Manual Operators Manual When performing manual operation of the Versalift, be aware that the Teleboom cut out switches will not function, so retract the boom before commencing any other functions and for maximum safety rotate the boom over the rear of the van.
- Page 23 Emergency - Manual Operators Manual Lowering Outer (Main) Boom To lower the Outer Boom, carefully loosen the jam nut (counterclockwise), with a 9/16” wrench, on the appropriate holding valve, as illustrated below. Slowly turn the setscrew clockwise (using 5/32” hex) until movement begins. Stay clear of the boom as it travels down. To stop movement, turn the setscrew counterclockwise.
- Page 24 Emergency - Manual Operators Manual Scenarios Complete hydraulic line failure The ET-NEXS lift design uses holding valves to lock the position of the cylinders in the event of a complete hydraulic line failure. This safety feature prevents the booms from dropping. The holding valve set screw and manual rotation described on previous pages can be used to recover the lift.
- Page 25 Bolts Critical fasteners are identified for the ET-NEXS on the following page. As all major sections of the Versalift are bolted together, it is vital that these bolts remain tight. Inspect all the bolts for signs of loosening. Pay particular attention to bolts holding pin retainer tabs, bolts holding pin retainer washers, pedestal mounting bolts and the rotation bearing bolts.
- Page 26 Safety Inspection Operators Manual Critical Fasteners The following illustration shows those fasteners to which particular attention must be paid as an operator during visual checks of the machine prior to operation, for your own safety any defects should be reported to your supervisor for further action. More detailed information is contained in the service manual provided with the machine at the time of purchase.
- Page 27 Safety Inspection Operators Manual Critical Welds All critical welds are identified on the illustrations below and should be inspected for possible signs of fatigue, evidenced by hairline cracks. Some critical welds that warrant special attention are located where the turret wings are welded to the base plate, the cylinder mounts are welded to the boom, the cylinder mounts are welded to the turret, the welds on the platform support and on the mounting hardware including the pedestal extension.
- Page 28 Safety Inspection Operators Manual Vehicle Tyres Check tyres for the correct inflation and for damage to sidewalls. Low pressure or damaged tyres are unsafe while driving the vehicle or operating the lift. Hydraulic Oil Level Check the hydraulic reservoir oil level in the sight gauges located on the side of the pedestal and add appropriate oil if necessary.
- Page 29 FILL CAP For more detailed and comprehensive RETURN FILTER / BREATHER ASSY' information on this matter and others relating to the servicing of the Versalift OIL LEVEL GAUGE equipment, please refer to separate SERVICE H YD RA UL IC F L UI D...
- Page 30 Operators Manual ET-NEXS GENERAL SPECIFICATION The Versalift Minitel NEXS model range is available in two models, designated ET26NEXS and the ET30NEXS. An end mounted one man bucket is provided on these models. The following information is a brief description of the major components to facilitate a basic understanding of the equipment thereby aiding operation and reporting of incidents.
- Page 31 Operators Manual ET26NEXS Specification The figures illustrated here are typical values, based on common installations, as each vehicle type and Versalift equipment specification will affect the dimensional characteristics in too many ways to cover all variations here. „Standard‟ is a typical example such as that found on a 9.2m...
- Page 32 The figures illustrated here are typical values, based on common installations built to date, as each vehicle type and Versalift equipment specification will affect the dimensional characteristics in too many ways to cover all variations here. „Standard‟ is a typical example such as that 10.5m...
- Page 33 Safe Operation Located on the pedestal, listing „safety operation information‟ relevant to the particular SWL of the Versalift equipment. Measures 140mm x 200mm VDL 1045-225 for SWL 120kg BLA C K LINE S A ND LE TTE RIN G O N W H ITE BA C KG RO UN D .
- Page 34 / BULLETINS R ELEVENT TO THIS MACHINE. CO NTACT ADDR ESS VDL 1045-246 BELOW TO REGISTER NEW OWNER DETAILS SO THAT D ATA-BASE CAN BE UPD ATED ACCOR DINGLY. Versalift Distributors (U K) Ltd, 1 Altendiez Way, Latimer Park, Burton Latimer, Northants. NN15 5YZ TEL:- 01536 721010 www.admin@ versalift.co.uk...
- Page 35 Decals Operators Manual DECALS located to the BUCKET Use of Platform Label located in the bucket (work platform), illustrating safe use and max wind speed. Max allowable manual force of 200N (20kgf) applies to force on the bucket by the operator exerting pressure via an external source.
- Page 36 Decals Operators Manual Danger of Electrocution Label is located in the bucket (work platform), as a warning to possible risk of electrocution. Measures 75mm x 85mm VDL 1045-34 Boom Docking Label is located on the flyboom, as a reminder on correct docking procedure.
- Page 37 TE XT (BLA C K T EX T, 5m m H IGH ) VD L10 45 -3 77 (BLA CK T EXT , 1.6 mm H IGH ) This decal advises that the Versalift equipment TO LER ANC ES UN LESS OTH ER WI S E ST ATED D W N.
- Page 38 Decals Operators Manual Emergency Controls Label is located to the housing for the emergency manual valve controls on the turret. Measures 70mm x 40mm VDL 1045-109 VDL 10 45 -1 09 BLACK LETTERS ON YELLOW BACKGROUND. Outrigger Pressure This warning decal is located adjacent to the outrigger (stabiliser) and describes the max load TO L ER ANC ES UN L ESS OT H ER WI SE ST AT ED DW N.
- Page 39 Decals Operators Manual Inclinometer Decal is located in the vehicle cab and flyboom for jackless machines. Measures 78mm x 32mm VDL 1045-226 Use of Emergency Motor Label is affixed to the ground controls and upper controls cover. Measures 110mm x 35mm VDL 1045-339 LOLER Certificate WARNING...
- Page 40 Operators Manual Owner’s Warranty The Versalift aerial platform lift is engineered and designed to perform as stated in the published specifications. Only quality material and workmanship are used in the manufacture of this product. With proper installation, regular maintenance and periodic repair service, the equipment will provide excellent service.
- Page 41 5, 32 to 38 Emergency Motor/Power Emergency Operation 3, 18 Emergency Operation, Manual Control Emergency Stop Engine Start Stop Equipment Failure ET26NEXS Specification ET30NEXS Specification General Specification Harness Hydraulic Oil Hydraulic Power Source Inoperable Hydraulic System Inspection Incapacitated Operator Inclinometer...
