Summary of Contents for Meridian M2021 Series

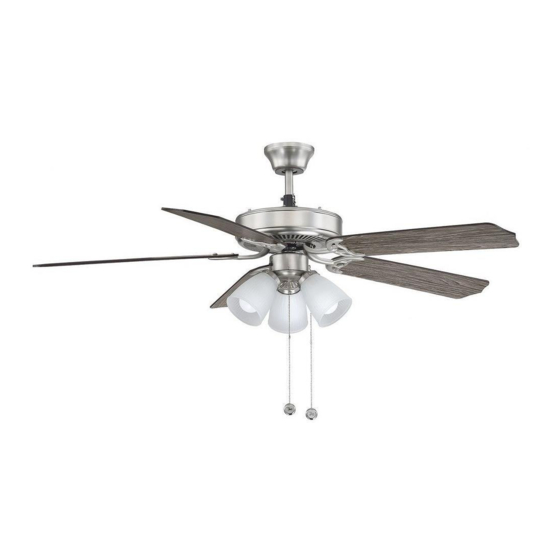

- Page 1 52” CEILING FAN OWNER'S MANUAL READ AND SAVE THESE INSTRUCTIONS MODEL: M2021XX FAN RATING AC 120V. 60Hz UL LISTED MODEL : AC-552A...
- Page 2 1. TOOLS AND MATERIALS REQUIRED Philips screwdriver Blade screwdriver 11 mm wrench Step ladder Wire cutter 2. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items; a. Set of blades assembly (5) b. Hanger bracket c.
- Page 3 3. SAFETY RULES 1. To reduce the risk of electric shock, insure 8. Avoid placing objects in the path of the electricity has been turned off at the circuit blades. breaker or fuse box before beginning. 9. To avoid personal injury or damage to the 2.
- Page 4 4. MOUNTING OPTIONS If there isn't an existing UL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the Outlet box building structure. appropriate fasteners and building materials.
- Page 5 5. HANGING THE FAN UL Listed REMEMBER to turn off the power. Follow the electrical box steps below to hang your fan properly. Hanger bracket NOTE: This ceiling fan is supplied with two types of hanging assemblies; the standard Mounting screws ceiling installation using the downrod with ball (supplied with and socket mounting and the "close-to-ceiling"...
- Page 6 CLOSE-TO-CEILING INSTALLATION 1. Pass the 120-volt supply wires through the center hole in the ceiling hanger Canopy bracket as shown in Fig. 5. Decorative canopy cover 2. Remove the decorative canopy cover Figure 8 from the canopy by turning canopy cover counterclockwise.
- Page 7 6. MAKE THE ELECTRIC CONNECTIONS POWER LINES 120V GREEN GROUND Remember to disconnect the power. Follow the steps below to connect the fan WIRING to your household wiring. Use the wire connecting nuts supplied with your fan. GROUND TO Secure the connectors with electrical tape. MOUNTING BRACKET Make sure there are no loose strands or...
- Page 8 8. FINISHING THE INSTALLATION Outlet box Screws Hanger STANDARD CEILING INSTALLATION bracket Slide canopy up to the ceiling as shown in Figure 14. Make sure you place the wires Ceiling canopy safely into the outlet box. Secure the canopy to the hanger bracket with the four screws with your fan.
- Page 9 8. ATTACHING THE FAN BLADES Caution: Remove 5 rubber packing mounts and discard before installation. Step 1. Attach the blade to the blade bracket using the screws and fiber washers as shown in Figure 16. Start screw into bracket. Repeat for the two remaining screws.
- Page 10 10. INSTALLING THE LIGHT BULBS & GLASS SHADE 1. Mount the glass shades to the light fixture by unscrewing partway the thumb screws on the glass holders, inserting the glass, then gently tightening the thumb screws by hand evenly to the glass. DO NOT OVER TIGHTEN.
- Page 11 12. OPERATING YOUR FAN NOTE: Wait for fan to stop before changing the setting of the slide switch. Turn on the power and check the operation of your fan. The pull chain controls the fan speed as follows: 1 pull- High, 2 pulls-Medium, 3 pulls- Low, and 4 pulls-Off.
- Page 12 13. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off. Fan sounds 1. Make sure all motor housing screws are snug. noisy.
