EZSTLDWS*1G

& LZ™ Series Versatile Bottle Filling Stations & Coolers

™

EZ™ & LZ™ Serie versatil Botella Bombas y Enfriadores

EZ™ & LZ™ Stations versatile de Remplissage de Bouteille Série et Refroidisseurs

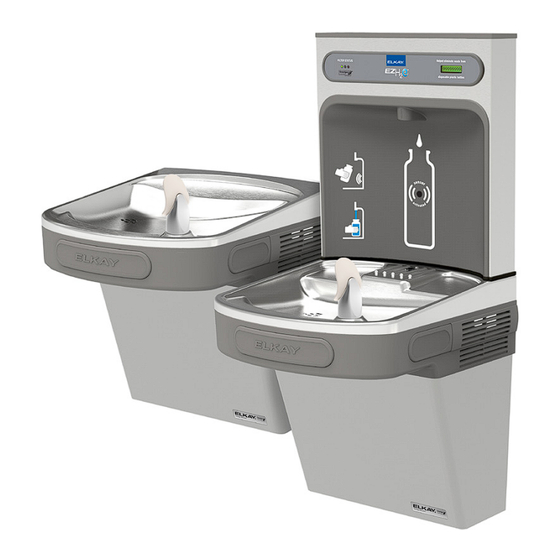

*Versatile Cooler Model LZSTL8WSLK

configuration as shipped

*Versatile cooler design allows units to be

installed either left-hand high and right-hand low

or left-low and right high.

Basin change may be required.

rough-in to help determine if the basin change is

necessary.

Refrigerated unit must be installed on right-hand

side.

Patent zurn-elkay.com/patents

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov

AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov

EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G

INSTALLATION & USE MANUAL

Manual de instalación y uso

Manuel d'installation et utilisation

See desired

Page 1

LZSTL8WS*1G, 2G, 3G

*Versatile Cooler Model LZSTL8WSLK

alternate installations

1000002243 (Rev. K - 03/23)

Need help?

Do you have a question about the EZSTL8WS 2G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elkay EZSTL8WS 2G Series

Page 1 Refrigerated unit must be installed on right-hand side. Patent zurn-elkay.com/patents WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov 1000002243 (Rev.
Page 2 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Note: Danger! Electric shock hazard. Disconnect power before servicing unit. Nota: peligro! Peligro de descarga eléctrica. Desconecte antes de reparar la unidad. Remarque : Danger ! Risque d'électrocution. Débrancher avant de réparer l'appareil. Pictured is unit only without bottle filler.
Page 3 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Fig. 2 1000002243 (Rev. K - 03/23) Page 3...
Page 4 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Fig. 3 1000002243 (Rev. K - 03/23) Page 4...
Page 5 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Fig. 4 1000002243 (Rev. K - 03/23) Page 5...
Page 6 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Fig. 5 1000002243 (Rev. K - 03/23) Page 6...
Page 7 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G HANGER BRACKETS INSTALLATION INSTALACIÓN DE SOPORTES PARA COLGAR SUPPORTS DE CROCHET DE SUSPENSION INSTALLATION Retire el soporte fijador que se encuentra conectado a 1) Remove hanger brackets fastened to back of cooler la parte posterior del enfriador sacando un (1) tornillo.
Page 8 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Service Instructions Lower and Upper Shroud To access the refrigeration system and plumbing connections, remove four screws from bottom of cooler to remove the lower shroud. To remove the upper shroud for access to the pushbars, regulator, solenoid valve or other components located in the top of the unit, remove lower shroud, disconnect drain, remove four screws from tabs along lower edge of upper shroud, unplug two wires and water tube.
Page 9 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G 7/16” BOLT HOLES FOR MOUNTING FASTENING UNIT TO WALL TOP COVER SCREWS UNIT CENTER LINE Fig. 8 Fig. 9 BRACKET & SCREWS Fig. 10 Fig. 11 Bottle Filler Installation Instructions 1) Remove two (2) mounting screws with 5/32” Allen wrench holding top cover to Bottle Filler (See Fig. 9). Remove top cover. Note do not discard mounting screws, they will be needed to reinstall top cover.
Page 10 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G BF11 - BF12 PROGRAM SETTING THE CONTROL BOARD VERIFY CONTROL BOARD SOFTWARE Continued from below: 1) To verify the software program of the control board the unit will 2) When the display changes to “SETTINGS”, depress the button again. need to be shut down and restarted.
Page 11 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G INSTRUCTIONS TO MOVE THE BOTTLE FILLER & BASIN TO THE LEFT SIDE (NON-REFRIGERATED) FOR ALTERNATE MOUNTING VERSATILE BI-LEVEL Fig. 12 Fig. 13 Using a 5/16" socket, remove the (4) screws from the bottom ONLY move the filler panel and j-clip Using a #T20 (6 point star bit), of each cooler to remove the...
Page 12 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G INSTRUCTIONS CONTINUED..Swap drain parts in shroud: Loosen each hose clamp retaining the drain pieces. Remove each drain piece and swap to other basin. Tighten each hose clamp. Fig. 16 Refrigerated Cooler side: Carefully lift and tip the shroud/basin assembly off of the cooler frame.
Page 13 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G Versatile Wrapper and Trim Kit Installation Instructions Left Hand Wrapper (High Side) Right Hand Wrapper 1) Remove existing wrapper (Low Side) by removing the (4) screws 1) Remove existing wrapper from bottom. by removing the (4) screws 2) Screw trim piece to wrapper from bottom.
Page 14 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G PLUMBING DIAGRAMS VERSATILE BI-LEVEL Bottle Filler Drain Bottle Filler Drain Bottle Filler Drain Bottle Filler Drain Fig. 22 1000002243 (Rev. K - 03/23) Page 14...
Page 15 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G 1000002243 (Rev. K - 03/23) Page 15...
Page 16 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G SWITCHES Fig. 24 SOLENOID VALVE Basin Estanque Bassin Locknut Tuerca de Fijación BUBBLER DETAIL Écrou de Blocage DETALLE DEL GRIFO DETAIL DU BARBOTEUR Fig. 25 NOTE: When installing replacement bubbler and pedestal, tighten nut only to hold parts snug in 115V Non-Refrigerated Wiring Diagram position.
Page 17 EZSTLDWS*1G EZSTL8WS*1G, 2G, 3G LZSTLDWS*1G LZSTL8WS*1G, 2G, 3G OPERATION OF QUICK CONNECT FITTINGS OPERATION OF QUICK CONNECT FITTINGS SIMPLY PUSH IN SIMPLY PUSH IN TUBE IS SECURED PUSH IN COLLET TUBE IS SECURED PUSH IN COLLET TUBE TO ATTACH IN POSITION TUBE TO ATTACH IN POSITION TO RELEASE TUBE...
Page 18 Standard Rough-In Primary Outlet Location Standard Rough-In Alternate Outlet Location Reverse Rough-In Primary Outlet Location Reverse Rough-In Alternate Outlet Location Fig. 30 1000002243 (Rev. K - 03/23) Page 18...
Page 19 NÚMERO GRATIS DE SERVICIO 1.800.260.6640 IMPRESO EN LOS E.E.U.U. INFORMATIONS POUR LE SERVICE PAR NUMERO SANS FRAIS 1.800.260.6640 IMPRIMÉ AUX É.-U. ELKAY MANUFACTURING COMPANY • 1333 BUTTERFIELD ROAD • DOWNERS GROVE, IL 60515 • 630.574.8484 • www.elkay.com 1000002243 (Rev. K - 03/23) Page 19...
