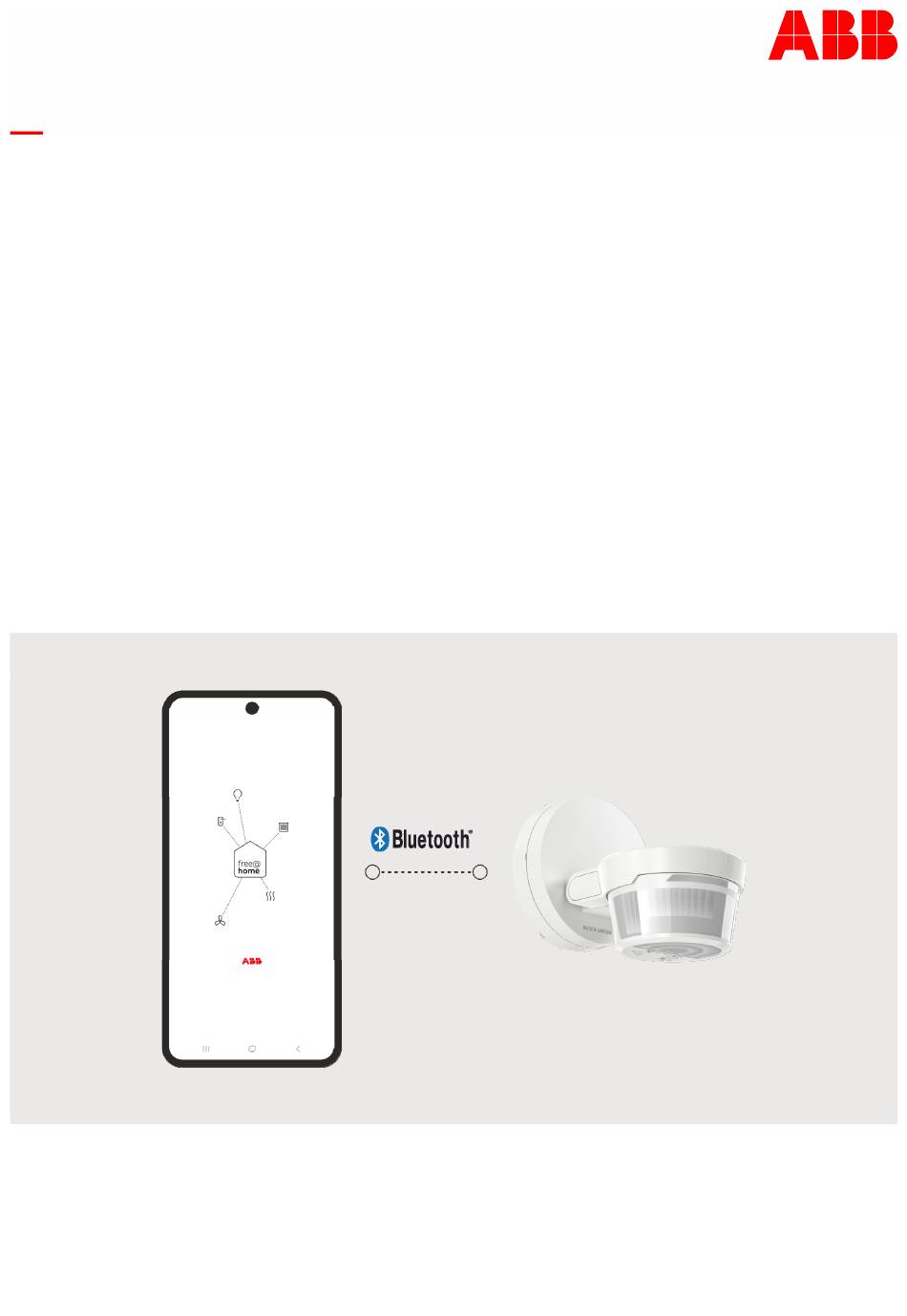

- Page 1 Product manual │ 12.08.2024 Busch-Watchdog ® 6851/9-xxx-500 Busch-Watchdog ® 90° BT 6851/22-xxx-500 Busch-Watchdog ® 220° BT 6851/22S-xxx-500 Busch-Watchdog ® 220° select ® Commissioning and operation via the app ABB-free@home Next App...
- Page 2 Table of contents Table of contents Notes on the instruction manual ........................3 Trademarks ..............................3 Overview ................................ 4 Overview ABB-free@home ® Next App / Busch-Watchdog ® PRO ............ 5 Overview of start screen ........................6 Possible access versions of the app....................6 ®...
- Page 3 If you pass the device on, also include this manual along with it. ABB accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact ABB or visit our Internet site at: https://new.abb.com/en...
- Page 4 Overview Overview ® This instruction manual supplements the product manual Busch-Watchdog 6851/9-xxx-500 6851/22-xxx-500 6851/22S-xxx-500 to configure and operate the function of the ABB-free@home ® Next App . Notice ® The devices are configured with the app ABB-free@home Next App. The networking is carried out via Bluetooth ®...
- Page 5 Overview Overview ABB-free@home ® Next App / Busch-Watchdog ® In the following you see the function and operating areas of the app for the Busch-Watchdog ® devices. Overview area Parameters General settings Others Display of the current device Setting the device parameters Change of device name and the ■...
- Page 6 Add device By tapping the arrow, the pull-down menu for adding an additional device opens. Hamburger menu Tapping on the Hamburger menu the function overview of the ABB-free@home ® Next App. opens Name of the selected installation Name of the currently selected device within the...
- Page 7 Overview Permanent access via the app Temporary access via the app With this version the main focus is on the use by the fitter. With this version the main focus of the use is on Access to the device via the app is possible only the end user.
- Page 8 Overview ABB-free@home ® Next AppFunction overview / selector switch Function overview 6851/9-xxx-500 / 6851/22-xxx-500 / 6851/22S-xxx-500 Function Settings – On Channel – – Off – Permanently switched on Continuous mode – – Continuous off – 0% – 25% Sensitivity (0,1,2,3) –...
- Page 9 Bluetooth. The devices of the app are not found in the "Smart room" mode. System requirements A mobile terminal device is required for commissioning via the app ABB-free@home ® Next App. In the following the designation "Smartphone" is used representatively.
- Page 10 Initial steps Initial steps Downloading and installing the app ® Download the app ABB-free@home Next App from the respective store and install it on your smartphone. Android Notice When updating the operating system of your Apple smartphone, it can happen that the coupling to the Busch-Watchdog ®...
- Page 11 1. Activate the Bluetooth on your smartphone and connect the device to the power supply. Fig. 1: Integrating the device [2] - [4] (example illustration) 2. Open the app ABB-free@home ® Next App and tap on the displayed device in section "Independent device".
- Page 12 7. Assign a new device name and position the device inside the installation with the help of the plus icon. Then confirm the settings with "Continue". The device is connected with the app ABB-free@home ® Next App and can be configured via the parameters.
- Page 13 3. Use the camera of your smartphone to scan the printed QR code on the rear side of the sensor head of the device. Notice To be able to scan the QR code via the app ABB-free@home ® Next App, you must allow access to the camera when you are requested.
- Page 14 7. Assign a new device name and position the device inside the installation with the help of the plus icon. Then confirm the settings with "Continue". The device is connected with the app ABB-free@home ® Next App and can be configured via the parameters.
- Page 15 The project in the fitter app must be removed manually after the successful transmission. ® – To be able to scan the QR code via the app ABB-free@home Next App,you must allow access to the camera when you are requested. Product manual 2CKA000073B5793...
- Page 16 Operation Operation Overview of parameters For the configuration of the parameters, select the installation and the desired device. Then scroll down to the parameters. The overview shows the individual parameters in their sequence of appearance during operation. Notice Some changes must, if necessary, be saved via the "Save" button for them to become effective.
- Page 17 Operation Switch-off pre-warning Before switching off the light, the end of the illumination period is displayed via the connected load (e.g. an LED lamp). The switch-off pre-warning is only active during the switch-off delay, not at a manual switch-off. Phase of switch-off pre-warning: 1.
- Page 18 Operation Switch-on Different settings can be preselected. If the ambient brightness drops below the selected criterion, a movement detection leads to the switch-on of the connected lamp. Always – independent of the brightness – 15 lx (factory setting) – Takeover of the current threshold value Threshold value –...
- Page 19 When the selector switch is briefly set on "Test". ■ – After activating the activation test, set the selector switch to the desired brightness value. By activating the switch in the ABB-free@home ® Next App. ■ Fig. 7: Test mode activated (example illustration)
- Page 20 Turn the selector switch to any desired brightness value and then briefly to setting "Test". – Now set the desired brightness value. Deactivate the test mode by tapping the sliding switch in the ABB-free@home ® Next App ■ Product manual 2CKA000073B5793...
- Page 21 Operation Reducing the detection range / the sensitivity Notice The limitation of the detection range can also take place directly on the device. The detection angle can be specifically limited by gluing on the enclosed foil. The detection range of the Busch-Watchdog ®...
- Page 22 Operation Setting the sensitivity 6851/9-xxx-500 Fig. 9: Sensitivity 6851/9-xxx-500 Notice The detection with the bottom lens cannot be reduced via the app, since it takes place via a mirror. Setting the sensitivity 6851/22-xxx-500 Fig. 10: Sensitivity 6851/22-xxx-500 Notice The detection with the bottom lens cannot be reduced via the app, since it takes place via two mirrors.
- Page 23 Operation Setting the sensitivity 6851/22S-xxx-500 Fig. 11: Sensitivity 6851/22S-xxx-500 Product manual 2CKA000073B5793 │23...
- Page 24 Operation Automation/Timer Notice The device is not equipped with batteries. – Time programs are stopped at a power failure. – The time in the device is synchronized again only at the next connection with the app. Up to 28 switching times can be programmed via the automation. Each starting time has a weekday function and can programmed for one or several weekdays.
- Page 25 Operation 5.3.1 Automation/Timer settings Different switching times can be programmed in the automation area. The following overview shows the setting options and parameters in their sequence of appearance during operation. Notice Performed changes must, if necessary, be saved via the "Save" button for them to become effective.
- Page 26 Operation Repetition on every Mon/Tue/Wed/Thu/Fri/Sat/Sun Specifying the weekdays at which the timer is to repeat itself. The standard setting. The timer switches on all weekdays at Switching on all weekdays the same time. Live mode If the controller of the live mode option is set on "On", the actuator takes on the status specified in the timer.
- Page 27 Operation General settings Fig. 13: General settings The name of the device can be changed in the "General settings" and the position (floor/room) inside the house can be defined. Settings / maintenance Fig. 14: Other - Settings / Maintenance Information about the device [1] Overview of the device data Maintenance [2] Setting and changing device password...
- Page 28 The message "Update successful" appears in the app. Factory settings Notice ® Local operation can be blocked via the ABB-free@home Next App. In this case both the operation and the master reset are deactivated via the selector switch on the device.
- Page 29 Notes Notes Product manual 2CKA000073B5793 │29...
- Page 30 Priority behaviour at operation via the app or via the Factory settings ..........28 device ............. 9 Firmware update .......... 28 ® Function overview ABB-free@home Next App / selector switch ........... 8 Reducing the detection range / the sensitivity ... 6, 21 General settings ........... 27 Settings / maintenance ........
- Page 31 Busch-Jaeger Elektro GmbH A member of the ABB Group Freisenbergstraße 2 D-58513 Lüdenscheid, Germany https://new.abb.com/en Customer service: Tel.: +49 2351 956-1600 Copyright © 2024 Busch-Jaeger Elektro GmbH All rights reserved...
