Product manual │ 10.07.2024

Busch-Watchdog

PRO

6251/28-xxx-WL-500

Busch-Watchdog

280° WL

Need help?

Do you have a question about the Busch-Watchdog PRO and is the answer not in the manual?

Questions and answers

Summary of Contents for ABB Busch-Watchdog PRO

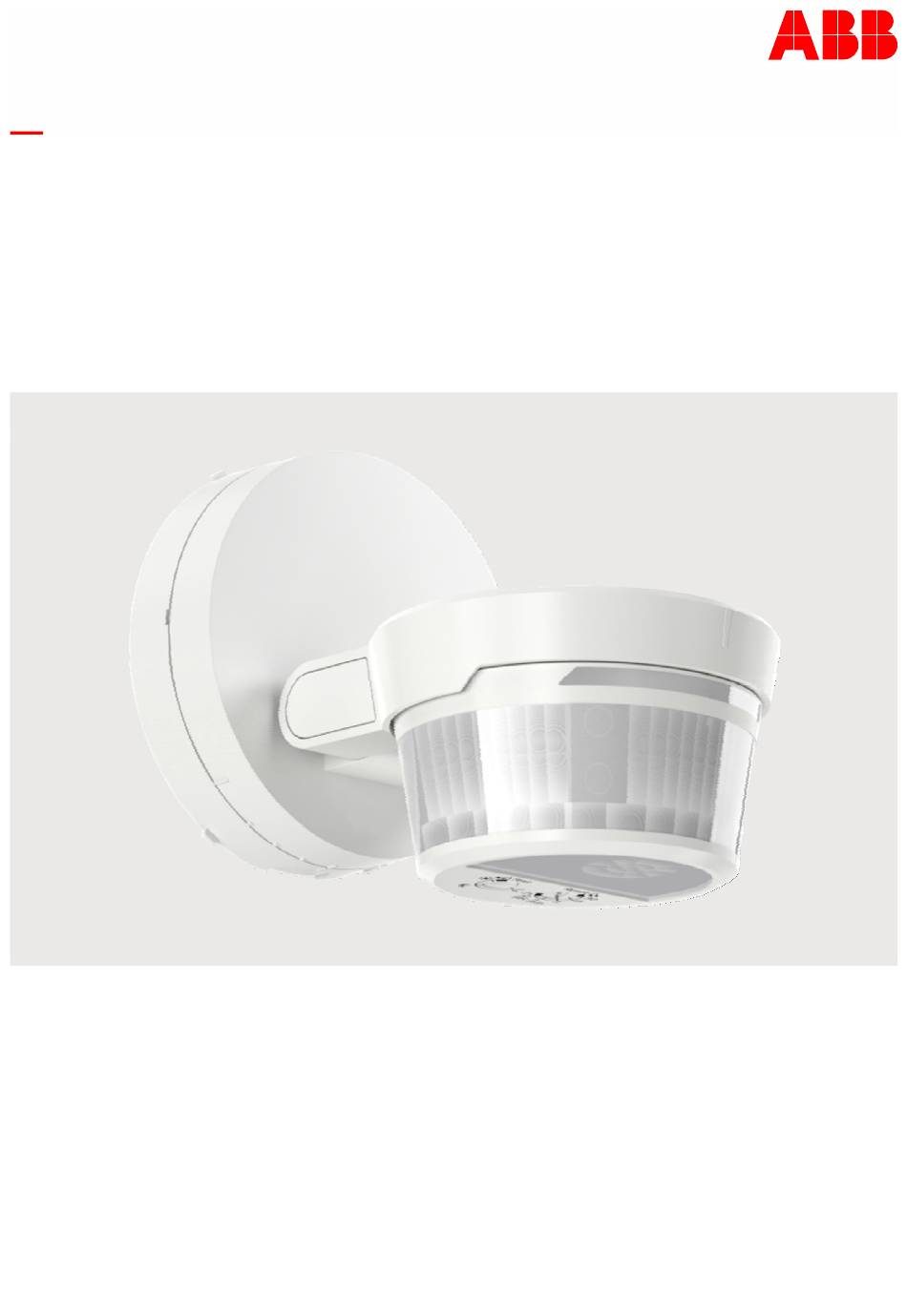

Page 1 Product manual │ 10.07.2024 Busch-Watchdog ® 6251/28-xxx-WL-500 Busch-Watchdog ® 280° WL...
Page 2 Walking test ............................27 Operation ..............................29 Operating modes for on-site operation .................... 29 Operating modes for operation via the app ..................30 LED status display ........................... 30 RESET (Resetting the device) ......................31 Integration in ABB-free@home® ......................... 33 Product manual 2CKA001473B5799 │2...
Page 3 Table of contents Update ................................. 34 Maintain ............................... 35 11.1 Cleaning ............................35 Declaration of conformity ..........................36 Notes ................................37 Index ................................38 Product manual 2CKA001473B5799 │3...
Page 4 If you pass the device on, also include on this manual along with it. ABB accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact ABB or visit our Internet site at: https://abb.com/freeathome...
Page 5 However, residual hazards remain. Read and adhere to the safety instructions to prevent hazards of this kind. ABB accepts no liability for any failure to observe the safety instructions. Information and symbols used The following Instructions point to particular hazards involved in the use of the device or provide...
Page 6 Any use not mentioned in chapter 2.2 "Intended use" on page 6 is considered improper use and can lead to personal injury and damage to property. ABB is not liable for damages caused by use deemed contrary to the intended use of the device. The associated risk is borne exclusively by the user or operator.
Page 7 Safety Target group / Qualifications of personnel 2.4.1 Operation No special qualifications are required to operate the device. 2.4.2 Installation, commissioning and maintenance Installation, commissioning and maintenance of the device must only be carried out by trained and properly qualified electrical installers. The electrical installer must have read and understood the manual and follow the instructions provided.
Page 8 Information on protection of the environment Information on protection of the environment Environment Consider the protection of the environment! Used electric and electronic devices must not be disposed of with household waste. – The device contains valuable raw materials that can be recycled. Therefore, dispose of the device at the appropriate collecting facility.
Page 9 "Smart Room" installation with an extended range of functions ■ ® – Integration as wireless device into a ABB-free@home system ("Home Control") The device is suitable for wall and ceiling mounting. Installation on ISO switch boxes (68 mm) is also possible.
Page 10 Setup and function Scope of delivery The scope of delivery includes the motion detector and base. ® An optional "square design" is available via Busch-Watchdog frame 6851/DR-xxx (not included in the scope of delivery). The corner adapter 6851-EA/xxx is available for corner mounting (not included in the scope of delivery).
Page 11 Setup and function Device overview Fig. 1: Overview of devices [1] LED [2] Lens [3] Selector switch switch-off delay, short-time pulse / reset [4] Brightness limit value selector switch, walking test [5] Recess for dismantling protection Product manual 2CKA001473B5799 │11...
Page 12 Technical data Technical data Designation Value Nominal voltage 230 V AC ± 10 % 50 / 60 Hz Switching capacity 2300 W/VA Switching capacity LEDi 400 VA Maximum power loss 0.3 W Front lens 280° Horizontal detection 280° Twilight sensor Typ.
Page 13 Technical data Dimensional drawings Fig. 2: Dimensions Fig. 3: Dimensions with design frame (optional) Notice All dimensions are in mm. Product manual 2CKA001473B5799 │13...
Page 14 Technical data Detection range Fig. 4: Detection range Detection range The detection range is 280°. ■ The maximum range is 16 m in radius. ■ In addition, the motion detector has a rear field monitoring of one metre. ■ Wall mounting When mounted on a wall at a maximum height of 2.5 m, the motion detector offers optimum ■...
Page 15 . This can be downloaded at https://new.abb.com/en. Notice Planning and application instructions for the system can be found in the system manual for ABB-free@home®. This can be downloaded at https://abb.com/freeathome. Notice Transmitter and receiver communicate via radio control. The transmission range depends on the structural conditions.
Page 16 Connection, installation / mounting Safety instructions Danger - Electric shock due to short-circuit! Risk of death due to electrical voltage of 100 to 240 V during short-circuit in the low-voltage line. – Low-voltage and 100 - 240 V lines must not be installed together in a flush- mounted box! –...
Page 17 Connection, installation / mounting Circuit diagrams Standard connection Fig. 5: Standard connection Standard connection with NC button Fig. 6: Standard connection with NC button The connected load is switched on for the duration of the set run-on time after the break contact is pressed.
Page 18 Connection, installation / mounting Terminal assignment [⏚] Green/yellow [L] Brown [N] Blue [↓] Grey The stripping length is 11 mm. Fig. 8: Skinning length Attention! Protection of the skinned lengths – Do not remove the wire end sleeves on the device cables. Danger - Electric shock due to short-circuit! Risk of death due to electrical voltage of 100 to 240 V during short-circuit in the low-voltage line.
Page 19 Connection, installation / mounting Mounting Danger - Electric voltage! Risk of death and fire due to electric voltage of 100 to 240 V. – Work on the 100 - 240 V supply system may only be performed by authorised and qualified electricians. –...
Page 20 Connection, installation / mounting 4. Fit the plinth. – The screw-on options [A] of the base are compatible with any existing holes in old ® Busch-Watchdog – Do not use countersunk screws to mount the base. – Use screws with a head diameter of 6.5 ... 8.5 mm. Fig.
Page 21 Connection, installation / mounting 6. Latch the cover of the device onto the base. Fig. 14: Snap the front of the appliance onto the plinth 7. Attach the cover so that the markings are above each other. Fig. 15: Align markings 8.
Page 22 Connection, installation / mounting Mounting the design frame (optional) Notice The Busch-Watchdog ® 6851/DR-xxx Designrahmen is not included in the scope of delivery and can be ordered separately. Notice ® The Busch-Watchdog 6851/DR-xxx Designrahmen is suitable for wall and ceiling mounting, but not for corner mounting. Fig.
Page 23 Connection, installation / mounting Mounting the corner adapter (optional) Fig. 18: Mounting the corner adapter (optional) Notice The corner adapter 6851/EA-xxx is available for corner mounting (not included in the scope of delivery). Mounting situation There are various mounting types for the motion detector. The mounting hole is compatible with all previous models.
Page 24 Connection, installation / mounting Wall mounting on a slope Wall mounting on a slope is recommended, for example, for a building on a hill or with a gradient. This allows the detection ranged to be used effectively. Fig. 21: Wall mounting on a slope Ceiling mounting Fig.
Page 25 Connection, installation / mounting Installation site Ceiling mounting is not recommended in confined spaces. ■ The recommended installation height of the appliance is 2.5 m. ■ The motion detector should be at least 1.5 m away from light and heat sources. ■...
Page 26 Commissioning Commissioning Reduction of the detection range The detection area can be reduced either by sticking on the film supplied or via the app. ® The detection range of the Busch-Watchdog is 280°. The detection range can be limited in case of special local circumstances.
Page 27 Commissioning Adaptation to slopes To adjust the detection area to the slope, proceed as follows: 1. Change the level of the detection area by turning the upper part of the device on the base. Fig. 28: Adapt the detection area to the slope Walking test The walking test is used to check the detection range by pacing.
Page 28 Commissioning Completing the walking test The device terminates the "Walk test" function under the following conditions: Automatically 10 minutes after the start of the walking test if the selector switch has been ■ set to any brightness value. Manual termination of the walking test –...
Page 29 – Short-time pulse for activating the staircase light timer switches or door bells. Notice Local operation can be disabled via ABB-free@home ® Next App. In this case, both operation and the master reset via the selector switch on the device are deactivated.
Page 30 Operation Operating modes for operation via the app Notice Detailed information on the setting options and operation via ABB-free@home ® ® Next App can be found in the app manual for Busch-Watchdog PRO motion detectors. LED status display Fig. 33: LED position...
Page 31 Master reset via selector switch directly on the device – Master reset via app Notice Local operation can be disabled via ABB-free@home ® Next App. In this case, both operation and the master reset via the selector switch on the device are deactivated.
Page 32 Operation Master reset via app Notice Detailed information on the setting options and operation via ABB-free@home ® ® Next App can be found in the app manual for Busch-Watchdog PRO motion detectors. Product manual 2CKA001473B5799 │32...
Page 33 It is assumed that the basic steps for commissioning the overall system have already been taken. Knowledge about the basic functions of the commissioning software of the System Access Point is assumed. The device is commissioned via the web-based interface of the System Access Point or ABB- ® free@home Next App.
Page 34 Update Update A firmware update is possible for the device. ® The firmware update is carried out via the app "ABB-free@home Next App". ■ ® If the device is integrated into a system ABB-free@home , the firmware update can ■...
Page 35 Maintain Maintain Check the device for software updates from time to time to ensure system stability and compatibility. The device is also maintenance-free. In case of damage, e.g. during transport or storage, do not perform repairs. Once the device is opened, the warranty is void. Access to the device must be guaranteed for operation, testing, inspection, maintenance and repairs (according to DIN VDE 0100-520).
Page 36 Declaration of conformity Declaration of conformity herewith declares, that radio system type 280° WL conforms to directive 2014/53/EU. The complete text of the EU declaration of conformity is available at the following Internet address: https://new.abb.com/products/2CKA006200A0862/6251-28-134-wl-500 ■ Product manual 2CKA001473B5799 │36...
Page 37 Notes Notes Product manual 2CKA001473B5799 │37...
