U-PROX PIR CAM

Wireless motion sensor with a camera,

insensitive to animals

Need help?

Do you have a question about the PIR CAM and is the answer not in the manual?

Questions and answers

Summary of Contents for U-Prox PIR CAM

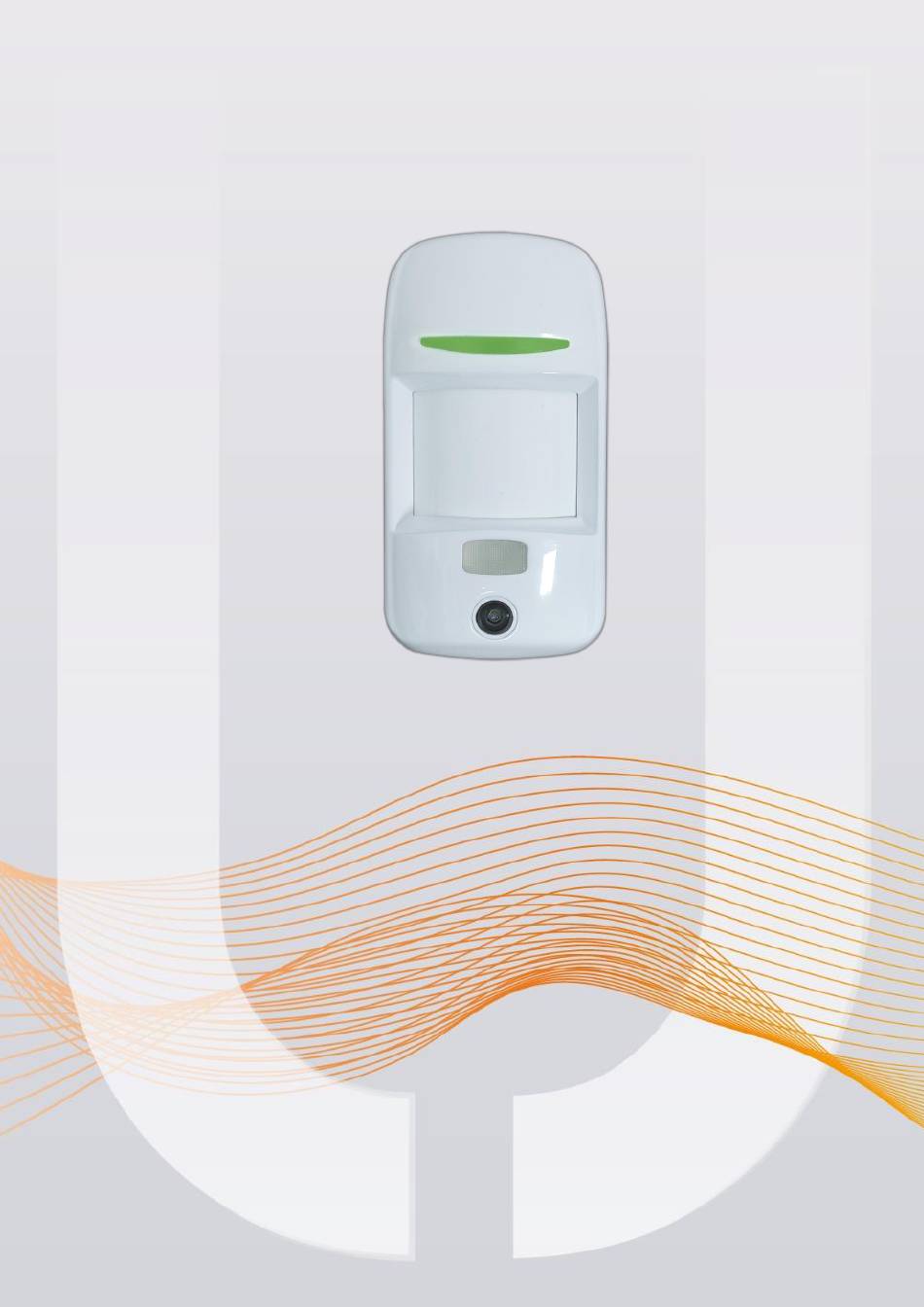

Page 1 U-PROX PIR CAM Wireless motion sensor with a camera, insensitive to animals...
Page 2 Switching on and off ..................................8 Settings ..........................................9 Adding a device to the security system (registration) ..................9 Basic settings of U-Prox PIR ..............................11 Testing the connection ................................18 View the received photos ................................. 22 Remove a device ....................................24 Wireless device states ................................25...
Page 3 Introduction This manual describes how to install and configure the U-Prox PIR Cam pet-insensitive wireless motion sensors with a camera. Please read this manual carefully before using the device. Technical support for all U-Prox products is provided by phone: +38(091)481-01-69 and/or e-mail: support@u-prox.systems.
Page 4 Description and principle of operation U-Prox PIR Cam is a combined digital passive infrared radio channel sensor equipped with a PIR sensor and a camera and designed to protect closed residential and industrial premises. Based on changes in the thermal balance of the environment, it signals an intrusion and sends a photo to the U-Prox alarm center.
Page 5 Camera Work distance daylight - up to 12 m night (with flash) - up to 8 m Resolution Customizable: 640*480, 320*240, 160*120 Photo transfer time up to 9 seconds (average quality) Power supply 3V, CR123A lithium battery included Service life of a battery up to 3 years Radio communication ISM wireless interface with multiple channels...
Page 6 Installation Selecting the installation location Carefully choose the installation location of the U-Prox PIR Cam device, taking into account the direction of the lens, camera, and any obstacles that may limit the sensor's view. The sensor should be installed in such a way that the area of the most likely intrusion is located in the maximum field of view of the sensor and the direction of the intruder's movement is perpendicular to the installation axis.
Page 7 It is recommended to perform the installation in the following sequence: 1. Registering the sensor in the security system using the U-Prox Installer app 2. Select the installation location with the optimal signal using the U-Prox Installer app. Please note that the sensor can be placed either vertically or horizontally 3.
Page 8 Switching on and off Move the switch (9) to the ON position - the indicator light will turn on. If the device has already been registered in the security system, it switches to the next mode. To turn off the device, move the switch (9) to the OFF position. WARNING.
Page 9 Adding a device to the security system (registration) Launch the U-Prox Installer application or open the web portal in a browser and log in Select the U-Prox MPX to which you want to add the wireless sensor from the list of devices...
Page 10 Press the button () ("Add radio device"), the security center enters the mode of registering sensors, keypads, etc. In this window, you can click on the device icons and view the instructions for activation. According to the instructions, turn on the wireless sensor and bring it to the security center at a distance of about 1 meter Wait 15-20 seconds for the wireless sensor to be registered.
Page 11 Basic settings of U-Prox PIR Select the device you want to configure from the device list "Name" - the name of the device “Group" - selects the security group to which the device belongs. A security group is a logical set of zones of a protected premises (for example, a room, apartment, garage, floor of a building, etc.), a minimum security unit.
Page 12 "Sensitivity" - setting the motion detection range of the sensor. Low is about 6 meters, Medium is about 8 meters, and High is about 12 meters. "Light indication" - turns on or off the light indication on the device "Temperature limits notification" - when the device exceeds the specified temperature limits, it will generate the corresponding events - "Cooling"...
Page 13 "Settings" - device operating modes depending on the type of use a. "Delayed" or "Entrance zone": • if the system is armed, the entry delay starts when the sensor is triggered. If the system is not disarmed during the delay, the system switches to the Alarm state and sends an alarm notification •...
Page 14 • if the system is disarmed, the system does not respond to the triggering of a sensor of this type e. Inner zone • if the system is armed, when the sensor is triggered, the system switches to the Alarm state and transmits an alarm notification •...
Page 15 "Delay for entry in Stay Armed mode" (only for the Delayed arming type). Time for disarming (disarming) the security system after entering the premises (arming in Stay, Night mode) ONLY FOR THE DELAYED INSTALLATION TYPE ("INPUT ZONE") 10. "Delay to exit in Stay Armed mode" (only for the arming type - "Delayed") .Time to exit the premises after arming the Perimeter security mode (Stay, Night mode).
Page 16 11. "Arming with a violated sensor" - forced arming of a sensor, even if it is violated a. "Forced arming after exit delay" - if the sensor does not recover after the exit delay countdown, the system switches to the Alarm state and transmits an alarm notification b.
Page 17 14. Special settings a. "Disable tamper" - a setting when enabled, the device will not respond to the opening of the case b. "Disable alarm when communication is lost" - do not generate an alarm when communication with the device is lost...
Page 18 WARNING. BEFORE PERFORMING THIS STEP, THE DEVICE MUST BE REGISTERED IN THE UPROX SECURITY SYSTEM. Launch the U-Prox Installer application or log in to the U-Prox Installer WEB portal Select a security center from the list Select a device from the list...
Page 19 Trigger test - checking the operation of the motion sensor Conventional signal testing ATTENTION!!! TESTING IS PERFORMED AT AN AVERAGE POWER LEVEL OF RADIO TRANSMITTERS. Signal testing in accordance with Grade II...
Page 20 Move the device to the pre-selected installation location Based on the data in the U-Prox Installer or U-Prox Installer WEB mobile application, select a location with an optimal signal strength of at least -95 dBm.
Page 21 -LED flashes green (up to -87 dBm) - excellent signal strength, can be set LED flashes yellow (up to - 88 ... -94 dBm) - average signal strength, can be LED flashes red (up to -95 ... -111 dBm) - poor signal strength, move the device to another location or use the UProx Extender radio range extender To exit the signal test mode, click the...
Page 22 View the received photos Launch the U-Prox Installer application or log in to the U-Prox Installer WEB portal Select a security center from the list Go to the "History" section...
Page 23 Events with photos are marked with the icon « ». Click on it to view the photo from the sensor...
Page 24 Remove a device Launch the U-Prox Installer application or log in to the U-Prox Installer WEB portal Select a security center from the list Select the device from the list, click the "Uninstall" button, and confirm the removal...
Page 25 Wireless device states - the main power supply is normal - main power supply is absent - the device case is closed - the device case is open - the battery is charged - battery charge level - the battery is critically low - the battery is defective - level of radio communication with the security center...
Page 26 EN 50131-5-3:2017 EN 50131-6:2017 Warranty obligations The warranty period for the U-Prox device (excluding batteries) is 2 years from the date of sale. If the device is not functioning properly, first contact support@uprox.systems, perhaps this issue will be resolved remotely.
