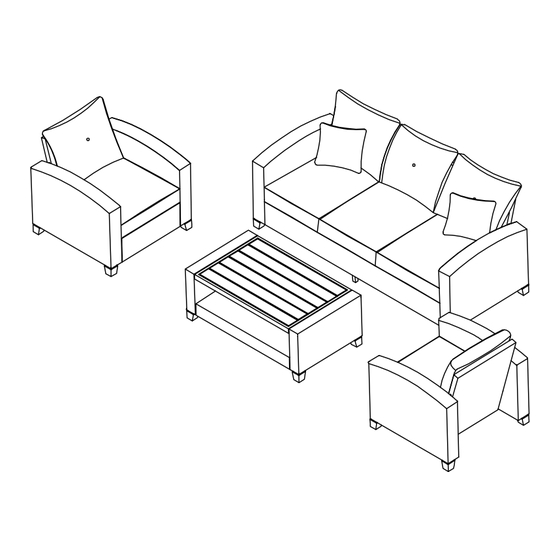

- Page 1 PRODUCT ASSEMBLY INSTRUCTIONS ® Signature Design by Ashley Ashley #P334-082 THIS BOOKLET CONTAINS IMPORTANT INFORMATION KEEP FOR FUTURE REFERENCE ®...
- Page 2 CUSTOMER SERVICE INFORMATION DO NOT RETURN TO THE STORE Signature Design by Ashley wants to help you. This product is covered by a manufacturer's limited warranty. In the event that you notice parts are missing or damaged, have a warranty question or you have assembly questions, contact the...
- Page 3 CARE AND CLEANING INSTRUCTIONS Congratulations on the purchase of your new product. Proper care and cleaning will extend the life of your purchase. To ensure your product maintains its finish and quality: · Use a soft,clean cloth that will not scratch the surface when dusting ·...
- Page 4 ASSEMBLY PARTS LIST Part Number: A Part Number: B Quantity: Quantity: Description: Chair Back Description: Left Side Leg Part Number: C Part Number: D Quantity: Quantity: Description: Description: Chair Seat Right Side Leg Part Number: E Part Number: F Quantity: Quantity: Description: Sofa Back...
- Page 5 ASSEMBLY PARTS LIST Part Number: J Part Number: K Quantity: Quantity: Description: Table Shelf Description: Seat Cushion Part Number: L Part Number: M Quantity: Quantity: Description: Description: Pillow Back Cushion Part Number: N Part Number: Y Quantity: Quantity: Description: 1/4inch x 65mm Allen Bolt Description: 1/4inch x 75mm Allen Bolt Part Number: U Part Number: Z...
- Page 6 ASSEMBLY INSTRUCTIONS Step 1 - Put the Chair Back (A) onto the Left Side Leg (B), then put the Right Side (C) onto the Chair Back (A) in such a way that the dowels on the back go into the holes on side legs.
- Page 7 ASSEMBLY INSTRUCTIONS Step 3 - Place the Chair Seat (D) in position between the left and right side legs. Install the Allen Bolts (Y) with the Lock Washers (R), the Flat Washers (P) through the holes on the Side Seat and then on the Side Leg. Install the Flat Washers (P) and the Nuts (W) on the opposite side of the bolts.
- Page 8 ASSEMBLY INSTRUCTIONS Step 4 - Install the Allen Bolts (N) with the Lock Washers (R), the Flat Washers (P) through the holes on the Front Seat and then on the Font Leg. Install the Flat Washers (P) and the Nuts (W) on the other sides of bolt. Use Allen Key (S) for the bolt head and Hex Wrench (T) for the nut to tighten the bolts.
- Page 9 ASSEMBLY INSTRUCTIONS Step 6 - Put the Sofa Back (E) onto the Left Side Leg (B), then put the Right Side Left (C) onto the Sofa Back (E) in such a way that the dowels on the back go into the holes on side legs.
- Page 10 ASSEMBLY INSTRUCTIONS Step 8 - Place the Sofa Seat (F) in position between the left and right side legs. Install the Allen Bolts (Y) with the Lock Washers (R), the Flat Washers (P) through the holes on the Side Seat and then on the Side Leg. Install the Flat Washers (P) and the Nuts (W) on the opposite side of the bolts.
- Page 11 ASSEMBLY INSTRUCTIONS Step 9 - Install the Allen Bolts (N) with the Lock Washers (R), the Flat Washers (P) through the holes on the Front Seat and then on the Font Leg. Install the Flat Washers (P) and the Nuts (W) on the opposite side of the bolts. Use Allen Key (S) for the bolt head and Hex Wrench (T) for the nut to tighten the bolts.
- Page 12 ASSEMBLY INSTRUCTIONS Step 11 - Place the Table Top (H) down on smooth and protective surface. Put the Table Leg (G) on both ends of the Top. Install the Allen Bolts (Z), the Lock Washers (R) and the Flat Washers (P) through the holes on the top into the legs and fasten them using the Allen Key (S).
- Page 13 ASSEMBLY INSTRUCTIONS Step 13 - Install the Allen Bolts (Z), the Lock Washers (R) and the Flat Washers (P) through the holes on the middle of shelf into the leg sides and fasten them using the Allen Key (S). Fully tighten all bolts. Step 14 - Install Seat Cushions (K) , Back Cushions (L) and Pillows (N) to complete the assembly.
- Page 14 REPLACEMENT PARTS LIST Part Replacement Part Quantity Description Number Number Adjustable Leveler (D20x18mm) R76027 End Cap R54148 Wicker (20 LF) R54123 Wicker (20 LF) R54124 1/4in x 65mm Allen Bolt (6) 1/4in x 75mm Allen Bolt (25) 1/4in x 40mm Allen Bolt (4) 1/4in x 50mm Allen Bolt (6) R69935 1/4in Lock Washer (41)
- Page 15 *Your Name_____________________________*Daytime Phone:________________________________ *Address:_______________________________ Home Phone:___________________________________ _______________________________________ Cell Phone:____________________________________ _______________________________________ Email:________________________________________ *City:_____________________*State:________ *Zip Code:_________________ Model #: Ashley #P334-082 *Serial #:___________________________(found on back or bottom of unit) Purchased from:___________________________ *Date of Purchase:______________________________ Reason for Parts Order (Circle One): Missing Part(s) Scratched Broken...
