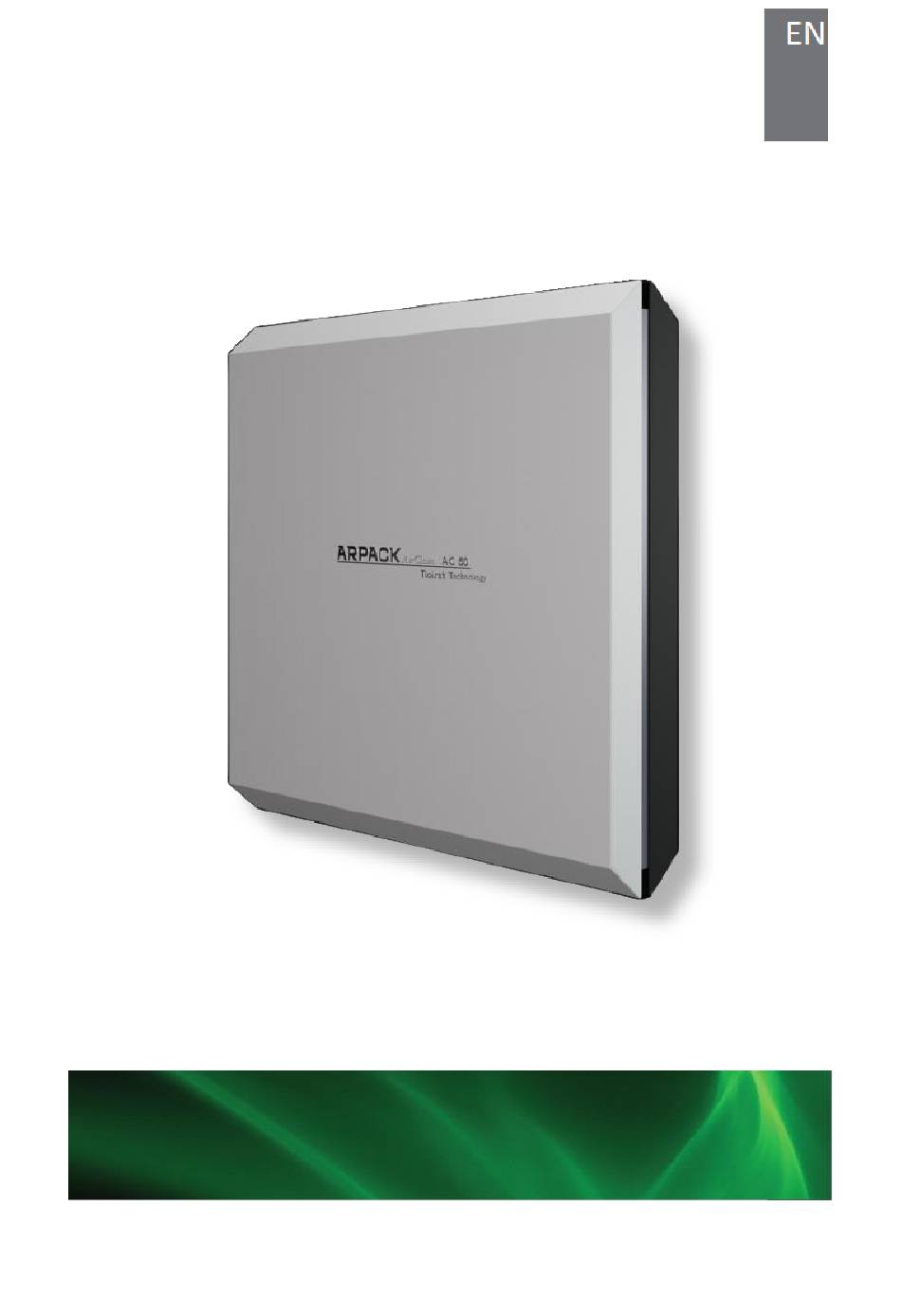

- Page 1 Manual ARPACK AirClean AC 50 Air Purification System (Original) English I Subject to change! 1 I ARPACK GmbH...
- Page 2 Dear Customers! Before using the ARPACK AirClean AC 50, please carefully read this user manual. 1. Intended Use The device’s primary purpose is disinfection (bactericidal, virucidal treatment) and purification of air from volatile organic compounds after their photocatalytic mineralization on nanocrystalline titanium dioxide under the action of UV radiation in the A range (365 nm).
- Page 3 Failure to comply with these instructions will void your ARPACK GmbH warranty. Document Validity The information in this document applies only to ARPACK AirClean AC 50 air purifiers. Target Audience This document is intended for the operator or user of the device.
- Page 4 Utilisation Intended Use The ARPACK AirClean AC 50 air purifier is a ventilation device that removes viruses, germs, bacteria, spores and microfibers (e.g. from paper and textiles) as well as odours. The device thus reduces the dwell time and the concentration of aerosols and suspended matter clouds directly in its installation room.
- Page 5 Repair faults and damage that impair or could impair safe use immediately and professionally. ▪ Replace defective components with original ARPACK spare parts. ▪ Original ARPACK spare parts can be obtained at short notice from service@arpack.com Fax +49 (30) 80 95 200 - 28.
- Page 6 Declaration of Conformity Declaration of Conformity This product conforms to European directives and national requirements. 6 I ARPACK GmbH...
- Page 7 The specifications given in this manual must be observed. These instructions must be kept readily available as part of the delivered device. If the operating instructions are not observed, the warranty claim against ARPACK GmbH is voided. Notice Signs The following symbols and notices are used in this description.
- Page 8 There is no direct risk of fire arising from the operation of this device. Warnings The removal or disabling of safety and monitoring components is prohibited! The device may only be operated if it is in perfect technical condition. Malfunctions and damage that impair safety must be eliminated immediately. 8 I ARPACK GmbH...
- Page 9 When opening the packaging please check the device for any visible transportation damage. Scope of delivery includes: - 1 Air purifier ARPACK AirClean AC 50, including its remote control - 1 Operation Manual Notify the seller immediately if any damage is found on the device.
- Page 10 - substances that cause allergies; - Ozone these are absorbed on the surface of the photocatalytic elements and mineralised to form mainly carbon dioxide and water vapour under the influence of the light from UV-A LEDs. Illustration 2: Device representation 10 I ARPACK GmbH...
- Page 11 The device is designed for mounted operation. Choose a place where the device can be stably hung. The AirClean AC 50 offers you two powerful performance levels to choose from, which you can set using the remote control to adapt to the external conditions at any time (Figure 3). The LED power indicator on the upper part of the cover signals the operational level of the device.
- Page 12 Mount the wall bracket / guide rail professionally on the wall. Please ensure that the guide strip is mounted on the wall in the correct direction. Front / Back / Wall Visible Side Side Illustration 4.1 12 I ARPACK GmbH...
- Page 13 The counterpart to the bracket and a spacer bar are located on the device. Wall Spacer Bar Wall Mount / Rail Align the wall mount/rail from the device, putting it on the wall bracket/guide rail mounted on the wall. Pay attention to the correct lateral positioning. Illustration 5 13 I ARPACK GmbH...
- Page 14 The maintenance of the device is only to be carried out by qualified personnel. Never use acetone or liquids containing acetone to wipe down the device. 14 I ARPACK GmbH...
- Page 15 In the bottom of the device is the pre-filter. Take this out by lifting it upwards. Pre-Filter Using a vacuum cleaner, the pre-filter can be cleaned by gently vacuuming its surface. If there is any structural damage on the pre-filter, a new one is required! 15 I ARPACK GmbH...
- Page 16 Then snap the upper part in place with the springy bearing-balls. 7.5.2 Pre-Filter Included in the delivery is 1x F7 fiberglass pre-filter (optionally an H13 Pre-Filter is also available) Only use official Arpack GmbH pre-filters. F7 fiberglass pre-filter with cardboard cover. 16 I ARPACK GmbH...
- Page 17 220 (+/-10%) / 50 Dimensions in W x D x H in mm 425 x 70 x 500 Total weight in kg Preferred operating mode Continuous Max. power consumption in W Warranty period in months Wall Mounting Available 17 I ARPACK GmbH...
- Page 18 It is particularly important to ensure that damage and impairments caused by the weather (humidity, temperature, dust, dirt) and external influences (shocks, blows, animals, vermin) are prevented. Existing device openings (air intake, outlet etc.) must be sealed tightly. 18 I ARPACK GmbH...
- Page 19 • Observe the respective country-specific or local regulations. • Return service can be contacted at 0800/ 22 33 88 9, service@arpack.com Take Note! We strive for environmental protection and sustainability. This device should not be disposed of into household waste.
- Page 20 Arpack GmbH Askanischer Platz 4 10963 Berlin Tel.: +49(0)30 8095200 69 Fax: +49(0)30 8095200 28 vertrieb@arpack.de www.arpack.com 20 I ARPACK GmbH...
