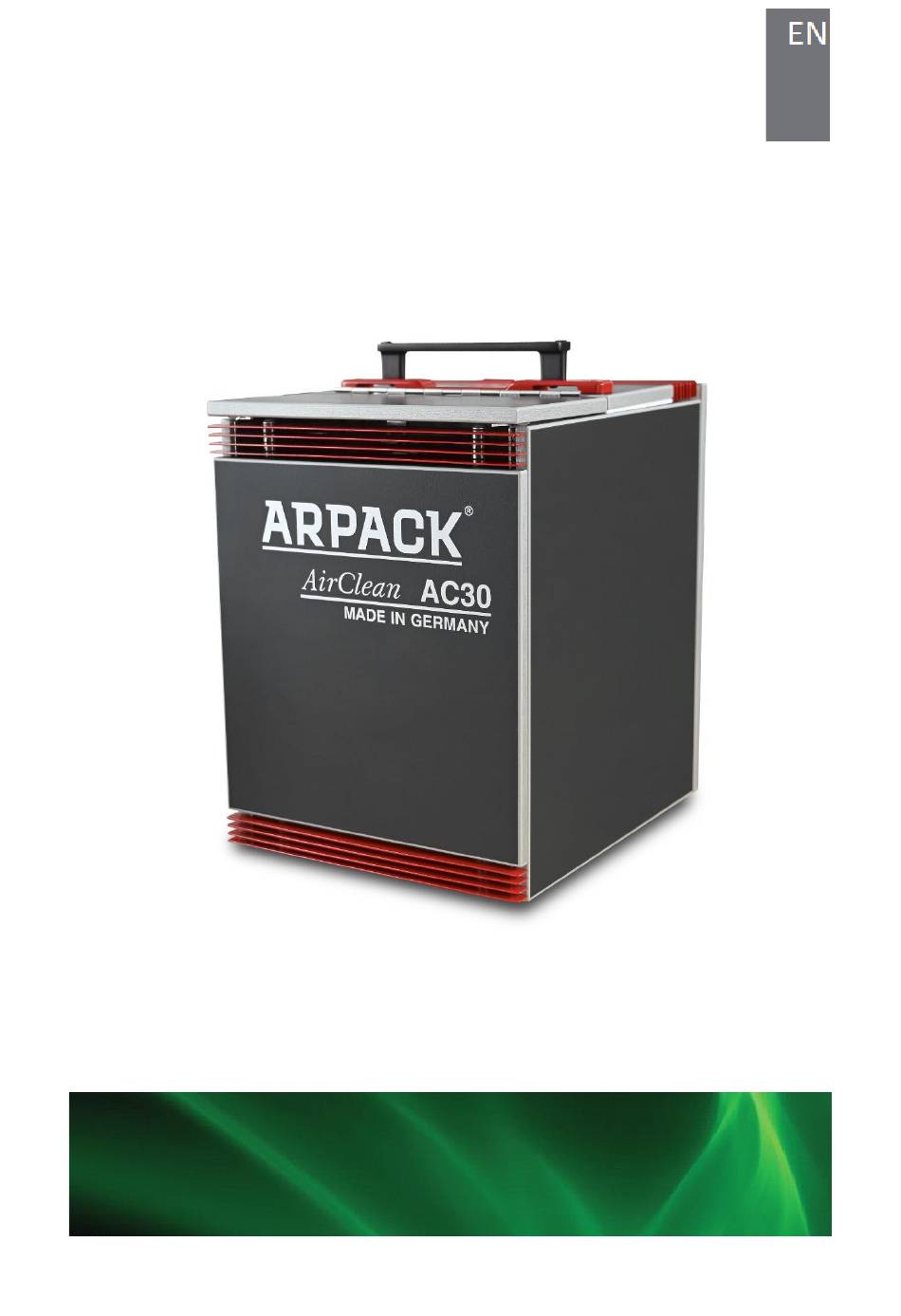

- Page 1 User Manual ARPACK AirClean AC 30 Air Purifier (Original) English 1 I ARPACK GmbH...
-
Page 2: Intended Use And Usage Recommendations
Dear Customers! Before using the ARPACK AirClean AC 30, please make sure to read this user manual carefully. 1. Intended use and usage recommendations The device’s primary purpose is disinfection (bactericidal, virucidal treatment) and purification of air from volatile organic compounds after their photocatalytic mineralization on nanocrystalline titanium dioxide under the action of UV radiation in the A range (365 nm). -
Page 3: Table Of Contents
Failure to comply with these instructions will void your ARPACK GmbH warranty. Document Validity The information in this document applies only to ARPACK AirClean AC 30 air purifiers. Target Audience This document is intended for the operator or user of the device. -
Page 4: Safety
Utilisation Intended Use The ARPACK AirClean AC 30 air purifier is a ventilation device that can neutralize viruses, germs, bacteria and spores, as well as odours. The device reduces the dwell time and the concentration of aerosol and suspended matter clouds directly in the installation room. - Page 5 ▪ Replace defective components with original ARPACK spare parts. ▪ Original ARPACK spare parts can be obtained at short notice from service@arpack.com Fax +49 (30) 80 95 200 - 28. Self-repair by the user is not permitted and will void the warranty.
-
Page 6: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity This product conforms to European directives and national requirements. 6 I ARPACK GmbH... -
Page 7: Safety Precautions
The specifications given in this manual must be observed. These instructions must be kept readily available as part of the delivered device. If the operating instructions are not observed, the warranty claim against ARPACK GmbH is voided. Notice Signs The following symbols and notices are used in this description. - Page 8 There is no direct risk of fire arising from the operation of this device. Warnings The removal or disabling of safety and monitoring components is prohibited! The device may only be operated if it is in perfect technical condition. Malfunctions and damage that impair safety must be eliminated immediately. 8 I ARPACK GmbH...
-
Page 9: Scope Of Delivery / Transport
When opening the packaging please check the device for any visible transportation damage. Scope of delivery includes: - 1 ARPACK AirClean AC 30 air purifier - 1 User Manual Notify the seller immediately if any damage is found on the device. - Page 10 Back of the ARPACK AirClean AC 30 USB 2 Port Main switch + ECO-mode Power Button Mains Button connection Figure 2 (Back) Requirement for wireless Lit buttons indicate operation charging - only use mobile phones designed for this - Figure 3 Buttons...
-
Page 11: Function / Operation
- substances that cause allergies ; - Ozone Figure 5 Working Diagram These are absorbed on the surface of the photocatalytic elements and mineralised to form mainly carbon dioxide and water vapour under the influence of the light from UV-A LEDs. 11 I ARPACK GmbH... - Page 12 ECO – Mode The ARPACK AirClean AC 30 has an Eco mode (see Figure 2), this uses less energy than normal continuous operation. To achieve this, the AC 30 automatically switches between the collection phase and the “cold” combustion phase.
- Page 13 We recommended letting the device operate continuously. The ARPACK AirClean AC 30 is switched off with the power button on the back. If the device is to be left idle for a long period of time, it is recommended to unplug the power cord from the outlet.
- Page 14 A "click" sound can be heard, that is the maintenance flap being unlocked. Do not put the device into operating mode while the maintenance flap is open. Round Clamp Open the maintenance flap and pull out the red round clamps. 14 I ARPACK GmbH...
- Page 15 If the pre-filters should get too dirty,to the point of being uncleanable replace both with new pre- filters. If the filter structure is damaged, a new pre-filter is required! Only use filters manufactured by Arpack GmbH! When inserting the pre-filter, ensure that its titanium dioxide coated fiberglass surfaces are not damaged.
-
Page 16: Technical Specifications
220 (+/-10%) / 50 Dimensions in W x D x H in mm 240 x 357 x 304 Total weight in kg Preferred operating mode Continuous Max. power consumption in W Warranty period in months Special Mounting Requirements None 16 I ARPACK GmbH... -
Page 17: Warranty
It is particularly important to ensure that damage and impairments caused by the weather (humidity, temperature, dust, dirt) and external influences (shocks, blows, animals, vermin) are prevented. Existing device openings (air intake, outlet etc.) must be sealed tightly. 17 I ARPACK GmbH... -
Page 18: Recycling And Disposal
• Observe the respective country-specific or local regulations. • Return service can be contacted at 0800/ 22 33 88 9, service@arpack.com Take Note! WEEE-Reg.-Nr. DE 75352519 We strive for environmental protection and sustainability. This device should not be disposed of into household waste. - Page 19 Arpack GmbH Askanischer Platz 4 10963 Berlin Tel.: +49(0)30 8095200 69 Fax: +49(0)30 8095200 28 vertrieb@arpack.de www.arpack.com 19 I ARPACK GmbH...
