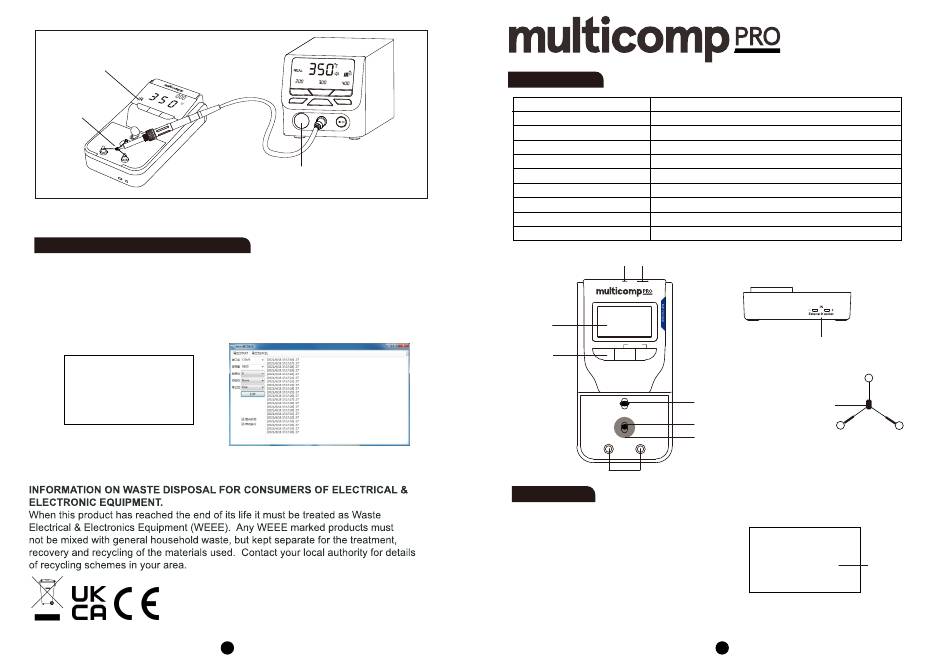

multicomp pro MP741058 User Manual

Screen Displays 'IR' Character
Temperature
-sensing Point
Serial Port Use Display Interface
The serial data cable is connected to the thermometer and the computer. The thermometer displays 'COM'
as shown in Fig 1-6. Use computer to open the Serial Port Assistant. The thermometer will send temperature
data to the Serial Port Assistant every 100ms.
The Serial Port Assistant driver can be downloaded from the official website or by contacting the manufacturer
for further assistance.
Note: Before using the Serial Port Assistant, make sure to install the CH340 chip driver on your computer.
（Please download from the internet）
000
3 5 0
℃
COM
(Fig 1-6)
Infrared Receiving Port of the
Device Being Calibrated
Serial Port Assistant
Made in China
LS12 2QQ
PO Box 13362 Dublin 2
Man Rev 1.1
4
Specifications
Model MP741058
Resolution 1℃/1℉
Temperature range 0-800℃/32-1472℉
±5℃/±9℉
Accuracy Temperature
Sensing wire K-type thermocouple
Display LCD
Power 9V DC High-performance carbon battery
Operating environment 0℃~40℃/32℉~104℉
Size 75x143.5x41.5mm
Weight ≈185g
Infrared USB interface (convert serial communication,
transmitter tube the computer needs to install the CH340 chip driver)
LCD Screen
RESET
Power
POWER MAX HOLD SEND
Terminal
Instructions
1. Open the battery cover on the back of the instrument, insert
the batteries correctly, and then close the battery cover.
Note: Ensure the correct connection when inserting the batteries.
2. Pushing the knob forward and backward to adjust the position
of the rod. Insert the sensor into the rod and terminal (red into the
red terminal, blue into the blue terminal).
Please install correctly according to the indicated colors, as
incorrect installation may result in inaccurate temperature
measurement.
3. Short press the 'POWER' button to power on, check the display screen, and when the display screen shows
room temperature (as shown on the right), proceed with operations or measurements.
External sensor interface
Knob
(adjust the rod position Temperature
by pushing the knob forward point
and backward)
Putter
Sensor
Ring gasket
When installing the sensor, insert the sensor into
the putter and terminal(The red edge is inserted
into the red terminal, and the blue is inserted into
the blue terminal)
088
0 2 6 existing
℃
room
temperature
