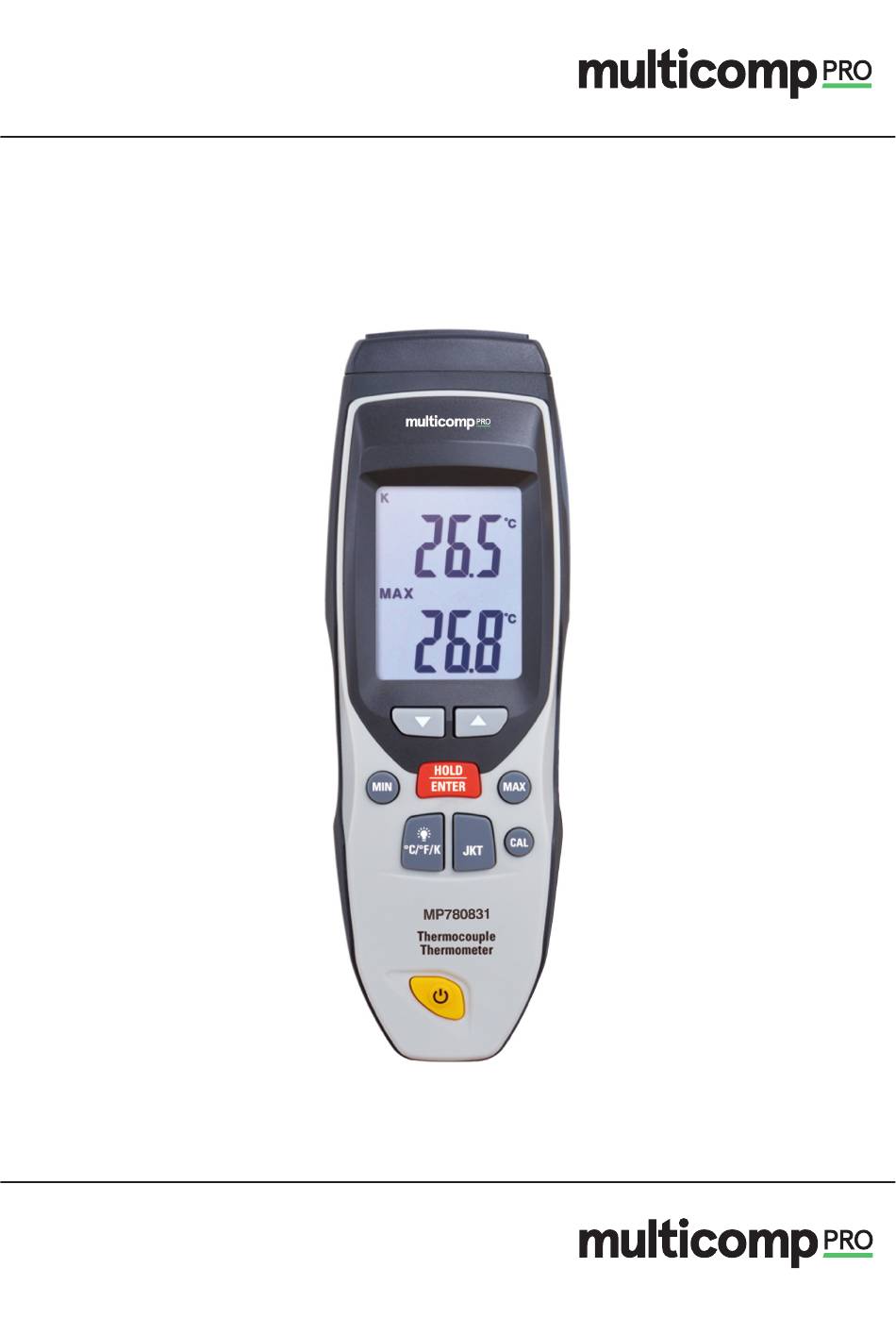

- Page 1 Thermocouple Thermometer User Manual Part Number: MP780831 Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page <1> 08/07/21 V1.0...
- Page 2 Content Page Introduction Features Specifications Description. 4-1. Meter Description 4-2. Symbols Used on LCD Display Operating Instructions 5-1. Temperature Measurement 5-2. Button Operation Replacement Battery 1.Introduction The meter is a handheld temperature measuring instrument via probe and adopt Thermocouple sensor (Type K, Type J, Type T), the accuracy is high, easy to use. 2.Features • Large LCD Display with Backlight • User Selectable °C and °F • MAX/MIN Hold • Low Battery Indication • Data Hold • User Calibration-Offset Adjustment (±5°C) • Auto Power Off • Type J, Type K, Type T Single Input...
- Page 3 4.Description 4-1.Meter Description 1-LCD Display 2-Down Button 3-Up Button 4-MIN Button 5-Data Hold/Enter Button 6-MAX Button 7-Temperature Units (°C/°F/K)/Backlight Button 8-Type J, K, T Switch Button 9-Calibration Button 10-Power Button 11-Temperature Probe Port 12-Bracket Fixing Fole 13-Battery Cover Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page <3> 08/07/21 V1.0...
- Page 4 4-2.Symbols Used on LCD Display 1-Type J, K, T Icon 2-Freeze the Displayed Readings 3-Low Battery Indication 4-Primary Display 5-Temperature Units 6-Max Temperature Value Icon 7-Min Temperature Value Icon 8-The Current MAX or MIN Display Value 5.Operating Instructions 5-1.Temperature Measurement • Insert the temperature probe and press the power button, there is no particular order. • T he screen will display the current measured value and the maximum temperature (Do not press any buttons except the Power Button). • When the measured environment temperature changes, take a few minutes to stabilize readings. Tips: After measuring high temperatures, do not touch the probe immediately, to avoid burns. 5-2.Button Operation • Press the Power Button for power ON/OFF. • P ress the Temperature Units (°C/°F/K)/Backlight Button to switch temperature unit, press the button for 2 seconds to open or close backlight. • Press the Type J, K, T Switch Button to switch J, K, T and change the related temperature probe. • Press the MIN Button the LCD will show “MIN” icon and min measured value.
- Page 5 • S imultaneously press the Down and Up Button, and then recalculate the maximum and minimum values, the maximum and minimum values of the actual measured temperature will be calculated again when you press the buttons at this moment. • P ress the Power Button first, and then press the Data Hold/Enter Button for 1s, LCD will show APO ON or APO OFF (APO ON means it will be auto power off after 15 mins without any operation, APO OFF means auto power of turn off). 6.Replacement Battery • If the logo “ ”appears on the LCD display, the battery should be replaced promptly. • O pen the battery box and remove the old battery, put a new battery (9 volt battery NEDA 1604 or 6F22 or other similar batteries). • If the thermometer is not used for a long time, please take out the battery to prevent liquid leakage. Important Notice : This data sheet and its contents (the “Information”) belong to the members of the AVNET group of companies (the “Group”) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group’s liability for death or personal injury resulting from its negligence. Multicomp Pro is the registered trademark of Premier Farnell Limited 2019. Newark.com/multicomp-pro Farnell.com/multicomp-pro Element14.com/multicomp-pro Page <5> 08/07/21 V1.0...
