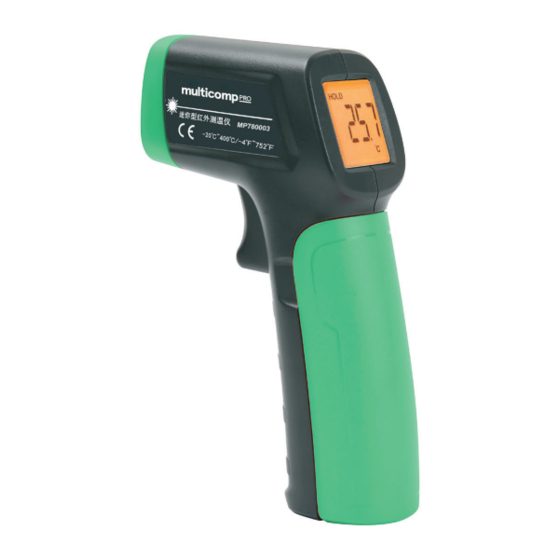

- Page 1 Mini Infrared Thermometer Model: MP780003...
- Page 2 IMPORTANT SAFETY INFORMATION Please read these instructions carefully before use and retain for future reference. • Please operate according to this manual, otherwise the protection provided by the device will be impaired or fail. • Do not point laser directly in your eyes or indirectly off reflective surfaces. •...
- Page 3 PRODUCT DESCRIPTION Laser Infra red sensor Trigger Battery cover LCD display Temp Mode Switch Battery Compartment Laser on symbol warning HOLD Holds the displayed measured value Celsius / Fahrenheit indicator Primary temperature display 8888 Low battery symbol Appears when the battery power is low and needs replacing. OPERATION FUNCTION Viewing the Last Measured Value •...
- Page 4 Unit Conversion • In the power-on state, open the battery cover and short press the F button to switch the temperature unit to Celsius ( C) or Fahrenheit ( Distance to Spot Size Ratio (D:S) • As the distance (D) from the target being measured increases, the spot size (S) on the measured area becomes larger.
- Page 5 Emissivity • Emissivity describes the energy-emitting characteristics of materials. Most organic materials and painted or oxidized surfaces have an emissivity of about 0.95. • If possible, to compensate for inaccurate readings that may result from measuring shiny metal surfaces, cover the surface to be measured with masking tape or flat black paint (<150 C / 302 F) and use the high emissivity setting.
- Page 6 SPECIFICATIONS Infrared Measurement Range (72-820) C-400 C (-4 F-752 Accuracy >0 C: ±2.0 C or ±2% of reading, whichever is greater Ambient temperature <0°C: ±(2.0 C+0.1 C-25 C (70 F-77 >32 F: ±4.0 F or ±2% of reading, whichever is greater <32°F: ±(4.0 F+0.1...
- Page 7 TROUBLESHOOTING Symptom Problem Action OL appears on display Measured value is greater Stop measuring when measuring than the maximum range -OL appears on display Measured value is less Stop measuring when measuring than the maximum range ERR appears on display The min or max ambient Place the thermometer in when measuring...
- Page 8 INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT These symbols indicate that separate collection of Waste Electrical and Electronic Equipment (WEEE) or waste batteries is required. Do not dispose of these items with general household waste. Separate for the treatment, recovery and recycling of the materials used. Waste batteries can be returned to any waste battery recycling point which are provided by most battery retailers.
