Profelmnet 3023 Quick Start Manual

3023

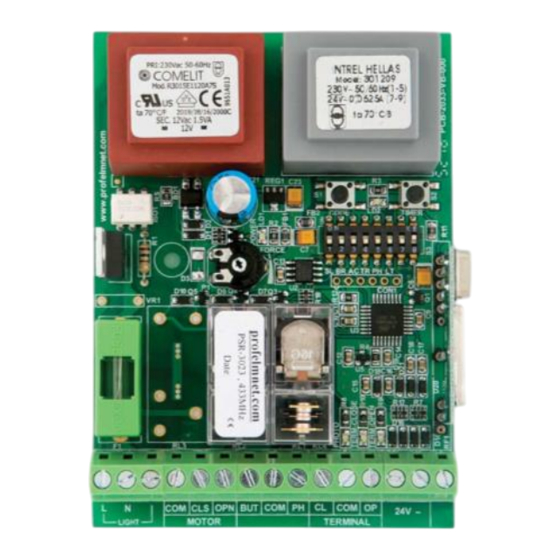

Control panel for sliding gate motor up to 1200watt
Code Frequency
PSR/PTR - 3023 433,92/868,3
PS-3023 433,92
PN-3023 433,92/868,3

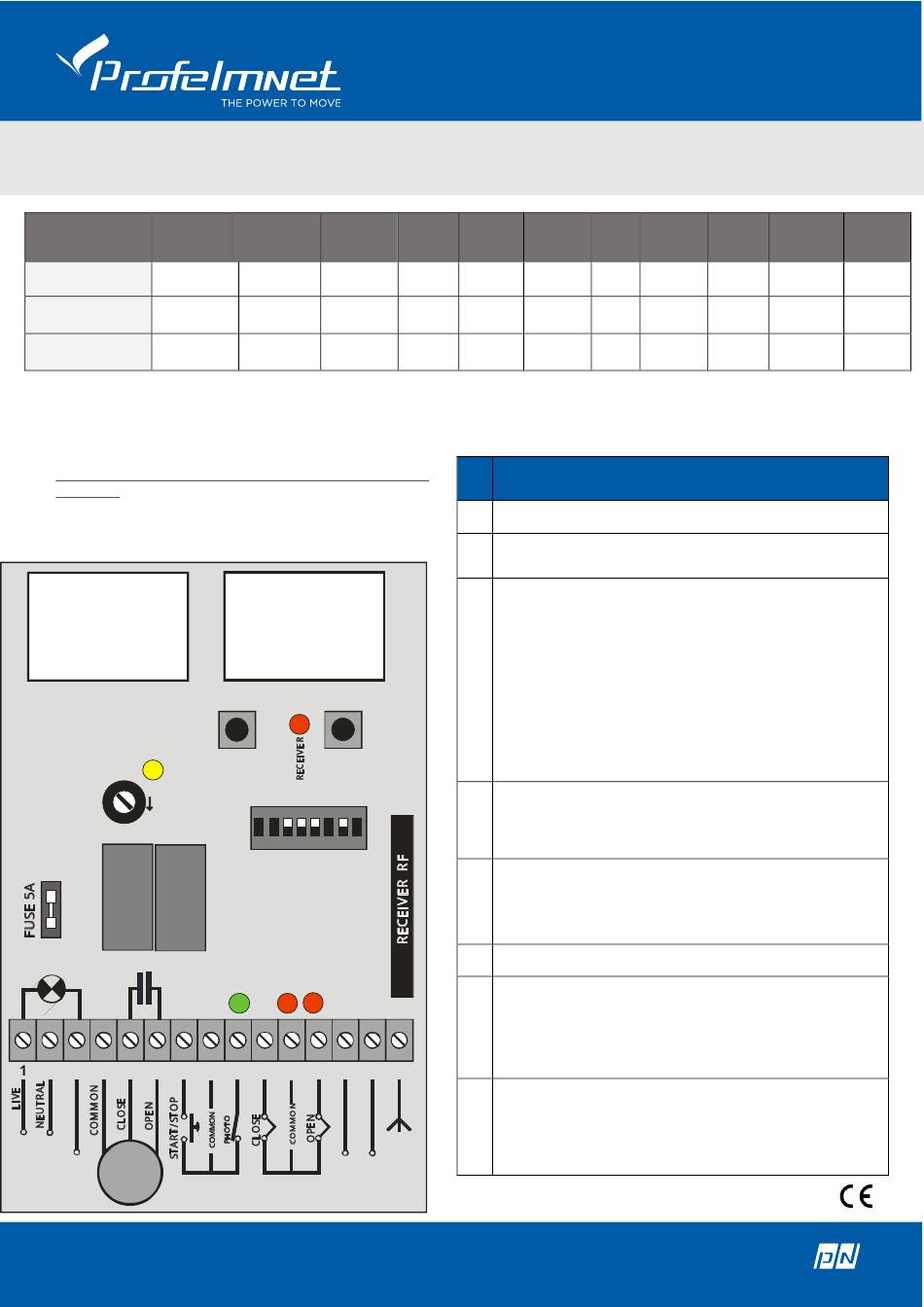

Check all connections. Check the terminal switches of the motor. The BLUE/GREY motor wire is connected in terminal 4. The EARTH wire of the
motor is not connected in the control panel.
Covering distance: from 30 – 100 μ. depends on external
conditions.
TRANSFORMER
12 V - 1,5VA
230V
MOTOR
FORCE
+
CAPACITOR
FLASH
2 3 4 5 6 7
M
230VAC
Terminal
Codification
Switches
Keeloq
YES
Rolling
Standard YES
Profelmnet
YES
Rolling
TRANSFORMER
24V - 1,5VA
CODE TIME
PROGRAMMS
ON
1 2 3 4 5 6 7 8
PHOTOCELLS TERMINAL SWITCHES
8 9 10 11 12 13 14 15
24VAC
TERMINAL 60mA
SWITCHES
Photocell Ext.Butto
Auto close
s n
YES YES YES
YES YES YES
YES YES YES
Function description
Νο
Not used
1
Not used
2
AUTO-CLOSE FUNCTION
OFF: No auto close
ON: Auto-close. Embedded auto close function. Works with the
photocell. When the gate opens and there is no access (no
obstacle detection from the photocell), the A/C time is 120
3
seconds (the gate will close after 120 seconds). If there is access
and obstacle detection from the photocell, then the A/C time is
10 seconds (the A/C timer counts 10 seconds after the photocell
is free and then the gate will automatically close). The second
time of A/C can be changed (follow the below instructions).
TERMINAL SWITCHES
4
OFF: NO terminal switches.
ON: Terminal switches. In case of sliding gate.
PHOTOCELLS
OFF: NO photocells.
5
ON: Photocells. The power supply of the photocell 24VAC in
terminal 13&14 and COM & NC of the photocell in terminal 8 & 9
Not used
6
MOTOR REVERSION
OFF/ON: The first move of the motor needs to be opening, after
7
the power of control panel. When the first move is closure, switch
the dipswitch 7 to the opposite position.
Not used
8
ANTENNA
Proedrou Drakaki 11 ,173 41 Agios Dimitrios
Call center: 210 9850 244, Fax: 210 9823 264
www.profelmnet.com
Light Motor Slow
230V torque move
YES YES YES
YES YES YES
YES YES YES
Reverse
Memory
move
YES
300
YES
300
YES
300
