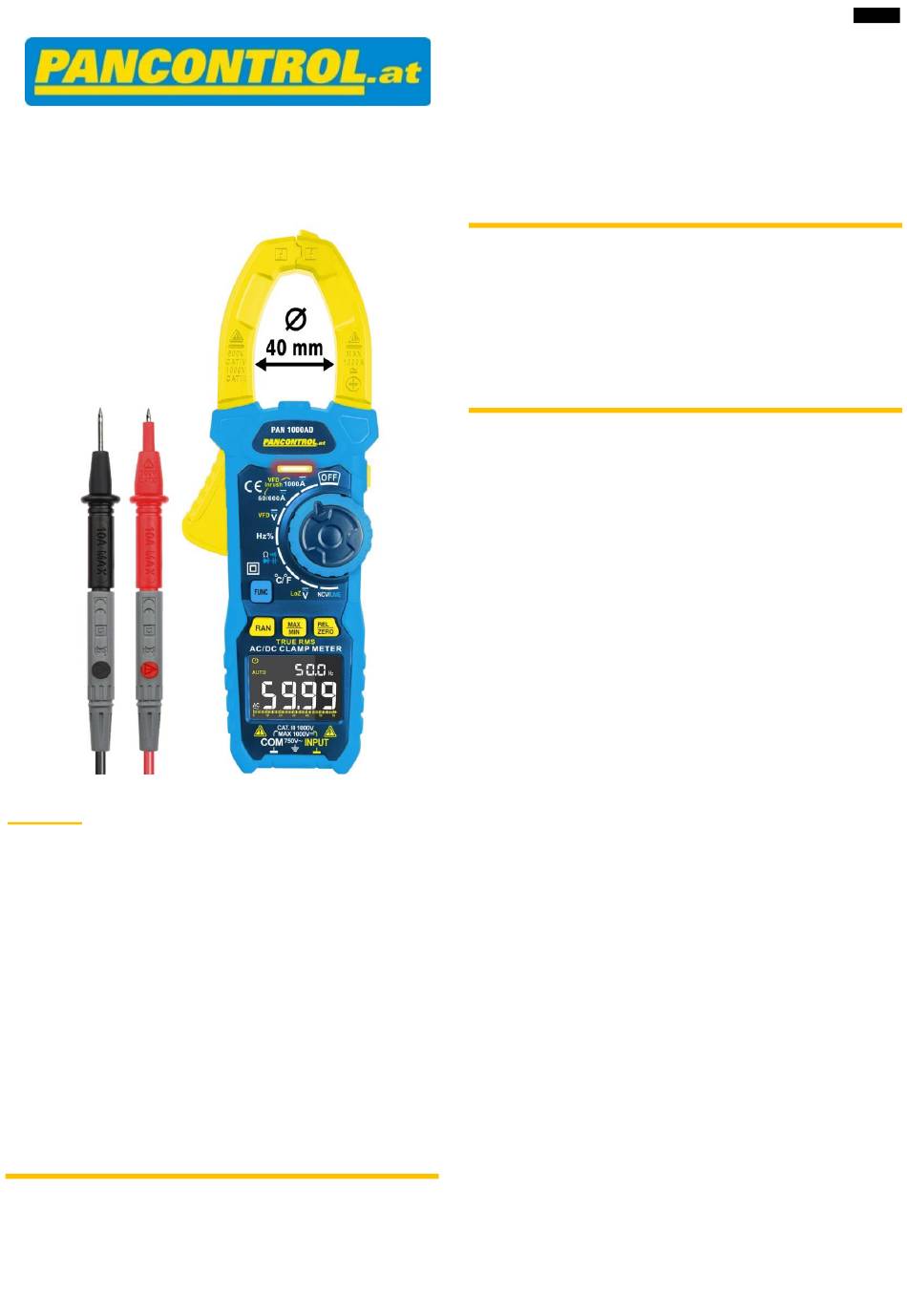

Krystufek PANCONTROL PAN 1000AD Manual

PAN 1000AD
True RMS - Digital clamp meter
Contents
1. Introduction ............................................................................................. 1
2. Scope of delivery ...................................................................................... 1
3. Safety Instructions ................................................................................... 1
4. Symbols Description ................................................................................ 2
5. Panel Description ..................................................................................... 2
6. Symbols of the Display ............................................................................. 2
7. General Specifications ............................................................................. 3
8. Operating Instructions ............................................................................. 4
9. Maintenance ............................................................................................ 6
10. Guarantee and Spare Parts ...................................................................... 6
1. Introduction
Thank you for purchasing PANCONTROL. Since 1986, the PANCONTROL brand has
stood for practical, innovative and professional measuring instruments. We hope
you enjoy using your new product and we are convinced that it will serve you well
for many years to come.
Please read this operating manual carefully before using the device to become
familiar with the proper handling of the device and to prevent faulty operations.
Manual
Please follow all the safety instructions. Nonobservance cannot only result in
damages to the device but in the worst case can also be harmful to health.

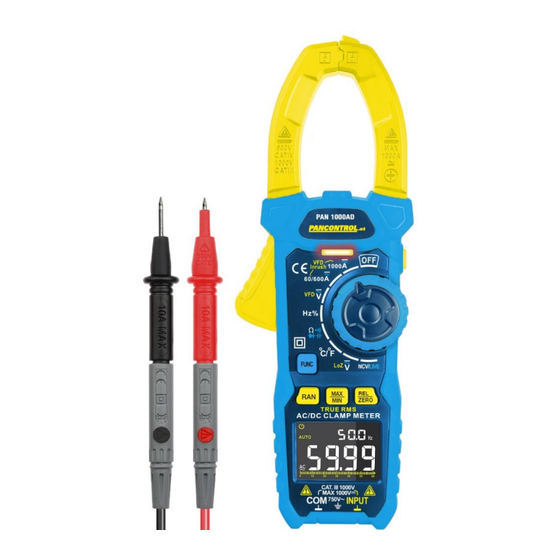

The PAN 1000 AD is a high-performance True RMS digital clamp meter, with a
variety of additional features. It makes the work of the skilled person easier, more
efficient and safer. With the PAN 1000 AD, you can measure not only voltage,
current (AC/DC) and resistance, but also start-up current, frequency and capacity. In
addition, functions for temperature measurement, diode testing, contactless and
single-pole voltage testing are integrated.
2. Scope of delivery
After unpacking please check the package contents for transport damage and
completeness.
•
Measurement device
•
Test leads
•
Type K temperature probe
•
Operating manual
3. Safety Instructions
To ensure the safe use of the device, please follow all the safety and operating
instructions given in this manual.
• Before using the device, make sure that test leads and the device are in good
condition and the device is working properly (e.g. by connecting to known voltage
sources).
• The device may not be used if the housing or the test leads are damaged, if one or
more functions are not working, if functions are not displayed, or if you suspect that
something is wrong.
• If the safety of the user cannot be guaranteed, the device may not be operated and
secured against use.
• While using this device, hold the test leads only behind the finger guards - do not
touch the probes.
• Never ground yourself while making electrical measurements. Do not touch any
exposed metal pipes, fittings etc., which could have a ground potential. Ensure that
your body is isolated by using dry clothes, rubber shoes, rubber mats or other
approved insulation materials.
• Never touch conductive parts or bare wires.
• Place the device in such a way that it is possible to disconnect it from the mains at
any time.
• Before measuring currents with the pliers, remove the test cables from the device.
• Always adjust the rotary switch to the desired measuring range before starting the
measurement and engage the switch in the proper measuring range.
• If the magnitude of the signal to be measured is not known, always start with the
highest measuring range on the rotary switch and then reduce step-by-step.
• If the measuring range needs to be changed during the measurement, remove the
probes from the circuit first.
• Never turn the rotary switch during measurement, but always in the disconnected
condition.
• Never connect the device to voltage or current sources that exceed the specified
maximum values.
• Be careful when working on voltages above 60V DC, 30V AC RMS or 42V AC peak
value. These tensions can be life-threatening!
• Never connect the test leads of the device to a voltage source, if the rotary switch
is set to measure current, resistance or test diodes. This can damage the device.
• If the battery symbol appears in the display, replace the battery immediately.
• Always switch off the appliance and remove the test leads from all voltage sources
before opening the device to exchange the battery or the fuse.
• Never use the device with the housing, battery or fuse compartment open.
• Do not use the device near strong magnetic fields (for e.g. welding transformer), as
this can distort the display.
• Do not use the device outdoors, in humid surroundings or in environments that are
subjected to extreme temperature fluctuations.
• Never use the device in an explosionprone environment.
• Do not store the device in places which are exposed to direct sunlight.
• Remove the battery if the device is not used for a long time.
• If changes or modifications are made to the device, the operational safety is no
longer guaranteed and the warranty becomes void.
1
