Researcher ICD
Art. No. 5803100
Bedienungsanleitung
DE
Instruction Manual
GB

Advertisement

loading
Need help?

Need help?

Do you have a question about the Researcher ICD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bresser Researcher ICD

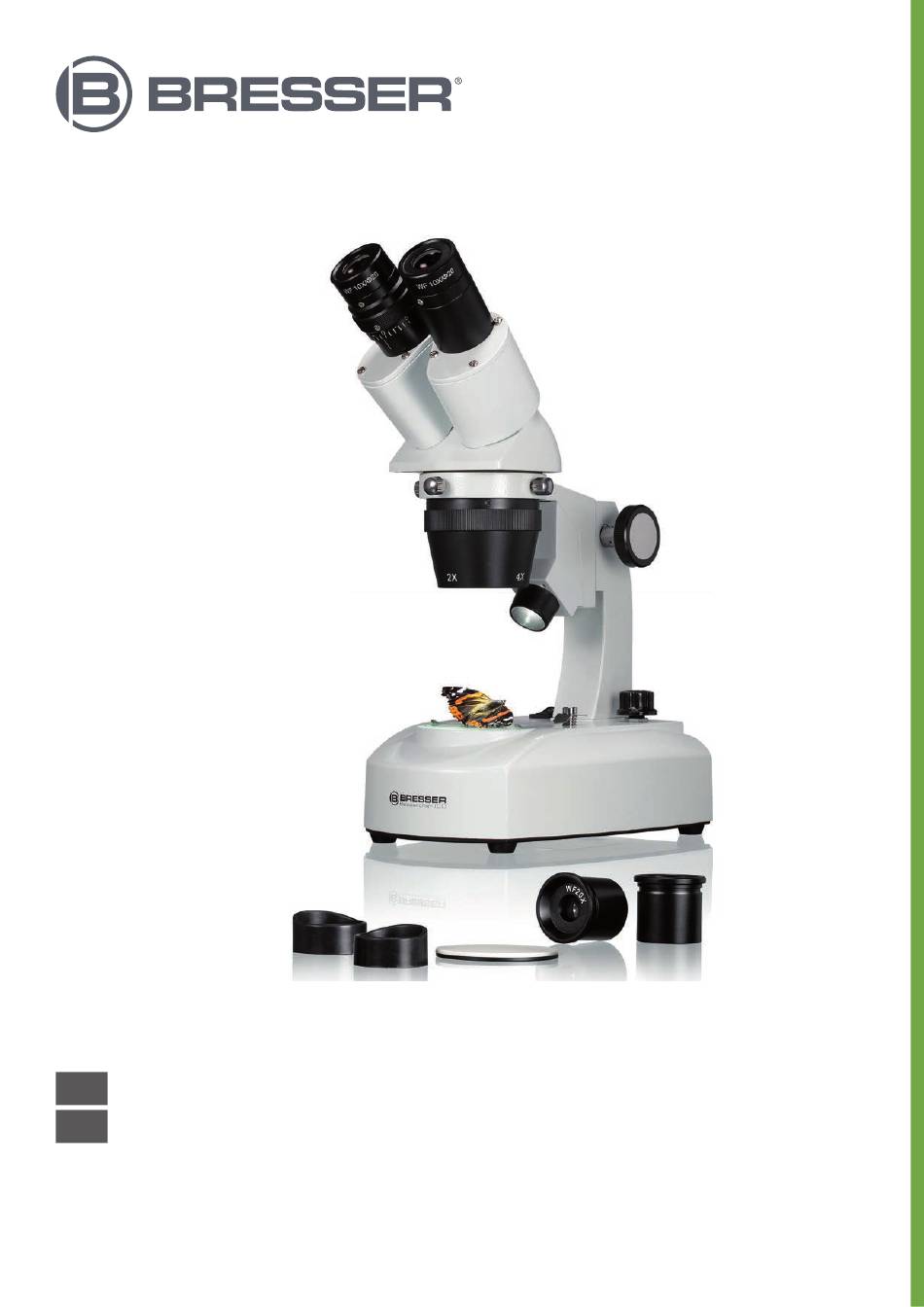

  • Page 1 Researcher ICD Art. No. 5803100 Bedienungsanleitung Instruction Manual...
  • Page 2 Desidera ricevere informazioni esaustive su questo prodotto in una lingua specifica? Venga a visitare il nostro sito Web al seguente link (codice QR Code) per conoscere le versioni disponibili. www.bresser.de/P5803100 GARANTIE · WARRANTY · GARANTÍA · GARANZIA www.bresser.de/warranty_terms RECYCLAGE (TRIMAN/FRANCE) Bedienungsanleitung .
  • Page 3 Fig. 3 Fig. 1    I/III Fig. 2 II/III   Fig. 4       Fig. 5            Fig. 6   ...
  • Page 4 VORSICHT! Für die Arbeit mit diesem Gerät werden häufig scharfkantige und spitze Hilfsmittel eingesetzt. Bewahren Sie deshalb dieses Gerät sowie alle Zubehörteile und Hilfsmittel an einem für Kinder unzugänglichen Ort auf. Lassen Sie Kinder nur unter Aufsicht mit dem Gerät arbeiten! Verpackungsmaterial (Plastiktüten, Gummibänder etc.) von Kindern fernhalten! Lieferumfang (Fig.
  • Page 5 2. L egen Sie die 3 Batterien (Typ AA/LR6) ein und setzen Sie die Abdeckung wieder ein. WICHTIG: Achten Sie beim Einlegen der Batterien auf die korrekte Ausrichtung der Batteriepole wie im Batteriefach angegeben! 3. Bewegen Sie den Ein/Aus-Schalter (11) in die Position ‚I‘, um die Stromversorgung herzustellen. 4. Bewegen Sie den Ein/Aus-Schalter (11) in die Position ‚0‘, um die Stromversorgung wieder abzustellen. HINWEIS: Dieses Mikroskop besitzt keine Ladefuktion. Verwenden Sie auch KEINE wiederaufladbaren Batterien (Akkus)! Benutzen Sie nur Batterien von Typ AA/LR6. 2.2 Beleuchtungseinstellung Dieses Mikroskop kann mit unterschiedlichen LED-Beleuchtungsarten betrieben werden (Auflicht, Durchlicht, kombiniert).
  • Page 6 Objektive: 2x und 4x, Stereo Gesamtvergrößerung: 2 0x, 40x, 80x (Die Gesamtvergrößerung errechnet sich, indem man die Objektiv- mit der Okularvergrößerung multipliziert; z.B. 2 x 40 = 80) Beleuchtung: Stromversorgung: 230V/50Hz Netzstrom über mitgelieferten Netzadapter oder 3/6 Stck. Batterien, Typ AA/LR6 10. CE-Konformitätserklärung Eine „Konformitätserklärung“ in Übereinstimmung mit den anwendbaren Richtlinien ist von Bresser GmbH erstellt worden und kann über den folgenden Weblink heruntergeladen werden. www.bresser.de/download/5803100/CE/5803100_CE.pdf 11. Entsorgung Entsorgen Sie die Verpackungsmaterialien sortenrein. Beachten Sie bei der Entsorgung des Geräts die aktuellen gesetzlichen Bestimmungen! Informationen zur fachgerechten Entsorgung erhalten Sie bei den kommunalen Entsorgungsdienstleistern oder dem Umweltamt. Werfen Sie Elektrogeräte nicht in den Hausmüll! Gemäß der Europäischen Richtlinie 2012/19/EU über Elektro- und Elektronik- Altgeräteund Umsetzung in nationales Recht müssen verbrauchte Elektrowerkzeuge getrennt gesammelt und einer umweltgerechten...
  • Page 7 CAUTION! Sharp-edged and pointed tools are often used when working with this device. Therefore, keep this device and all accessories and tools in a place that is inaccessible to children. Only allow children to work with the device under supervision! Keep packaging material (plastic bags, rubber bands, etc.) away from children! Delivery content (Fig.
  • Page 8 The supplied rubber eyecups (E) can be placed over the eyepieces to protect against stray light from the side. This also provides a more comfortable viewing experience for the user. 7. Adjusting the friction of the focusing drive It can happen that the Microscope head is no longer held by the focusing drive and shuts down because of his net weight. With the BRESSER Researcher ICD you can adjust the friction with the enclosed wrench (19). The wrench is simply hooked into two holes of the wider shaft (18). By rotating you can adjust the friction strongly or lightly. 8. Cleaning and maintenance Your microscope is a high-quality optical instrument. Please take care that neither dust nor fingerprints take place on the optical surfaces. If necessary, clean the microscope body with a slightly moistened soft cloth. Use a separate...
  • Page 9 9. Technical data Binocular head Eyepieces: 10x and 20x (2 pcs. each), 30.5 mm diameter Objectives: 2x and 4x, Stereo Total magnification: 20x, 40x, 80x (The total magnification can be calculated by multiplying the objective magnification with the eyepiece magnification, e.g.. 2 x 40 = 80) Lighting: LED Power supply: 230V/50Hz mains power via supplied power adapter or 3/6 AA/LR6 type batteries 11. CE Declaration of Conformity Bresser GmbH has formed a „Conformity Declaration“ in line with the applicable directive. This declaration is available for review under www.bresser.de/download/5803100/CE/5803100_CE.pdf 12. Disposal Dispose of the packaging materials separately. When disposing of the device, observe the current legal regulations! Information on proper disposal is available from the municipal waste disposal service providers or the environmental agency.. Do not dispose of electric equipment together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment (WEEE) and its implementation in accordance with national law, electric equipment that have reached the end of its life must be collected separately and returned to an environmentally compatible recycling facility.
  • Page 10 (de preferencia por e-mail). E-Mail: service@bresseruk.com Telephone*: +44 1342 837 098 E-Mail: servicio.iberia@bresser-iberia.es Teléfono*: +34 91 67972 69 BRESSER UK Ltd. Suite 3G, Eden House BRESSER Iberia SLU Enterprise Way c/Valdemorillo,1 Nave B Edenbridge, Kent TN8 6HF P.I. Ventorro del Cano United Kingdom 28925 Alcorcón Madrid...
  • Page 11 Notizen · Notes...
  • Page 12 Bresser GmbH Bresser UK Ltd. Gutenbergstraße 2 Suite 3G, Eden House 46414 Rhede · Germany Enterprise Way Edenbridge, Kent TN8 6HF www.bresser.de Great Britain @ BresserEurope             ...
