VICTRIX PRO V2
PCB SETTING
Service Export

Advertisement

loading
Need help?

Need help?

Do you have a question about the VICTRIX PRO V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Immergas VICTRIX PRO V2

Summary of Contents for Immergas VICTRIX PRO V2

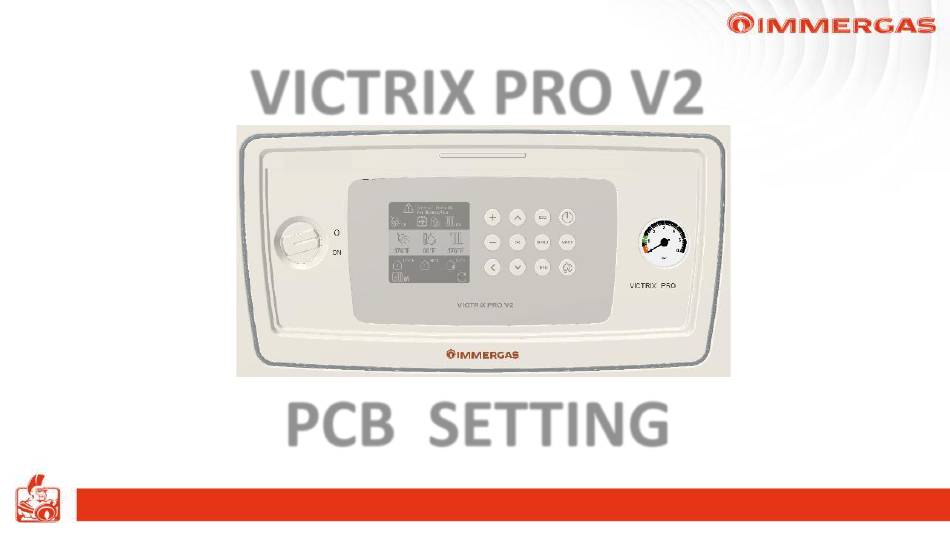

  • Page 1 VICTRIX PRO V2 PCB SETTING Service Export...
  • Page 2 VICTRIX PRO V2 - Control Panel The sliding cover allows for IPX5D rating and protects the display and buttons from accidental damage. By reading the display and navigating with the buttons, adjustments and settings can be made on the circuit board.
  • Page 3 VICTRIX PRO V2 - Keypad 6) UP & DOWN to scroll menu button 7) Back to main screen button 8) Used to allow access to the User or Technician menu 9) Used to put the boiler in STBY mode; press approx. 3 sec.
  • Page 4 VICTRIX PRO V2 - Display 16 - Active when updating parameters ( after changed a parameter ) 17 - External probe connected 18 - CH setpoint temperature 19 - CH mode enabled 20 - Hourly heating programming active - Active mode (ON, OFF, ECO) of...
  • Page 5 VICTRIX PRO V2 - PCB INFO When the Display is switched on, it appear : - Display Panel firmware version; - Main Board firmware version. By pressing the MENU button and using the Up and Down buttons to move through the menu, you can choose between the User menu and the Technical menu.
  • Page 6 VICTRIX PRO V2 - PCB INFO As follow is a description of how to move in the control panel: - Enter the menus; - Moving in the menus; - Set a menu item; - Confirming a change; - Exit without saving press the 'ESC' key.
  • Page 7 VICTRIX PRO V2 - PCB SETTING In addition to having useful parameters that make it flexible and malleable to the system to which it is connected, the V-PRO V2 also has a list of parameters to be used when installed in “EASY CASCADE” mode.
  • Page 8 In order to guarantee the integrity of the appliance and the DHW heating system in are as where the temperature drops below zero, we recommend protecting the central heating system using anti-freeze liquid and installing the Immergas antifreeze Kit in the appliance.
  • Page 9 VICTRIX PRO V2 - PCB FUNCTIONS OTHER ANTIFREEZE FUNCTIONS (OPTIONALS) External probe (Optional) If the external probe is present, the appliance's pump or other pumps if installed (Booster pump, Zone 1 pump, Zone 2 pump, System pump), is activated when the external temperature measured by the probe drops below the temperature set in the parameter "System settings/Additional antifreeze protections/Outside temperature pump activation"...
  • Page 10 VICTRIX PRO V2 - PCB SETTING - USER USER MENU/ CENTRAL HEATING Item Menu Description Range Default Set the "Zone 1 CH setpoint" (user setpoint). Zone 1 Min CH setpoint Zone 1 CH setpoint Please note that this parameter can change the parameter 85 (°C)
  • Page 11 VICTRIX PRO V2 - PCB SETTING - USER USER MENU / CENTRAL HEATING Item Menu Description Range Default Defines the level for reducing the control set-point for zone 1 Zone 1 CH constant heating when room thermostat contact open. 0 + 50 (°C) 0 (°C)
  • Page 12 VICTRIX PRO V2 - PCB SETTING - USER USER MENU/ CENTRAL HEATING / OUTDOOR TEMPERATURE Item Menu Description Range Default Outside temperature Defines the outside temperature at which OTC will disable central 7-25 (°C) for CH off heating (even if the room thermostat demand is active).
  • Page 13 VICTRIX PRO V2 - PCB SETTING - USER USER MENU/ DOMESTIC HOT WATER Menu item Description Range Default Sets the DHW setpoint (cannot be changed). When the NTC probe is 65 (°C) DHW setpoint 20+87 (°C) connected 80° ECO setpoint reduction Sets the temperature that will be subtracted from "DHW setpoint"...
  • Page 14 VICTRIX PRO V2 - PCB SETTING - USER USER MENU/ HOLIDAY/ HOLIDAY MODE Item Menu Description Range Default Sets zone heating setpoint when "Holiday mode" active. Zone 1 Min Zone 1CH holiday If the parameter "Zone 1 CH setpoint" is set to a lower value than this parameter, the...
  • Page 15 VICTRIX PRO V2 - PCB SETTING - USER USER MENU / SETTINGS / USER INTERFACE Item Menu Description Range Default English, Italian, Bulgarian Czech, Greek, French, Allows the selection of the desired language. Flemish, Polish, Select language * English Portuguese, Slovak, Spanish,...
  • Page 16 VICTRIX PRO V2 - PCB SETTING - USER The Diagnostics menu can also be accessed directly via the 'INFO' button. USER MENU / DIAGNOSTICS Menu Item Description Boiler state A new screen with the current operating status of the device will open.
  • Page 17 VICTRIX PRO V2 - PCB SETTING - USER USER MENU / DIAGNOSTICS / BOILER STATE Menu Description CH - Primary circuit Displayed when the setpoint is reached and the burner is switched off during "CH setpoint reached Demand". CH Demand Displayed when "CH Demand"...
  • Page 18 VICTRIX PRO V2 - PCB SETTING - USER USER MENU / DIAGNOSTICS / SYSTEM INFORMATION Item Menu Description Flame current* Value in micro A. Actual fan speed Real-time fan speed (rpm). Requested fan speed Fan setpoint (rpm). Modulation level * Effective burner output value (%).
  • Page 19 VICTRIX PRO V2 - PCB SETTING - USER USER MENU / DIAGNOSTICS / SYSTEM INFORMATION Item Menu Description Mix zone temperature* Temperature value measured by the low temperature flow probe (°C). Mix zone setpoint Required temperature value for the low-temperature zone (°C).
  • Page 20 VICTRIX PRO V2 - PCB SETTING - USER USER MENU/ DIAGNOSTICS/ LOCK OUT ( ERRORS ) HISTORY Shows the list of the last 8 errors. Pressing OK on the highlighted error will open a new screen containing details on the status of the device at the time the error was found (for details on errors paragraph ).
  • Page 21 VICTRIX PRO V2 - PCB SETTING - USER USER MENU / DIAGNOSTICS / FIRMWARE RELEASE Menu item Description Display Views the display board firmware version. Main board Displays the P.C.B. firmware version. USER MENU / MAINTENANCE item Menu Description Service information Displays the telephone number of the service centre.
  • Page 22 VICTRIX PRO V2 - PCB ERRORS FAULT AND ANOMALY SIGNALS The display show any malfunction by means of a numerical code and description. In this case its possible operate : 1: Reset the current error: by pressing the 'OK' button, if the error is resettable;...
  • Page 23 Error Code Anomaly displayed Appliance status / Solution Cause Fan Speed This occurs if the fan speed is incorrect. Press the OK (Reset) button During the ignition phase an anomaly was detected on the electronic Flame circuit fault Press the OK (Reset) button flame control circuit and the appliance switches The board detects an anomaly in the gas valve circuit.
  • Page 24 Error Anomaly displayed Appliancestatus / Solution Cause Code The board detects a short circuit or open on the system flow regulation NTC 30 - 31 Supply sensor shorted (2) (1) probe. 32 - 33 DHW sensor shorted The board detects a short circuit or open DHW NTC probe. (2) (1) This occurs when the power supply voltage is lower than the allowed limits for Low voltage...
  • Page 25 Error Anomaly displayed Cause Appliance status /Solution Code The burner is switched off to prevent any damage to the condensing module, once the correct AT has been restored and the time of l minute has elapsed since The boiler detects a sudden, un expected increase in the DT between the appearance of the fault, the appliance returns to DeltaT protection the flow probe and the system return probe.
  • Page 26 Error Anomaly displayed Cause Appliancestatus / Solution Code The board detects a short-circuit or open on the system side flow NTC 91 -92 System sensor shorted (2) (1) probe (no guarantee of efficient operation of the system). The board detects a short circuit on the external NTC probe (applicable if Outdoor sensor shorted the parameter "CH Request type"...
  • Page 27 Error Anomaly displayed Cause Appliancestatus /Solution Code In the case of simple cascade, the P.C.B. of the Master appliance receives no Check the connections to the simple communication from one or more boilers Slave (simple cascade will operate cascade communication BUS, and repeat with fewer appliances).
  • Page 28 VICTRIX PRO V2 - PCB SETTING - Technical Menu RESTORE SETTINGS HYDRAULIC SETTINGS "Restore Settings" column in the following tables This parameter list allows to drive the represents the parameters that can be restored to default hydraulic device, probe and values or to another value (indicated in the column itself).
  • Page 29 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU HYDRAULIC SETTINGS To access the technical menu, its necessary to enter the password '123' using CH - Central Heating SETTINGS the ' ' and ' ' buttons, pressing 'OK' with each entered digit.
  • Page 30 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS This parameter list allows to drive : Relays settings ✓ Hydraulic devices via relays. System sensor ✓ Set the sensor installed in the hydraulic system Mix zone ✓...
  • Page 31 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS / RELAY SETTINGS Item Menu Description Range Default Restore settings Relay not used Booster pump (the same operation as Q e P clamps in old version)
  • Page 32 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS / RELAY SETTINGS Menu Default Restore settings Item Description Range Relay not used Zone 1pump Zone 2 pump A6 and A7 DRY / FREE CONTACT drived by the...
  • Page 33 VICTRIX PRO V2 - PCB SETTING - Technical Menu The system sensor is connected to terminals S1 and S2 and must be configured via the parameter "System sensor". If the system flow sensor fails, the system will still function but with reduced performance and corresponding error will also be shown on the display.
  • Page 34 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS / MIX ZONE Restore Item Menu Description Range Default settings Selects the mixed heating zone (mixing valve, sensor). Mix zone selection* Only one heating zone can be equipped with a mixing valve.
  • Page 35 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS / CH REQUEST TYPE Menu Description Range Default Restore settings Room thermostat + OTC Room thermostat + OTC Room thermostat setpoint Room thermostat setpoint They allow the selection of different CH Room thermostat demands according to the type of installations.
  • Page 36 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS / CH REQUEST TYPE Menu Description Range Default Restore settings They allow the selection of different CH 0-10 V Power control 0-10 V Power control Room thermostat...
  • Page 37 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / HYDRAULIC SETTINGS / DHW REQUEST TYPE Menu Description Range Default Restore settings Thermostat Thermostat Allows you to select the demand type for DHW. Thermostat Sensor Sensor TECHNICIAN MENU / HYDRAULIC SETTINGS / PARALLEL MODE...
  • Page 38 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ HYDRAULIC SETTINGS / 3-WAY VALVE Item Menu Description Range Default Restore settings 3-way valve selection: 3-way valve Motorized or Motorized (Motorised diverter valve) Motorized selection Spring return Spring return (Diverter valve with spring return)
  • Page 39 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CH SETTINGS Power set This parameter section relates only to boiler settings during Central Heating Temperatures Overtemperature operation. Outside temperature Timing setting TECHNICIAN MENU / CH SETTINGS / POWER SET...
  • Page 40 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CH SETTINGS / TEMPERATURES Item Menu Description Range Default Restore settings Zone 1 MAX CH setpoint Set the "Zone 1max CH setpoint. 15 ÷ 90 (°C) 85 (°C) 15 ÷...
  • Page 41 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CH SETTINGS / TEMPERATURES Item Menu Description Range Default Restore settings Sets the temperature that will be subtracted from the actual setpoint for heating zone 1 when the ”ECO" mode is activated.
  • Page 42 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CH SETTINGS/ TEMPERATURES Item Menu Description Range Default Restore settings If set other than 0 and when the "ECO" mode is active, the CH demand is inhibited when the calculated setpoint is lower than the temperature set on the zone 2 setpoint parameter.
  • Page 43 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CH SETTINGS / OVERTEMPERATURE Item Menu Description Range Default Restore settings Each time the burner is switched-on and during the time set Overtemperature timer* 0 to 10 (min) 2 (min) by the parameter "Overtemperature timer", the burner is...
  • Page 44 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CH SETTINGS / OUTSIDE TEMPERATURE Item Menu Description Range Default Restore settings Defines the outside temperature at which the OTC will set the MAX CH Outside temp for max CH -34 to -10 (°C)
  • Page 45 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ DOMESTIC HOT WATER This parameter section relates only to boiler settings during Power set Temperatures DHW operation. Timing setting Antilegionella* When "HYDRAULIC SETTINGS/DHW request type" is set to "Thermostat", the item "Antilegionella" will not be present...
  • Page 46 VICTRIX PRO V2 - PCB SETTING - Technical Menu When Thermostat in Technician menu/HYDRAULICSETTINGS/DHW request type, table below will look like this: TECHNICIAN MENU /DOMESTIC HOT WATER/ TEMPERATURES Menu Description Range Default Restore settings Storage temperature setpoint Sets the flow temperature during the "DHW“ mode.
  • Page 47 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ DOMESTIC HOT WATER / TIMING SETTING Menu item Description Range Default Restore settings Post pump time [sec] Set the "DHW Post pump” time in seconds. 0+59 (s) 0 (s) Post pump time [min] Set the time for "DHW Post pump"...
  • Page 48 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ DOMESTIC HOT WATER/ ANTILEGIONELLA item Menu Description Range Default Restore settings Function Disabled Activates or deactivates the function (ON / OFF mode). Disabled - Enabled Defines setpoint "DHW" (only...
  • Page 49 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / SYSTEM SETTINGS Fan parameters Pump parameters This parameter section concerns the boiler Delta T parameters adaptation of the system. Boiler antifreeze protection Additional antifreeze protections Decreasing slope User interface settings...
  • Page 50 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / SYSTEM SETTINGS / FAN PARAMETERS Menu item Description Range Default Restore settings See paragraph on Ignition speed * Sets the speed used during burner ignition. 750 to 6750 (rpm) I.B.
  • Page 51 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / SYSTEM SETTINGS / PUMP PARAMETERS item Menu Description Range Default Restore settings Disabled = pump feedback is not used Disabled Feedback Enabled Enabled = pump feedback is used...
  • Page 52 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ SYSTEM SETTINGS / DELTA T PARAMETERS Item Menu Description Range Default Restore settings The pump speed increases in order not to exceed the value set in this Pump control 1 to 30 (°C)
  • Page 53 In order to guarantee the integrity of the appliance and the DHW heating system in are as where the temperature drops below zero, we recommend protecting the central heating system using anti-freeze liquid and installing the Immergas antifreeze Kit in the appliance.
  • Page 54 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ SYSTEM SETTINGS /ADDITIONAL ANTIFREEZE PROTECTIONS Item Menu Description Range Default Restore settings Defines the antifreeze activation threshold. This threshold is Antifreeze activation monitored by the (system) sensor (if present) in order to protect 2 to20 (°C)
  • Page 55 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / SYSTEM SETTINGS / DECREASING SLOPE item Menu Description Range Default Restore settings The "Decreasing slope" is only activated each time the burner is switched on. Power threshold 0 to 100 (%) 50 (%) The "Decreasing slope"...
  • Page 56 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / SYSTEM SETTINGS / DECREASING SLOPE item Menu Description Range Default Restore settings The "Decreasing slope" is only activated each time the burner is switched on. Power threshold 0 to100 (%) 50 (%) The "Decreasing slope"...
  • Page 57 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / SYSTEM SETTINGS / ANTI-HUMIDITY SETTINGS item Menu Description Range Default Restore settings Anti-humidity function This activates "Function" of the heat exchanger. OFF – ON (min) OFF (min) Fanspeed Defines the fan speed during this "Function".
  • Page 58 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU /SYSTEM SETTINGS/ MODBUS PARAMETERS Item Menu Description Range Default Restore settings Allows the assignment of the Modbus slave address Address 1 to 247 (when used with BMS systems). 1200 - 2400 Baud rate Modbus transmission rate.
  • Page 59 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ SYSTEM SETTINGS / MAINTENANCE item Menu Description Used to enter the telephone number of the service centre Service information (parameter entered by the service centre performing the maintenance). Date of next maintenance Service due date (relating to the last maintenance carried out and completed by the technician carrying out the maintenance).
  • Page 60 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU/ MANUAL TEST/ MANUAL RELAY TEST Default Menu Description Range System pump System fault 3—way valve CH The relay associated with "function" is activated if previously configured in OFF - ON "Technician menu / HYDRAULIC / SETTINGS / Relay settings".
  • Page 61 VICTRIX PRO V2 - PCB SETTING - Technical Menu TECHNICIAN MENU / CASCADE parameter 'Autodetect' also used individual device. Settings Although the remaining parameters also present on the individual Single burner power boiler, they when appliance part of a cascade installation.
  • Page 62 Service Export...
