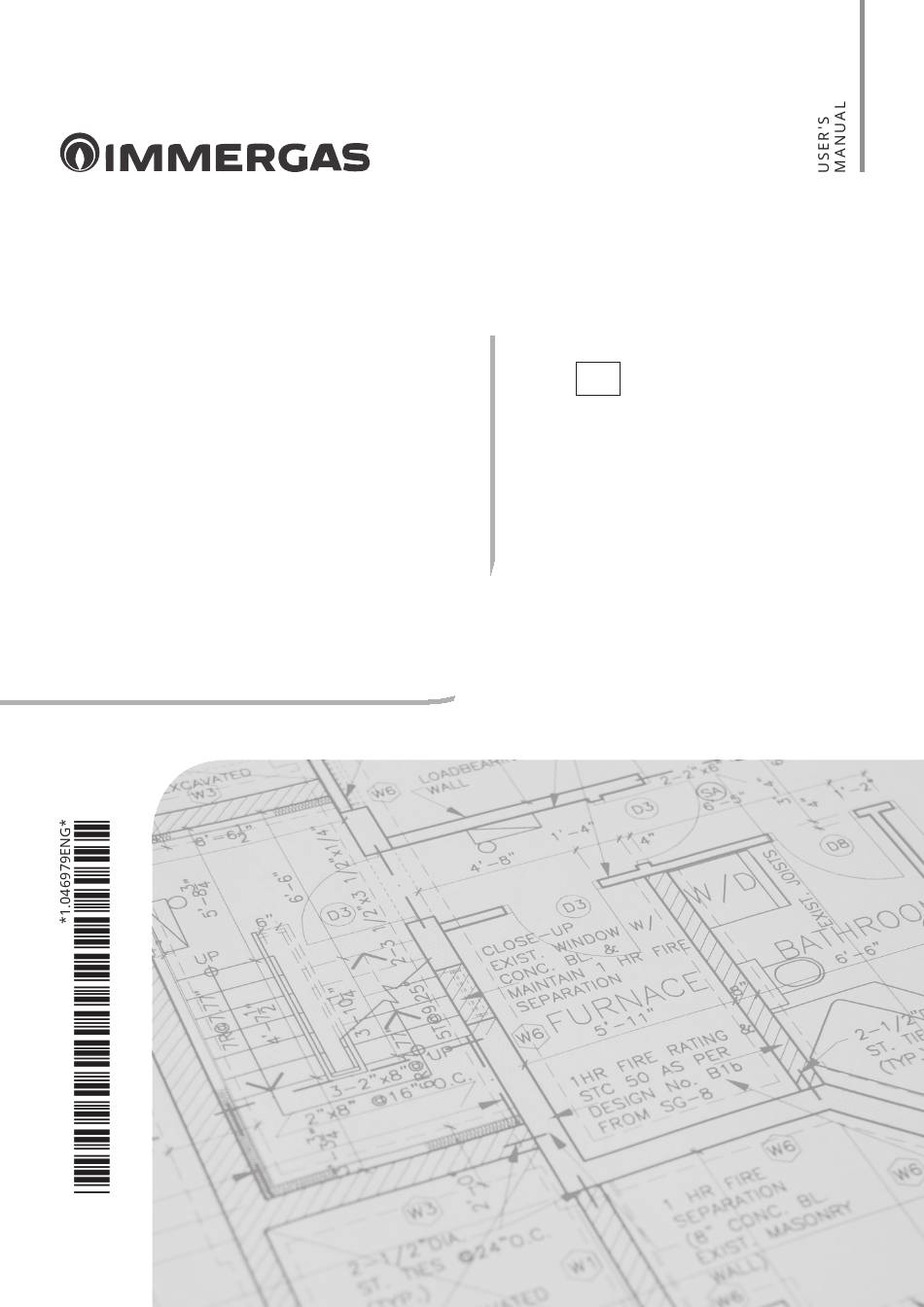

  • Page 1 MAGIS M4/30 Instructions and recommendations Block heat pumps Control Panel...

  • Page 2: Table Of Contents

    Operation mode......................................24 Preset temperature.....................................24 6.3 Domestic Hot Water (DHW)..................................29 Programming......................................33 Options........................................38 Child lock........................................42 Technical information....................................44 Operation parameters....................................46 For Serviceman......................................47 6.10 Shows SN ........................................48 Menu structure: overview................................ 49 ST.006127/006 MAGIS M4/30...

  • Page 3: Dear Customer

    Dear Customer Congratulations for having chosen a top-quality Immergas product, able to assure well-being and safety for a long period of time. As an Im- mergas customer you can also count on a Qualified Authorised After-Sales Technical Assistance Centre, prepared and updated to guarantee the constant efficiency of your products.

  • Page 4: List Of Abbreviations Used

    Domestic hot water etc. Etc. Fan coil Fig. Figure Floor heating circuit Indoor unit backup heater Maximum fuse amp. Maximum overcurrent protection Max. Maximum Min. Minimum Nom. Rated Par. Paragraph Radiator Room temperature DHW storage tank backup heater ST.006127/006 MAGIS M4/30...

  • Page 5: General Recommendations

    Law. • Improper installation or assembly of the Immergas device and/or components, accessories, kits and devices can cause unex- pected problems for people, animals and objects. Read the instructions provided with the product carefully to ensure proper installation.

  • Page 6: Safety Symbols Used

    The symbol identifies the appliance’s earth terminal connection point. DISPOSAL WARNING The user must not dispose of the appliance at the end of its service life as municipal waste, but send it to appropriate collection centres. PERSONAL PROTECTIVE EQUIPMENT SAFETY GLOVES EYE PROTECTION SAFETY FOOTWEAR ST.006127/006 MAGIS M4/30...

  • Page 7: General Safety Warnings

    Making sure that the product is disposed of correctly shall avoid possible negative conse- quences for the environment and human health. For further information, contact your installer or local authorities. - Install in a place where there is no radiation present. ST.006127/006 MAGIS M4/30...

  • Page 8: Presentation Of Control Panel

    Enter a submenu in the menu structure. Long press to unlock/lock the control panel. Release/block some functions like "DHW TEMP.ADJUST". Activate or deactivate the room operation mode or "13.2 DHW MODE". Enable or disable the function in the menu structure. ST.006127/006 MAGIS M4/30...

  • Page 9: Status Icons

    Desired temperature decreases temperature will decrease Desired temperature increases Fan coil Radiator Floor heating Desired water flow temperature Desired room temperature Heating Mode Cooling Mode Auto mode Additional heating source (not used) Heating source (Backup Heater IBH) ST.006127/006 MAGIS M4/30...
  • Page 10 Photovoltaic contact activated Storage tank heater on Domestic hot water Storage tank temperature Turn Off / On Disinfect function activated Domestic hot water External room temperature Weekly schedule icon Timer Icon Fan coil Radiator Floor heating Domestic hot water ST.006127/006 MAGIS M4/30...

  • Page 11: Using Home Pages

    System layout 1 CRP1CRP2...CRPn Key (Fig. 4): Desired water flow temperature All the images in the manual have been inserted for illustrative purposes. Therefore there could be differences compared to the pages that actually appear on the screen. ST.006127/006 MAGIS M4/30...
  • Page 12 TING” in the Use and Installation Booklet), the system will also include the floor and domestic hot water heating function. The home page will appear (Fig. 6): System layout 2 CRP1CRP2...CRPn Key (Fig. 6): Desired room temperature The wall-mounted control panel should be installed in the floor heating room to be able to control the room temperature. ST.006127/006 MAGIS M4/30...
  • Page 13 There will be a main page and an additional page. The system also has the function including floor heating and space heating for fan coil. The home page will appear (Fig. 8): Main page System layout 3 FCU1 FCU2...FCUn Additional page FHL1 FHL2...FHLn Key (Fig. 8 - 9): Zone 1 desired water flow temperature Zone 2 desired room temperature ST.006127/006 MAGIS M4/30...
  • Page 14 Additional page FHL1FHL2...FHLn Key (Fig. 11 - 12 - 13): Zone 1 desired water flow temperature DHW tank real temperature Zone 2 desired room temperature S20-1 - Zone 1 room thermostat S20-2 - Zone 2 room thermostat ST.006127/006 MAGIS M4/30...

  • Page 15: Menu Structure

    PRESET TEMPERATURE OPERATION PARAMETER DOMESTIC HOT WATER(DHW) FOR SERVICEMAN SCHEDULE WLAN SETTING OPTIONS SN VIEW CHILD LOCK ENERGY METERING ENTER ENTER 4.3 HOW TO NAVIGATE IN THE MENU STRUCTURE. Use “ ” and “ ” to scroll. ST.006127/006 MAGIS M4/30...

  • Page 16: Basic Use

    The control panel will lock if no operations are performed for much time (approximately 120 seconds): the setting can be adjusted on the panel, see paragraph 6.7 “Technical information.“. If the control panel is unlocked, press and hold the key to lock it. Key (Fig. 17): Press and hold Press and hold ST.006127/006 MAGIS M4/30...

  • Page 17: Switching Controls On/Off

    - Press “ ” and “ ” on the home page, the black cursor will appear: - 1) When the cursor is on the temperature on the space operation mode side (which includes "HEATING" mode , "COOLING" mode and "AUTO" mode , press the key to activate/deactivate space heating or cooling. ST.006127/006 MAGIS M4/30...
  • Page 18 If DHW TYPE is set at NO, the following pages will appear: If "5. TEMP. TYPE SETTING" is set at "5.2 ROOM TEMP.", the following pages will appear: ST.006127/006 MAGIS M4/30...
  • Page 19 DOUBLE ZONE room thermostat. ON/OFF ON/OFF ON/OFF ON/OFF thermostat thermostat thermostat thermostat Use the control panel to switch the "DHW" unit on or off. Press “ ” and “ ” on the home page, the black cursor will appear: ST.006127/006 MAGIS M4/30...
  • Page 20 - 1) When the cursor is on the temperature of the "13.2 DHW MODE", press the “ ” key to activate or deactivate it. - If the space operation mode is activated (ON), the following pages appear: If the space operation mode is deactivated (OFF), the following pages appear: ST.006127/006 MAGIS M4/30...

  • Page 21: Adjusting The Temperature

    ” on the home page, the black cursor will appear: - If the cursor is on the temperature, use “ ” and “ ” to select (Fig. 28) and use“ ” and “ ” to adjust the temperature (Fig. 29). ST.006127/006 MAGIS M4/30...

  • Page 22: Adjusting Space Operation Mode

    Setting automatically changed by the software based on the outdoor temperature (and depending on installer settings of the outdoor temperature), and taking monthly restrictions into account. Note: the automatic change is only possible under certain conditions. AUTO See “FOR SERVICEMAN” > “4.AUTO MODE SETTING” in the Use and Installation Booklet ST.006127/006 MAGIS M4/30...
  • Page 23 ” > “OPERATE MODE”. If you press any key for a selection or adjustment, the following page appears: Cool/heat mode is controlled by the room thermostat. Please turn on or off cooling/ heating mode by the room thermostat. (Please adjust the operation mode by the room thermostat.) ENTER ST.006127/006 MAGIS M4/30...

  • Page 24: Operation

    SELECT CANCEL Use “ ” , “ ” , “ ” , “ ” to scroll and use “ ” and “ ” to adjust the time and temperature. Six periods and six temperatures can be set. ST.006127/006 MAGIS M4/30...
  • Page 25 ” > “PRESET TEMPERATURE” > “WEATHER TEMP.SET”. Press The following page is displayed: PRESET TEMPERATURE WEATHER PRESET TEMP.SET MODE TEMP. ZONE1 C-MODE LOW TEMP. ZONE1 H-MODE LOW TEMP. ZONE2 C-MODE LOW TEMP. ZONE2 H-MODE LOW TEMP. ON/OFF ON/OFF ST.006127/006 MAGIS M4/30...

  • Page 26: Eco Mode

    - If the "WEATHER TEMP.SET" function is on, the desired temperature cannot be adjusted on the control panel. If “ ” and “ ” are pressed to adjust the temperature on the home page. The following page is displayed: Weather temp. set function is on. Do you want to turn off it? ENTER ST.006127/006 MAGIS M4/30...
  • Page 27 Press “ ”. The following page is displayed: PRESET TEMPERATURE WEATHER PRESET TEMP.SET MODE TEMP. CURRENT STATE ECO TIMER START 08:00 19:00 ON/OFF Press . The following page is displayed: ECO MODE SET ECO MODE SET TYPE ENTER ST.006127/006 MAGIS M4/30...
  • Page 28 • If "ECO MODE"is activated (ON) and "ECO TIMER" is deactivated (OFF), the unit will always run in "ECO" mode. • If "ECO MODE" is activated (ON) and "ECO TIMER" is activated (ON), the unit will work in "ECO" mode based on the start and end time. ST.006127/006 MAGIS M4/30...

  • Page 29: Domestic Hot Water (Dhw)

    ” to adjust the parameters when setting “OPERATE DAY” and “START”. If "OP- ERATE DAY" is set at"FRI" and "START" is set at 23:00, the disinfect function will activate on Friday at 23:00. If the disinfect function is active, the following page appears: ST.006127/006 MAGIS M4/30...
  • Page 30 (ON) or deactivated (OFF). If "CURRENT STATE" is deactivated (OFF), the "FAST DHW" function is not valid, while if it is activated (ON), the "FAST DHW" function is active. The "FAST DHW" activates once. ST.006127/006 MAGIS M4/30...

  • Page 31: Tank Heater

    ” to exit. If "TANK HEATER" is active, the following page will appear: If "CURRENT STATE" is deactivated (OFF), "TANK HEATER" cannot be activated. If the storage tank sensor (T5) is faulty, the storage tank heater cannot work. ST.006127/006 MAGIS M4/30...
  • Page 32 For example: the parameter relative to "DHW PUMP" was set (see “FOR SERVICEMAN” > “1. DHW MODE SETTING” in the Use and Installation Booklet). "PUMP_D RUNNING TIME" is 30 minutes. START 6:00 7:00 8:00 9:00 The PUMP is switched on as shown below: Key (Fig. 57): Pump ST.006127/006 MAGIS M4/30...

  • Page 33: Programming

    Please check the timer setting. ENTER - Example: Six timers are set as follows: START MODE TEMP. 1:00 3:00 50°C 7:00 9:00 HEATING 28°C 11:30 13:00 COOLING 20°C 14:00 16:00 HEATING 28°C 15:00 19:00 COOLING 20°C 18:00 23:30 50°C ST.006127/006 MAGIS M4/30...
  • Page 34 "COOL MODE" is activated (ON) and"HEAT MODE" is deactivated (OFF) 18:00 "13.2 DHW MODE" is activated (ON) and"COOL MODE" is deactivated (OFF) 23:30 "13.2 DHW MODE" is deactivated (OFF) The timer is not valid if the start and end time are the same. ST.006127/006 MAGIS M4/30...
  • Page 35 Several timer settings can be made, including start and end time, mode and temperature. "HEAT MODE", "COOL MODE" and "13.2 DHW MODE" are included. The setting method refers to the timer setting. The end time must be later than the start time. Otherwise the Timer useless indication will appear, namely that it cannot be activated. ST.006127/006 MAGIS M4/30...
  • Page 36 To exit "CANCEL TIMER", press “ ”. If the "TIMER" or "WEEKLY SCHEDULE" functions are on, the timer icon “ ” or the weekly schedule icon “ ” appear on the home page. ST.006127/006 MAGIS M4/30...
  • Page 37 • "PRESET TEMP." and "WEATHER TEMP.SET" have the same priority. The function with the most recent setting is applied. All the items ("PRESET TEMP.", "ECO, "DISINFECT", "DHW PUMP", "TIMER", "WEEKLY SCHEDULE", "SILENT MODE", "HOLIDAY HOME") can be programmed by setting the relative function on "ON/OFF" from the starting time to the end time. ST.006127/006 MAGIS M4/30...

  • Page 38: Options

    LEVEL 1 SILENT LEVEL LEVEL 2 12:00 12:00 TIMER1 START TIMER1 START TIMER1 END TIMER1 END 15:00 15:00 ADJUST You can use “ ” and “ ” to select level 1 or level 2. Press “ ”. ST.006127/006 MAGIS M4/30...
  • Page 39 (ON) or deactivated (OFF) and use “ ”, “ ”, “ ”, “ ” to scroll and adjust. Setting Value HOLIDAY AWAY FROM 2 January 2018 UNTIL 16 January 2018 OPERATE MODE HEATING DISINFECT ST.006127/006 MAGIS M4/30...

  • Page 40: Silent Mode

    Use “ ” and “ ” to set the date. - The normal schedule is activated before and after holidays. If you change the operation mode of the unit, you must exit "HOLIDAY AWAY" or "HOLIDAY HOME" . ST.006127/006 MAGIS M4/30...
  • Page 41 (OFF) or activated (ON). • If automatic operation mode is set on the space heating or cooling side, the "BACKUP HEATER" function cannot be selected. • The "BACKUP HEATER" function is not valid when only "HEAT MODE" is activated. ST.006127/006 MAGIS M4/30...

  • Page 42: Child Lock

    The cooling/heating temperature cannot be adjusted when the "COOL/HEAT TEMP.ADJUST" function is locked. If you wish to adjust the cooling/heating temperature when locked, the following page will appear: Cooling or heating temperature adjust function is locked. Do you want to unlock? ENTER ST.006127/006 MAGIS M4/30...
  • Page 43 The "DHW" mode cannot be activated or deactivated when the "DHW MODE ON/OFF" function is locked. If you try to activate or deactivate "DHW" when the "DHW MODE ON/OFF" function is locked, the following page will appear: DHW mode's ON/OFF function is locked. Do you want to unlock? ENTER ST.006127/006 MAGIS M4/30...

  • Page 44: Technical Information

    CALL CODE ETER 14:10 01-01-2018 14:00 01-01-2018 13:50 01-01-2018 13:20 01-01-2018 ENTER Press . The following page is displayed: SERVICE INFORMATION SERVICE ERROR PARAM- DISPLAY CALL CODE ETER 14:10 01-01-2018 14:00 01-01-2018 13:50 01-01-2018 13:20 01-01-2018 ENTER ST.006127/006 MAGIS M4/30...
  • Page 45 CALL 12:30 TIME BUZZER 08-08-2018 120 SEC DATE SCREEN LOCK TIME LANGUAGE SMART GRID RUNNING TIME 2 Hrs BACKLIGHT ENTER ON/OFF to enter and “ ” , “ ” , “ ” , “ ” to scroll. ST.006127/006 MAGIS M4/30...

  • Page 46: Operation Parameters

    Sensor accuracy is ± 1°C. The flow rate parameters are calculated based on the operation parameters of the pump (only for 4-16 kW units). The deviation changes depending on the flow rates. The maximum deviation is 15%. ST.006127/006 MAGIS M4/30...

  • Page 47: For Serviceman

    If all the parameters have been set, press “ ”. The following page is displayed: FOR SERVICEMAN Active the settings and exit? ENTER ADJUST Select “YES” and the press to exit the "FOR SERVICEMAN" menu. After you have exited the menu, the unit shuts down. ST.006127/006 MAGIS M4/30...

  • Page 48: 6.10 Shows Sn

    6.10 SHOWS SN SN VIEW SN VIEW IDU NO. HMI NO. ******************************* ******************************* ODU NO. ******************************* ST.006127/006 MAGIS M4/30...

  • Page 49: Menu Structure: Overview

    OPERATE MODE COOLING AUTO PRESET TEMP. PRESET TEMPERATURE WEATHER TEMP.SET WEATHER TEMP.SET DISINFECT CURRENT STATE DISINFECT OPERATE DAY DISINFECT START DOMESTIC HOT WATER(DHW) FAST DHW TANK HEATER DHW PUMP TIMER WEEKLY SCHEDULE SCHEDULE SCHEDULE CHECK CANCEL TIMER ST.006127/006 MAGIS M4/30...
  • Page 50 ROOM SET TEMP. MAIN SET TEMP. TANK SET TEMP. PARAMETER ROOM ACTUAL TEMP. MAIN ACTUAL TEMP. SERVICE INFORMATION TANK ACTUAL TEMP. TIME DATE LANGUAGE DISPLAY BACKLIGHT BUZZER SCREEN LOCK TIME SMART GRID RUNNING TIME OPERATION PARAMETER OPERATION PARAMETER ST.006127/006 MAGIS M4/30...

  • Page 51: Energy Metering

    13. AUTO RESTART 14. POWER INPUT LIMITATION 15. INPUT DEFINE 16.CASCADE SET 17.HMI ADDRESS SET WLAN SETTING (*) Not Used (*) = Application not available. HMI NO. SN VIEW IDU NO. ODU NO. HEATING ENERGY METERING COOLING ST.006127/006 MAGIS M4/30...
  • Page 52 1.21 PUMP_D DISINFECT RUN FOR SERVICEMAN 2.1 COOL MODE 2.2 t_T4_FRESH_C 2.3 T4CMAX 2.4 T4CMIN 2.5 dT1SC 2.6 dTSC 2.COOL MODE SETTING 2.7 t_INTERVAL_C 2.8 T1SetC1 2.9 T1SetC2 2.10 T4C1 2.11 T4C2 2.12 ZONE1 C-EMISSION 2.13 ZONE2 C-EMISSION ST.006127/006 MAGIS M4/30...
  • Page 53 6.1 ROOM THERMOSTAT FOR SERVICEMAN 7.1 dT1_IBH_ON 7.2 t_IBH_DELAY 7.3 T4_IBH_ON 7.4 dT1_AHS_ON (Not Used) 7.5 t_AHS_DELAY (Not Used) 7. OTHER HEATING SOURCE 7.6 T4_AHS_ON (Not Used) 7.7 IBH LOCATE 7.8 P_IBH1 7.9 P_IBH2 (Not Used) 7.10 P_TBH ST.006127/006 MAGIS M4/30...

  • Page 54: Special Function

    8.2 T5S_H.A._DHW FOR SERVICEMAN PHONE NO. 9. SERVICE CALL MOBILE NO. FOR SERVICEMAN 10. RESTORE FACTORY SETTINGS FOR SERVICEMAN 11. TEST RUN FOR SERVICEMAN 12.SPECIAL FUNCTION FOR SERVICEMAN 13.1 COOL/HEAT MODE 13. AUTO RESTART 13.2 DHW MODE ST.006127/006 MAGIS M4/30...
  • Page 55 15.9 F-PIPE LENGTH 15.10 RT/Ta_PCB 15.11 PUMP_I SILENT MODE 15.12 DFT1/DFT2 FOR SERVICEMAN 16.1 PER_START 16.CASCADE SET 16.2 TIME_ADJUST 16.3 ADDRESS RESET FOR SERVICEMAN 17.1 HMI SET 17.HMI ADDRESS SET 17.2 HMI ADDRESS FOR BMS 17.3 STOP BIT ST.006127/006 MAGIS M4/30...
  • Page 56 3-T1S 4-T1S 5-T1S 6-T1S 7-T1S 8-T1S Table 2 The room temperature curve of the high temperature setting for heating. ≤-20 1-T1S 2-T1S 3-T1S 4-T1S 5-T1S 6-T1S 7-T1S 8-T1S ≥20 1-T1S 2-T1S 3-T1S 4-T1S 5-T1S 6-T1S 7-T1S 8-T1S ST.006127/006 MAGIS M4/30...
  • Page 57 The automatic setting curve is the ninth; the graph with the parameters to set is displayed: T1S (T1S2) T1SETC 1 T1SETC 2 T4C1 T4C2 State: in the setting of the control panel, if T4C2<T4C1, exchange their value; if T1SETC1<T1SETC2, exchange their value. ST.006127/006 MAGIS M4/30...
  • Page 58 ST.006127/006 MAGIS M4/30...
  • Page 59 ST.006127/006 MAGIS M4/30...
