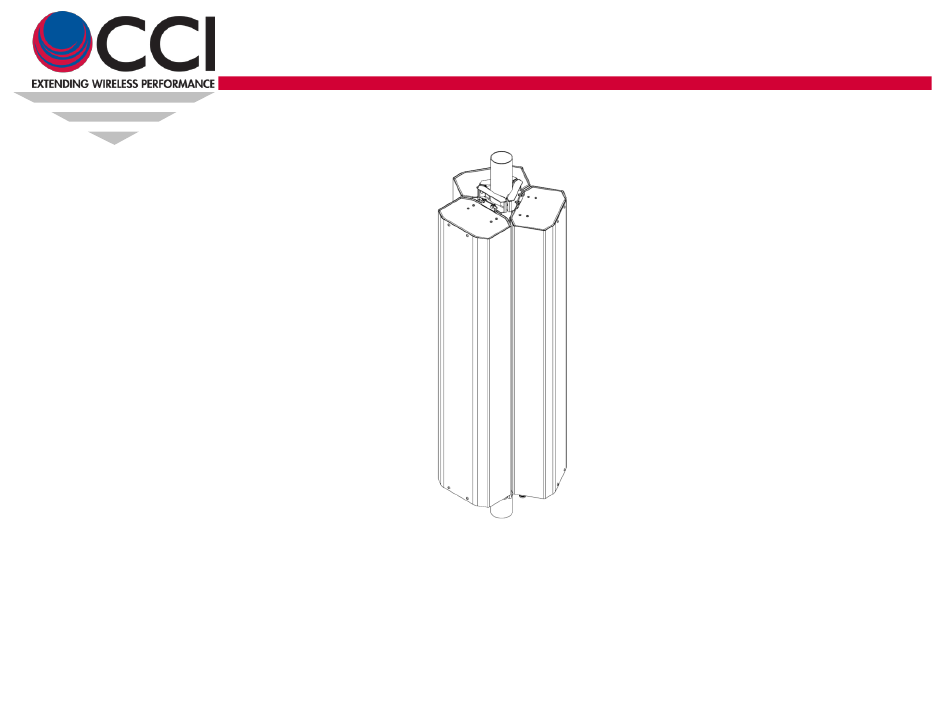

Fixed Triple Mount Mast Bracket Installation Guide (TM-02)
DISCLAIMER:
The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. You must refer to the appropriate local safety codes and
ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over information in this
document. Antenna systems should be inspected once a year by qualified personnel to verify proper installation, maintenance, and condition of equipment.
Communication Components Antennas Inc. disclaims any liability or responsibility for the results of improper or unsafe installation.
50-000236-01 Installation Guide
1
Advertisement
Related Manuals for CCi TM-02
Summary of Contents for CCi TM-02
- Page 1 Fixed Triple Mount Mast Bracket Installation Guide (TM-02) DISCLAIMER: The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. You must refer to the appropriate local safety codes and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over information in this document.
- Page 2 Fixed Triple Mount Mast Bracket Installation Guide (TM-02) Fig. 1: Triple Mount Mast Bracket BOM Fig. 2: Triple Mount Mast Bracket Spacing ITEM DESCRIPTION MAST BRACKET, CLAMP, TRIPLE MOUNT TOP, TM-02 MAST BRACKET, CLAMP, TRIPLE MOUNT BOTTOM, TM-02 WASHER, M8, FL, SS HEX CAP BOLT, M8X1.25X18 L, DIN 933-A2, SS, NYLOCK...
- Page 3 Fixed Triple Mount Mast Bracket Installation Guide (TM-02) Fig. 3: Single Antenna Mounting Fig. 4: Three Antenna Mounting Step Task Step Task Hang the top of the Antenna over the hooks of the Top Mast Bracket Hang and secure the additional antennas using four Washers (item #3) and Clamp as shown in Fig.
