Product manual │ 24.06.2024
Busch-Watchdog
6851/9-xxx
Busch-Watchdog
6851/22-xxx
Busch-Watchdog
6851/22S-xxx
Busch-Watchdog
Commissioning and operation via the app Busch-free@home
Branding -- Release 2018-01-01
®
PRO
®
90° BT
®
220° BT
®
220° select BT
®
Next App
Advertisement
Related Manuals for Busch-Jaeger Busch-Watchdog PRO
Summary of Contents for Busch-Jaeger Busch-Watchdog PRO

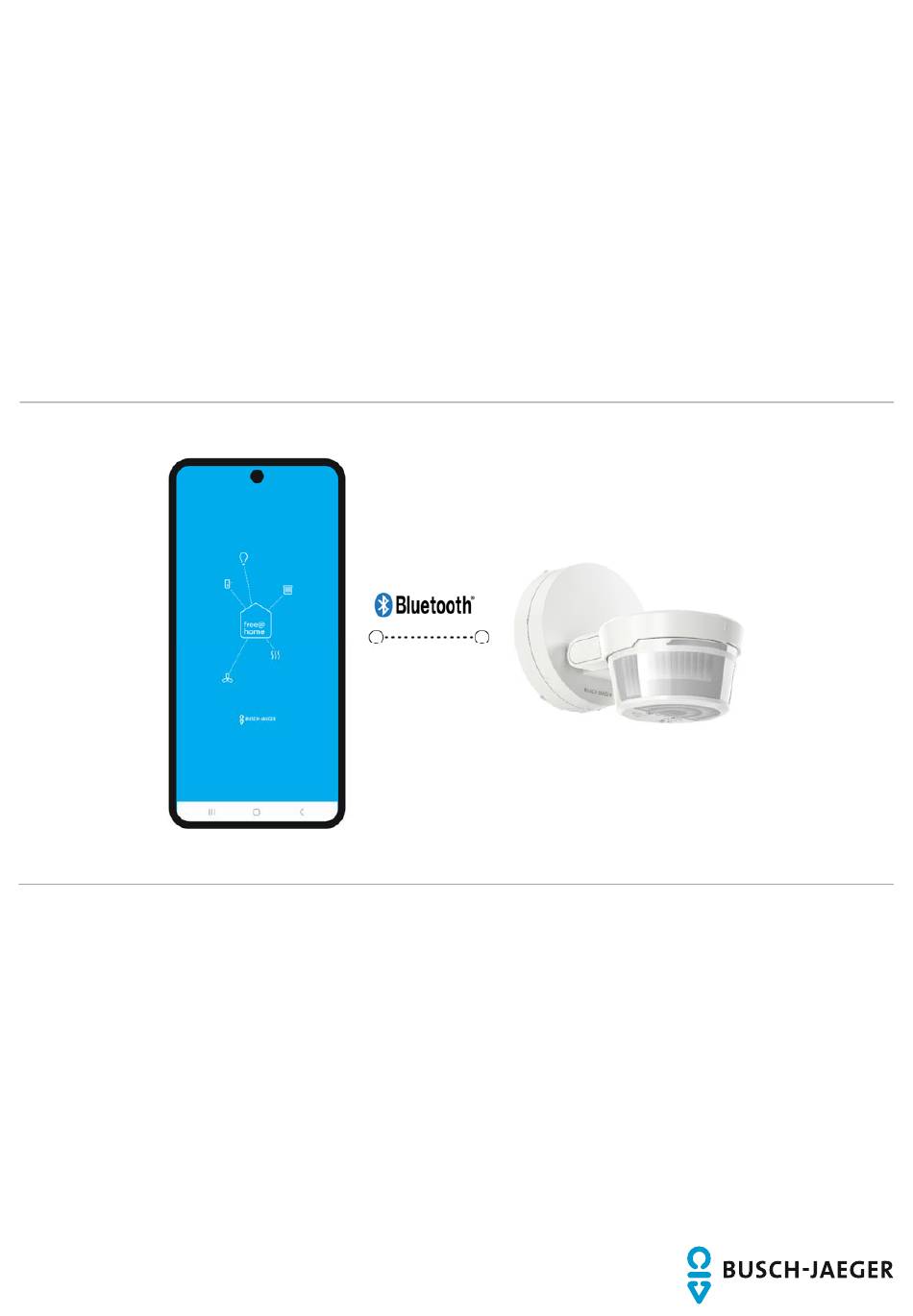

- Page 1 Product manual │ 24.06.2024 Busch-Watchdog ® 6851/9-xxx Busch-Watchdog ® 90° BT 6851/22-xxx ® Busch-Watchdog 220° BT 6851/22S-xxx Busch-Watchdog ® 220° select BT Commissioning and operation via the app Busch-free@home ® Next App Branding -- Release 2018-01-01...
- Page 2 Inhaltsverzeichnis Inhaltsverzeichnis Overview ................................ 3 Overview Busch-free@home ® Next App / Busch-Watchdog ® PRO..........4 Overview start screen ........................5 Possible access variants of the app ....................6 Overview of functions Busch-free@home ® Next App / Selector switch ..........7 Priority behaviour when operating via the app or via the device ............
- Page 3 Overview Overview These instructions supplement the product manual Busch-Watchdog ® 6851/9-xxx 6851/22-xxx 6851/22S-xxx ® to the functionality of the Busch-free@home Next App app for configuration and operation. Notice ® The devices are configured using the app Busch-free@home Next App. No network functions are used.
- Page 4 Overview Overview Busch-free@home ® Next App / Busch-Watchdog ® ® Below you can see the functional and operating areas of the app for the Busch-Watchdog devices. Overview area Parameters Global settings Others Display of the current device Setting the device parameters Changing the device name and ■...
- Page 5 Overview Overview start screen Three-point menu Tapping the three-dot menu opens the switch menu. – Here you can switch the load using the slide switch / switch. – The "Permanent mode" function can also be opened using the cogwheel symbol. This allows the load to be switched on or off permanently.
- Page 6 Overview Possible access variants of the app Permanent access via the app Temporary access via the app With this variant, the focus is on use by the installer. With this variant, the focus of use is on the end Access to the device via the app is only possible user.
- Page 7 Overview Overview of functions Busch-free@home ® Next App / Selector switch Overview of functions 6851/9-xxx / 6851/22-xxx / 6851/22S-xxx Test Reset Function Settings – On Channel – Off – Permanently switched on Continuous mode – – Continuous off – 0% –...
- Page 8 Overview Priority behaviour when operating via the app or via the device The last entry has priority, regardless of whether it was made via the selector switch or the app. For some settings, tap the "Save" button at the bottom of the page (e.g. changing the sensitivity of a sensor range).
- Page 9 Initial steps Initial steps Download and install the app ® Download the app Busch-free@home Next App from the relevant store and install it on your smartphone. Android Notice When updating the operating system of your Apple smartphone, the pairing to ®...
- Page 10 Initial steps Commissioning The possible procedures for commissioning via the app are described below. The following methods are available for commissioning the device: – "Standard commissioning" on page 10 – "Commissioning by scanning the QR code" on page 12 Notice –...
- Page 11 Initial steps 3. Select the desired access variant and confirm with "Next". Note - Access variant – Permanent access via the app The device can be accessed at any time. – Temporary access via the app Mode for set-up by the installer. For more information, see "Possible access variants of the app "...
- Page 12 Initial steps Commissioning by scanning the QR code Notice The QR code is located on the back of the sensor head of the device. ■ This method can also be used if the device is not energised. To do this, you ■...
- Page 13 Initial steps Fig. 4: Integrate device [4] - [6] (example illustration) 5. Assign a device name for the new installation and select "OK". 6. Enter a password for the new installation and confirm with "Next". 7. Assign a device name and position the device within the installation using the plus symbol. Then confirm the settings with "Next".
- Page 14 Initial steps Handover of the installation Project handover for individual control With individual control (device control), the project can be easily transferred from one app to another by scanning a 2D code. Fitter: 1. Call up the "More" menu item via the hamburger menu and switch to the "Installation settings"...
- Page 15 Operation Operation Parameter overview To configure the parameters, select the installation and the desired device. Then scroll down to the parameters. The overview shows the individual parameters in the order in which they appear during operation. Notice Some changes may need to be saved using the "Save" button for them to take effect.
- Page 16 Operation Switch-off pre-warning Before the light is switched off, the end of the lighting time is indicated via the connected load (e.g. an LED light source). The switch-off pre-warning is only active when the run-on time has elapsed, not when switching off manually. Expiry of the switch-off warning: 1.
- Page 17 Operation Switch-on Various settings can be preselected. If the ambient brightness falls below the selected criterion, motion detection causes the connected light to switch on. Always – independent of the brightness – 15 lx (factory setting) – Acceptance of current threshold value Threshold value –...
- Page 18 Operation Operating functions in detail Test mode / walking test The walking test is used to check the detection range by pacing. A run-on time of two seconds is activated during the walking test; the device operates independently of brightness. Activating the walking test The device is in the walking test for 10 minutes (red status LED flashes quickly at 5 Hz): After an interruption in the operating voltage supply lasting longer than 15 seconds.
- Page 19 Operation Completing the walking test The device terminates the "Walk test" function under the following conditions: Automatically 10 minutes after the start of the walking test if the selector switch has been ■ set to any brightness value. Manual termination of the walking test –...
- Page 20 Operation Reduction of the detection range / sensitivity Notice The detection area can also be restricted directly on the device. The detection angle can be specifically limited by gluing on the enclosed foil. The detection range of the Busch-Watchdog ® is 90°...
- Page 21 Operation Setting the sensitivity 6851/9-xxx Fig. 9: Sensitivity 6851/9-xxx Notice Detection by the floor lens cannot be reduced via the app, as this is done with a mirror. Setting the sensitivity 6851/22-xxx Fig. 10: Sensitivity 6851/22-xxx Notice Detection by the floor lens cannot be reduced via the app, as this is done with two mirrors.
- Page 22 Operation Setting the sensitivity 6851/22S-xxx Fig. 11: Sensitivity 6851/22S-xxx Product manual 2CKA001473B5791 │22...
- Page 23 Operation Automation/timer Notice The device is not equipped with batteries. – Time programmes are stopped in the event of a power failure. – The time in the device is only synchronised again the next time you connect to the app. Up to 28 switching times can be programmed via the automation.
- Page 24 Operation 3.3.1 Automation/timer settings You can programme various switching times in the automation area. The following overview shows the individual setting options and parameters in the order in which they appear during operation. Notice Any changes made must be saved using the "Save" button for them to take effect.
- Page 25 Operation Repetition at every Mon, Tue, Wed, Thu, Fri, Sat, Sun Specify the days of the week on which the timer should repeat. The default setting. The timer switches at the same time every Switch on every day of the week day of the week.
- Page 26 Operation Global settings Fig. 13: General settings In the "General settings", the device name can be changed and the position (floor/room) within the house can be defined. Settings / Maintenance Fig. 14: Other - Settings / Maintenance Information about the device [1] Overview of the device data Maintain [2] Set and change device password...
- Page 27 Operation Firmware update ® The Busch-free@home Next App displays the notification "Device update available" on the start page when new firmware is available for your device. To carry out the firmware update, proceed as follows: 1. Tap "Update now" under the message "Device update available". 2.
- Page 28 Operation Product manual 2CKA001473B5791 │28...
- Page 29 Busch-Jaeger Elektro GmbH A member of the ABB Group Freisenbergstraße 2 D-58513 Lüdenscheid, Germany www.BUSCH-JAEGER.de Customer service: Tel.: +49 2351 956-1600 © Copyright 2024 Busch-Jaeger Elektro GmbH All rights reserved...
