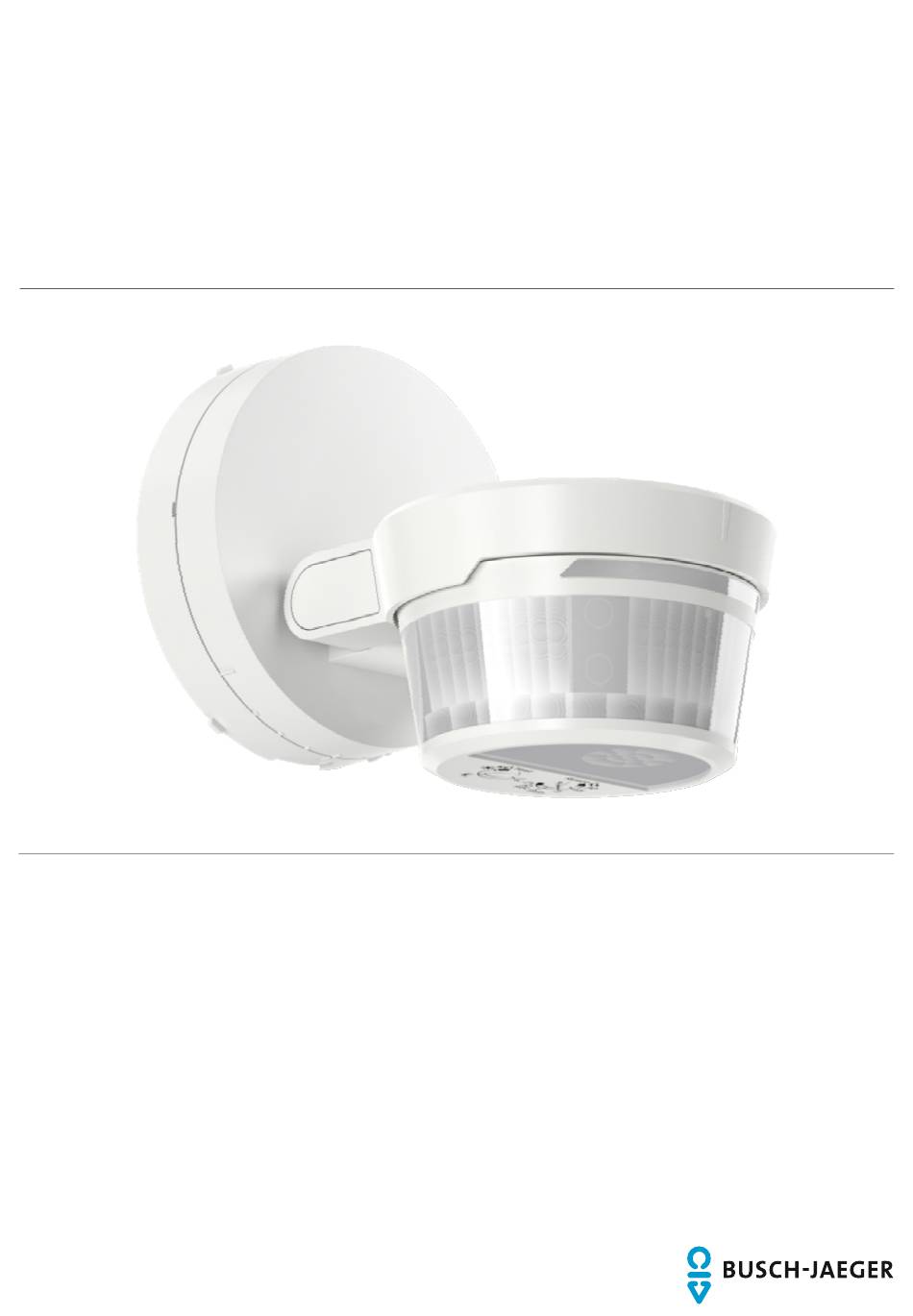

- Page 1 Product manual │ 12.08.2024 Busch-Watchdog ® 6251/28-xxx-WL ® Busch-Watchdog 280° WL Branding -- Release 2018-01-01...
-
Page 2: Table Of Contents
Table of contents Table of contents Information on the manual ..........................4 Safety ................................5 Information and symbols used ......................5 Intended use ............................6 Improper use ............................6 Target group / Qualifications of personnel ..................7 2.4.1 Operation ............................. 7 2.4.2 Installation, commissioning and maintenance ................ - Page 3 Table of contents Update ................................. 33 Maintenance ..............................34 11.1 Cleaning ............................34 Declaration of conformity ..........................35 Notes ................................36 Index ................................37 Product manual 2CKA000073B5794 │3...
-
Page 4: Information On The Manual
If you pass the device on, also pass on this manual along with it. Busch-Jaeger accepts no liability for any failure to observe the instructions in this manual. If you require additional information or have questions about the device, please contact Busch- Jaeger or visit our Internet site at: https://www.busch-jaeger.at/systeme/busch-freehome... -
Page 5: Safety
However, residual hazards remain. Read and adhere to the safety instructions to prevent hazards of this kind. Busch-Jaeger accepts no liability for any failure to observe the safety instructions. Information and symbols used The following Instructions point to particular hazards involved in the use of the device or provide... -
Page 6: Intended Use
Each use not listed in Chapter 2.2 “Intended use“ on page 6 is deemed improper use and can lead to personal injury and damage to property. Busch-Jaeger is not liable for damages caused by use deemed contrary to the intended use of the device. The associated risk is borne exclusively by the user/operator. -
Page 7: Target Group / Qualifications Of Personnel
Safety Target group / Qualifications of personnel 2.4.1 Operation No special qualifications are needed to operate the device. 2.4.2 Installation, commissioning and maintenance Installation, commissioning and maintenance of the device must only be carried out by trained and properly qualified electrical installers. The electrical installer must have read and understood the manual and follow the instructions provided. -
Page 8: Information On Protection Of The Environment
Information on protection of the environment Information on protection of the environment Environment Consider the protection of the environment! Used electric and electronic devices must not be disposed of with domestic waste. – The device contains valuable raw materials which can be recycled. Therefore, dispose of the device at the appropriate collecting depot. -
Page 9: Setup And Function
Setup and function Setup and function Functions ® The Busch-Watchdog are passive infrared movement detectors. They switch connected loads via a timing element when sources of heat move within their detection range. The device can also be operated via a push-button. The Busch-Watchdog ®... -
Page 10: Scope Of Supply
The corner adapter 6851-EA/xxx is available (not included in the scope of delivery) for corner mounting. Notice Additional information about the optional accessories is available in the electronic catalogue (https://www.busch-jaeger.de/online-katalog/). Overview of types Article No. Colour 6251/28-131-WL... -
Page 11: Device Overview
Setup and function Device overview Fig. 1: Overview of devices [1] LED [2] Lens [3] Selector switch switch-off delay, short-time pulse / reset [4] Selector switch brightness limit value, activation test [5] Recess for dismantling safety Product manual 2CKA000073B5794 │11... -
Page 12: Technical Data
Technical data Technical data Designation Value Nominal voltage 230 V AC ± 10% 50/60 Hz Switching capacity 2300 W/VA Switching capacity LEDi 400 VA Maximum power loss 0.3 W Front lens 280° Horizontal detection 280° Twilight sensor Typ. 0.5 - 1000 / ∞ lux Switch-off delay 10 seconds - 30 minutes Pulse duration... -
Page 13: Dimensional Drawings
Technical data Dimensional drawings Fig. 2: Dimensions Fig. 3: Dimensions with design styling frame (optional) Notice All dimensions are in mm. Product manual 2CKA000073B5794 │13... -
Page 14: Detection Range
Technical data Detection range Fig. 4: Detection range Detection range The detection range is 280°. ■ The maximum transmission range is 16 m in radius. ■ The movement detector also has rear-field detection of one meter. ■ Wall mounting The movement detector offers optimum surveillance if mounted to the wall at a maximum ■... -
Page 15: Connection, Installation / Mounting
Planning instructions Notice Notes on planning and application are available in the system manual Busch- flexTronics ® . This can be downloaded at www.BUSCH-JAEGER.de. Note Planning and application instructions for the system are available in system manual for Busch-free@home ®... -
Page 16: Safety Instructions
Connection, installation / mounting Safety instructions Danger - Electric shock due to short-circuit! Risk of death due to electrical voltage of 100 to 240 V during short-circuit in the low-voltage line. – Low-voltage and 100 - 240 V lines must not be installed together in a flush- mounted box! –... -
Page 17: Circuit Diagrams
Connection, installation / mounting Circuit diagrams Standard connection Fig. 5: Standard connection Standard connection with break switch Fig. 6: Standard connection with break switch After the break switch is actuated, the connected load is switched on for the duration of the switch-off delay. - Page 18 Connection, installation / mounting Terminal assignment [⏚] Green/yellow [L] Brown [N] Blue [↓] Grey The skinning length amounts to 11 mm. Fig. 8: Skinning length Attention! Protection of the skinned lengths – Do not remove the wire end sleeves on the device cables. Danger - Electric shock due to short-circuit! Risk of death due to electrical voltage of 100 to 240 V during short-circuit in the low-voltage line.
-
Page 19: Mounting
Connection, installation / mounting Mounting Danger - Electric voltage! Risk of death and fire due to electric voltage of 100 to 240 V. – Work on the 100 - 240 V supply system may only be performed by authorised and qualified electricians. –... - Page 20 Connection, installation / mounting 4. Mount the base. – The bolting options [A] of the base are compatible with possibly available bores of older ® Busch-Watchdog – Do not use countersunk head screws for mounting the base. – Use screws with a head diameter of 6.5 mm - 8.5 mm. Fig.
- Page 21 Connection, installation / mounting 7. Attach the cover so that the markings are above each other. Fig. 15: Aligning markings 8. Turn the cover clockwise until it latches with an audible click. Mounting the design styling frame (optional) Notice The Busch-Watchdog ®...
-
Page 22: Mounting Method
Connection, installation / mounting Mounting the corner adapter (optional) Fig. 18: Mounting the corner adapter (optional) Notice The corner adapter 6851/EA-xxx is available (not included in the scope of delivery) for corner mounting. Mounting method There are different types of mounting methods for the movement detector. The mounting hole is compatible with all previously available models. - Page 23 Connection, installation / mounting Wall mounting in hillside location Wall mounting in hillside location, for example, is recommended on a building situated on a hill or with a gradient. This allows the detection ranged to be used effectively. Fig. 21: Wall mounting in hillside location Ceiling mounting Fig.
-
Page 24: Installation Site
Connection, installation / mounting Installation site Ceiling mounting in narrow rooms is not recommended. ■ The recommended mounting height of the device is 2.5 m. ■ The distance of the movement detector to light and heat sources should be at least 1.5 m. ■... -
Page 25: Commissioning
Commissioning Commissioning Reducing the detection range The reduction of the detection range can be made both by means of specific gluing on of the supplied foil and also via the app. ® The detection range of the Busch-Watchdog amounts to 280°. The detection range can be limited in case of special local circumstances. -
Page 26: Adjusting To The Hillside Location
Commissioning Adjusting to the hillside location To adjust the detection range to the hillside location, proceed as follows: 1. Adjust the level of the detection range by turning the top part of the device on the base. Fig. 28: Adjusting the detection range to the hillside location Activation test The activation test serves for checking the detection range by means of pacing off. - Page 27 Commissioning Ending the activation test The device ends the "Activation test" function under the following prerequisites: Automatically 10 minutes after the start of the activation test when the selector switch is set ■ on a desired brightness value. Manually ending the activation test: ■...
-
Page 28: Operation
Operation Operation The devices respond to moving body heat and switch on the lights. They have been pre- programmed accordingly. Action by the user is not necessary. Operating modes at local operation Standard operation Lighting during advancing twilight remains switched on for 3 minutes after the last detection. Selector switch Fig. -
Page 29: Operating Modes At Operation Via The App
Operation Operating modes at operation via the app Notice Detailed information on the setting options and the operation via Busch- ® ® free@home Next App is available in the app manual for Busch-Watchdog PRO movement detectors. LED status display Fig. 33: Position of LED [1] LED Display... -
Page 30: Reset (Resetting The Device)
Operation RESET (Resetting the device) There are two options to reset the device to the point of delivery: – Master reset via selector switch directly on the device – Master reset via app Notice ® Local operation can be blocked via the Busch-free@home Next App. - Page 31 Operation Fig. 34: Reset selector switch Notice When the switch-off delay selector switch is left in the "Reset" setting and is not turned back, the device deactivates after approx. 5 s and does not perform a master reset. Master reset via app Notice Detailed information on the setting options and the operation via Busch- ®...
-
Page 32: Integration In Busch-Free@Home
Integration in Busch-free@home® Integration in Busch-free@home ® Notice General information about commissioning and parameterization is available in the Busch-free@home ® system manual. It is assumed that the basic commissioning steps of the overall system have already been carried out. Knowledge about the basic functions of the commissioning software of the System Access Point is assumed. -
Page 33: Update
Update Update A firmware update of the device is possible. The firmware update takes place via the app "Busch-free@home ® Next App" ■ If the device is integrated in a Busch-free@home ® system, the firmware update can also ■ take place alternatively via the System Access Point. Product manual 2CKA000073B5794 │33... -
Page 34: Maintenance
Maintenance Maintenance Check the device from time to time for software updates to guarantee the stability and the compatibility of the system. In addition, the device is maintenance-free. In case of damage, e.g. during transport or storage, do not perform repairs. Once the device is opened, the warranty is void. Access to the device must be guaranteed for operation, testing, inspection, maintenance and repairs (according to DIN VDE 0100-520). -
Page 35: Declaration Of Conformity
Declaration of conformity Declaration of conformity Busch-Jaeger herewith declares, that radio system type 280° WL conforms to directive 2014/53/EU. The complete text of the EU declaration of conformity is available at the following Internet address: https://www.busch-jaeger.de/online-katalog/detail/2CKA006200A0861 ■ Product manual 2CKA000073B5794... -
Page 36: Notes
Notes Notes Product manual 2CKA000073B5794 │36... -
Page 37: Index
Index Index Activation test ..............26 Notes ..................36 Circuit diagrams ............. 17, 20 Operating modes at local operation ........28 Cleaning ................34 Operating modes at operation via the app ......29 Commissioning ..............25 Operation .................7, 28 Connection, installation / mounting ........15 Overview of types ..............10 Detection range .............. - Page 38 Busch-Jaeger Elektro GmbH A member of the ABB Group Freisenbergstraße 2 D-58513 Lüdenscheid, Germany www.BUSCH-JAEGER.de Customer service: Tel.: +49 2351 956-1600 © Copyright 2024 Busch-Jaeger Elektro GmbH All rights reserved...
