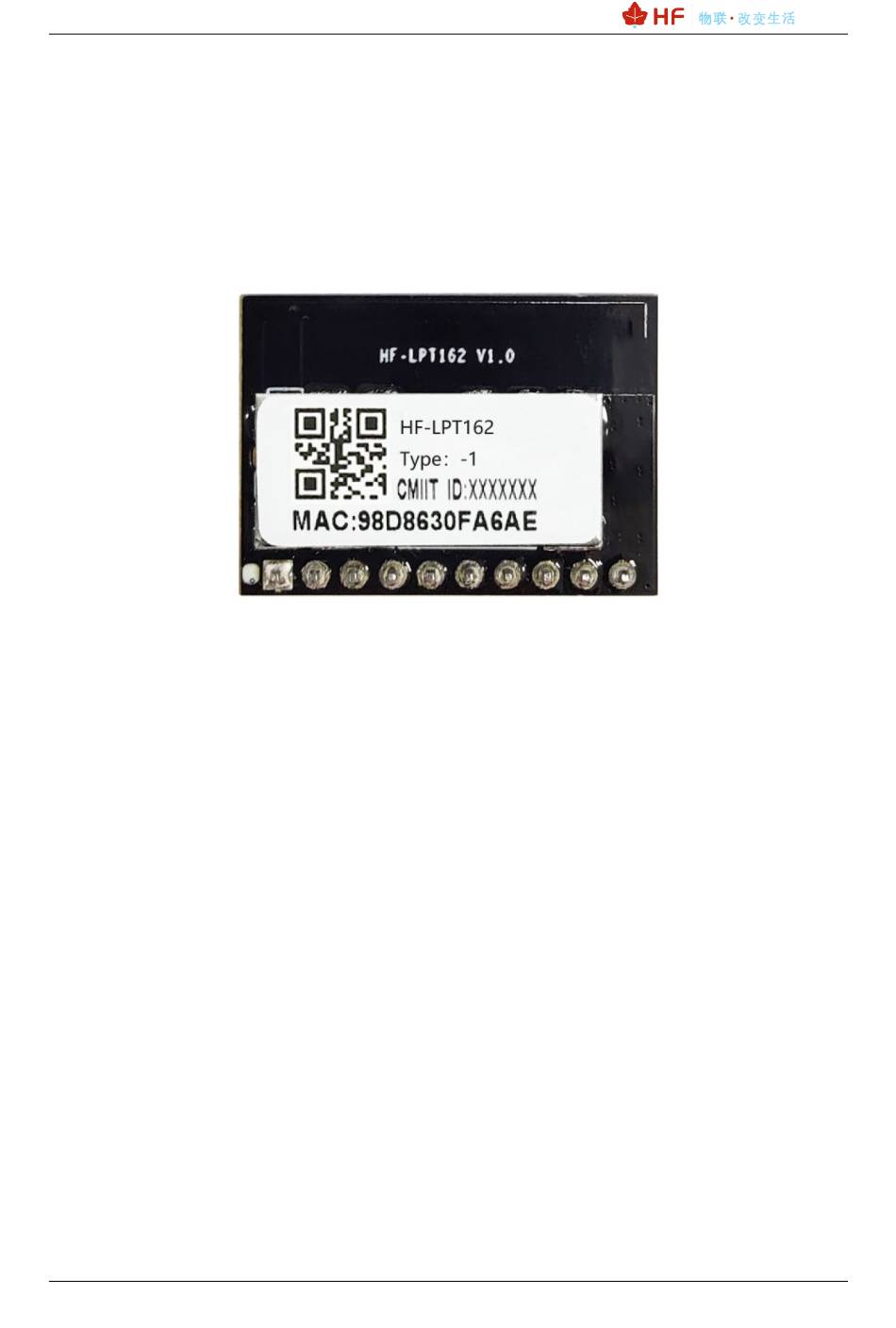

HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual
Low Power 2.4GWi-Fi6 + BLE Module
Overview of Characteristic
Support 2.4G Wi-Fi6 IEEE802.11b/g/n/ax, BLE5.4 Wireless Standards
Based on Andes RISC SOC, 240MHz CPU, 606KB RAM, 4MB Flash
Support UART Data Communication with Wi-Fi or BLE
Support Wi-Fi STA/AP/AP+STA Mode
Support BLE SmartBLELink Config
Support Wi-Fi AP SmartAPLink
Support Wireless and Remote Firmware Upgrade Function
Support Software SDK for Develop
Support Different Antenna Option
-1: Internal PCB
◼
◼
-0: External IPEX Antenna
Single +3.3V Power Supply
Size:
◼
HF-LPT162: 22±0.3mm x 15.6±0.3mm x 8±0.5mm，DIP10 package
上海汉枫电子科技有限公司
HF-LPT162
User Manual V1.01
www.hi-flying.com
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the HF-LPT162 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HF HF-LPT162

Summary of Contents for HF HF-LPT162

  • Page 1 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual V1.01 Overview of Characteristic  Support 2.4G Wi-Fi6 IEEE802.11b/g/n/ax, BLE5.4 Wireless Standards  Based on Andes RISC SOC, 240MHz CPU, 606KB RAM, 4MB Flash Support UART Data Communication with Wi-Fi or BLE ...
  • Page 2 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual TABLE OF CONTENTS LIST OF FIGURES ..............................3 LIST OF TABLES ..............................3 HISTORY.................................. 3 PRODUCT OVERVIEW ..........................4 1.1. General Description ..........................4 1.1.1 Key Application ..........................4 1.1.2 Device Paremeters ........................... 4 1.2.
  • Page 3 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual LIST OF FIGURES Figure 1. SOC Chip system ..........................4 Figure 2. HF-LPT162-1 Appearance ........................6 Figure 3. HF-LPT162-0 Appearance ........................6 Figure 4. HF-LPT162 Pins Map ........................... 7 Figure 5.
  • Page 4 1. PRODUCT OVERVIEW 1.1. General Description The HF-LPT162 module is a fully self-contained small form-factor, single stream, 802.11b/g/n Wi- Fi + BLE module, which provide a wireless interface to any equipment with a Serial interface for data transfer. This module integrate MAC, baseband processor, RF transceiver with power amplifier in hardware and all Wi-Fi protocol and configuration functionality and networking stack, in embedded firmware to make a fully self-contained 802.11b/g/n Wi-Fi, BLE solution for a variety of applications.
  • Page 5 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual 802.11b: +17dBm ± 1.5dBm (@11Mbps) 802.11g: +16dBm ± 1.5dBm (@54Mbps) Transmit Power 802.11n: +15dBm ± 1.5dBm (@HT20, MCS7) 802.11n: +15dBm ± 1.5dBm (@HT40, MCS7) 802.11ax: +14dBm ± 1.5dBm (@HT20, MCS7) 802.11b: -99dBm (@1Mbps) 802.11b: -96dBm (@2Mbps)
  • Page 6 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual Update Firmware Local Wireless, Remote OTA Customization Support SDK for application develop Network Protocol IPv4, TCP/UDP/HTTP/TLS 1.2 AT+instruction set. User Configuration SmartBLELink BLE Config SmartAPLink AP Config 1.2. Hardware Introduction HF-LPT162 Wi-Fi module appearance is as following.
  • Page 7 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual 1.2.1. HF-LPT162 Pins Definition Figure 4. HF-LPT162 Pins Map Table2. HF-LPT162 Pins Definition Pin Describtion Net Name Signal Comments Type Ground Power 2 +3.3V Power Power 3 Multi-Function nReload I,PU Detailed functions see <Notes>...
  • Page 8 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual Pin Describtion Net Name Signal Comments Type DEBUG_UART0_RX 3.3V TTL UART Debug Input Module Boot nReady “0” – Boot-up OK; Up Indicator “1” – Boot-up Fail; UART2_TXD/PWM0/ADC1/SPI_CS1 GPIO08 10 Wi-Fi Status nLink “0”...
  • Page 9 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual nReady Pin (LED) function(Low effective): OS initial finished indicator. Only after this pin output low, can the UART function be used. nLink Pin (LED) function(Low effective): At wireless firmware and config upgrade mode , this LED used to indicate configure and upgrade status.
  • Page 10 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual 1.2.3. HF-LPT162 Mechanical Size HF-LPT162 modules physical size （Unit: mm） as follows: Figure 5. HF-LPT162 Mechanical Dimension - 10 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 11 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual 1.2.4. On-board Chip Antenna HF modules support internal on-board chip antenna option. When customer select internal antenna, you shall comply with following antenna design rules and module location suggestions: ➢ For customer PCB, module antenna area can’t put componet or paste GND net;(See the following red arrow area) ➢...
  • Page 12 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual Notes: User need download USB to UART port driver from High-Flying web or contact with technical support people for more detail. The external interface description for evaluation kit as follows: Table5.
  • Page 13 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual 1.2.7. Hardware Typical Application Figure 9. HF-LPT162 Hardware Typical Application Notes: nReset- Module hardware reset signal. Input. Logics “0” effective. There is pull-up resister internal and no external pull-up required. If need reset, set low at least 10ms abd then set high.
  • Page 14 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual - 14 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 15 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual 2. SMT INFORMATION 2.1. Recommended Reflow Profile Figure 10. Reflow Soldering Profile 2.2. Device Handling Instruction (Module IC SMT Preparation) Shelf life in sealed bag: 12 months, at <30℃ and <60% relative humidity (RH) After bag is opened, devices that will be re-baked required after last baked with window time 168 hours.
  • Page 16 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual Case 2: Wifi module mounted on bottom side, follow normal bake rule before process Note: Window time means from last bake end to next reflow start that has 168 hours space.
  • Page 17 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual APPENDIX A: HW REFERENCE DESIGN Refer to EVK. - 17 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 18 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual APPENDIX B:REFERENCES B.1．High-Flying Mass Production Tool Download Address: http://www.hi-flying.com/download-center-1/applications-1/download-item- production-tool B.2．SmartBleLink Download Address: http://www.hi-flying.com/download-center-1/applications-1/download-item- smartblelink http://ftp.hi-flying.com:9000/3_Tools/APP/ B.3．SmartAPLink Download Address: http://www.hi-flying.com/download-center-1/applications-1/download-item- smartaplink http://ftp.hi-flying.com:9000/3_Tools/APP/ - 18 - Shanghai High-Flying Electronics Technology Co., Ltd(www.hi-flying.com)
  • Page 19 HF-LPT162 Low Power 2.4GWi-Fi6 + BLE Module User Manual APPENDIX C: CONTACT INFORMATION For more information about High-Flying modules, applications, and solutions, please visit our web site http://www.hi-flying.com <END OF DOCUMENT> © Copyright High-Flying, May, 2011 The information disclosed herein is proprietary to High-Flying and is not to be used by or disclosed to unauthorized persons without the written consent of High-Flying.
