HF2211S_EW1X_PW1X

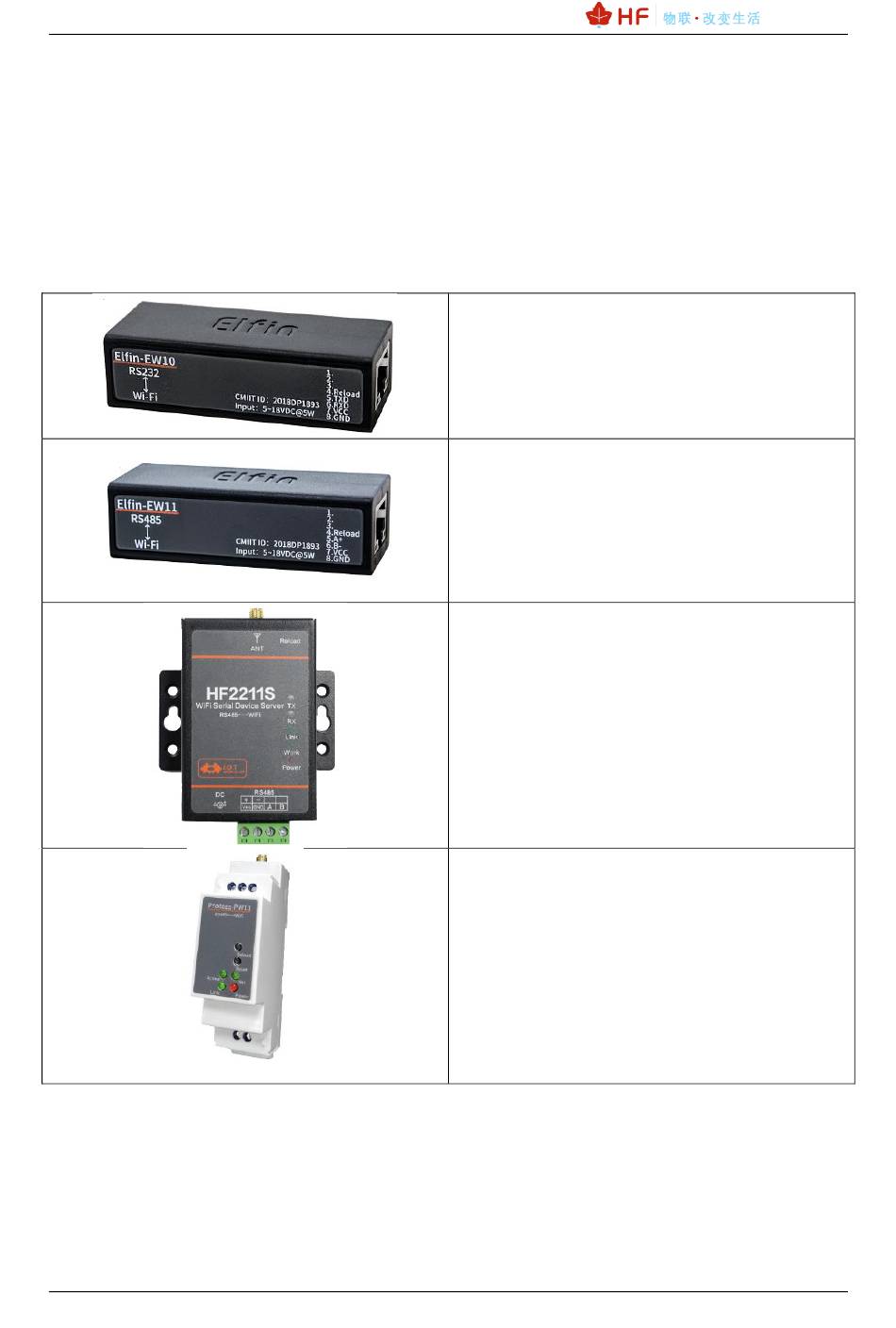

This document applies to the following series of products, please refer
to the user manual for product hardware description.
http://www.hi-flying.com/
Operation Guide
HF2211S_EW1X_PW1X
Operation Guide

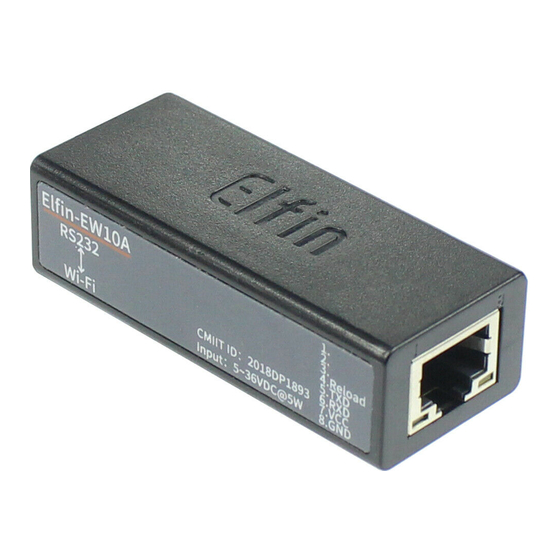

Elfin-EW10
Elfin-EW10-0
Elfin-EW11
Elfin-EW11-0
HF2211S
Protoss-PW11
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Elfin-EW10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HF Elfin-EW10

Summary of Contents for HF Elfin-EW10

  • Page 1 Operation Guide HF2211S_EW1X_PW1X HF2211S_EW1X_PW1X Operation Guide This document applies to the following series of products, please refer to the user manual for product hardware description. Elfin-EW10 Elfin-EW10-0 Elfin-EW11 Elfin-EW11-0 HF2211S Protoss-PW11 http://www.hi-flying.com/ - 1 -...

  • Page 2: Table Of Contents

    Operation Guide HF2211S_EW1X_PW1X INTRODUCTION ..........................3 -EW1X EVK ..........................3 1.1. LFIN ......................3 1.2. -EW10 4PIN C LFIN ONNECTOR ......................4 1.3. -EW11 4PIN C LFIN ONNECTOR ......................4 1.4. -EW10 8PIN C LFIN ONNECTOR ......................4 1.5. -EW11 8PIN C LFIN ONNECTOR ......................

  • Page 3: Introduction

    HF2211S_EW1X_PW1X 1. INTRODUCTION Elfin-EW1X, HF2211S, Protoss-PW1X products software function is the same (integrate our HF- LPT230 module, talk to our sales if need modules only), but with different hardware interface and size. Here has a brief description of these products’ hardware, and take EW for example of software introduction.

  • Page 4: Elfin-Ew11 4Pin Connector

    Operation Guide HF2211S_EW1X_PW1X 1.3. Elfin-EW11 4PIN Connector 1.4. Elfin-EW10 8PIN Connector 1.5. Elfin-EW11 8PIN Connector 1.6. Elfin-EW10/EW11 RJ45 Cable The RJ45 cable can be done as following picture. http://www.hi-flying.com/ - 4 -...

  • Page 5: Ew10 Interface Conversion Cable

    Operation Guide HF2211S_EW1X_PW1X 1.7. EW10 Interface Conversion Cable http://www.hi-flying.com/ - 5 -...

  • Page 6: Ew11 Interface Conversion Cable

    Operation Guide HF2211S_EW1X_PW1X 1.8. EW11 Interface Conversion Cable 1.9. HF2211S Hardware http://www.hi-flying.com/ - 6 -...

  • Page 7: Protoss-Pw11 Hardware

    Operation Guide HF2211S_EW1X_PW1X 1.10. Protoss-PW11 Hardware http://www.hi-flying.com/ - 7 -...

  • Page 8: Hardware Introduction

    2.2. Power Supply See products user manual. 2.3. Interface Connection Elfin-EW10 is RS232, 7V voltage, need to connect with Pin5(TX), Pin6(RX) and Pin8(GND). Elfin-EW11 is RS485, use Pin5(A+), Pin6(B-), GND also can be connected in some extreme condition. http://www.hi-flying.com/ - 8 -...

  • Page 9: Initial Setup

    Operation Guide HF2211S_EW1X_PW1X 3. INITIAL SETUP HF Products provide multiple methods to config, webpage and IOTService tools. Webpage is easy to use, but only for local setup and can not manage multiple device, recommend to use IOTService tools. 3.1. Webpage Set Power on product: ...
  • Page 10 Operation Guide HF2211S_EW1X_PW1X Brower input 10.10.100.254, input default user name and password with admin/admin to login in. The main page is as following. http://www.hi-flying.com/ - 10 -...
  • Page 11 Operation Guide HF2211S_EW1X_PW1X Default UART parameters is as following. Default socket parameters is as following. Products by default works as AP mode, if need to set it connect to router, set it to STA or AP+STA working mode as following. Select the scanned list and input the router password. Note: setting is valid after reboot.
  • Page 12 Operation Guide HF2211S_EW1X_PW1X If need static IP in STA mode, set DHCP to off and input static IP. Note: setting is valid after reboot. If upgrade firmware at the following position. http://www.hi-flying.com/ - 12 -...

  • Page 13: Iotservice Set

    Operation Guide HF2211S_EW1X_PW1X There is another internal webpage for upgrade the firmware and webpage (external config webpage as above, this source code is open at our website for customer to chagne). Login with IP/hide. Webpage source file: http://www.hi-flying.com/download-center-1/application-notes-1/download-item-iot-device- webpage-source-code 3.2. IOTService Set IOTService is simple to manage the products, config and even communicate with it.
  • Page 14 Operation Guide HF2211S_EW1X_PW1X Double click the product list to see the device status. Click Edit to change product setting. Note: some setting need reboot to be valid. Better do restart operation after setting. Set to STA or AP+STA mode to make products connects to router, and may also set static IP. http://www.hi-flying.com/ - 14 -...
  • Page 15 Operation Guide HF2211S_EW1X_PW1X http://www.hi-flying.com/ - 15 -...

  • Page 16: Serial Port Settings

    Operation Guide HF2211S_EW1X_PW1X 4. SERIAL PORT SETTINGS 4.1. Serial Port Tool SecureCRT Open SecureCRT find an executable program, click Open. Click the Quick Connect button to create a connection. 4.2. Setting Serial Port Parameters Protocol：Serial Port: The port that the computer is actually connected to (see "My Computer"-> "Device Manager"-> "Ports (COM and LPT)", as shown in the figure.
  • Page 17 Operation Guide HF2211S_EW1X_PW1X Serial port mode. ⚫ Set the parameters of the SecureCRT serial port software according to the above. Add "+++" button command to the button bar. Click the button to send the corresponding data. When the interface displays "EPORT>", you have entered the CLI command mode.
  • Page 18 Operation Guide HF2211S_EW1X_PW1X Step 1: Enter the IP address of the device (the IP address can be obtained by searching through the IOTService tool, which will be detailed later), port 23. Step 2: The default login name and password are both admin, then "EPORT>" is displayed, and you have logged in to the Cli command mode.

  • Page 19: Test Example

    Operation Guide HF2211S_EW1X_PW1X 5. TEST EXAMPLE Elfin-EW1X use TCP/IP protocol for communication. There is two main parameters one for IP address and another for port number. 5.1. AP Wireless Networking Product works in AP mode. All other STA devices connect to product AP. (Product AP does not support route function, so the STA can not transfer data to each other) The structure is t shown as below: Step 1：The product default AP SSID is “EW1X_+MAC(last 4 characters)”.

  • Page 20: Tcp Server Test In Ap Mode

    Operation Guide HF2211S_EW1X_PW1X Step 3：Open IOTService and find the device. The device will allocate IP address to the STA connected. STA device IP address will be like 10.10.100.XXX. 5.2. TCP Server Test in AP Mode Step 1：Open TCP&UDP test tool and generate TCP connection as following steps. Device has already created a TCP Server (port 8899) for use.
  • Page 21 Operation Guide HF2211S_EW1X_PW1X http://www.hi-flying.com/ - 21 -...
  • Page 22 Operation Guide HF2211S_EW1X_PW1X Step 2：Click Connection to generate TCP connection ◼ After successful connection, the left turns to be green arrow, yellow if fails. Step 3：Open serial tool according to following parameters (115200 baud rates as default) Step 4：Data transmission between TCP and UART is as following. http://www.hi-flying.com/ - 22 -...
  • Page 23 Operation Guide HF2211S_EW1X_PW1X Step 4：Data count in following status. http://www.hi-flying.com/ - 23 -...

  • Page 24: Sta Wireless Networking

    Operation Guide HF2211S_EW1X_PW1X 5.3. STA Wireless Networking Elfin-EW1X is AP mode by default. If need to work in STA mode connecting to router. There are following ways. Recommend to set to STA mode only ,if AP is not used in mass application ,for test stage, may set to APSTA for convenience PC Wi-Fi connect to product AP, open IOTService tools to config.
  • Page 25 Operation Guide HF2211S_EW1X_PW1X Reboot after setting. PC also connect to the same router, and it will find the device with products STA WAN IP. http://www.hi-flying.com/ - 25 -...
  • Page 26 Operation Guide HF2211S_EW1X_PW1X PC Wi-Fi connect to product AP, login with 10.10.100.254, user and password input ⚫ admin/admin, open its webpage to config. After reboot, PC connect to router, and login with the product static IP to confirm connection. If any problem, reconfig the product with its AP. SmartLinkV8 APP to config, smart phone connect to Router.

  • Page 27: Tcp Server Test In Sta Mode

    Operation Guide HF2211S_EW1X_PW1X the product works in STA mode and connect to router. Note: This method is very easy to config, but may encounter failure sometimes. Do as following to try again. Check if phone connect to 2.4G router SSID. ➢...
  • Page 28 Operation Guide HF2211S_EW1X_PW1X Click Connect to create TCP connection After successful connection, the left turns to be green arrow. ➢ Open serial tool according to following parameters (115200 baud rate as default) http://www.hi-flying.com/ - 28 -...

  • Page 29: Sta Tcp Client Test

    5.5. STA TCP Client Test Products support 3 channel sockets, default netp socket works as TCP Server, here create another socket working as TCP client. HF test server: test.server.iotworkshop.com TCP Port: 40432 UDP Port: 40431 Our test server will send back the received data.
  • Page 30 Operation Guide HF2211S_EW1X_PW1X It shows connected. UART received “333333333333” and send to server, the server sent back the packet, so the UART tools shows the received data. http://www.hi-flying.com/ - 30 -...

  • Page 31: Sta Http Client Test

    Operation Guide HF2211S_EW1X_PW1X 5.6. STA HTTP Client Test HTTP data flow is as following. HTTP GET Test: ⚫ Test server address: 115.29.164.59 Test server port: 8432 Path: /iot Header: http://www.hi-flying.com/ - 31 -...
  • Page 32 Operation Guide HF2211S_EW1X_PW1X Host:115.29.164.59:8432 Connection: keep-alive Products setting as following. Server response back and products UART output packet. It filter the HTTP response header and only output the header. Data flow is as following. http://www.hi-flying.com/ - 32 -...
  • Page 33 Operation Guide HF2211S_EW1X_PW1X HTTP POST Test: ⚫ Test server address: 115.29.164.59 Test server port: 8432 Path: /iot Header: Host:115.29.164.59:8432 Connection: keep-alive Products setting as following. Server response back and products UART output packet. It filter the HTTP response header and only output the header.

  • Page 34: Sta Mqtt Client Test

    Operation Guide HF2211S_EW1X_PW1X Data flow is as following. 5.7. STA MQTT Client Test Test server address: 112.124.43.15 Test server port: 1883 Device setting is as following. http://www.hi-flying.com/ - 34 -...
  • Page 35 Operation Guide HF2211S_EW1X_PW1X Use MQTT.fx tools to test, set publish topic to the device Subscribe Topic and the publish data will be sent to device UART. Set tools subscribe topic to the device publish topic and the send UART data, the MQTT.fx tools got the packet.

  • Page 36: Firmware Upgrade

    Operation Guide HF2211S_EW1X_PW1X 5.8. Firmware Upgrade Firmware download address: http://www.hi-flying.com/index.php?route=download/category&path=1_3 Webpage Local Upgrade: ⚫ PC connect to device ,login with device IP(10.10.100.254 or STA IP got from router) There is another internal webpage for upgrade the firmware and webpage (external config webpage as above, this source code is open at our website for customer to chagne).

  • Page 37: Restore To Factory Setting

    Operation Guide HF2211S_EW1X_PW1X 5.9. Restore to Factory Setting If device works in STA mode and not yet connect to router AP, do the following operation to recover and reconfig. UART Cli command to reload ⚫ nReload button to restore to factory setting. ⚫...

  • Page 38: Appendix A:references

    Operation Guide HF2211S_EW1X_PW1X APPENDIX A:REFERENCES A.1．Test Tools IOTService Configure Software: http://www.hi-flying.com/index.php?route=download/category&path=1_4 A.2．Smartlink V8 http://www.hi-flying.com/download-center-1/applications-1/download-item-smartlink-v8 http://www.hi-flying.com/ - 38 -...
