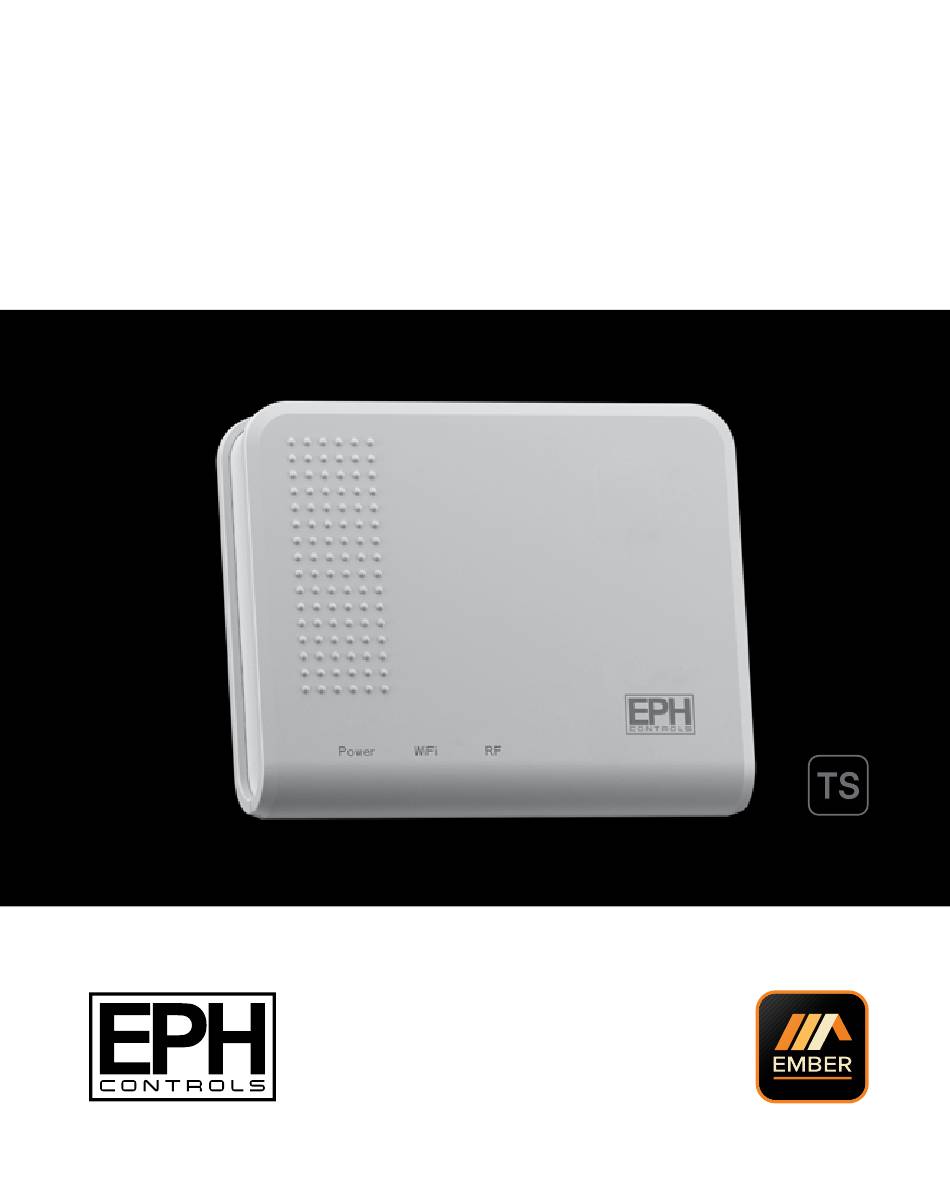

- Page 1 GW03 GATEWAY Dual Band 2.4/5GHz INSTRUCTIONS...
- Page 2 Welcome Thank you for choosing EMBER Smart Heating by EPH Controls. We hope you enjoy using it as much as we did developing it! Controlling your heating anywhere, anytime is only a few simple steps away. In this booklet, we will provide a step by step guide to setting up the EMBER Smart Heating Control app and its associated hardware.
- Page 3 Index Page 4 Getting started (WiFi requirements / Device software etc) Page 5 LCD / LED / Button legend Page 6 Pairing your receiver to your gateway Page 7 Making your RF1A-OT receiver a hub receiver Page 8 System architecture Page 9 Download the EMBER App Page 10...
- Page 4 Getting started WiFi Requirement Device Operating System The SSID of your Wi-Fi should not 1) Apple iOS 9 or later. be hidden when you are pairing the 2) Android OS 5.1 Lollipop or later. gateway to your router. Positioning of the gateway The gateway can only support 2.4GHz and 5GHz wireless routers.
- Page 5 LCD / LED / Button legend Power Reset Function WiFi Connect Supply Figure 1: The gateway Reset Function WiFi Connection button button button Status Red LED on Gateway has power Green LED on Gateway connected to WiFi White LED on Gateway connected to receiver Buttons to be used Reset...
- Page 6 Pairing your receiver to your gateway Complete this step below to pair your receiver to your GW03 Gateway Please note: If you are installing a CP4 or CP4-HW-OT, the thermostat and the receiver will have a pre-established RF connection so it is not necessary to carry out Step 1 in the RF connection process below.
- Page 7 Making your RF1A-OT receiver into a Hub Receiver. 1. Press the Reset button on the receiver that you wish to make the Hub Receiver - Red and Green lights will both be solid on. 2. Immediately press and hold simultaneously for 5 Connect seconds, until the Red light starts blinking.
- Page 8 System architecture To optimise battery life, the end to end communication can take up to 3 minutes. Example A Single Zone System RFRP-OT Thermostat RF1A-OT Receiver GW03 Gateway EMBER App Cloud RFRP-OT Thermostat RF1A-OT Receiver GW03 Gateway EMBER App Cloud Example B Multi Zone System RFRP-HW-OT Thermostat...
- Page 9 Download the EMBER App 1. Go to the Apple App Store on your iPhone or the Google Play Store on your Android device and download the EMBER Smart Heating Control App. QR codes to the download links are available on the back cover.
- Page 10 Set up the EMBER App 2. Once the App has been installed, open it. 3. Select ‘Create an account’ to Sign up with your email address.
- Page 11 Set up the EMBER App (Continued) 4. Enter your email address. 5. Confirm your email address. 6. Accept the Terms & Conditions.
- Page 12 Set up the EMBER App (Continued) 7. A confirmation email will arrive in your inbox from EMBER. This can take up to 2 minutes. If you do not receive the email, please search your Junk / Spam email folder. Note: If you are using a company email address the registration may be blocked by your company email policy.
- Page 13 9. Return to the EMBER App and enter your 6 digit code.
- Page 14 Set up the EMBER App (Continued) 10. Enter your First name. 11. Enter your Last name. 12. Enter your Password. (Minimum 6 characters - including lowercase, uppercase and number). 13. Confirm your Password. 14. Enter your Phone Number. (Optional)
- Page 15 15. You will be returned to the sign in screen where you can enter your email address and password. 16. Press ‘Sign in’ .
- Page 16 Set up the EMBER App (Continued) 17. Choose ‘Allow’ so the EMBER App can send you notifications.
- Page 17 Initial Setup 1. Press ‘WiFi Setup’ and you will be directed to the WiFi Setup screen. If the WiFi light on the gateway is solid green you can go directly to the Gateway Code option. If you have an invite code, press ‘Invite Code’...
- Page 18 Initial Setup (Continued) 2. If you are an installer select the ‘Installer’ option. If you are the home owner select the ‘Home owner’ option. Note: If you select “Installer” you will set the system up as normal, you can then invite the Homeowner. When the homeowner uses the invite code you will be removed from the system and they will take over.
- Page 19 3. On the ‘Your System’ screen, you must choose the ‘TS’ (Thermostat System) option. GW03 will not operate with the ‘PS’ (Programmer System).
- Page 20 Initial Setup (Continued) 4. Select GW03 Dual Band.
- Page 21 Pairing your gateway to your 2.4/5GHz Wireless Internet (Android Note: 1. Ensure your mobile device is It is recommended to allow connected to the same WiFi location permission on network that the gateway devices running Android 9 or will be connected to. This will above.
- Page 22 Pairing your gateway to your 2.4/5GHz Wireless Internet (Android (Continued) 2. Enter the WiFi password. On the GW03 gateway: Hold the WiFi connect button for 5 seconds. The green light will begin to flash. On your mobile device: Immediately press ‘Continue’ . When the gateway is successfully connected the light will be solid green and...
- Page 23 5. If pairing is unsuccessful, please repeat steps 3 and 4. 6. The Gateway now needs to be paired with your EMBER App. 7. Enter the gateway code located on the gateway housing. The gateway code will normally pre-populate on the gateway code screen.
- Page 24 Pairing your gateway to your 2.4/5GHz Wireless Internet ( Note: Note: After entering the WiFi It is recommended to allow password in Step 2, do not location permission on press the continue button. devices running iOS 13 Complete step 3 and then or above.
- Page 25 Hotspot Connection Please select the WiFi with name: EPH-TS_xxxx, and click Connect.
- Page 26 Pairing your gateway to your 2.4/5GHz Wireless Internet ( (Continued) 6. Press “OK”. You will be EMBER redirected to your iOS WiFi EMBER Click to return to APP, Click Continue Button settings page. Go To WiFi settings. Wi-Fi An EPH-TS_Hotspot will EPH-TS_11x2222x333x appear.
- Page 27 7. Press Continue on the EMBER App. 8. When the gateway is successfully connected the light will be solid green and the EMBER App will bring you to the Gateway Code screen. Synchronising can take up to 3 minutes. 9. If pairing is unsuccessful, please repeat steps 3-8.
- Page 28 Home Setup Home Setup appears on the Screen. 1. Enter the Home name. 2. Enter the Zone names. (It is not possible to rename a Hot Water zone.) 3. Press ‘Save’ to continue. Note: It is recommended to use unique zone names if you are planning to use a third party voice control or smart speaker system.
- Page 29 4. Enter the postcode or your address to set the location of your home. 5. Press ‘Save’ .
- Page 30 Home Setup (Continued) 6. The Invite Users screen will appear. 7. To allow additional users access to the EMBER home, enter their name and email address here. Press ‘Invite’ .
- Page 31 8. A summary confirming the changes that you have made is displayed. 9. Press ‘Tutorial’ to view the tutorials. 10. Press ‘Skip’ to complete Home Setup. Note: You can access the tutorials from the setting menu burger menu in the EMBER App.
- Page 32 Home Setup (Continued) 11. The Home screen will appear. If you have multiple zones, you will see a zone list with the relevant number of zones. Note: You can boost or change the mode of multiple zones on the zone overview screen by pressing mode or boost at the bottom of the screen.
- Page 33 12. Select one of the zones on the Home screen to access zone control.
- Page 34 Zone control diagram Home name Location & Weather Current zone Target name temperature Temperature Temperature adjustment adjustment ‘Up’ ‘Down’ Current temperature Tap here for schedule Current mode Press and hold for quick ‘Zone On’ boost indicated with orange glow Zone Index Operating mode Boost function...
- Page 35 Notes...
- Page 36 O cial Site EPH Controls IE EPH Controls UK 021 471 8440 01933 322 072 Cork, T12 W665 Harrow, HA1 1BD technical@ephcontrols.com technical@ephcontrols.co.uk www.ephcontrols.com www.ephcontrols.co.uk...
