WWW.EPHCONTROLS.COM/EMBER
GATEWAY INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMBER and is the answer not in the manual?

Questions and answers

Related Manuals for EPH Controls EMBER

Summary of Contents for EPH Controls EMBER

  • Page 1 WWW.EPHCONTROLS.COM/EMBER GATEWAY INSTRUCTIONS...
  • Page 2 Welcome Thank you for choosing EMBER by EPH Controls. We hope you enjoy using it as much as we did developing it! Controlling your heating anywhere, anytime is only a few simple steps away. In this booklet, we will provide a step by step guide to setting up the EMBER heating control app and its associated hardware.
  • Page 3 LCD / Button legend Page 6 Pairing programmer to your gateway Page 7 Pairing thermostats to your programmer Page 8 Downloading your EMBER App Page 13 Pairing the gateway to your wireless internet Page 16 Home setup Page 18 Home screen diagram...

  • Page 4: Getting Started

    1 Getting Started WiFi Requirement Device Operating System The SSID of your Wi-Fi should not 1) Minimum IOS is 8. be hidden when you are pairing the 2) Minimum Android OS is 4.2. gateway to your router. (Jellybean) Please install the gateway in a place with a good Wi-Fi signal.

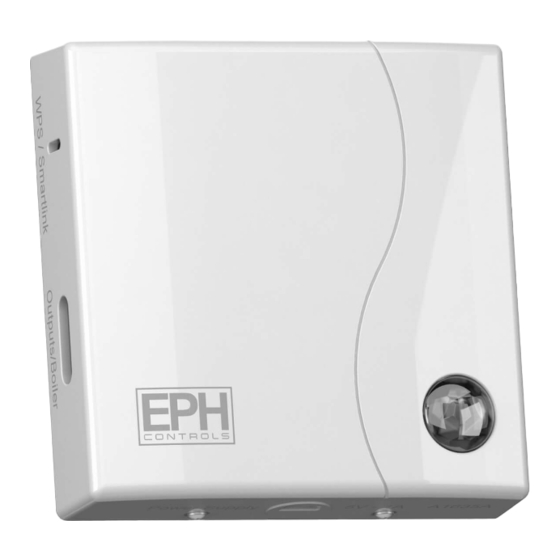

  • Page 5 LCD / Button Legend WPS / Smartlink button Function button Figure (5-a): The gateway Buttons to be used during gateway installation Figure (5-b): The RF programmer...
  • Page 6 Pairing programmer to your gateway 1. Reset your router by switching it off and on. 2. On the Programmer, press button for 5 seconds. 3. ‘Wireless Connect’ will appear on the screen. Figure (6-a) Figure (6-a): ‘Wireless Connection’ screen 4. Press the button for 3 seconds.
  • Page 7 Pairing thermostats to your programmer 1. Lower the cover on the front of the RF programmer. Move the selector switch to the ‘RUN’ position. CLOCK PROG 2. On the RF programmer, press the button for 5 seconds. Wireless Connect will appear on the screen. Figure (7-a) Figure (7-a) ‘Wireless Connection’...
  • Page 8 Google Play open it. Store on your Android device and 3. Select to Sign up with your email download the EPH Ember App. address. QR codes to the download links are available on the back cover.
  • Page 9 4. Enter your Name. 9. Enter your telephone number. (optional) 5. Enter your Surname. 10. Press Sign up. 6. Enter your Email address. 7. Enter your Password (Minimum 6 characters – including lowercase, uppercase and number) 8. Confirm your Password.
  • Page 10 Downloading your EMBER App (Continued) 11. Wait for a confirmation email 13. You will be directed to the EMBER from EMBER. (This could take 1 – app. Select ‘Open’ in Ember. If 2 minutes) you are not automatically directed to the app, manually open it and 12.
  • Page 11 14. When the app opens, enter your 16. Press ‘OK’ to allow EMBER to email address and password. send you notifications. 15. Press ‘Login’.
  • Page 12 Downloading your EMBER App (Continued) 17. Ember opens in tutorial mode. Swipe left and right to view tutorial screens or press ‘X’ on top right of screen to continue the setup process.
  • Page 13 Pairing the gateway to your wireless internet ON YOUR MOBILE DEVICE Press ‘GO’ on ‘WiFi SETUP’ and you will be directed to the WiFi Setup page. If you have been given an invite code, Press ‘GO’ on the ‘INVITE CODE’ section, you may then enter the code to access the home you have been invited to.
  • Page 14 Pairing the gateway to your wireless internet (Continued) 2. Ensure your mobile device is 6. If pairing is unsuccessful, please on the same network that the repeat steps 4 & 5. Gateway will be connected to. 7. The Gateway now needs to be This will ensure that the SSID will associated with your mobile be automatically populated with...
  • Page 15 8. Enter the ID WiFi code or scan the Home setup appears on the barcode which are both located on screen – this may take a moment. the gateway housing. The number of zones connected 9. Press ‘CONTINUE’ once only. to the programmer is detected and shown on the screen.

  • Page 16: Home Setup

    Home setup 1. Enter Home Name. 5. Invite user screen will appear. 2. Enter Zone Names. It is not 6. Invite other users if needed or possible to rename the Hot Water press ‘Continue’ to skip. zones. 3. Enter Location. 4.
  • Page 17 7. You will receive a summary 10. The Home screen will appear confirming the changes that you with the relevant number of zones have made. now able to be controlled from your mobile device. 8. Press ‘Continue’. 9. A summary will appear on the screen confirming the Home Setup is complete.
  • Page 18 Home screen diagram Refresh icon Menu Current home Target temperature Current temperature Zone run mode Zone status Boost function...
  • Page 19 Notes EPH Controls IE EPH Controls UK +353 21 434 6238 +44 1933 626 396 +353 21 454 5890 +44 1933 626 218 sales ephcontrols.com sales ephcontrols.co.uk www.ephcontrols.com www.ephcontrols.co.uk...
  • Page 20 O cial Site...
