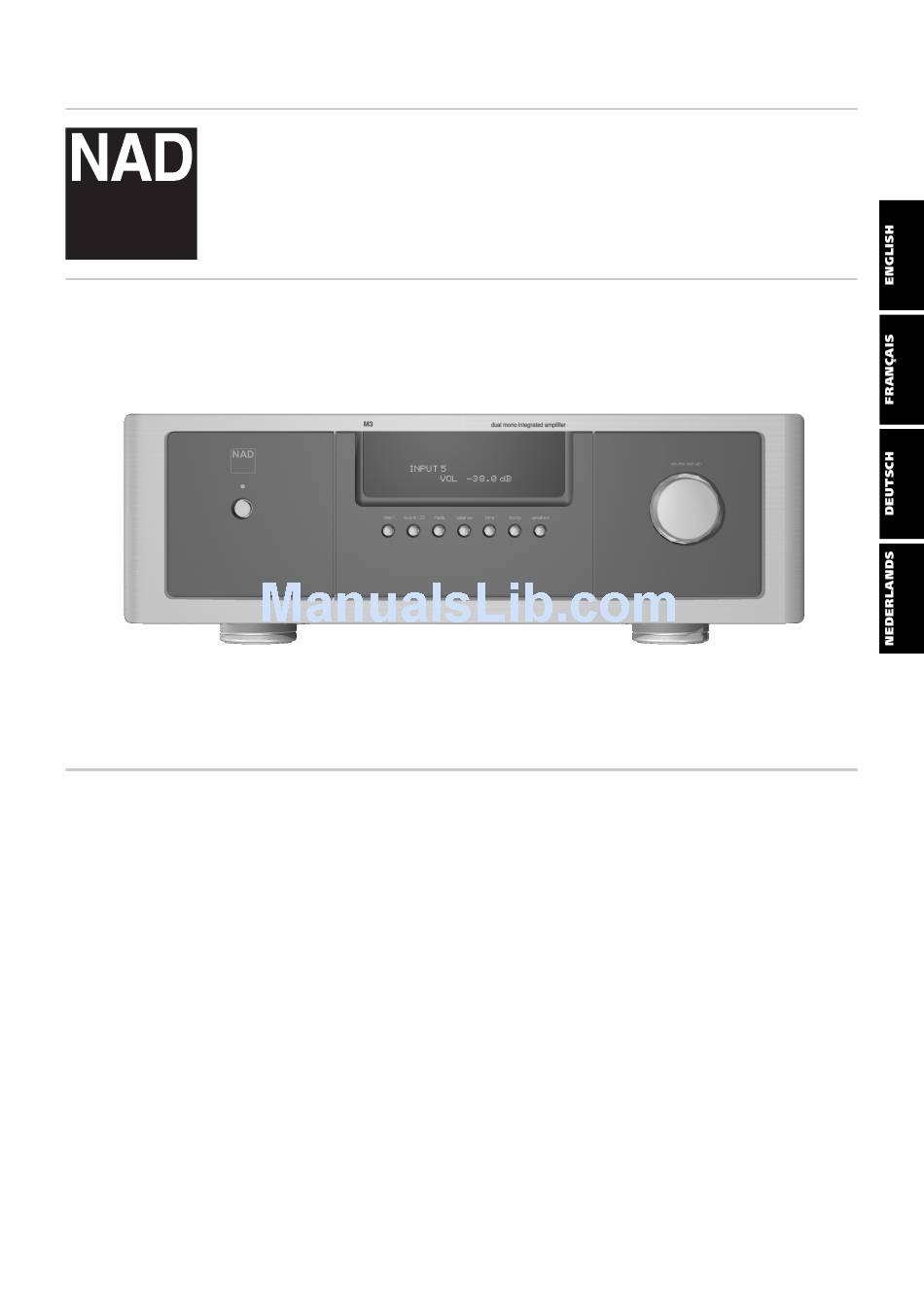

- Page 1 ® Dual Mono Integrated Amplifier Owner’s Manual Manuel d’Installation Bedienungsanleitung Gebruikershandleiding Manual del Usuario Manuale delle Istruzioni Manual do Proprietário Bruksanvisning...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS • Save these instructions for later use. • Follow all warnings and instructions marked on the audio equipment. 1 Read instructions - All the safety and operating instructions should be read before the product is operated. -
Page 3: Note To Catv System Installer
IMPORTANT SAFETY INSTRUCTIONS 12 Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. -
Page 4: Safety Information
PRESENCE OF IMPORTANT OPERATING AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE CAUTION Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the user’s authority to operate this equipment. CAUTION REGARDING PLACEMENT To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) equal to, or greater than, shown below. - Page 5 About the M3 Dual Mono Integrated Amplifier: ANALOG SOUND, DIGITAL CONTROL The M3 is NAD's concept of the ideal musical companion, capable of transporting the listener to that place where the music simply exists in its own perfect space. For this task we have pushed classical analog circuit design to unprecedented levels of performance.
- Page 6 NAD's patented current amp output stage starts with < 0.02 % static and dynamic distortion open loop (before feedback); even into 3 ohms at 20-20k at all levels. By utilizing small amounts of feedback the circuit returns distortion levels at all audible frequencies that are at limit of measurement - less than 0.002%!
- Page 7 Proprietary stepped-distributed low impedance volume control for ultra low • noise/distortion at all volume levels. PowerDrive current-mode power amplifier and NAD's patented output stage • with ultra low distortion that drive low impedance loads. Separate low-noise low-impedance regulated supplies for each channel's inputs •...
-
Page 8: Identification Of Controls
Identification of controls FRONT PANEL CONTROLS (FIGURE 1) REAR PANEL CONNECTIONS AND CONTROLS (FIGURE 2) RS 232 FIGURE 3 Spade Wire... - Page 9 Identification of controls M3 REMOTE CONTROL (FIGURE 4) PRESS IN AND LIFT TAB TO REMOVE PLACE BATTERIES INTO OPENING. BATTERY COVER OUT FROM RECESS ENSURE THE CORRECT POLARITY IS OBSERVED PRESS BATTERY COVER INTO PLACE UNTIL IT 'CLICKS' CLOSED ZR3 REMOTE CONTROL (FIGURE 5) RELEASE CR2025 OPEN...
- Page 10 Resume normal operation. If the Status Condition L.E.D. continues to light red and PROTECT displays in the VFD, contact qualified NAD service personnel for repair. 3. Vacuum Florescent Display (VFD): The VFD provides visual information on all of the M3's important modes, settings, and functions for both main and second zone locations.
- Page 11 Identification of controls About the M3 Dual Mono Integrated Amplifier 6. mode: The mode selector function is a convenient way to test the set up of the M3. For example, use the Mono mode to check the speakers phase. Setting the mode to Left or Right allows one to easily balance left signal inputs with right signal inputs.
- Page 12 Setup About the M3 Dual Mono Integrated Amplifier: REAR PANEL CONNECTIONS AND CONTROLS (FIGURE 2) 1. DISC: Connect line-level audio Left and Right to this input from a video disc or DVD-player. 2. CD: Connect line-level audio Left and Right to this input from a CD-player 3.
- Page 13 Setup About the M3 Dual Mono Integrated Amplifier 8. REC/Z2: This output is a steady state line-level output. Connect this output to recording equipment such as an audio tape deck or an A/D Converter recorder. One may also connect this output to an auxiliary piece of audio equipment such as an integrated amplifier for multi-zone operation.
- Page 14 +12V TRIGGER OUT interface. 14. RS-232: Using a Windows® operating system personal computer, one can remotely control the M3 with NAD's proprietary interface control software. This remote control facility employs a functional image of the M3's front panel as the GUI (graphical user interface).
-
Page 15: Operation
The Remote Control handset handles all the key functions of the M3 and has additional controls to remotely operate both NAD DVD and CD machines (see CD/DVD Switch below). It will operate up to a distance of 16ft (5m). Alkaline batteries are recommended for maximum operating life. - Page 16 11. DVD/CD Switch: Inside the battery compartment is a selection switch for the M3 remote control (see figure 4). Position 1-setting controls the NAD DVD-players while position 2- setting controls NAD CD-players. Using a paper clip, select either position 1 or 2 taking care not to damage the switch with excessive force.
-
Page 17: Troubleshooting
Reference TROUBLESHOOTING Problem Cause Solution NO SOUND • Power AC lead unplugged or power not • Check if AC lead is plugged in and power switched on switched on • Incorrect Mode selected • Select Stereo Mode • Mute on •... -
Page 18: Specifications
Reference SPECIFICATIONS PRE-AMP SECTION Line level inputs Input impedance (R+C) 150kΩ/500pF Balanced Input impedance (R+C) 120kΩ/100pF Input sensitivity, rated power 446mV Frequency response (5Hz - 70kHz) <+/-0.3dB LINE LEVEL OUTPUTS Output impedance 100Ω Tape Source Z + 1kΩ Signal/noise ratio >110dB (AWTD) TONE CONTROLS Bass... -
Page 19: Input Labels
Reference INPUT LABELS INPUT ORIGINAL NEW LABEL LABEL DISC DISC _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ TUNER TUNER _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _... - Page 20 ©2006 NAD ELECTRONICS INTERNATIONAL A DIVISION OF LENBROOK INDUSTRIES LIMITED All rights reserved. No part of this publication may be reproduced, stored or transmitted in any form without the written permission of NAD Electronics International M3 Manual 01/06 Printed in China...
