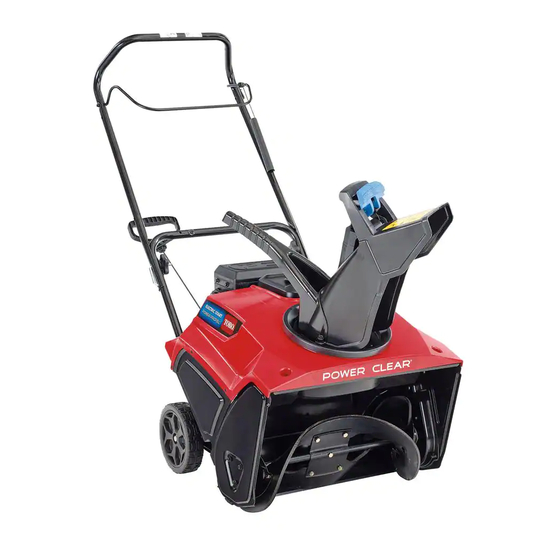

Toro Power Clear 721 Operator's Manual

Toro Power Clear 721 Operator's Manual

R-c commercial snowthrower
Hide thumbs Also See for Power Clear 721:

Advertisement

Quick Links

Power Clear
Model No. 38751—Serial No. 402082000 and Up
Introduction
This machine is intended to be used by residential
homeowners. It is designed primarily for removing
snow from paved surfaces, such as driveways and
sidewalks, and other surfaces for traffic on residential
or commercial properties. It is not designed for
removing materials other than snow, nor is it designed
for clearing gravel surfaces.
Note:
The machine may leave rubber marks on
new brushed or light-colored concrete. Test on an
inconspicuous location before use.
Read this information carefully to learn how to operate
and maintain your product properly and to avoid
injury and product damage. You are responsible for
operating the product properly and safely.
You may contact Toro directly at www.Toro.com
for product safety and operation training materials,
accessory information, help finding a dealer, or to
register your product.
Whenever you need service, genuine Toro parts, or
additional information, contact an Authorized Service
Dealer or Toro Customer Service and have the model
and serial numbers of your product ready.

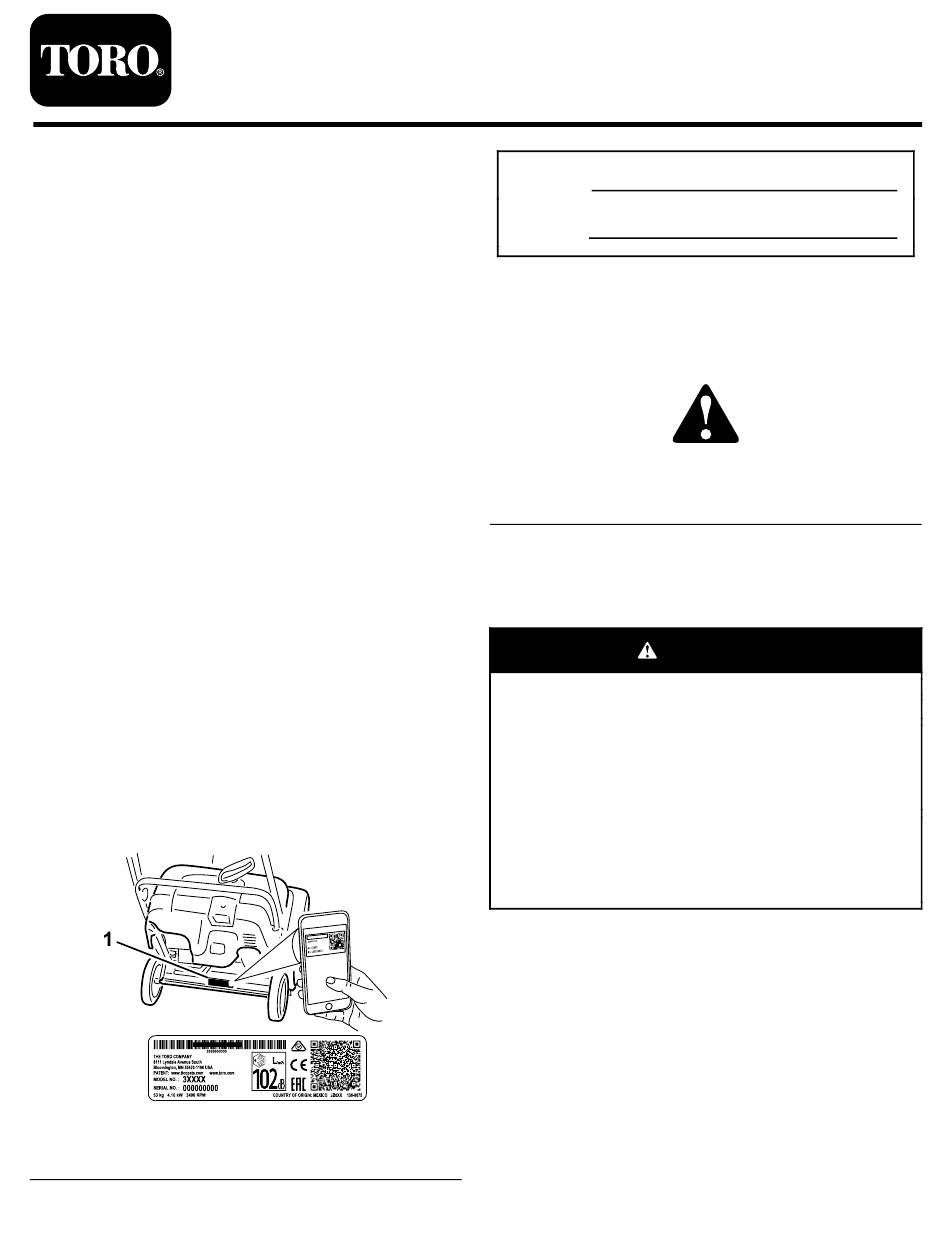

identifies the location of the model and serial numbers
on the product. Write the numbers in the space
provided.
Important:
With your smartphone or tablet, scan
the QR code on the serial number decal to access
warranty, parts, and other product information.
1. Model and serial number location
© 2017—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
721 R-C Commercial Snowthrower
Figure 1
Figure 1
Register at www.Toro.com.
Model No.
Serial No.
This manual identifies potential hazards and has
safety messages identified by the safety-alert symbol
(Figure
2), which signals a hazard that may cause
serious injury or death if you do not follow the
recommended precautions.
1. Safety-alert symbol
This manual uses 2 words to highlight information.
Important calls attention to special mechanical
information and Note emphasizes general information
worthy of special attention.
Proposition 65 Warning
This product contains a chemical
or chemicals known to the State of
California to cause cancer, birth defects,
or reproductive harm.
The engine exhaust from this product
contains chemicals known to the State of
California to cause cancer, birth defects,
or other reproductive harm.
Important:
If you are using this machine above
1500 m (5,000 ft) for a continuous period, ensure
that the High Altitude Kit has been installed
so that the engine meets CARB/EPA emission
regulations. The High Altitude Kit increases
engine performance while preventing spark-plug
fouling, hard starting, and increased emissions.
Once you have installed the kit, attach the
high-altitude label next to the serial decal on the
g216757
machine. Contact any Authorized Toro Service
Dealer to obtain the proper High Altitude Kit and
high-altitude label for your machine. To locate
a dealer convenient to you, access our website
Original Instructions (EN)
Form No. 3415-634 Rev A
Operator's Manual
Figure 2
WARNING
CALIFORNIA
All Rights Reserved *3415-634* A
Printed in Mexico
g000502

Advertisement

loading
Need help?

Need help?

Do you have a question about the Power Clear 721 and is the answer not in the manual?

Questions and answers

Bob Jay
February 6, 2025

Just bought a 2025 721e snow thower how do you shoot it off when done using

2 comments:
bob jagielski
February 6, 2025

@Bob Jay 38753

Mr. Anderson
May 14, 2025

To turn off the Toro Power Clear 721e snow thrower after use, shut off the engine and wait 10 seconds to ensure the rotor blades have stopped rotating.

This answer is automatically generated

Summary of Contents for Toro Power Clear 721

  • Page 1 Whenever you need service, genuine Toro parts, or WARNING additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model CALIFORNIA and serial numbers of your product ready. Figure 1 Proposition 65 Warning...
  • Page 2 Toro Customer Operating Tips ........... 9 Care Department at the number(s) listed in your After Operation ............ 10 Emission Control Warranty Statement. After Operation Safety ........10 Preventing Freeze-up after Use ......10 Remove the kit from the engine and restore the Maintenance ............
  • Page 3 Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decal94-2577 94-2577 1. To engage the rotor blades, hold the control bar against the handle.
  • Page 4 Filling the Engine with Oil Setup Unfolding the Handle g217712 Installing the Discharge Chute g216207 Figure 6 Adjusting the Control Cable Refer to Adjusting the Control Cable (page 11). g217715...
  • Page 5 Product Overview • Thoroughly inspect the area where you will use the machine, and remove all doormats, sleds, boards, wires, and other foreign objects. • If a shield, safety device, or decal is damaged, illegible, or missing, repair or replace it before beginning operation.
  • Page 6 Filling the Fuel Tank Checking the Engine-Oil Level • For best results, use only clean, fresh (less than 30 days old), unleaded gasoline with an octane rating of 87 or higher ((R+M)/2 rating method). Service Interval: Before each use or daily—Check the engine-oil level and add oil if •...
  • Page 7 Starting the Engine During Operation 1. Turn the ignition key clockwise to the O position (Figure 10). During Operation Safety • Shut off the engine before unclogging the machine and always use a stick or the snow-cleanout tool (if provided). •...
  • Page 8 Engaging the Rotor Blades To engage the rotor blades, hold the control bar against the handle (Figure 15). g006453 Figure 13 Note: Remove your glove when you push in g216251 the primer so that air cannot escape from the Figure 15 primer hole.
  • Page 9 Shutting Off the Engine Operating Tips To shut off the engine, turn the ignition key WARNING counterclockwise to the O position (Figure 17). The rotor blades can throw stones, toys, and other foreign objects and cause serious personal injury to you or bystanders. •...
  • Page 10 Do not change the governor settings on the engine. • Before performing any maintenance, service, or adjustment, shut off the engine and remove the • Purchase only genuine Toro replacement parts key. If major repairs are ever needed, contact an and accessories. Authorized Service Dealer.
  • Page 11 Adjusting the Control Cable Adjusting the Control Cable 1. Slide up the spring cover and unhook the spring from the adjuster link (Figure 20). Checking the Control Cable Service Interval: After the first hour—Check the control cable and adjust it if necessary.
  • Page 12 g011544 Figure 22 1. The wear-indicator hole is 2. The wear-indicator hole is intact; you do not need to exposed; replace the rotor g006587 replace the rotor blades. blades and scraper. Figure 21 1. Remove the upper end of 3. Pivot point spring from this hole.
  • Page 13 g006316 Figure 24 1. Oil-fill cap g006374 Figure 26 7. Unscrew the oil-fill cap and remove it (Figure 24). 9. Wait 3 minutes for the oil to settle and add enough oil to bring it to the point of overflow. 8.
  • Page 14 Servicing the Spark Plug Service Interval: Every 50 hours Yearly—Service the spark plug and replace it if necessary. Use a NGK BPR6ES or Champion RN9YC spark plug or equivalent. 1. Shut off the engine and wait for all moving parts to stop.
  • Page 15 Replacing the Drive Belt 12. Install the spark plug and torque it to 20 to 22 ft-lb (27 to 30 N-m). Service Interval: Every 50 hours 13. Connect the wire to the spark plug. Yearly Note: Ensure that the breather tube is routed above the spark-plug wire as shown in Figure If the drive belt becomes worn, oil-soaked, excessively...
  • Page 16 g008317 Figure 32 1. Brake spring (install on 3. Engine pulley idler arm here) 2. Idler pulley 4. Rotor pulley Note: Route the new drive belt first around the engine pulley, then the idler pulley, and finally around the loose rotor pulley positioned just above the rotor shaft (Figure 31).
  • Page 17 Storage 11. Install the spark plug by hand and then torque it to 27 to 30 N∙m (20 to 22 ft-lb). 12. With the ignition key in the O position, pull the Preparing the Machine for recoil-start handle slowly to distribute the oil on the inside of the cylinder.
  • Page 18 Notes:...
  • Page 19 Notes:...
