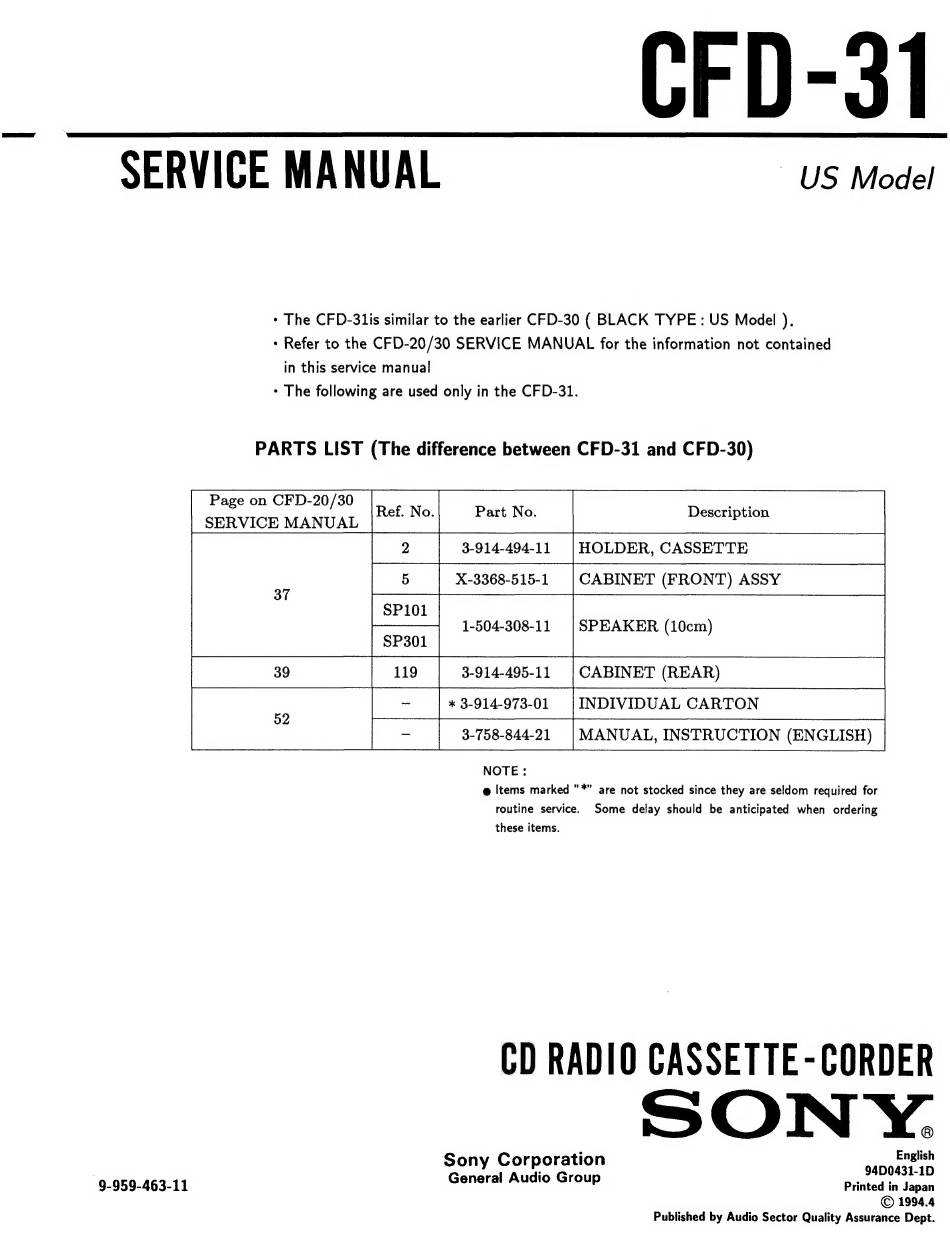

CFD-31
SERVICE MANUAL US Model
-9-959-463-11
Page on CFD-20/30
SERVICE MANUAL
* The CFD-3lis similar to the earlier CFD-30 ( BLACK TYPE: US Model ).
- Refer to the CFD-20/30 SERVICE MANUAL for the information not contained
in this service manual
- The following are used only in the CFD-31.
PARTS LIST (The difference between CFD-31 and CFD-30)
2 3-914-494-11 HOLDER, CASSETTE
5 X-3368-515-1 CABINET (FRONT) ASSY
3-
SP101
1-504-308-11
SP301
37
SPEAKER (10cm)
39
119 914-495-11 | CABINET (REAR)
*3-914-973-01 | INDIVIDUAL CARTON
3-758-844-21 | MANUAL, INSTRUCTION (ENGLISH)
NOTE:
@ Items marked "*" are not stocked since they are seldom required for
routine service. Some delay should be anticipated when ordering
these items.
CD RADIO CASSETTE-CORDER
SONY.
© 1994.4
Published by Audio Sector Quality Assurance Dept.
