Carrier PHB4 B Series Installation Instruction

13.4 seer2 single-packaged heat pump system with r-454b refrigerant single phase 2-5 nominal tons (sizes 24-60) three phase 3-5 nominal tons (sizes 36-60)

Hide thumbs

page of 38

/ 38
Bookmarks

Quick Links

Download this manual

PHB4 Series B and WPH5 Series B

13.4 SEER2 Single-Packaged Heat Pump System

with R-454B Refrigerant

Single Phase 2-5 Nominal Tons (Sizes 24-60)

Three Phase 3-5 Nominal Tons (Sizes 36-60)

IMPORTANT: Effective January 1, 2023, all split system and packaged

air conditioners must be installed pursuant to applicable regional

efficiency standards issued by the Department of Energy.

NOTE: Read the entire instruction manual before starting the

installation.

NOTE: Installer: Make sure the Owner's Manual and Service

Instructions are left with the unit after installation.

Table of Contents

Safety Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Receiving and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Transport and Storage Considerations . . . . . . . . . . . . . . . . . . . . . . 2

Leak Dissipation System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Pre-Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Start-Up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Sequence of Events - Dissipation Mode . . . . . . . . . . . . . . . . . . . 34

Start-Up Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Decommissioning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

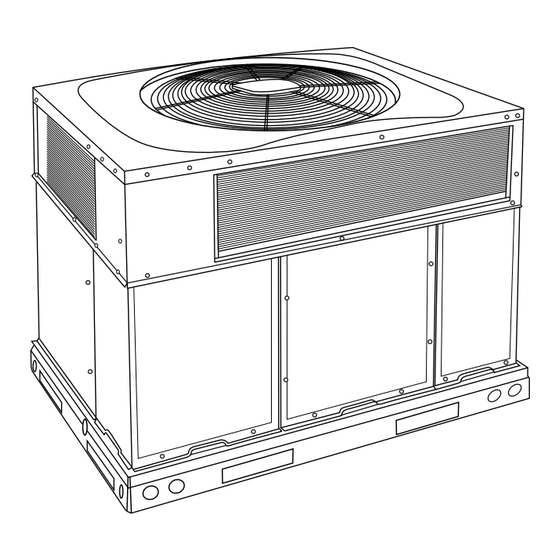

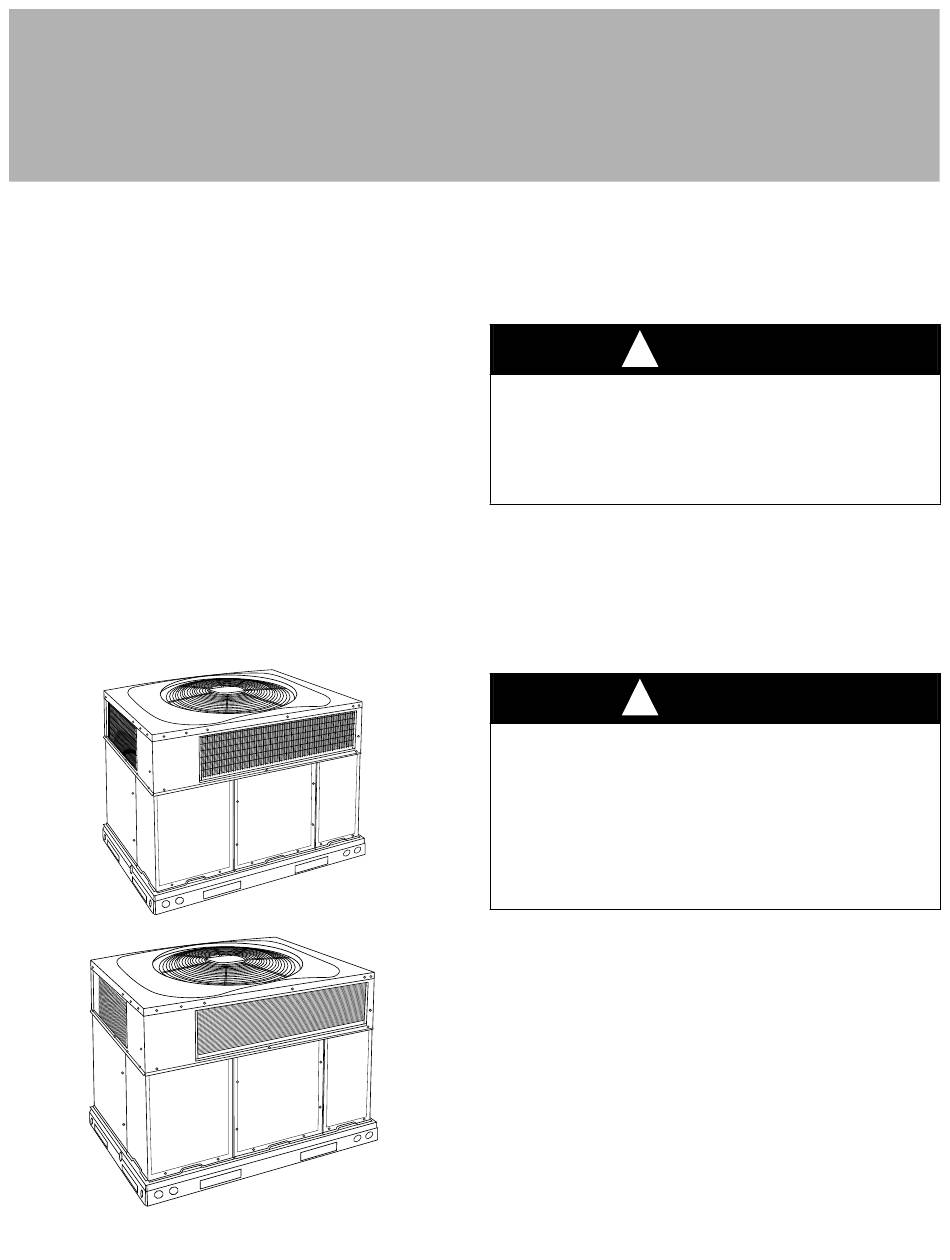

Fig. 1 – Unit WPH5, PHB4

Installation Instruction

A170030

A09183

Safety Considerations

This unit is equipped with electrically powered safety measures. For the

safety measures to be effective, the unit must be electrically powered at

all times after installation, other than when servicing.

WARNING

PERSONAL INJURY AND PROPERTY DAMAGE

HAZARD

Continuous fan mode required for proper functioning. Installation must

meet the Required Minimum Dissipation Airflow as outlined in the

Leak Dissipation System section. Follow instructions in the Continuous

Fan Speed Set-Up section to change speeds.

Installation and servicing of this equipment can be hazardous due to

mechanical and electrical components. Only trained and qualified

personnel should install, repair, or service this equipment.

Untrained personnel can perform basic maintenance functions such as

cleaning and replacing air filters. All other operations must be performed

by trained service personnel. When working on this equipment, observe

precautions in the literature, on tags, and on labels attached to or shipped

with the unit and other safety precautions that may apply.

WARNING

PERSONAL INJURY AND PROPERTY DAMAGE

HAZARD

For continued performance, reliability, and safety, the only approved

accessories and replacement parts are those specified by the equipment

manufacturer. The use of non-manufacturer approved parts and

accessories could invalidate the equipment limited warranty and result

in fire risk, equipment malfunction, and failure. Please review

manufacturer's instructions and replacement part catalogs available

from your equipment supplier.

Auxiliary devices which may be a POTENTIAL IGNITION SOURCE

shall not be installed in the duct work. Examples of such POTENTIAL

IGNITION SOURCES are hot surfaces with a temperature exceeding

1292°F (700°C) and electric switching devices.

Electrostatic air purifiers installed in the ductwork are permitted, if the

purifier has an airflow sensor.

False ceilings or drop ceilings must not be used as a return air

duct/plenum.

This self-contained unit is already charged with refrigerant for optimum

performance, and shouldn't require any adjustments. Should any

installation/service work on the A2L refrigerant system be needed,

non-sparking tools are required. If the refrigerant system is opened, a

refrigerant detector should be used to check for leaks. Open flames or

other ignition sources should not be present, except during brazing.

Brazing should only take place on refrigerant tubes that are open to the

atmosphere or have been properly evacuated.
