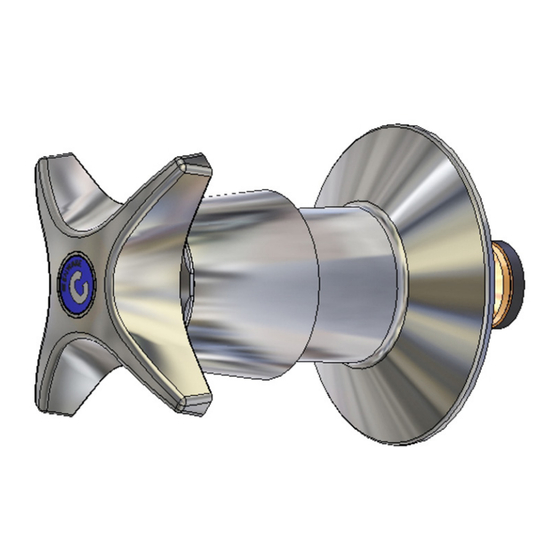

Concealed Spindle Recess Adaptor –
Ceramic Disc
Installation and Maintenance Instructions
CSQ308
CSQ314
CSQ315
technical data
Working Pressure Range
Maximum Static Pressure 800 kPa
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00526_20 Dec 2023
1300 369 273 | info@enware.com.au | enware.com.au
Ceramic Disc
Min 50 kPa
Max 500 kPa
85°C
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE CSQ308
Summary of Contents for Watts ENWARE CSQ308
- Page 1 Concealed Spindle Recess Adaptor – Ceramic Disc Installation and Maintenance Instructions CSQ308 CSQ314 CSQ315 technical data Ceramic Disc Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 800 kPa 85°C Maximum Working Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
- Page 2 CSQ CERAMIC DISC DESCRIPTION Indicator Button Handle Circlip Insert Skirt Flange Locknut Red Fibre Washer SBA Ceramic Cartridge Anti Vandal Key www.enware.com.au Page 2 © Enware Pty Ltd...
- Page 3 installation WALL/ TILE SURFACE • All supply lines must be flushed thoroughly to remove debris (FINISHED prior to the installation of this product, as per AS/NZS WALL) 3500.1. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements.
- Page 4 6. Screw the flange onto the stuffing box by hand until it sits flat against the wall. SEE IMAGE 05 7. Place the skirt onto the spindle. Place insert onto the spindle, and then place the circlip into the groove (second groove from spline) on the spindle.
- Page 5 INSTALLATION - OUTLET Proceed to install shower outlet or spout. Refer to installation instructions for the shower outlet or spout. www.enware.com.au Page 5 © Enware Pty Ltd...
- Page 6 maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface.
- Page 7 spare parts PART ENWARE SALES CODE SBA - CSQ Recess Ceramic Disc 1/2 Turn CSQ382 CS handle (incl. circlip, handle insert, skirt, colour indicator, Anti- CS378 Vandal handle key) Anti-vandal handle key MIS590 Colour indicator button (stick-on, Cold, Warm and Hot included) MIS595RYB dimensions 5/8 (BSP)
- Page 8 - WATTS AUSTRALIA Effective 27 October 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
