User Manual
RPC-7 Calibration Kit
07CK001-150 and 07CK010-150
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
www.rosenberger.com

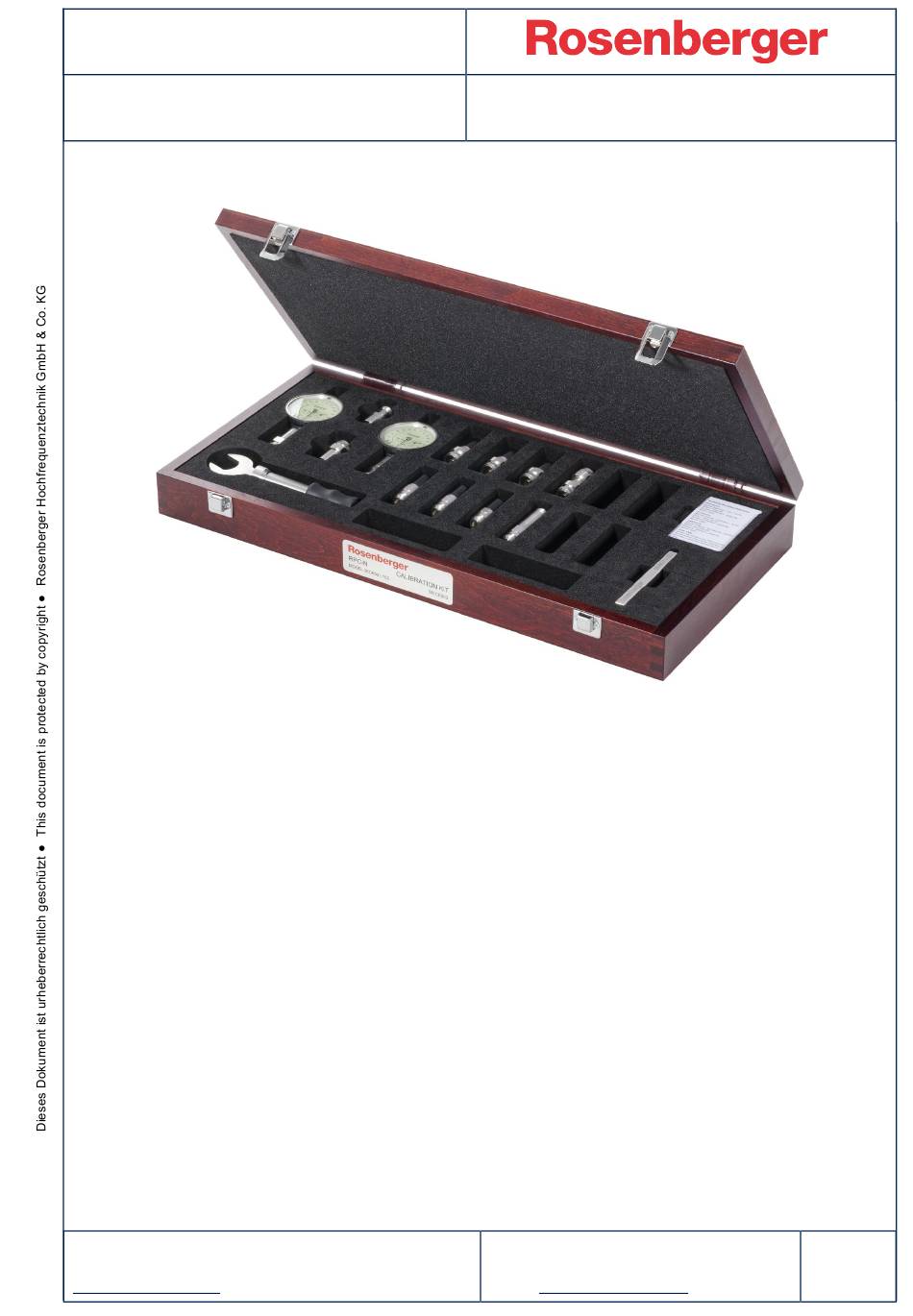

Picture shows similar calibration kit
Tel.
Germany
Email : info@rosenberger.com
07CK001-150
: +49 8684 18-0
Page
1 / 17
Advertisement
Related Manuals for Rosenberger 07CK001-150
Summary of Contents for Rosenberger 07CK001-150
- Page 1 User Manual RPC-7 Calibration Kit 07CK001-150 07CK001-150 and 07CK010-150 Picture shows similar calibration kit Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com Email : info@rosenberger.com 1 / 17...
- Page 2 Extent of Rosenberger Re-Calibration Services 6. Use, Maintenance and Care Connector Care Interface Dimensions and Gauging Mechanical Specifications Handling and Storage 7. Connections Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com...
- Page 3 (TOSM) and TRM (TMR) calibrations from DC up to 18 GHz for measurements of components with RPC-7 connectors. Rosenberger RPC-7 connectors are compatible with 7 mm connectors from other manufacturers. 1.2 Warnings The calibration standards and the gauges of this calibration kit are mechanically sensitive devices.
- Page 4 User Manual RPC-7 Calibration Kit 07CK001-150 07CK001-150 and 07CK010-150 1.3 Kit Contents Table 1-1 Parts of the 07CK001-150 Calibration Kit Device Part number Remarks Quantity Open circuit 07P12L-000S3 Short circuit 07P12S-000S3 Calibration load 07P150-C10S3 19 mm wrench size Torque wrench 07W021-000 1.36 Nm torque...
- Page 5 German accreditation body DAkkS (Deutsche Akkreditierungsstelle) according to DIN EN ISO 17025. Calibration Certificates issued by an accredited calibration laboratory are accepted worldwide to demonstrate that measurement results are traceable to national / international standards. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 6 These standard definitions are used in the calibration of the VNA to determine the systematic errors of the measurement system. Please always use the most recent source of information (Standard Definitions Cards or VNA specific files). Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 7 The file extension defines the VNA types the file can be used on. For further Information see the Application Note AN001. KitType (SN)_StdDef_CalDate.Ext KitType 07CK001-150, 07CK010-150 or customized type • (SN) Serial number (5 character) enclosed by brackets •...
- Page 8 OSLT is the most commonly used two-port calibration method. The Thru connections are performed by using well-known, precision calibration adapters in male-male or female-female configuration or as a direct connection of the male and the female test ports. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 9 This should be done from time to time to identify defects. Air Lines, Precision Adapters and Mismatch Standards can also be used as a faster method for more frequent checks. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 10 In case of re-calibration or repair contact your local Rosenberger sales office. Please inform them about any known problem. If there is no local Rosenberger sales office available a request can be set up on the Rosenberger homepage. Please use the search topic “Calibration Request Form” at www.rosenberger.com 5.4 Extent of Rosenberger Re-Calibration Services...
- Page 11 It is important to take all necessary safety precautions when using chemicals or solvents. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 12 This may result in buckling of the socket contacts or damage to the internal structure of a device due to the axial forces generated. NOTE: At no time should the pin depth of the connector be protruding. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 13 This will result in poor reflection and possibly unreliable contact. 6.2.2 Gauges The Rosenberger gauges are of screw-on type in plug and jack version. They can be used to gauge calibration standards as well as test ports, test port cables, adapters and DUTs.
- Page 14 Recession is the condition in which the centre conductor is set back from the outer conductor mating plane. The amount of unwanted reflections is directly proportional to the pin depth. Pin depth limits are defined for all calibration standards in the specific data sheets. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 15 • Keep connectors clean. • Do not touch mating plane surfaces. Natural skin oils and microscopic particles of dirt are easily transferred to a connector interface and are very difficult to remove. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 16 10. Use a torque wrench to make a final connection. Table 4-2 provides information about the torque wrench recommended for use with the calibration kit. A torque wrench is included in the calibration kit. Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260...
- Page 17 Rev. Engineering change number Name Date Herbert Babinger 24/04/12 Markus Hantschel 21/06/23 20-1058 Lars Ramtke 21/06/23 Rosenberger Hochfrequenztechnik GmbH & Co. KG Tel. : +49 8684 18-0 Page P.O.Box 1260 D-84526 Tittmoning Germany www.rosenberger.com Email : info@rosenberger.com 17 / 17...
