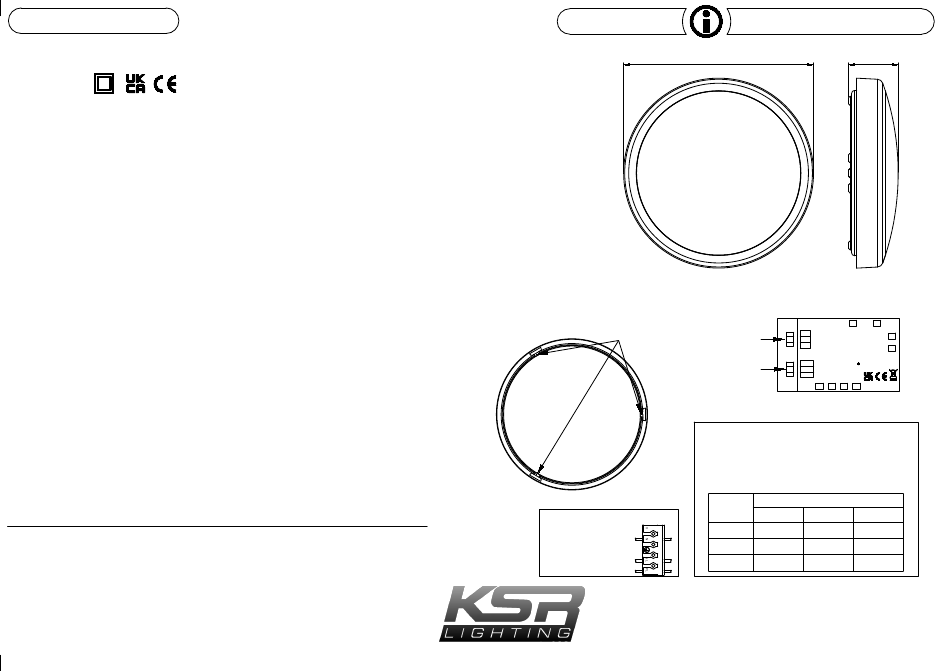

KSR KSRSF403 Installation Sheet

Installation Sheet
Read these instructions before commencing installation. Please give these instructions to the owner/occupier after
installation to retain for future reference/maintainence.
240V~50Hz 10W/14W/20W
IP65 IK10
These fittings are Class II and do not need an Earth, but Earth provision is provided.
Important Information
It is recommended that these luminaires are installed and fitted by a qualified electrician ensuring the installation
complies with current IEE wiring regulations & local building control. These products are designed for connection to a
240V~50Hz supply.
Any faulty, broken or damaged luminaires should be replaced immediately.
KSR will not accept responsibility for any claims arising from a poor installation.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer,
end user or any third party to exercise caution to protect any covered product or part from outside damage, adverse
temperature (normal operating ambient temperature 0°C - +30°C), humidity conditions, fluctuations in the electrical
system or physical abuse as well as failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before servicing.
Do not use Megger or similar high voltage instruments. Due to the fact this luminaire contains electronic components
that maybe damaged by high test voltages, they must be disconnected from the circuit before testing.
To prevent damage to the driver, do not mix with conventional magnetic ballasts on the same electrical circuit.
At the end of life the luminaire is classed as WEEE under directive 2014/30/EU and should be disposed of in
accordance with local legislation.
Installation Procedure
Isolate mains supply before installation.
Remove rim, diffuser and gear tray by turning the rim anti-clockwise.
Remove the rim, diffuser and gear tray from the body by unclipping the support strap.
If you are using the optional chrome rim unclip the white rim from the retaining lugs as per Fig. 1 and install the
KSRSF406 rim on to the diffuser/geartray (Do not unscrew LED tray from the diffuser).
Pass supply wires through grommet into the base section, taking care to ensure they are not trapped between the
fitting and mounting surface.
Fix base to the wall, ceiling or besa box using adequate fixings with regard to the type of surface.
Ensure incoming cables are protected, re-attach the support strap.
Terminate wiring as per Fig. 2, please note an Earth terminal is only supplied to aid the continuation of the Earth circuit.
Select LED colour and wattage required using the switches on the LED driver Note: Never change the LED colour or
wattage with the luminaire powered on as this can damage the luminaire. Fig. 3.
Set Microwave to desired settings, for set up please refer to page overleaf.
Remove the battery cover and connect the emergency battery, replace battery cover (see overleaf).
Install rim, diffuser and gear tray by lining up lugs and twisting clockwise to lock in place.
Turn on the mains supply and test luminaire.
This fitting requires a 24 Hour initial charge period prior to any emergency testing, please see
overleaf for testing routine, write on the battery label in permanent ink the date of commissioning.
All results must be recorded and left with the end user.
The battery has a design life of at least 4 years but should be replaced if the duration of
operation is less than 3 hours after a 24hr charge time with no interrupted supply.
*Please note: Depending on the amount of fittings on a circuit you may have to upgrade the breaker
to a 'C' or 'D' type to avoid nuisance tripping.
25.11.2022-PJL
KSRSF403
KSR Lighting Ltd, Optimum House, Beeding Close, Southern Cross Trading Estate,
Roma Select
Fig. 1
Retaining Lugs
Fig. 2
Mains Supply
Neutral - Blue
Earth Continuation Only
Switch Live - Brown
Permanent Live - Black
Bognor Regis, West Sussex, PO22 9TS.
LED Surface Luminaire
315mm
Fig. 3
Diffuser
Wattage
LED Colour
Lamp Details
Lamp: LED
Wattage: 10W, 14W, 20W
Colour: 3000K, 4000K and 6000K CCT
CRI: Ra>84
CCT
3000K
10W 1067lm
14W 1341lm
20W 1719lm
This product contains a light source of energy efficiency class F
KSR Lighting Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
82mm
L N
Model: KSRSF330/331/332/333
20W
KSRSF400/401/402/403 G-
14W
10W Input:220~240Vac 50/60Hz
G+
Output:80-120VDC 175mA(Max)
3000K
Prated:20W Max Tc
4000K
Ta:40 °C TC:85 °C
6000K
V+ G- W- E+
Made in China
Lumen output
4000K 6000K
1170lm 1125lm
1526lm 1443lm
1962lm 1782lm
Drg No. KSRSF403-IS-C
