KSR KSRSF333 Installation Sheet

KSRSF333
Installation Sheet
Read these instructions before commencing installation. Please give these instructions to the owner/occupier after
installation to retain for future reference/maintainence.
IP65 IK10
These fittings are Class II and do not need an Earth, but Earth provision is provided.
Important Information
It is recommended that these luminaires are installed and fitted by a qualified electrician ensuring the installation complies
with current IEE wiring regulations & local building control. These products are designed for connection to a 240V~50Hz
supply.
Any faulty, broken or damaged luminaires should be replaced immediately.
KSR will not accept responsibility for any claims arising from a poor installation.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer,
end user or any third party to exercise caution to protect any covered product or part from outside damage, adverse
temperature (normal operating ambient temperature -10 °C - +30°C), humidity conditions, fluctuations in the electrical
system or physical abuse as well as failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before servicing.
Do not use Megger or similar high voltage instruments. Due to the fact this luminaire contains electronic components that
maybe damaged by high test voltages, they must be disconnected from the circuit before testing.
To prevent damage to the driver, do not mix with conventional magnetic ballasts on the same electrical circuit.
At the end of life the luminaire is classed as WEEE under directive 2014/30/EU and should be disposed of in accordance
with local legislation.
Installation Procedure
Isolate mains supply before installation.
Unscrew and retain the four screws and remove the diffuser.
Loosen the single LED tray screw as indicated in Fig.2 and lift the hinged tray to gain access to the wiring terminals.
Pass intended supply wires through grommet.
Ensure the fixing surface is flat and even.
Fix base to the wall, ceiling or besa box using adequate fixings with regard to the type of surface.
Ensure incoming cables are protected.
Terminate wiring as per Fig. 3, please note an Earth terminal is only supplied to aid the continuation of the Earth circuit.
Please ensure battery is connected, this battery compartment can be accessed as shown overleaf.
Select LED colour and wattage required using the switches on the LED driver Note: Never change the LED colour or
wattage with the luminaire powered on as this can damage the luminaire. Fig. 4.
Set Microwave to desired settings, for set up please refer to page overleaf.
Remove the battery cover and connect the emergency battery, replace battery cover (see overleaf).
Re-secure the LED tray.
Make sure the seal is in place in the diffuser and undamaged.
Replace the diffuser re-secure using the four retained screws.
Turn on the mains supply and test luminaire. If using an optional rim clip the rim over the fitting.
This fitting requires a 24 Hour initial charge period prior to any emergency testing, please see
overleaf for testing routine, write on the battery label in permanent ink the date of commissioning.
All results must be recorded and left with the end user.
The battery has a design life of at least 4 years but should be replaced if the duration of
operation is less than 3 hours after a 24hr charge time with no interrupted supply.
*Please note: Depending on the amount of fittings on a circuit you may have to upgrade the breaker
to a 'C' or 'D' type to avoid nuisance tripping.
26.04.2022MAC
240V~50Hz 10W/14W/20W
KSR Lighting Ltd, Unit E Hazleton Interchange, Lakesmere Road, Horndean, Hampshire, PO8 9JU
Navara SF Select
Available Rims: Various please visit www.ksrlighting.com for options

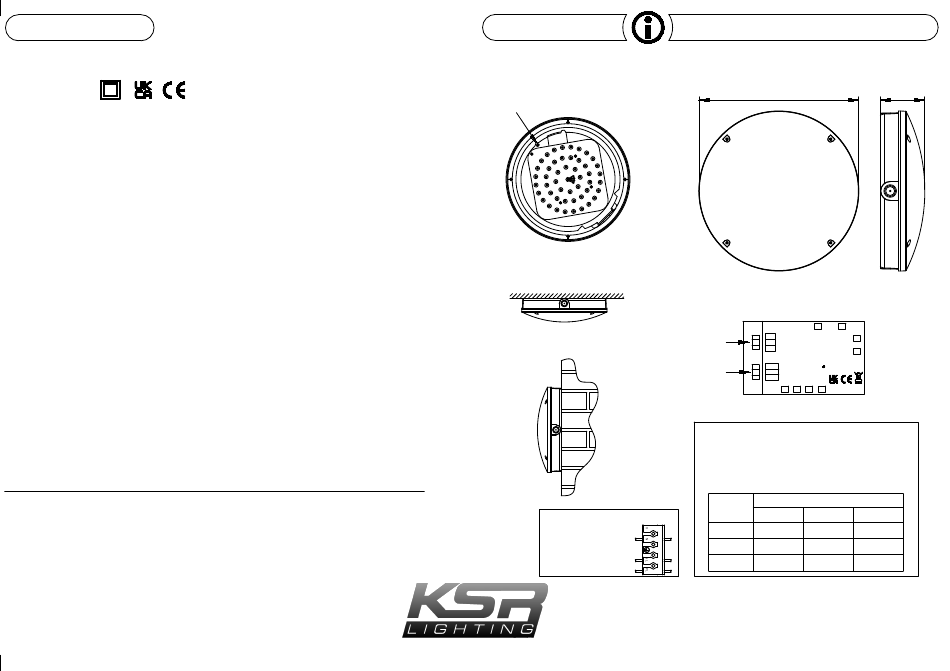

Fig. 2
Gear Tray Retaining Screw
Fig. 1
Ceiling mounted
Wall mounted
LED Colour
Fig. 3
Mains Supply
Neutral - Blue
Earth Continuation Only
Switch Live - Brown
Permanent Live - Black
This product contains a light source of energy efficiency class F
Multi Wattage Triple CCT Bulkhead
300mm
Fig. 4
L N
Model: KSRSF330/331/332/333
20W
KSRSF400/401/402/403
Wattage G-
14W
10W Input:220~240Vac 50/60Hz
G+
Output:80-120VDC 175mA(Max)
3000K
Prated:20W Max Tc
4000K
Ta:40 °C TC:85 °C
6000K
V+ G- W- E+
Made in China
Lamp Details
Lamp: LED
Wattage: 10W, 14W, 20W
Colour: 3000K, 4000K and 6000K CCT
CRI: Ra>84
Lumen output
CCT
3000K 4000K
10W 1145lm 1261lm
14W 1457lm 1658lm
20W 1819lm 2126lm
KSR Lighting Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
Drg No. KSRSF333-IS-E
84mm
6000K
1212lm
1559lm
1947lm
