KSR98155
Installation Sheet
Read these instructions before commencing installation. Please give these instructions to the owner/occupier after
installation to retain for future reference/maintainence.
IP20
240V~50Hz 25W/36W
0.3m
These fittings are Class II and do not require to be Earthed
Important Information
It is recommended that these luminaires are installed and fitted by a qualified electrician
ensuring the installation complies with current IEE wiring regulations & local building
control. These products are designed for connection to a 240V~50Hz supply.
Any faulty, broken or damaged luminaires should be replaced immediately.
KSR will not accept responsibility for any claims arising from a poor installation.
Please Note: The limited warranty shall be deemed null and void in the following circumstances: Failure by the installer, end user or
any third party to exercise caution to protect any covered product or part from outside damage, adverse temperature (normal
operating ambient temperature -20 ~ +40°C), humidity conditions, fluctuations in the electrical system or physical abuse as well as
failure related to workmanship in the installation of the products or parts.
Important User Advice
Always switch off mains supply before installing or servicing.
This luminaire is suitable for indoor use only and should not be fitted to damp or wet surfaces such as freshly plastered or painted
ceilings. IP65 from the front face when installed.
Do not use Megger or similar high voltage instruments. Due to the fact this luminaire contains electronic components that maybe
damaged by high test voltages, they must be disconnected from the circuit before testing.
To prevent damage to the driver, do not mix with conventional magnetic ballasts on the same electrical circuit.
At the end of life the luminaire is classed as WEEE under directive 2014/30/EU and should be disposed of in accordance with local
legislation.
Installation Procedure
KSR recommend that you familiarize yourself with the connections and suitable locations for the LED panel. Ensure the mains supply
is safely isolated.
The panel can be installed into suitable suspended ceilings (please ensure the ceiling can support the weight of the panel(s) to be
fitted). This product is suitable for both 15mm & 25mm T Grid ceilings.
The driver can be located on the rear of the panel if needed, however it is advised you locate it alongside the LED panel on an
adjacent tile whenever possible.
Lift the AC terminal cover.
Connect your mains supply using 2 core cable up to 0.75mm
required using the dip switch next to the termination block.
As a Class II luminaire it does not require an Earth connection.
Re-install the AC terminal cover.
Place the driver in the ceiling void, ensure you do not cover the driver in insulation, it must always remain in free air space.
Connect the plug from the driver to the LED panel, twist and lock the connection.
Switch the CCT switch to the required LED colour and the output switch to the required power. Never switch the wattage while
powered on as this can damage the panel/driver.
Carefully install the panel into the ceiling ensuring you take care not to damage the back of the panel by using excessive force and
allow it to drop into the T grid, turn on the power and test.
This product contains a light source of energy efficiency class F
The light source in this product is Non-replaceable.
01.03.2023-PJL
2
to the LED driver, Live - Brown & Neutral - Blue and set the wattage
KSR Lighting Ltd, Optimum House, Beeding Close, Southern Cross Trading Estate,
Bognor Regis, West Sussex, PO22 9TS.

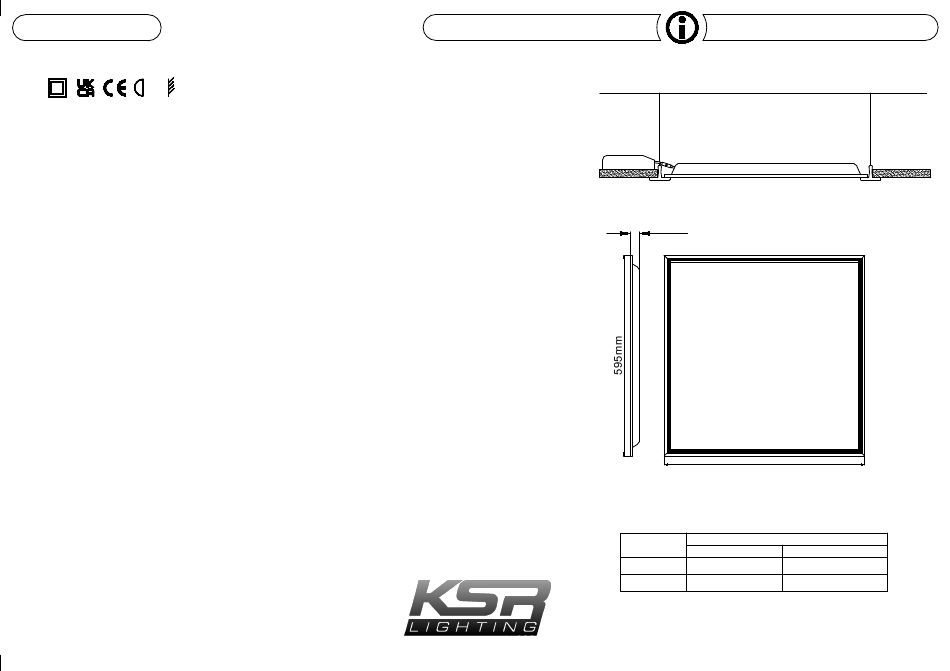

Starlet CR Select Dual Wattage
595mm x 595mm Backlit Panel
Available finish:- White
LED Driver
26mm
595mm
Colour Temperature
Power
4000K
25W
2345lm
3215lm
36W
KSR Aftersales: 023 92 674343
E-mail: aftersales@ksrlighting.com
Minimum
100mm
void
recommended
CRI
88
88
Drg No. KSR98155-IS-A
