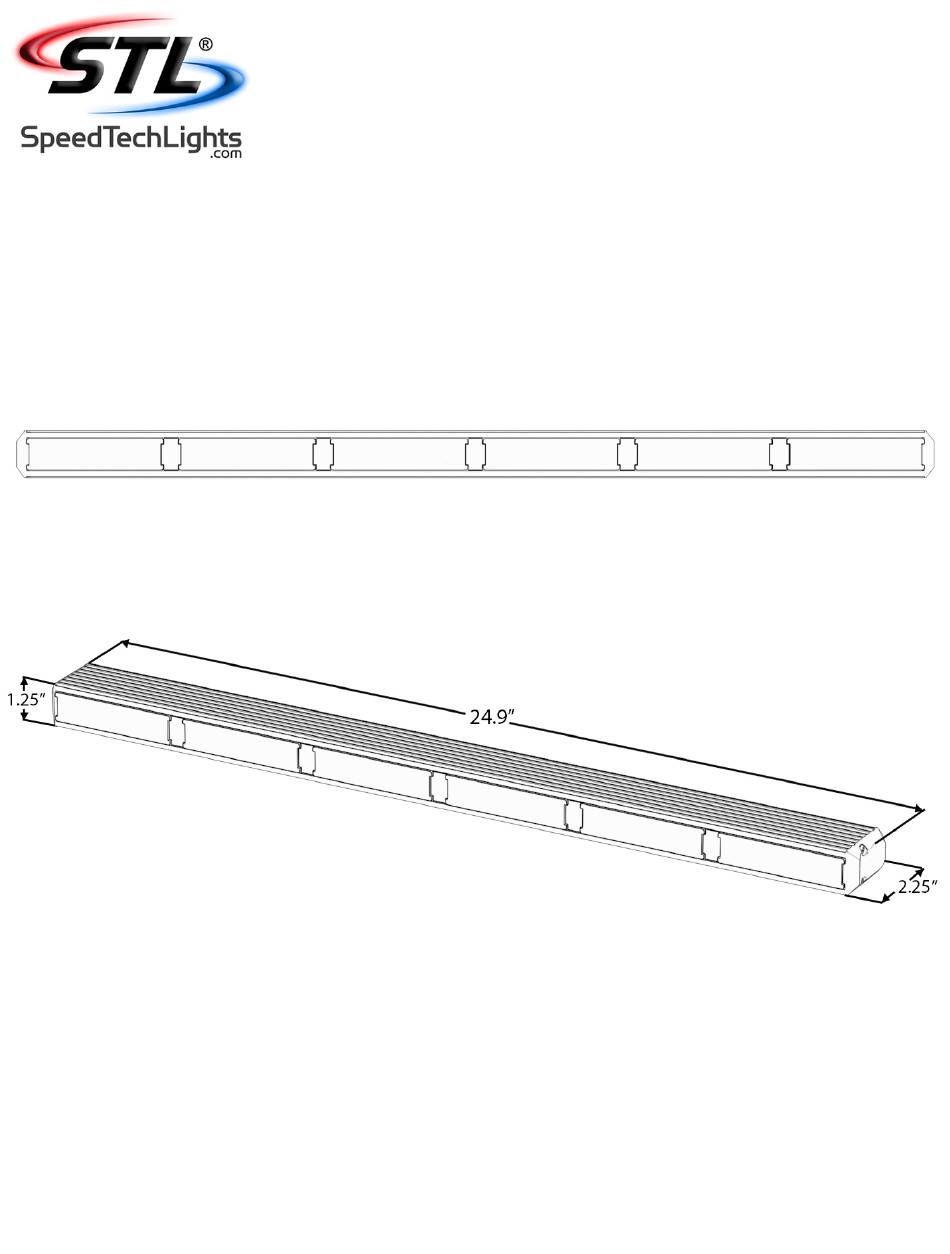

- Page 1 STRIKER ® TRAFFIC ADVISOR D-STT6 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2024...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.
- Page 4 AUX Wiring Diagram Wire Color Function AUX Positive AUX Negative Blue Control box back light * White * Only functional when using in conjunction with STL Direct Control Box (Sold separately) Specifications Voltage 12 VDC Amps < 4.2 Optic LED Count Cable Length 12’...
- Page 5 STRIKER ® TRAFFIC ADVISOR Direct Control Switch Box Operation (Sold Separately) Power Button: • Push this button to turn On/Off the Direct Control Box. Mode 1 Button: • Activate warning function in flash pattern memory 1. Mode 2 Button: • Activate warning function in flash pattern memory 2.
- Page 6 STRIKER ® TRAFFIC ADVISOR 90° Suction Cup Bracket (Sold Separately) • Position the slide track screws included with the unit such that the screws line up with the bracket oval tracks. Use the included nuts and washers to secure the bracket to the unit. •...
- Page 7 STRIKER ® TRAFFIC ADVISOR Windshield Visor Assembly and Mounting The windshield visor contents include: • (1) Visor • (2) Visor end caps • (6) Short screws • (4) Long screws 1. Remove the stock end cap screws from both ends of the Light Bar. NOTE: Save these screws to revert back to non-visor configuration.
- Page 8 STRIKER ® TRAFFIC ADVISOR Flash Pattern List Warning Patterns Traffic Advisor Patterns • Half-Half Slow Left Arrow • Half-Half Medium • Slow Stacking Right to Left Sweep • Half-Half Fast • 1 LED Steady Stacking Right to Left Sweep • Half-Half Medium->Fast •...
