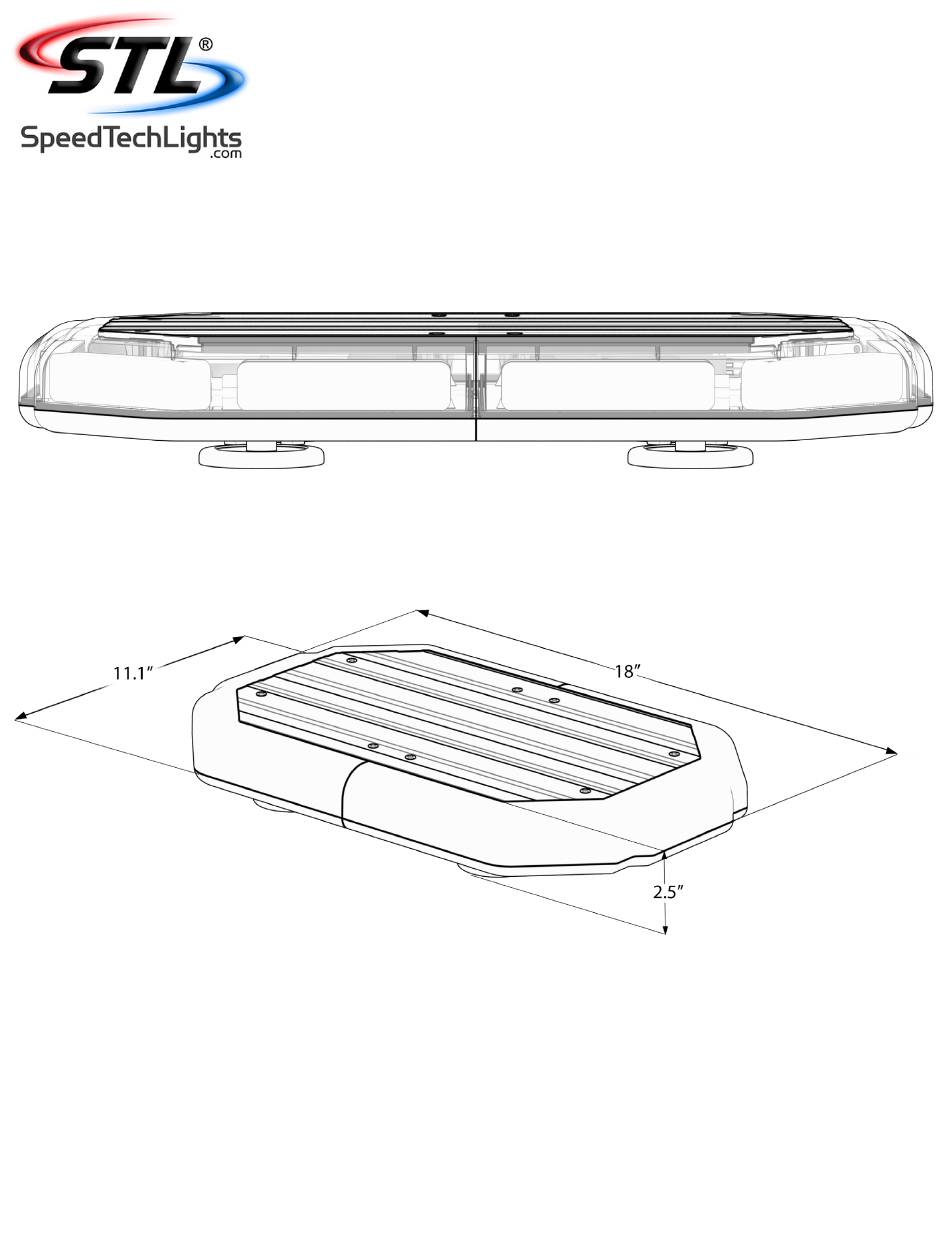

- Page 1 K-FORCE ® MINI LIGHT BAR M-TKF18 M-LKF18 INSTRUCTION MANUAL SpeedTech Lights, Inc © 2019...
- Page 2 This document must be delivered to and read by the end user and installer as it serves to provide you with the required information for proper and safe use of your STL product. Before operating this or any STL products the user and installer must read this manual all the way through. You will find important information in this manual that could prevent property damage and/or serious injury to the user and installer.
- Page 3 Grommets, cable ties, looms, and other installation hardware should be used to anchor and protect all wiring. Fuses should be properly sized and located as close to the power take off points as possible to protect the wiring and device. To protect against short circuits, a fuse is included by STL for all products.
- Page 4 K-FORCE ® MINI LIGHT BAR Wiring Diagram Wire Color Function Positive Red* Negative Black* Flash Pattern Yellow * Indicates a main power cable. NOTE: All cables except Negative contact +12 VDC. Specifications Voltage 12 VDC Amps < 3.5 Optic TIR / Linear LED Count TIR: 24 / Linear: 36 Cable Length...
- Page 5 K-FORCE ® MINI LIGHT BAR Magnet Mounts (Included) • This unit comes included with magnetic mounting brackets pre-attached. • Magnet brackets are adjustable along the length of the aluminum track. • Ensure all four magnets are secured to a flat surface. Stud Mounts (Sold Separately) •...
- Page 6 About Flash Patterns • All STL LED products are equipped with a non-volatile memory which will recall the last flash pattern when the Light Bar is turned on. • Set the flash pattern by pushing the Flash Pattern button on the Cigarette Lighter Plug to cycle through the various patterns.
